Narrow Lot Cottage Home Plan

Plan 11739HZ

  • 1,250

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 1

    Cars

  • This attractive 3 bedroom 2 bath cottage home plan creates a very warm and inviting place for you and your family to call home.
  • Only 29' wide, the home is packed with features including large bedrooms, a private master suite with large walk-in closet and dual sinks, lots of storage and a pantry.

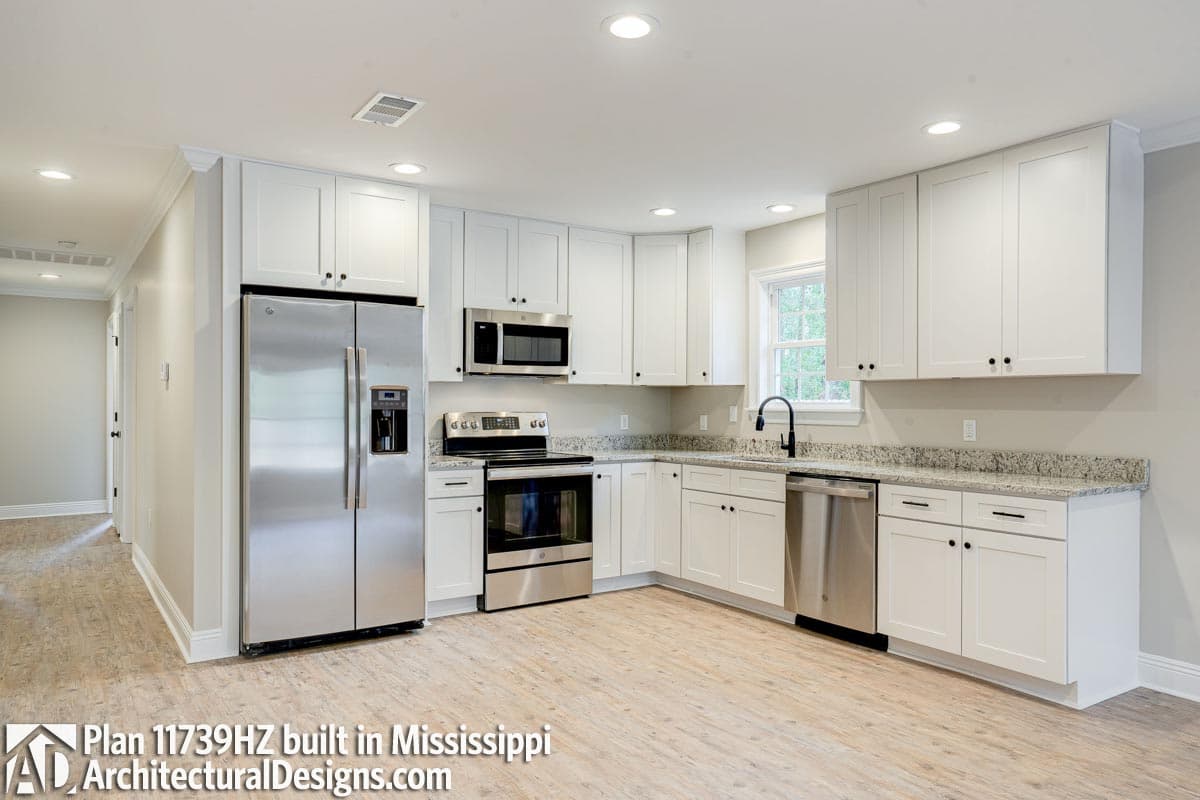

  • The open living room/dining/kitchen area is perfect for entertaining.

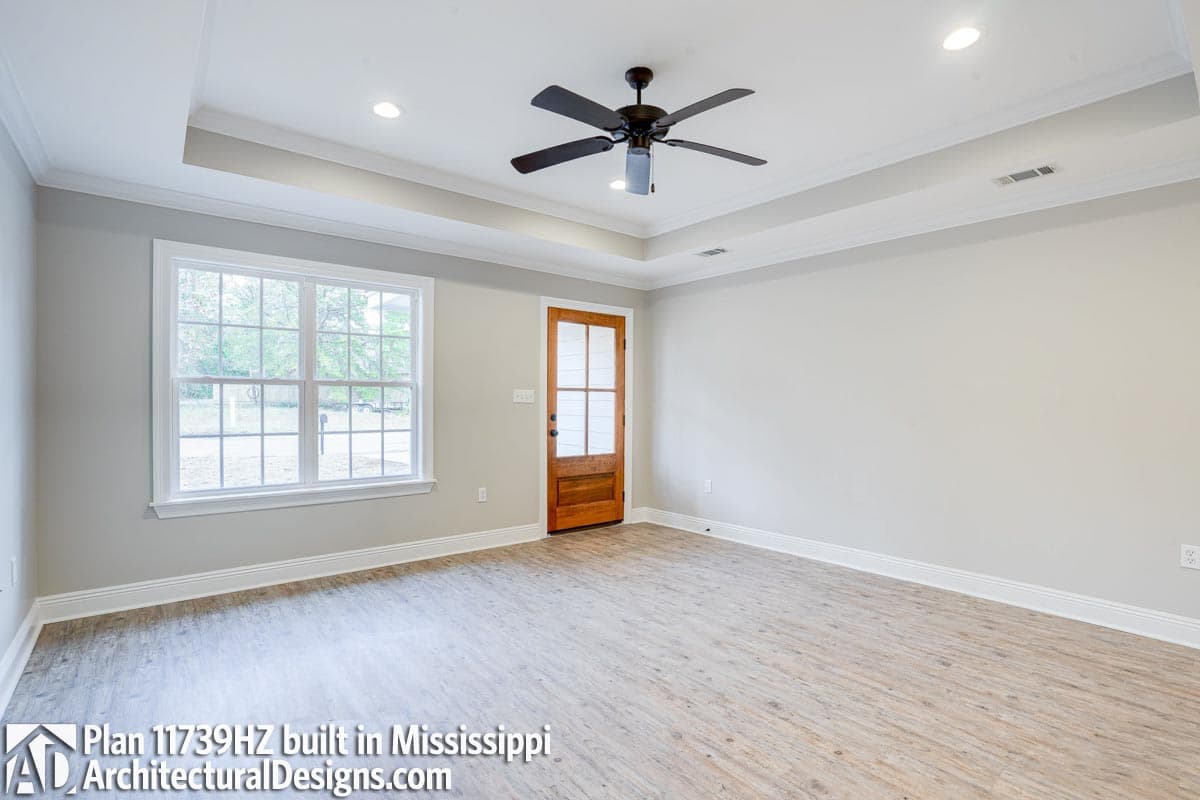

  • Raised ceilings in the master bedroom and living room area add interest.
  • Related Plan: Replace the garage with a carport with house plan 11738HZ.

This house plan has 10 pages as follows:

Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation Plan and Details
Page 3  Detailed floor plan and electrical plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

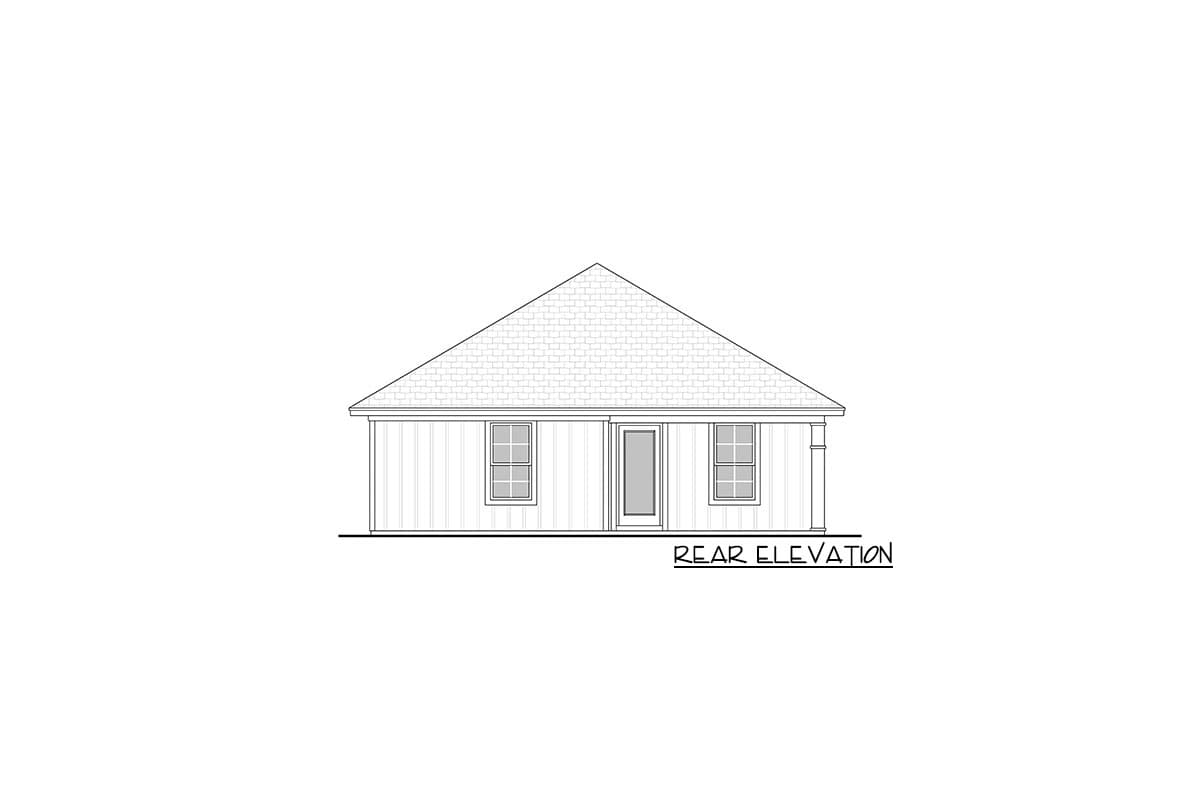

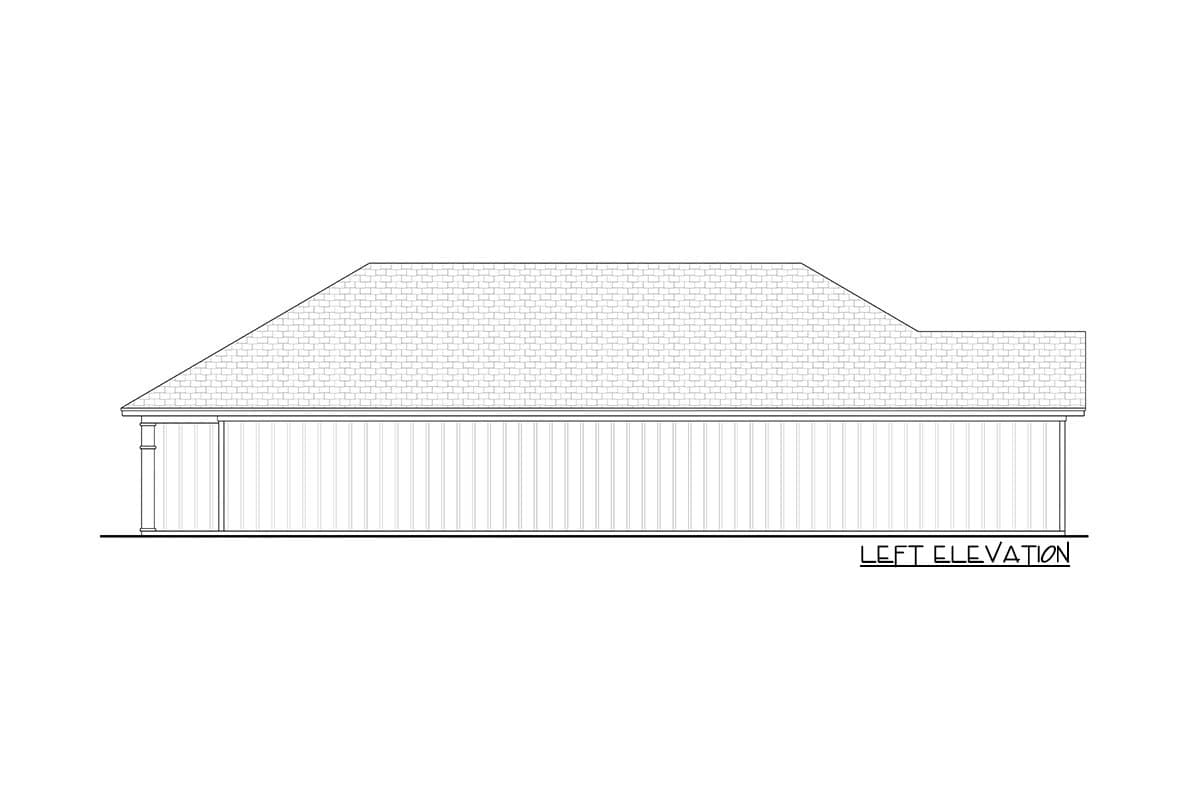

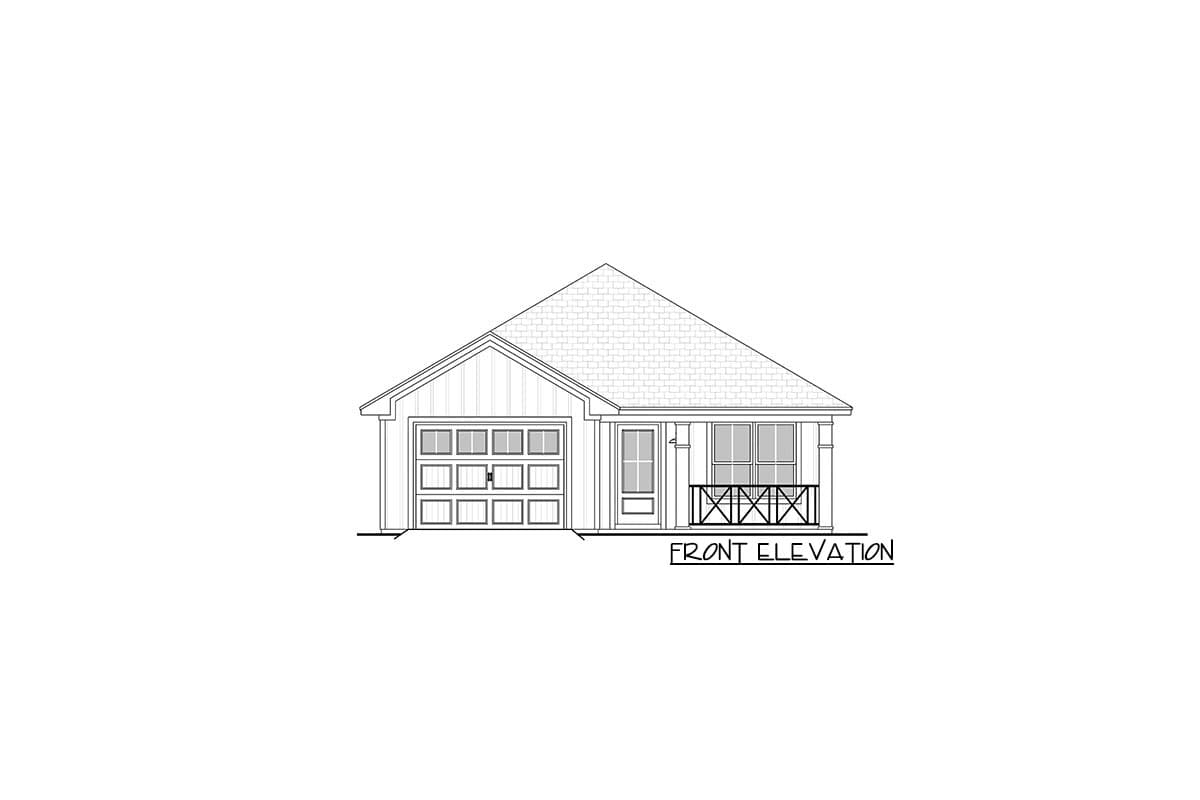

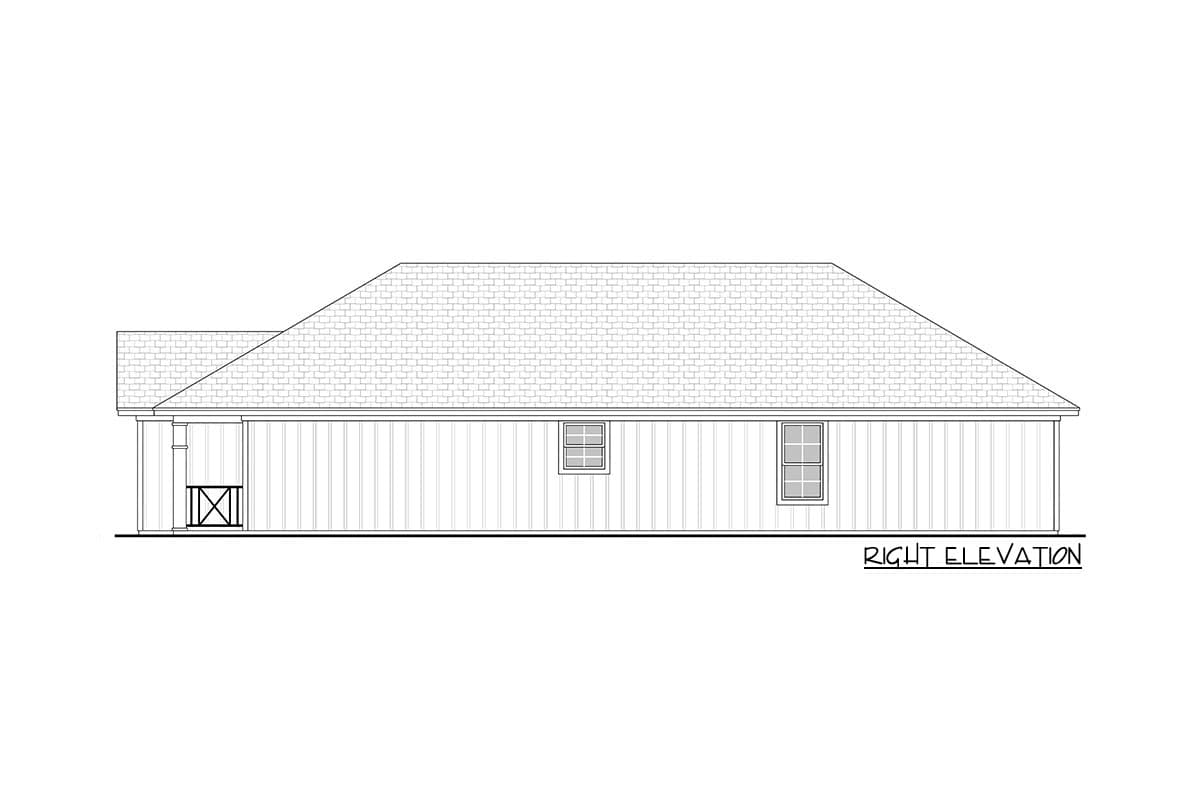

Page 4  Exterior views with additional notes and details
Page 5  Cross Section & kitchen cabinet views
Page 6  Roof plan and span charts with additional details
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

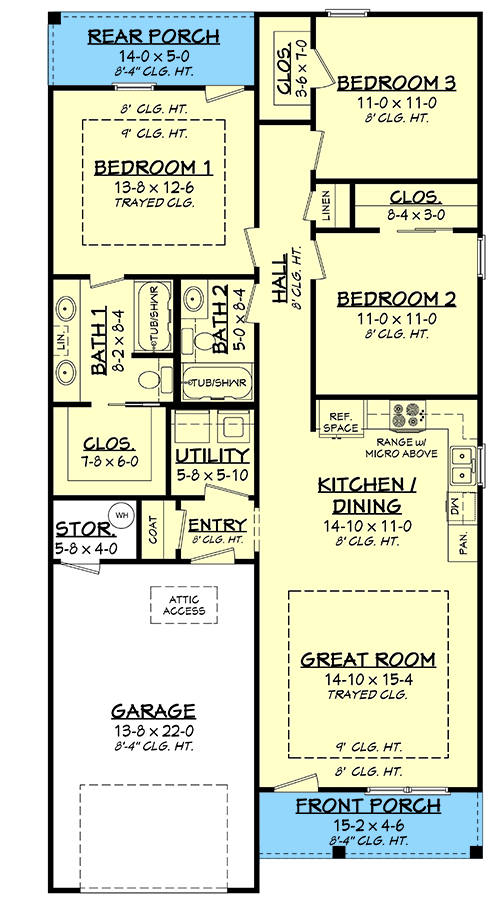

Narrow Lot Cottage Home Plan - 11739HZ floor plan - Main Level

Basement version

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

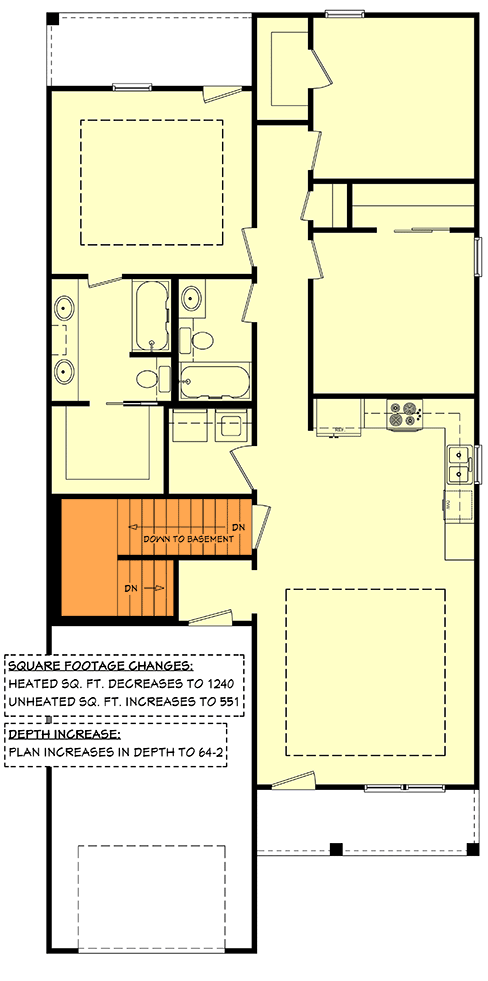

Narrow Lot Cottage Home Plan - 11739HZ floor plan - Basement version

Plan details

Narrow Lot Cottage Home Plan

  • 1,250

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 1

    Car garage

Buy This Plan
  • PDF - Single-Build $1,045
  • 5 Sets + PDF $1,295
  • PDF - Unlimited Build $1,745
  • CAD - Unlimited Build $2,045
  • View all purchase option online

About This Plan

  • This attractive 3 bedroom 2 bath cottage home plan creates a very warm and inviting place for you and your family to call home.
  • Only 29' wide, the home is packed with features including large bedrooms, a private master suite with large walk-in closet and dual sinks, lots of storage and a pantry.
  • The open living room/dining/kitchen area is perfect for entertaining.
  • Raised ceilings in the master bedroom and living room area add interest.
  • Related Plan: Replace the garage with a carport with house plan 11738HZ.

Floor Plans

  • Main Level

  • Basement version

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,250 sq. ft.
  • 1st Floor: 1,250 sq. ft.
  • Storage: 26 sq. ft.
  • Porch, Rear: 70 sq. ft.
  • Porch, Front: 68 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 29' 6"
  • Depth: 59' 10"
  • Max ridge height: 17' 0"

Garage

  • Type: Attached
  • Area: 315 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 4" First Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick Or Truss
