Plan 64411SC

Narrow Lot Craftsman with 2 Beds

Pageloader

Narrow Lot Craftsman with 2 Beds

Plan 64411SC

  • 1,490

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This 2 bed Craftsman house plan, just 34' wide, was designed for a narrow lot. It presents itself with a 2-car front facing garage and a narrow covered entry porch. The windows in front are for the office, privately located at the front of the home.
  • The main portion of the home is open concept. The living room has a volume ceiling and has views all the way to the sliding doors in back that lead to your patio.
  • An island in the kitchen has two sinks and the dishwasher and gives you workspace. There is seating for three at the counter.
  • The master bedroom is in back and has a walk-in closet and access to the outside.
  • The 2-car garage has a narrow storage area plus dedicated space for the mechanicals.
  • The roof is a truss design with a 5:12 pitch.
  • NOTE: Plans cannot be built within a 50 mile radius of Fort Collins, CO.

1.       Cover Sheet- project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.

2.       Foundation/basement plan-showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.

3.       Main Level Plan-floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.

4.       Upper Level Plan-(if needed)-same information as Main Level.

5.       Roof Plan-layout with pitch markers, dimensions and notes.

6.       Main Level Electrical Plan- electrical outlets, switches and light locations shown.

7.       Upper Level Electrical Plan-(if needed) electrical outlets, switches and light locations shown.

8.       Exterior Elevations-Elevations of the Front and Right side with notes, dimensions and material designations.

9.       Exterior Elevations-Elevations of the Back and Left side with notes, dimensions and material designations.

10.   Sections and details-One or more building sections to show vertical relationships and construction plate heights, details as needed.

11.   Interior Elevations and Details-mostly millwork, fireplace and other items that need additional explanation, details as needed.

Floor Plan

Plan details



Narrow Lot Craftsman with 2 Beds

  • 1,490

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $950
  • PDF - multi-use $1,050
  • CAD $1,150
  • CAD - multi-use $1,250
  • View all purchase option online

About This Plan

  • This 2 bed Craftsman house plan, just 34' wide, was designed for a narrow lot. It presents itself with a 2-car front facing garage and a narrow covered entry porch. The windows in front are for the office, privately located at the front of the home.
  • The main portion of the home is open concept. The living room has a volume ceiling and has views all the way to the sliding doors in back that lead to your patio.
  • An island in the kitchen has two sinks and the dishwasher and gives you workspace. There is seating for three at the counter.
  • The master bedroom is in back and has a walk-in closet and access to the outside.
  • The 2-car garage has a narrow storage area plus dedicated space for the mechanicals.
  • The roof is a truss design with a 5:12 pitch.
  • NOTE: Plans cannot be built within a 50 mile radius of Fort Collins, CO.

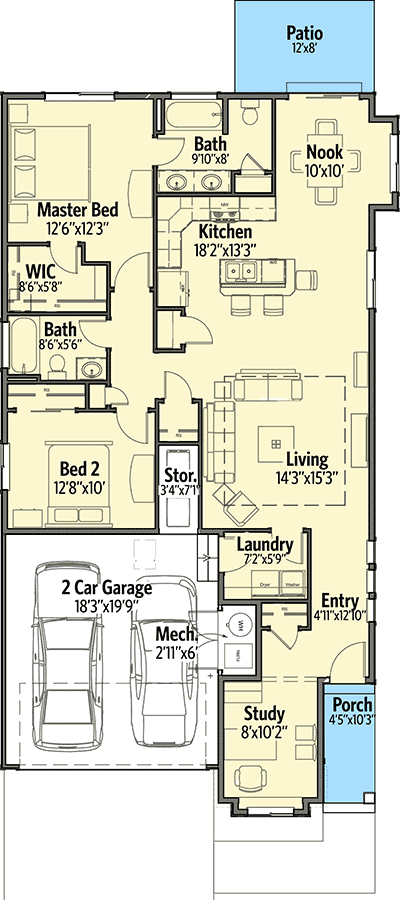

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,490 sq. ft.
  • 1st Floor: 1,490 sq. ft.
  • Porch, Front: 47 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 34' 0"
  • Depth: 54' 0"
  • Max ridge height: 17' 0"

Garage

  • Type: Attached
  • Area: 372 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: Truss
