Plan 92052VS
Narrow Lot Northwest House Plan
Heated S.F.
1,532
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • A clipped roof line on the front gable gives this Northwest house plan a unique look.
  • The home comes with comfortable living all one one floor.
  • Interesting details include a half wall between two columns that separate the kitchen from the vaulted living area.
  • Sliding glass doors take you out to the back patio.
  • You can also see the patio from the master sitting room that has windows on three sides.
  • The vaulted master suite is a real treat and is separated from the family bedrooms located at the front of the house.
What's Included
  • Foundation plan
  • Floor plans with electrical layouts
  • 1/4" Elevations (all sides)
  • Cabinet details and interior elevations (when necessary)
  • Roof Plan
  • Typical Wall Section and two standard detail sheets
  • General Notes Page containing reference to the 2012 IRC building code to supplement plans drawn prior to these changes.
  • Other details shown as required by complexity of plans
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Narrow Lot Northwest House Plan

  • 1,532

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

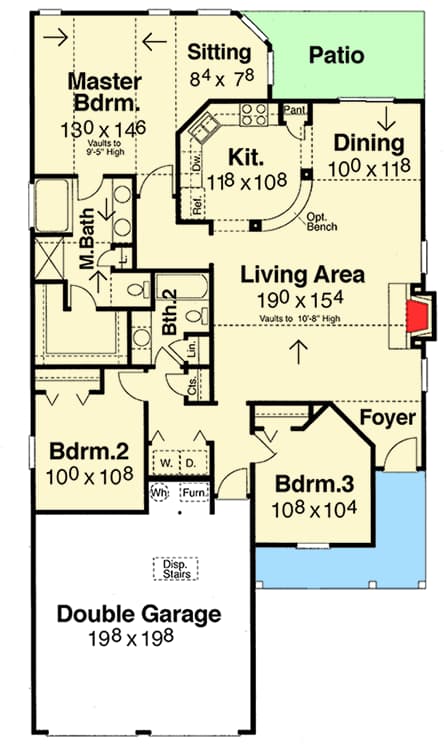

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,532 sq. ft.
  • 1st Floor: 1,532 sq. ft.

Dimensions

  • Width: 38' 0"
  • Depth: 66' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 428 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
