Plan 60537ND

Narrow Lot Traditional Home Plan

Heated S.F.
1,646
Beds
4
Baths
3.5
Stories
2
Cars
1

Floor Plan

Plan 60537ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 60537ND

M-F 9am-5pm EST |

1-203-761-8500

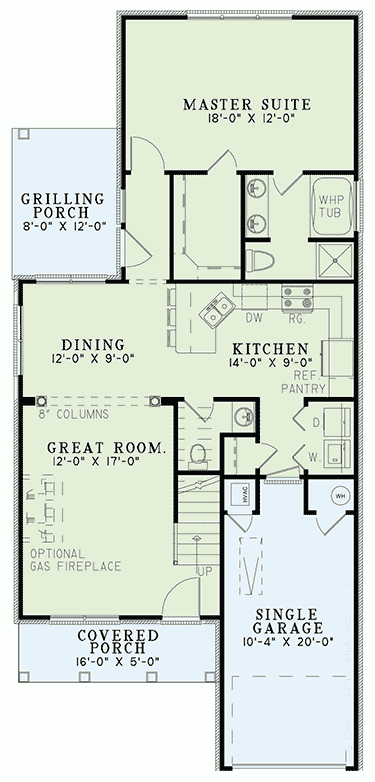

Main Level

Plan 60537ND: Narrow Lot Traditional Home Plan - Floor Plan - Main Level - Traditional

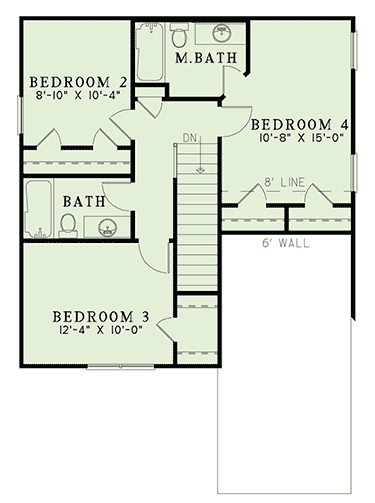

2nd Floor

Plan 60537ND: Narrow Lot Traditional Home Plan - Floor Plan - 2nd Floor - Traditional

Plan Details

  • Only 27' wide, this Traditional home will fit well on a narrow lot with plenty of style.
  • Covered porchs in front and back extend the living space while an open floor plan inside makes the home feel larger.
  • The first floor master suite has a walk-in closet and its own private bath.
  • Upstairs, you will find three more bedrooms, one of which has two closets and its own bath.
  • Related Plan: Get a 3 bedroom version with house plan 59073ND.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,646 sq. ft.

1st Floor

1,004 sq. ft.

2nd Floor

642 sq. ft.

Porch, Front

82 sq. ft.

Porch, Rear

96 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

27' 0"

Depth

60' 0"

Max Ridge Height

27' 10"

Garage

Type

Attached

Area

251 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Laundry - Main Level

Master Suite - 1st Floor
