Narrow Lot Traditional House Plan

Plan 59247ND

  • 1,922

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

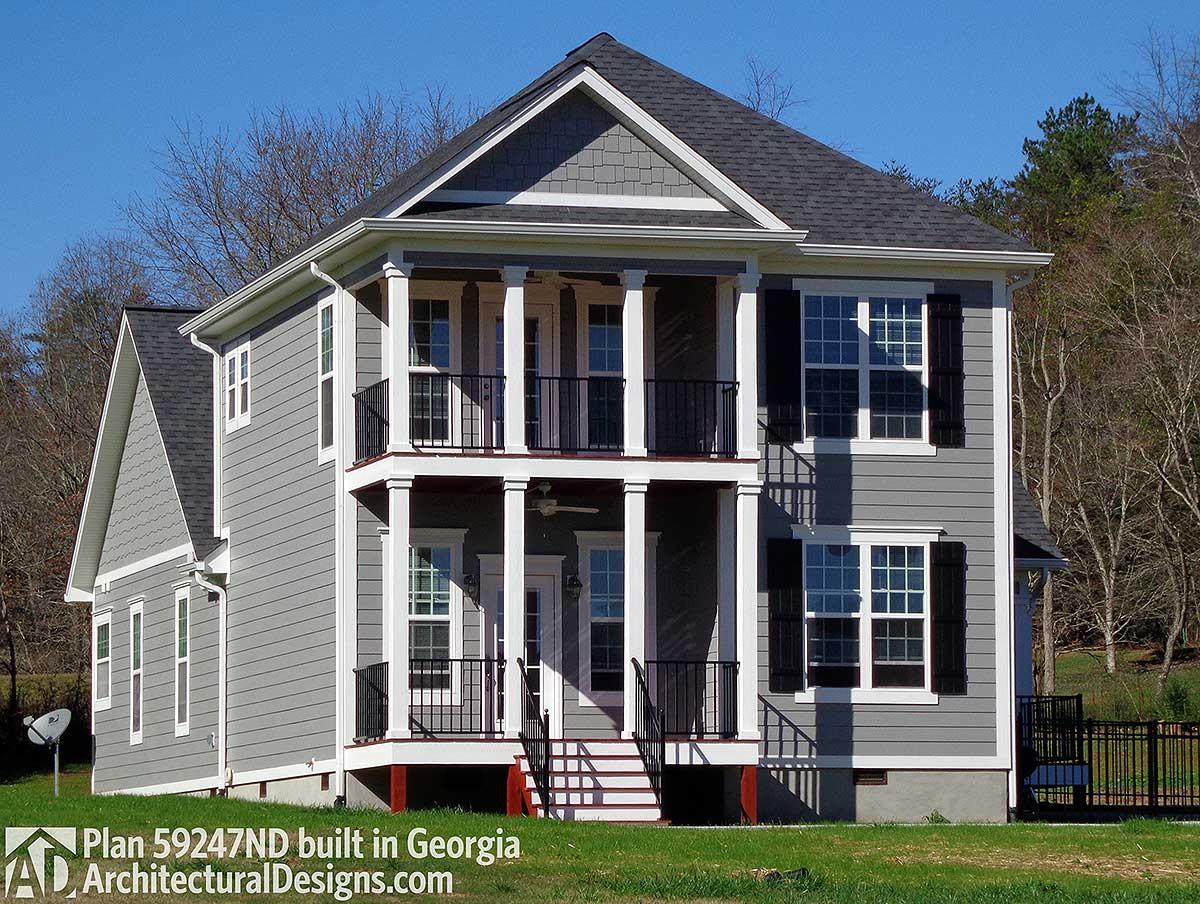

  • CLIENT PHOTOS: See pictures of this home built in Georgia in our Google+ photo album.
  • History repeats itself in this beautiful home design. This traditional neighborhood design is perfect for a narrow lot and is packed with amenities.
  • A covered porch with a balcony above and grilling porch on the side is wonderful for afternoon relaxation.
  • The great room has a corner fireplace and opens to a column enhanced dining room.
  • The kitchen is efficiently arranged and adjoins a roomy breakfast room.
  • French doors lead you into the master bedroom Suite where privacy awaits. The master bathroom is loaded with a whirlpool tub, glass shower, and double lavatories.
  • This split bedroom plan has a full bathroom and two additional bedrooms that both access the balcony.
  • A built-in desk is a nice convenience in the common area upstairs.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Building Sections (1/4″ or 1/2″ = 1′)
  • Kitchen and Bath Elevations (1/2″ = 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches

Floor Plan

Plan details

Architectural Style

Plan Collections



Narrow Lot Traditional House Plan

  • 1,922

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 1 Set $580
  • 5 Sets $630
  • 8 Sets $720
  • Reproducible Set $1,105
  • PDF - single-use $1,105
  • CAD $1,700
  • View all purchase option online

About This Plan

  • CLIENT PHOTOS: See pictures of this home built in Georgia in our Google+ photo album.
  • History repeats itself in this beautiful home design. This traditional neighborhood design is perfect for a narrow lot and is packed with amenities.
  • A covered porch with a balcony above and grilling porch on the side is wonderful for afternoon relaxation.
  • The great room has a corner fireplace and opens to a column enhanced dining room.
  • The kitchen is efficiently arranged and adjoins a roomy breakfast room.
  • French doors lead you into the master bedroom Suite where privacy awaits. The master bathroom is loaded with a whirlpool tub, glass shower, and double lavatories.
  • This split bedroom plan has a full bathroom and two additional bedrooms that both access the balcony.
  • A built-in desk is a nice convenience in the common area upstairs.

Floor Plans

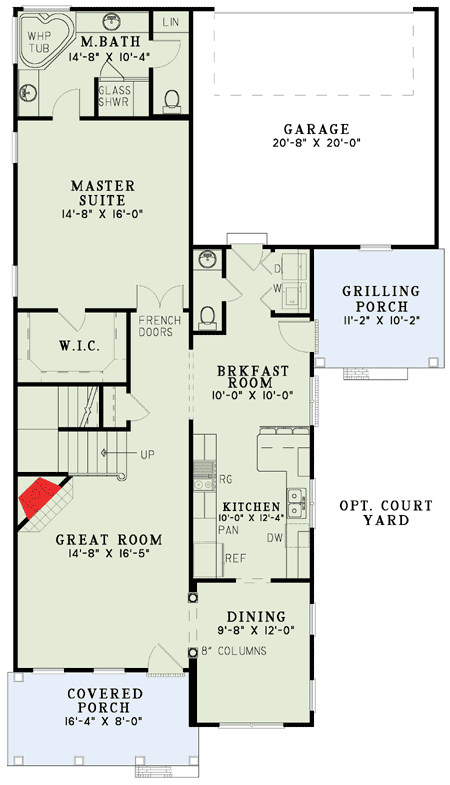

  • Main Level

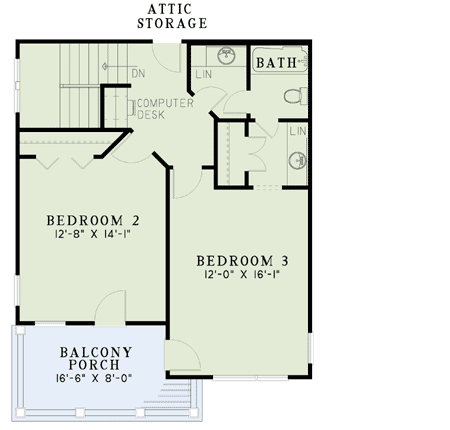

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,922 sq. ft.
  • 1st Floor: 1,298 sq. ft.
  • 2nd Floor: 624 sq. ft.
  • Porch, Combined: 353 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 36' 4"
  • Depth: 64' 10"
  • Max ridge height: 29' 2"

Garage

  • Type: Attached
  • Area: 431 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

  • Country
  • Traditional

Special features

  • 1st Floor Master Suite
  • CAD Available
  • Jack & Jill Bath
  • PDF
