Plan 59878ND
Narrow Lot with Roomy Interior
Heated S.F.
1,263
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • This delightful home plan has a roomy interior but well suited for a narrow lot.
  • A cozy covered porch with columns is the perfect place for relaxation.
  • Separate from the other bedrooms is the master suite is enhanced by a 10' boxed ceiling and a private bath including a corner whirlpool tub, separate shower, double vanity and walk-in closet.
  • Centrally located is the great room with an angled fireplace, boxed ceiling plenty of wall space.
  • Follow through to a wonderfully-designed kitchen with bar seating, a dining area with access to the rear patio.
What's Included
  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

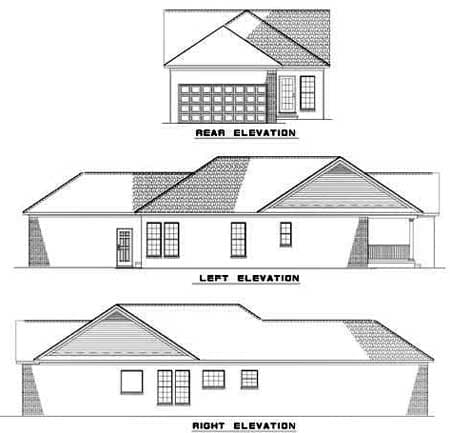

  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Narrow Lot with Roomy Interior

  • 1,263

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

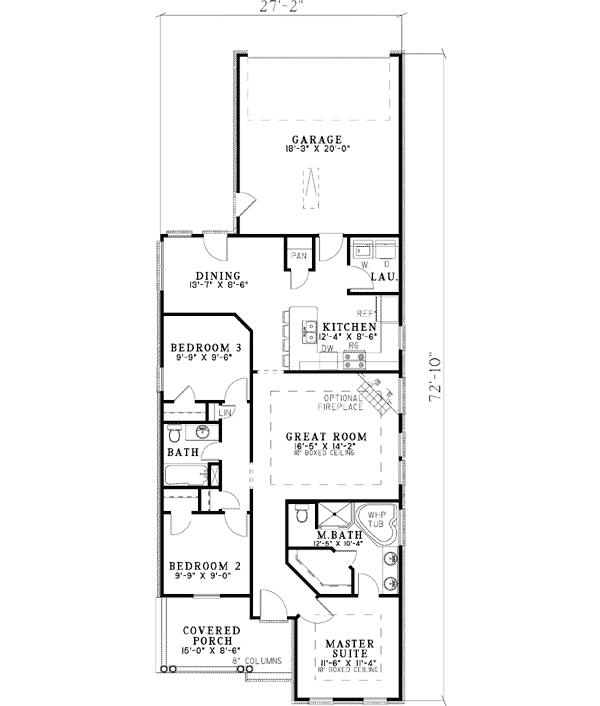

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,263 sq. ft.
  • 1st Floor: 1,263 sq. ft.

Dimensions

  • Width: 27' 2"
  • Depth: 72' 10"
  • Max ridge height: 18' 5"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 382 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Stick
