Plan 521014TTL Narrow Southern Cottage with Rear Double Garage

1,609 3 2 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Narrow Southern Cottage with Rear Double Garage

Plan 521014TTL

  • 1,609

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

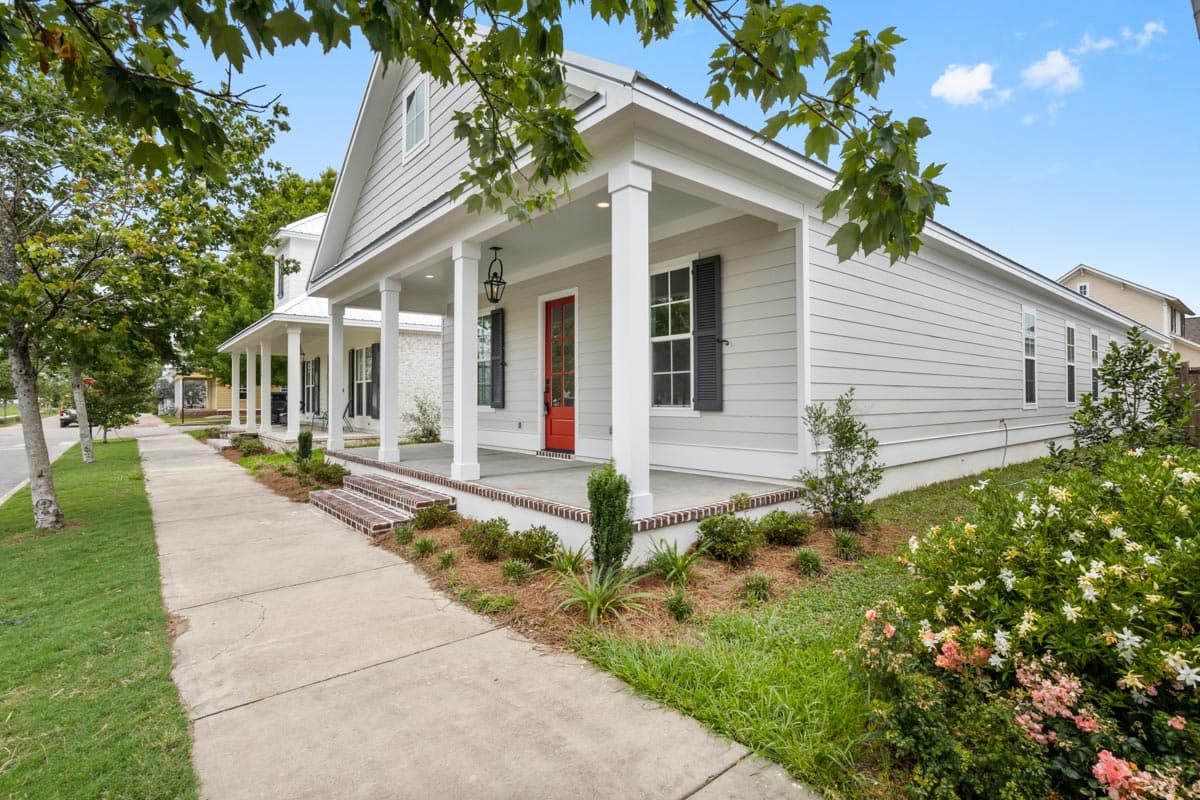

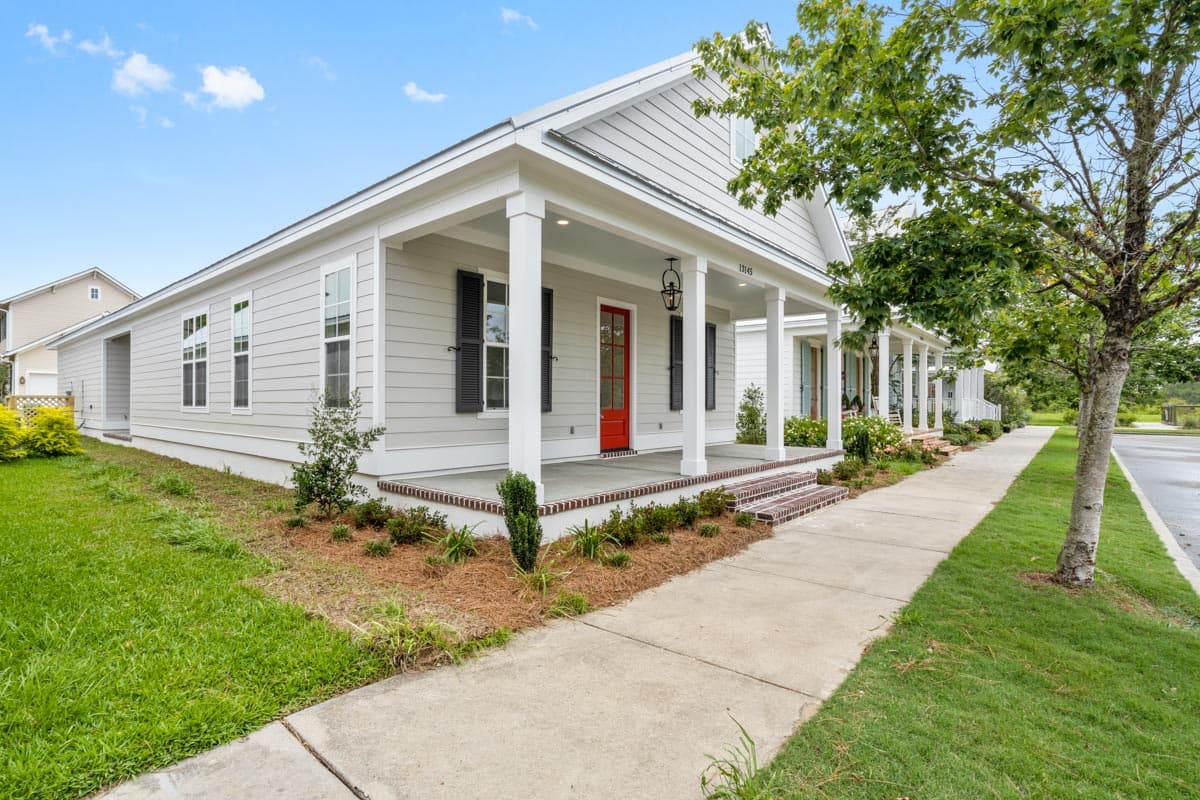

  • The charming curb appeal of this Southern Cottage plan delivers a symmetrical front elevation with an 8'-deep front porch spanning the width of the home. The narrow footprint makes this home perfect for smaller lots.

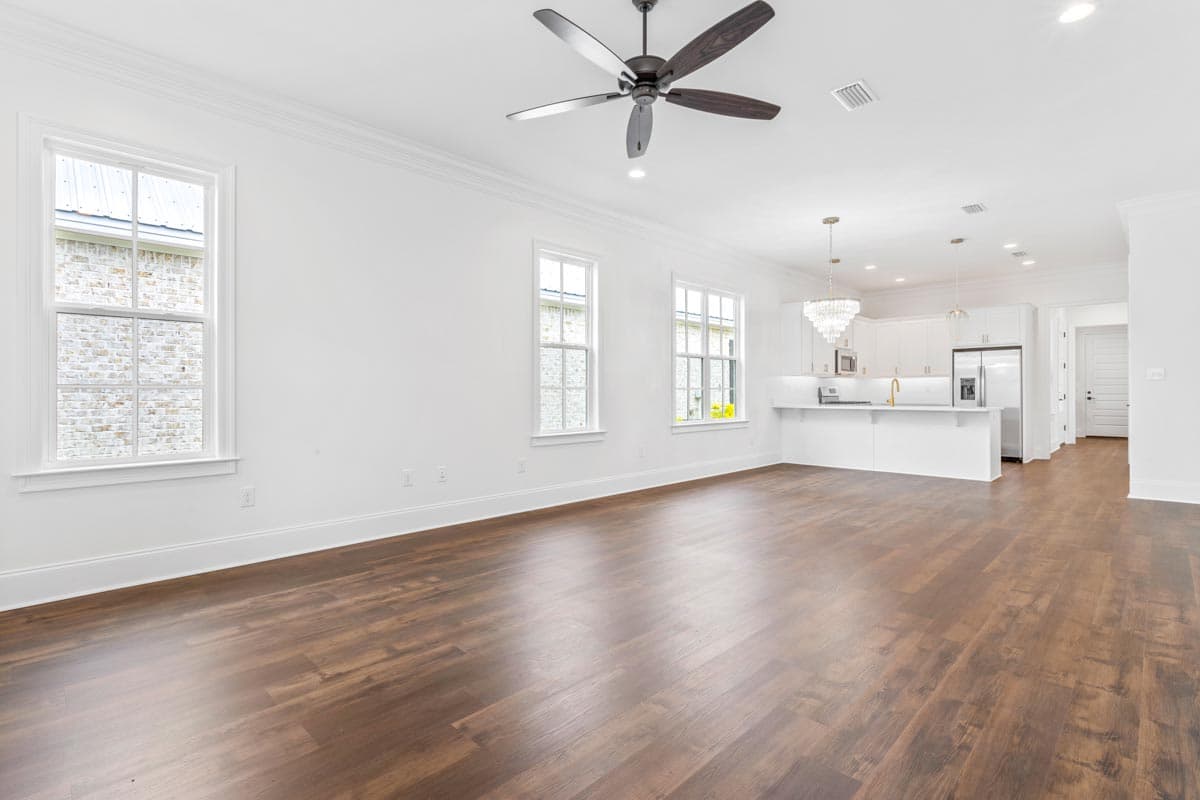

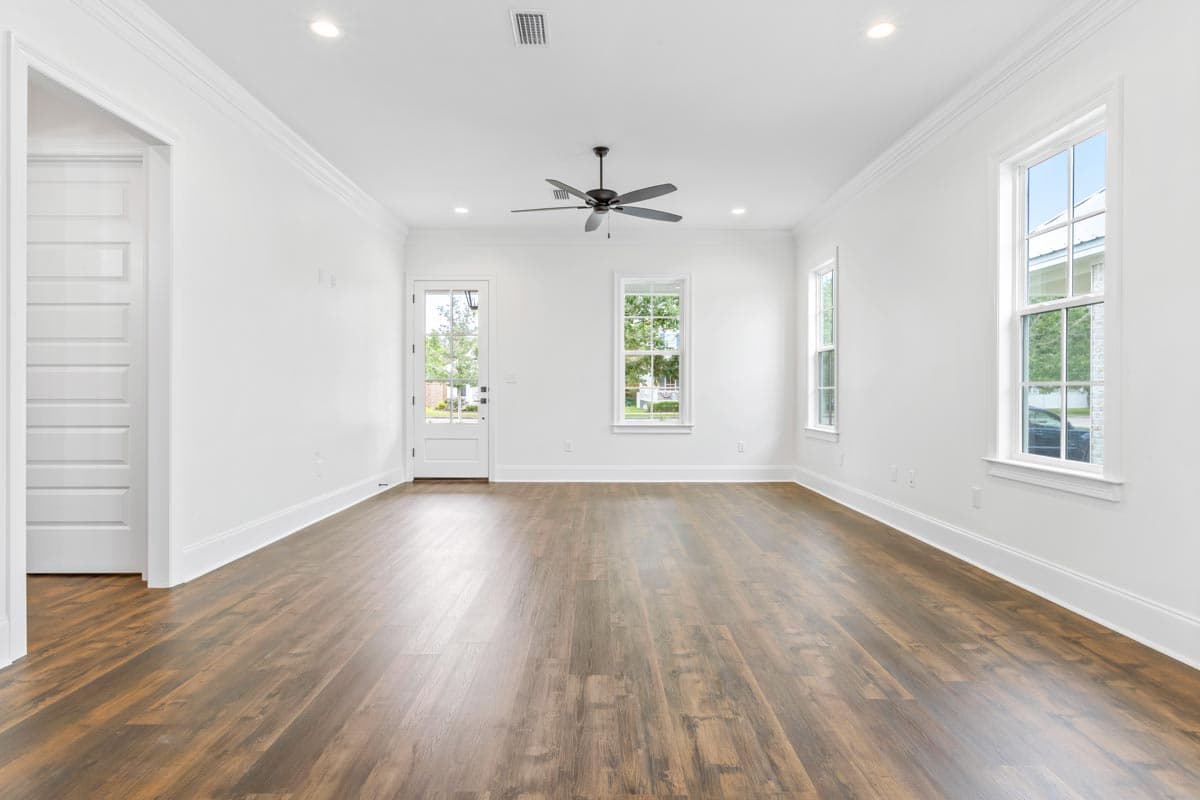

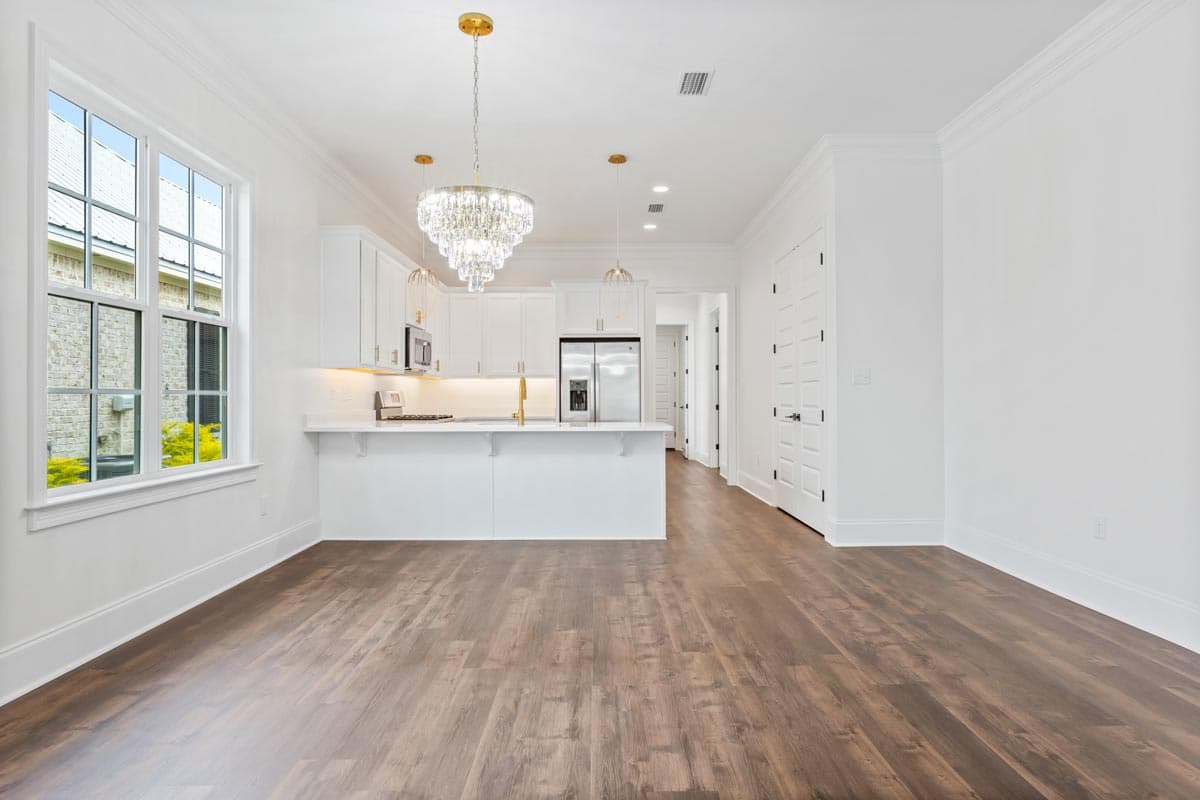

  • An open-concept design greets you upon entering; the living room flows into the dining area, which seamlessly connects to the kitchen.

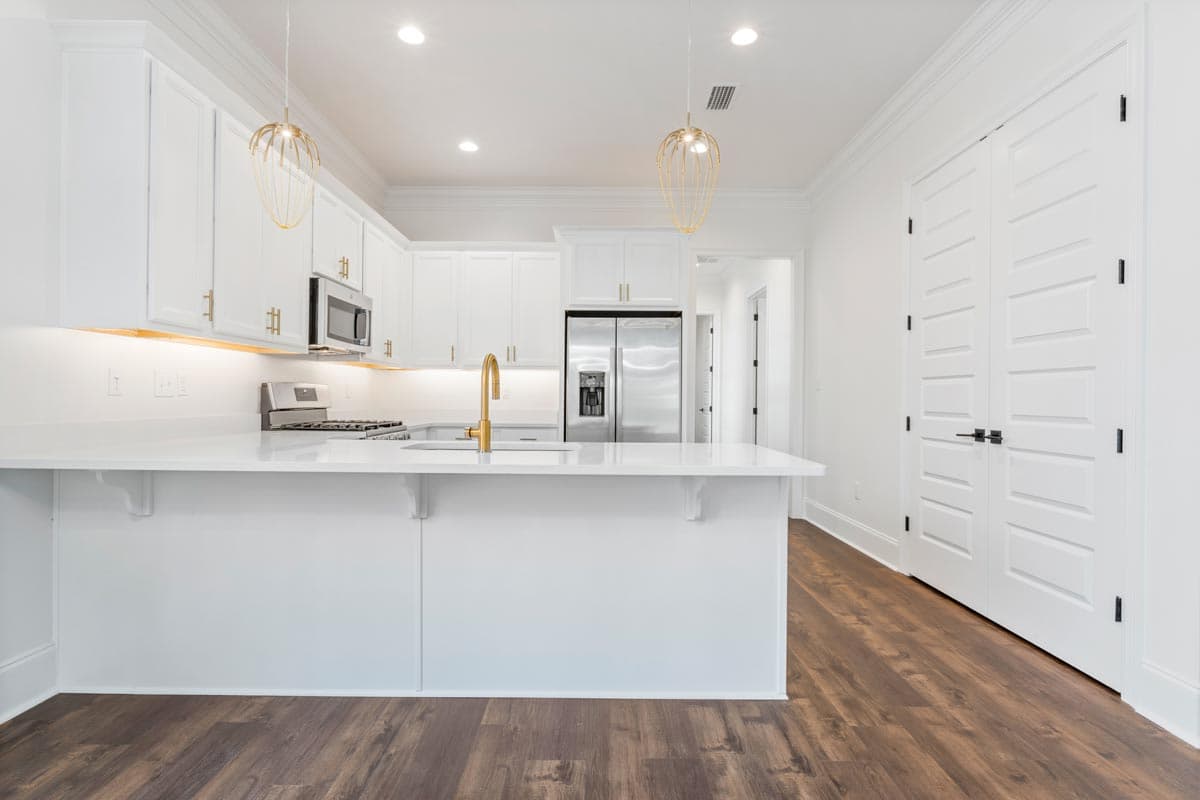

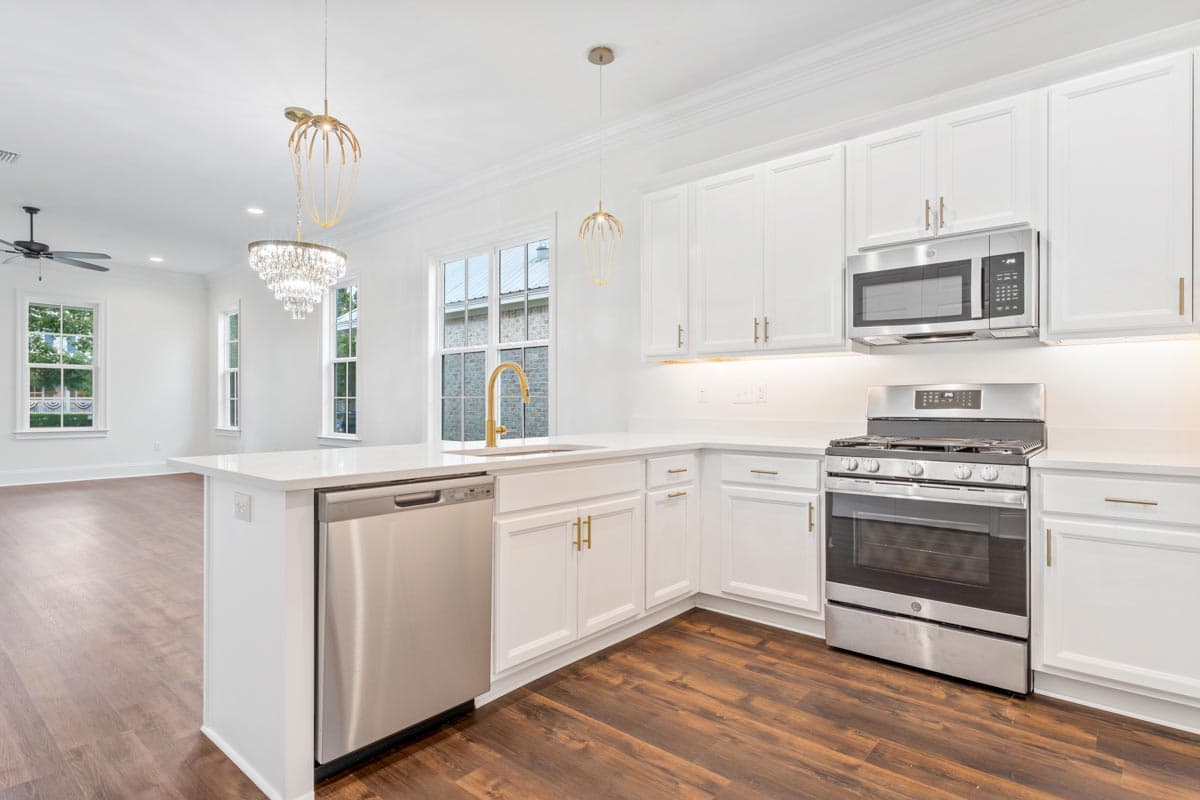

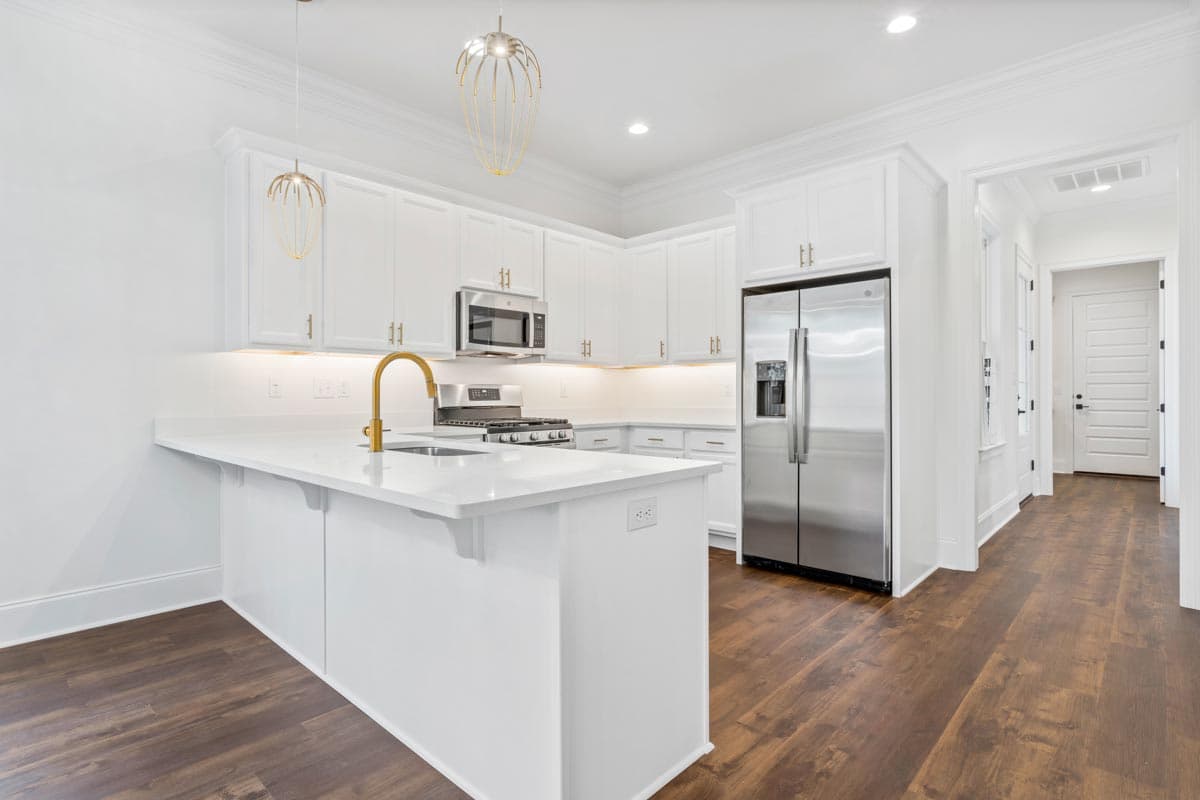

  • U-shaped cabinetry forms the kitchen that includes an easily accessible closet pantry nearby, and the adjacent side porch is the perfect space to grill.

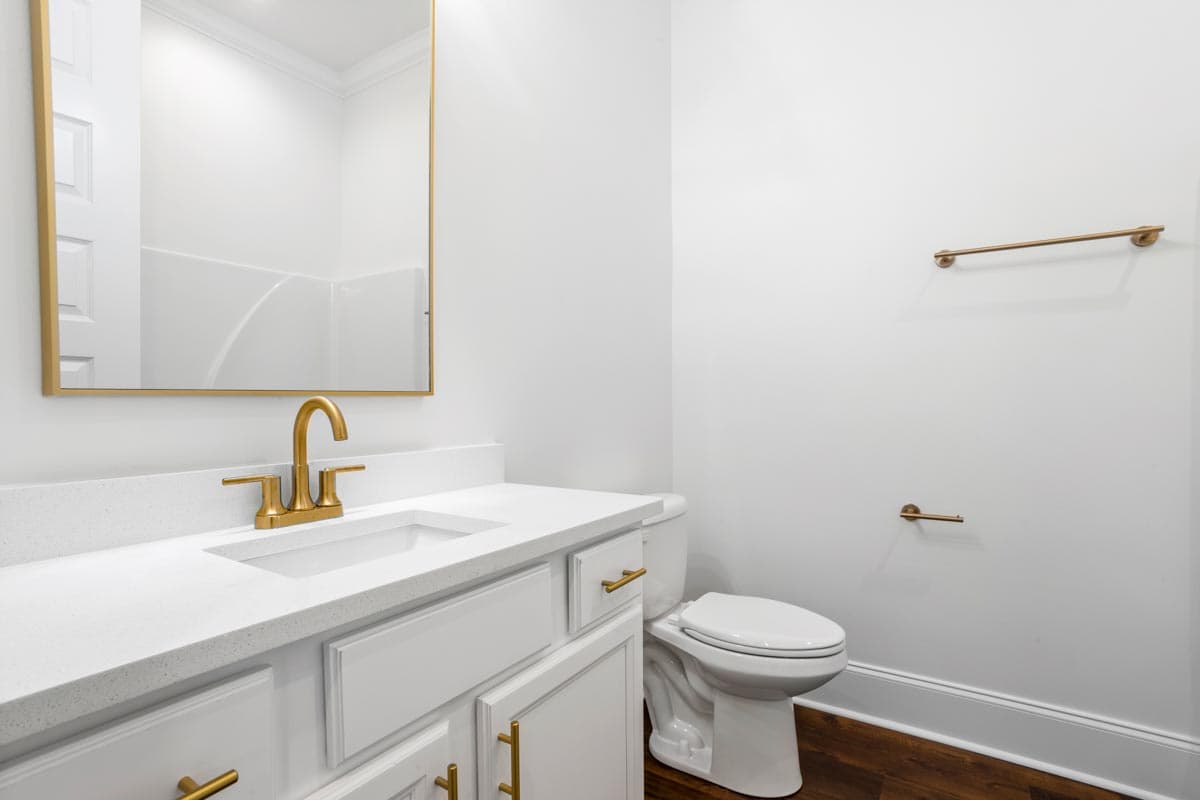

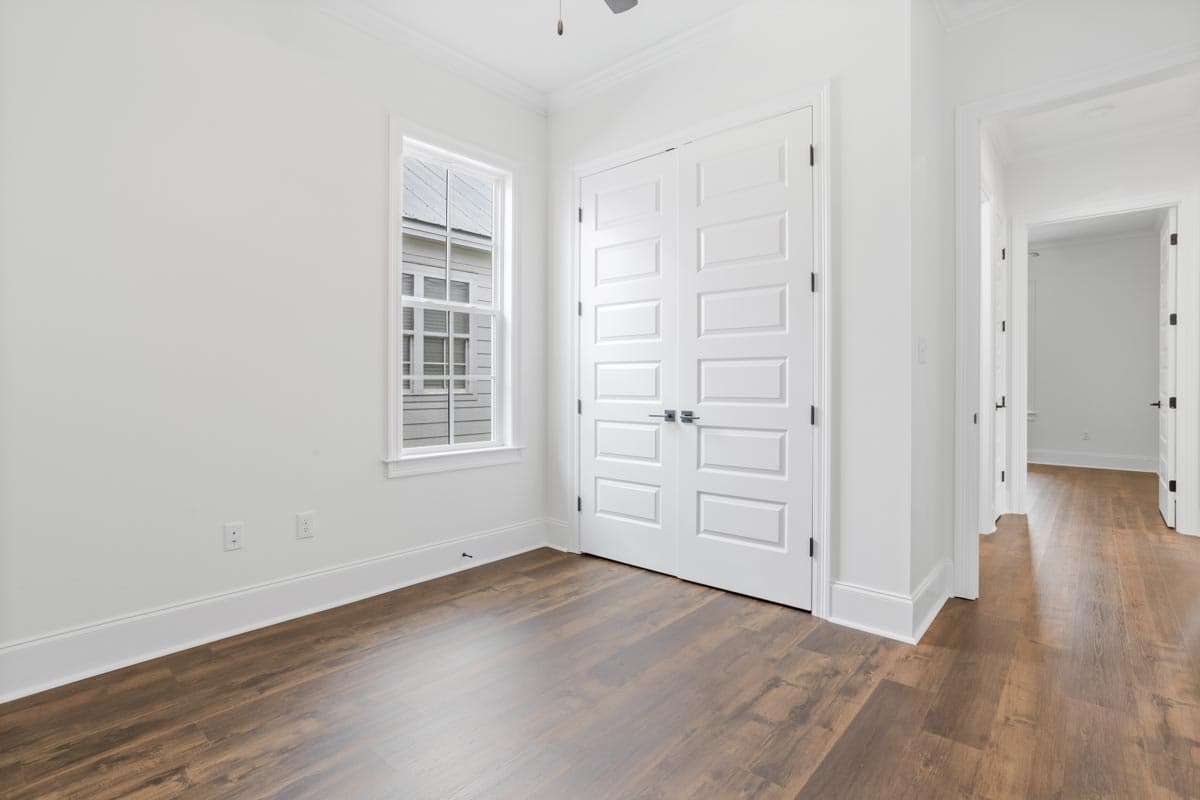

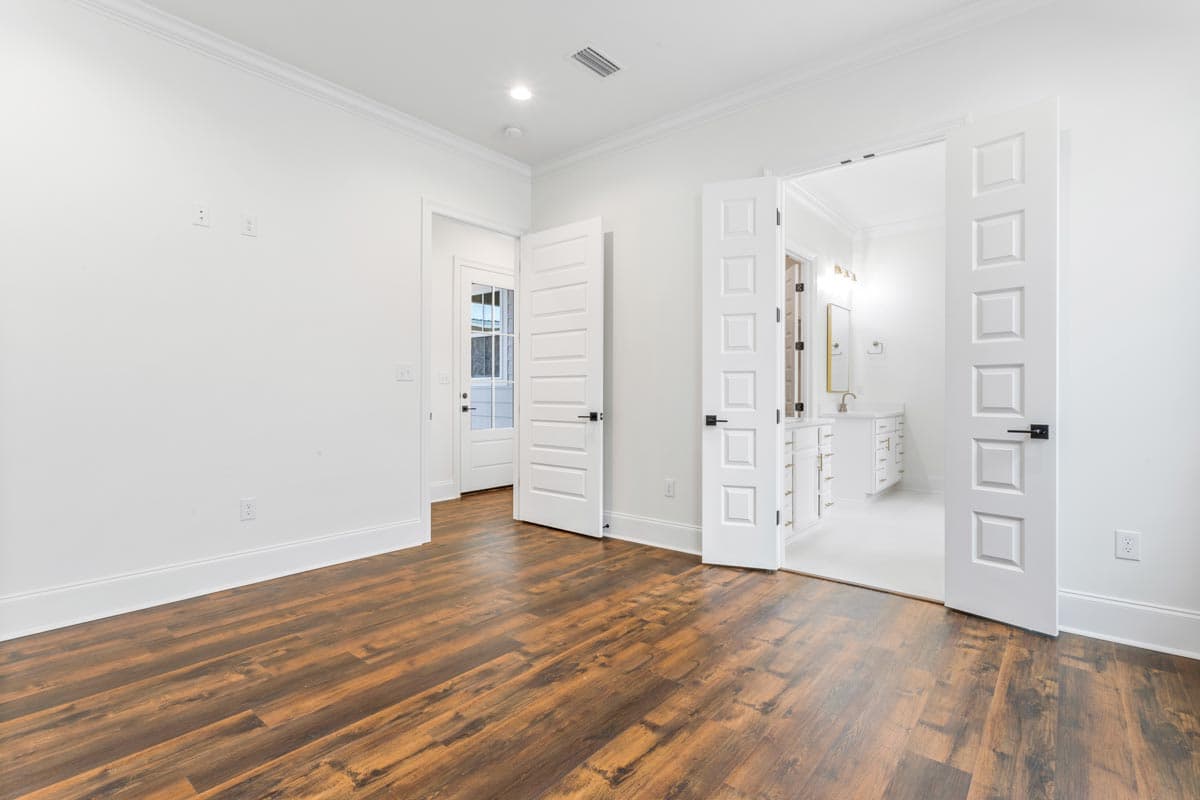

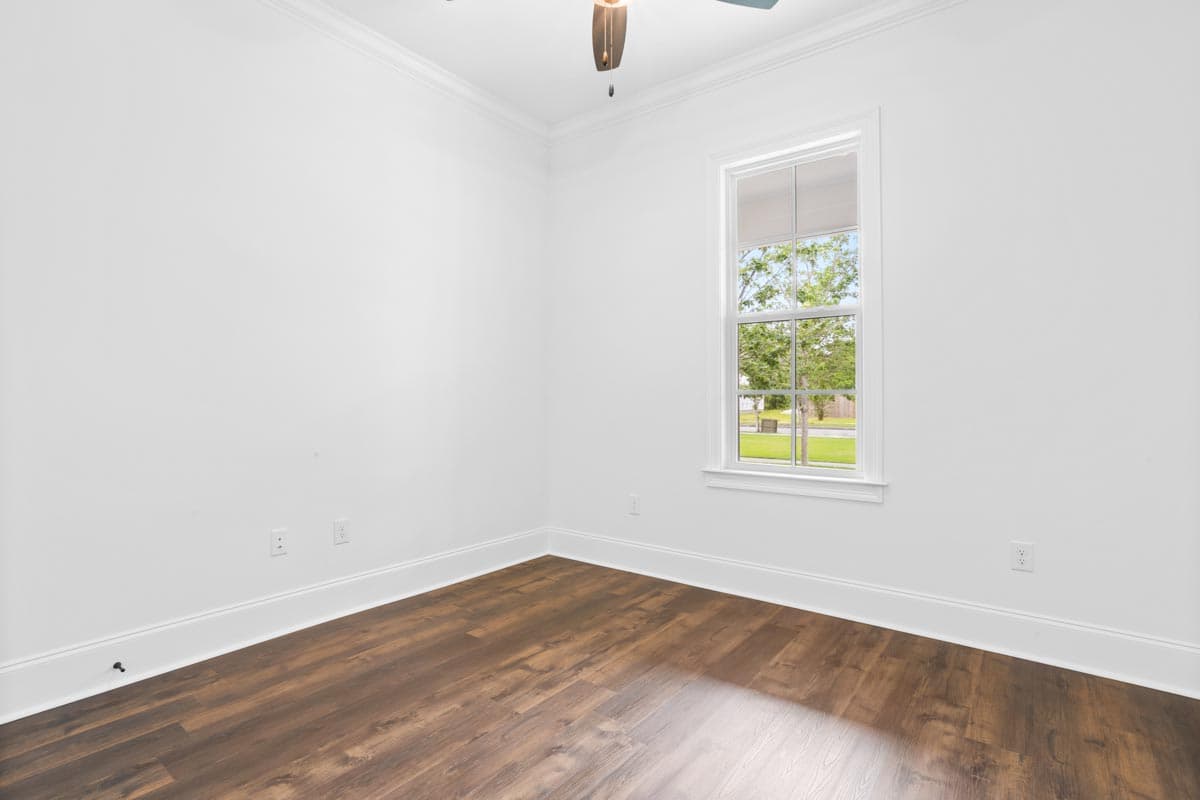

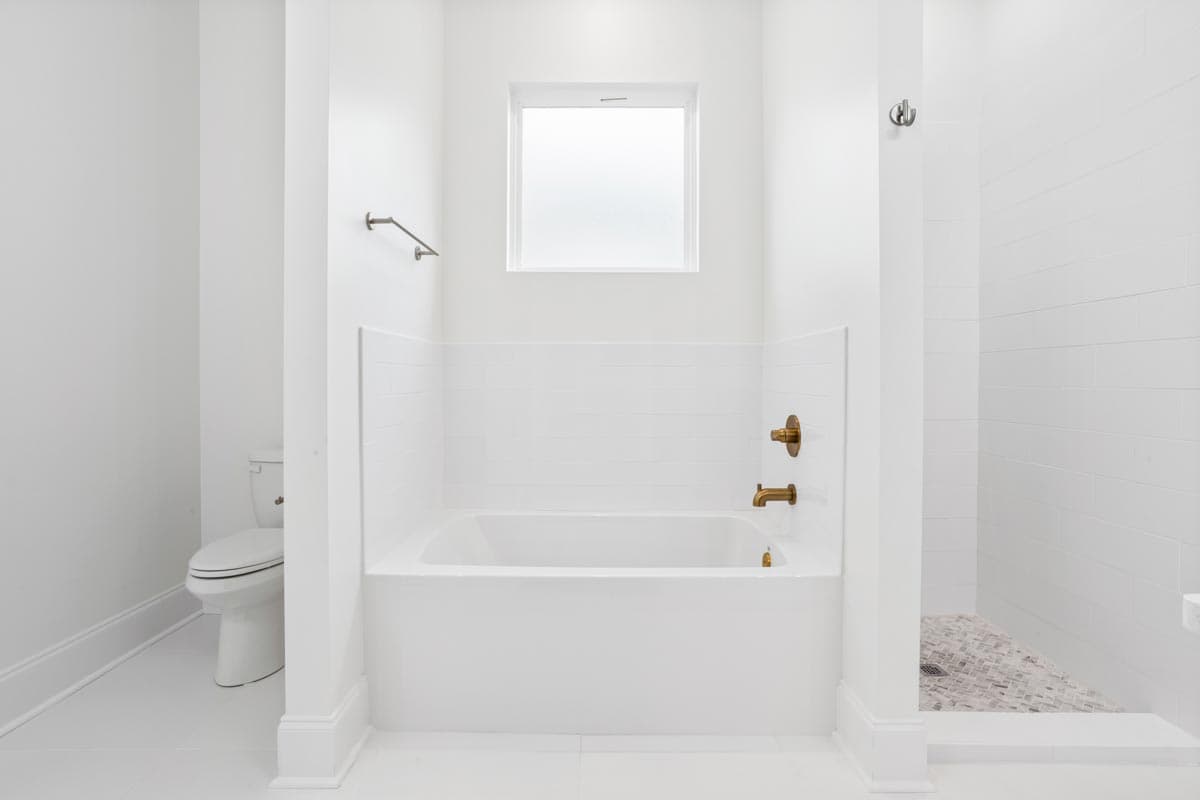

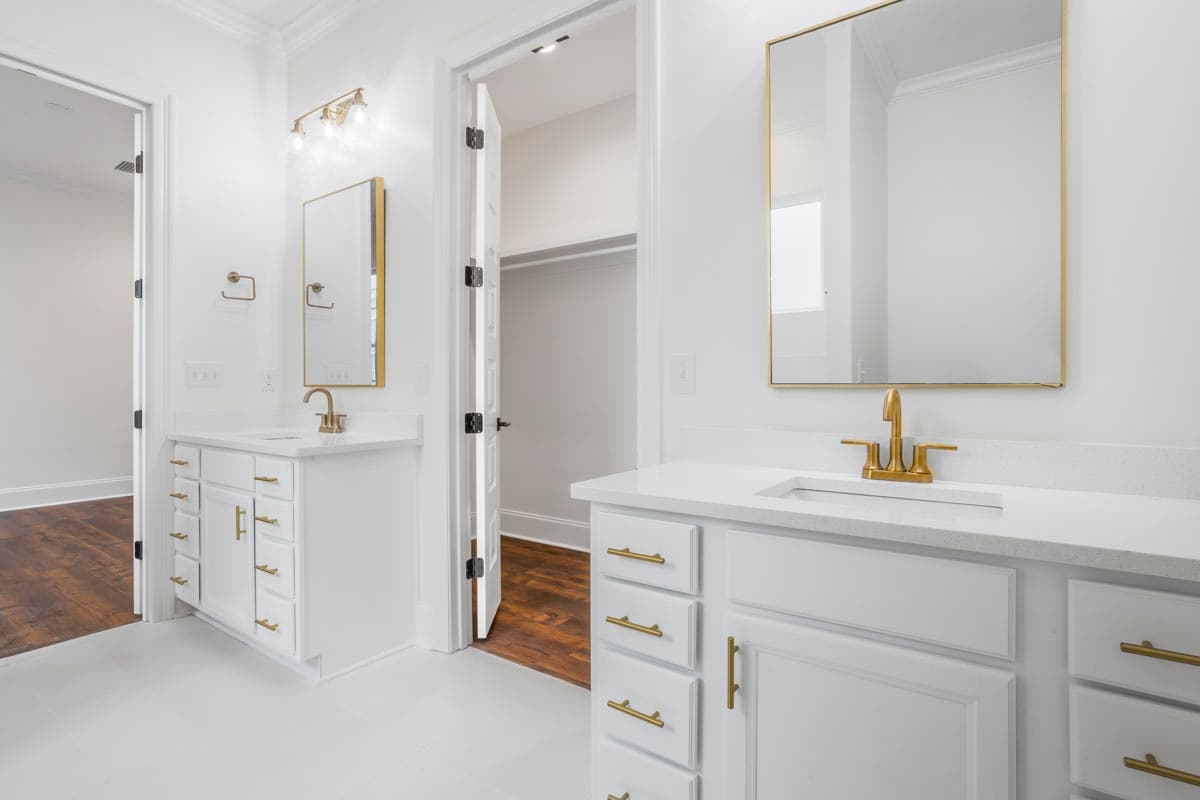

  • Two family bedrooms are located just off the living area with a full bathroom separating them. The master bedroom, towards the rear, is accompanied by a 5-fixture bathroom with a walk-in closet.

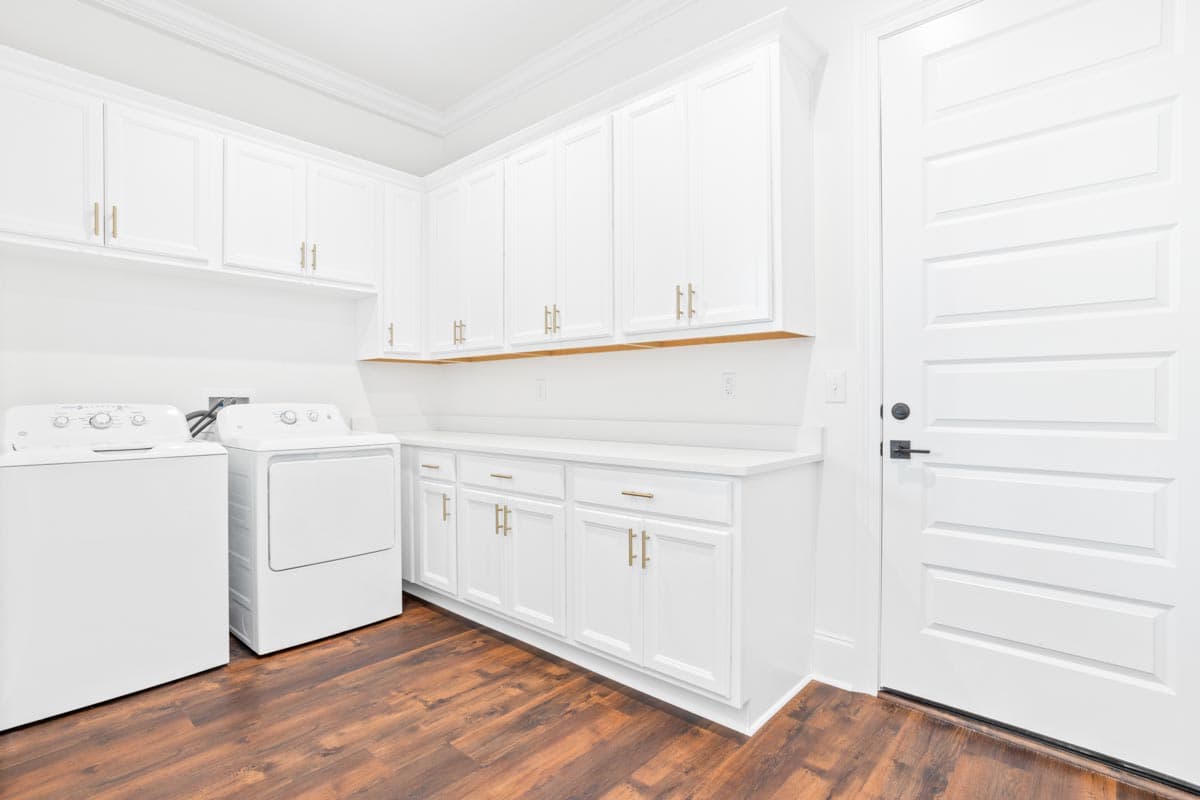

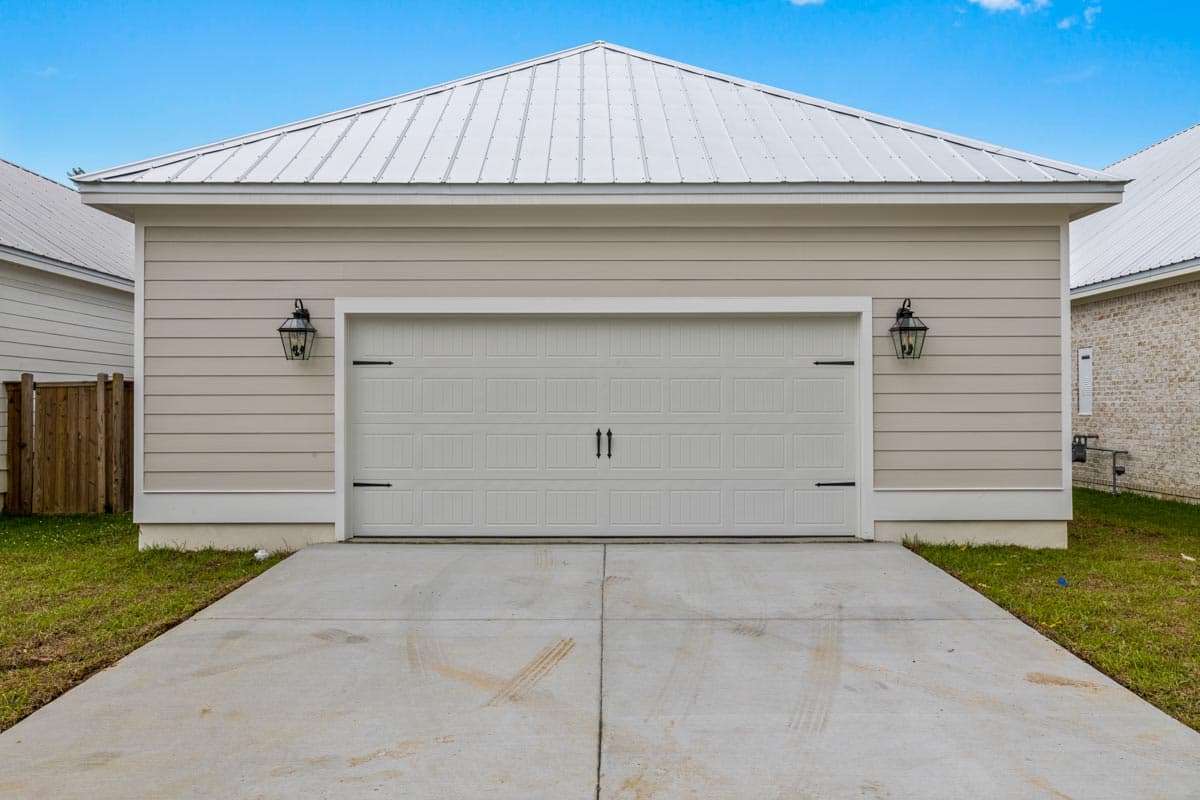

  • The double garage, with rear entry, leads into a combined laundry / mudroom.

  • Cover sheet
  • Foundation plan
  • Floor plan

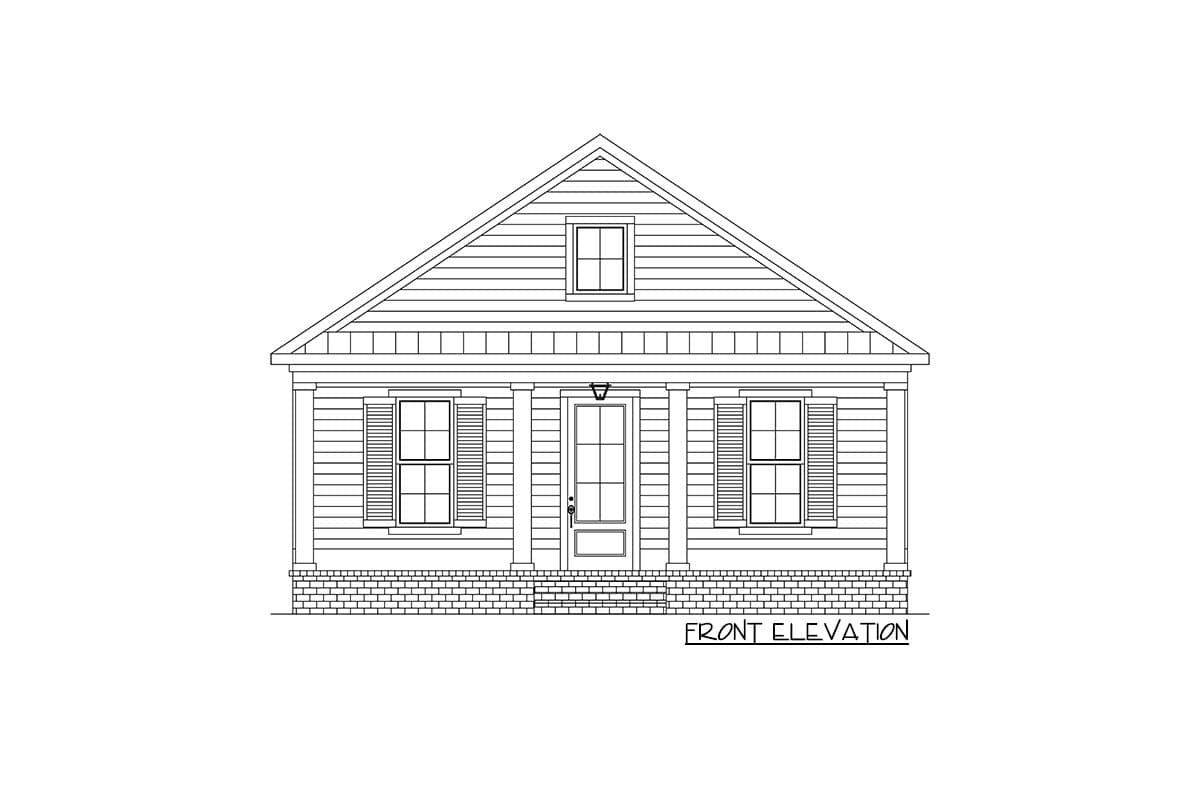

  • Front, side and rear elevations
  • Electrical plan
  • Details
  • Building cross section
  • Wall section
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

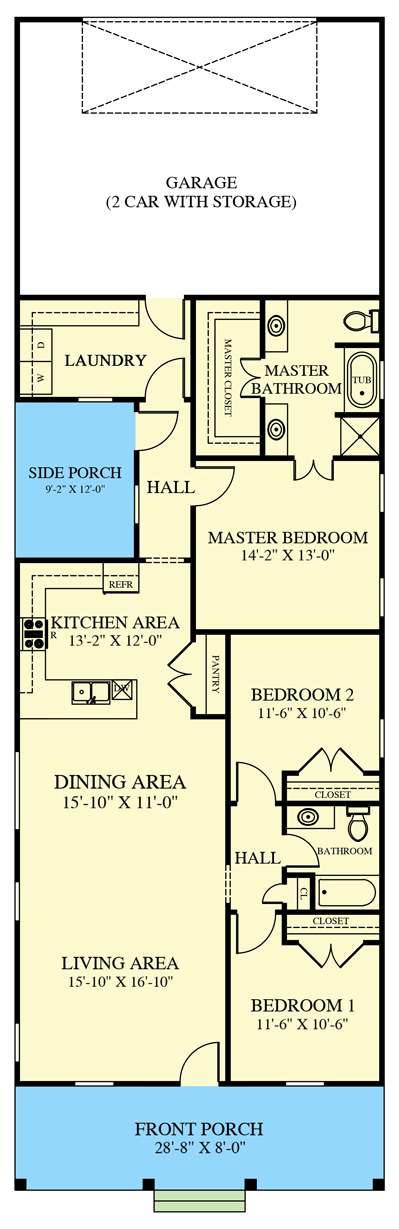

Narrow Southern Cottage with Rear Double Garage - 521014TTL floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,609 sq. ft.
  • 1st Floor: 1,609 sq. ft.
  • Porch, Front: 336 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 28' 4"
  • Depth: 90' 0"
  • Max ridge height: 22' 1"

Garage

  • Type: Attached
  • Area: 605 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

Plan Collections

Narrow Southern Cottage with Rear Double Garage

  • 1,609

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,250
  • 5 Sets + PDF $1,500
  • PDF - Unlimited Build $1,950
  • CAD + PDF - Unlimited Build $2,250
  • View all purchase option online

About This Plan

  • The charming curb appeal of this Southern Cottage plan delivers a symmetrical front elevation with an 8'-deep front porch spanning the width of the home. The narrow footprint makes this home perfect for smaller lots.
  • An open-concept design greets you upon entering; the living room flows into the dining area, which seamlessly connects to the kitchen.
  • U-shaped cabinetry forms the kitchen that includes an easily accessible closet pantry nearby, and the adjacent side porch is the perfect space to grill.
  • Two family bedrooms are located just off the living area with a full bathroom separating them. The master bedroom, towards the rear, is accompanied by a 5-fixture bathroom with a walk-in closet.
  • The double garage, with rear entry, leads into a combined laundry / mudroom.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,609 sq. ft.
  • 1st Floor: 1,609 sq. ft.
  • Porch, Front: 336 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 28' 4"
  • Depth: 90' 0"
  • Max ridge height: 22' 1"

Garage

  • Type: Attached
  • Area: 605 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick And Truss
Plan 521014TTL
View this and more for this plan by visiting www.architechtecturaldesigns.com/521014TTL
|
