New American Cottage House Plan with Finished Lower Level - 2680 Sq Ft
Heated S.F.
2,680
Beds
4
Baths
2.5
Stories
1
Cars
2
What's Included
Plan Details
  • This New American cottage house plan gives you 4 beds, 2.5 baths and 2,680 square feet of heated living area with just under half of that space in the finished walkout basement. A 2-car garage gives you 456 square feet of parking and accesses the home by the foyer. A den located off the foyer makes a great work-from-home space.
  • The kitchen with large island and tall pantry is open to the dining room and living room, both of which have access to the back covered balcony.
  • The master suite has outdoor access and occupies the entire right side of the home while the three remaining bedrooms are in the finished lower level.
  • A rec room with outdoor access and a bonus room complete the floor.
What's Included
  • 2 Black and White 3D Exterior Perspectives
  • General Notes
  • Foundation Plan
  • All required floorplans
  • Roof Plan
  • Elevations
  • 2-3 Building cross-sections
  • Typical Construction Details
  • Window and Door Schedule
  • Preliminary Cabinet Elevations
  • Lighting Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

New American Cottage House Plan with Finished Lower Level - 2680 Sq Ft

  • 2,680

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

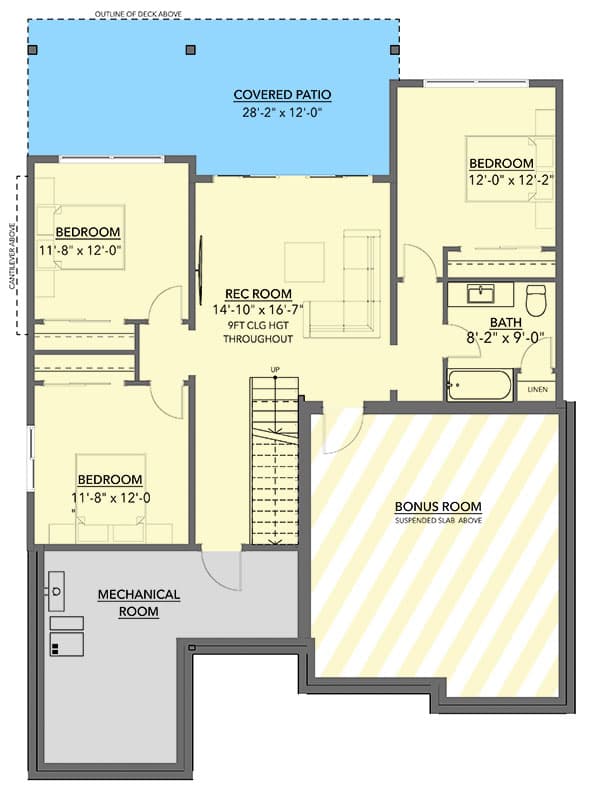

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,680 sq. ft.
  • Lower Level: 1,335 sq. ft.
  • 1st Floor: 1,345 sq. ft.

Dimensions

  • Width: 41' 6"
  • Depth: 55' 8"
  • Max ridge height: 22' 3"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 456 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss
