Plan 444028GDN New American Craftsman Plan with Bonus Room and Screened Porch

1,986 2-3 2 1 2
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

New American Craftsman Plan with Bonus Room and Screened Porch

Plan 444028GDN

  • 1,986

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

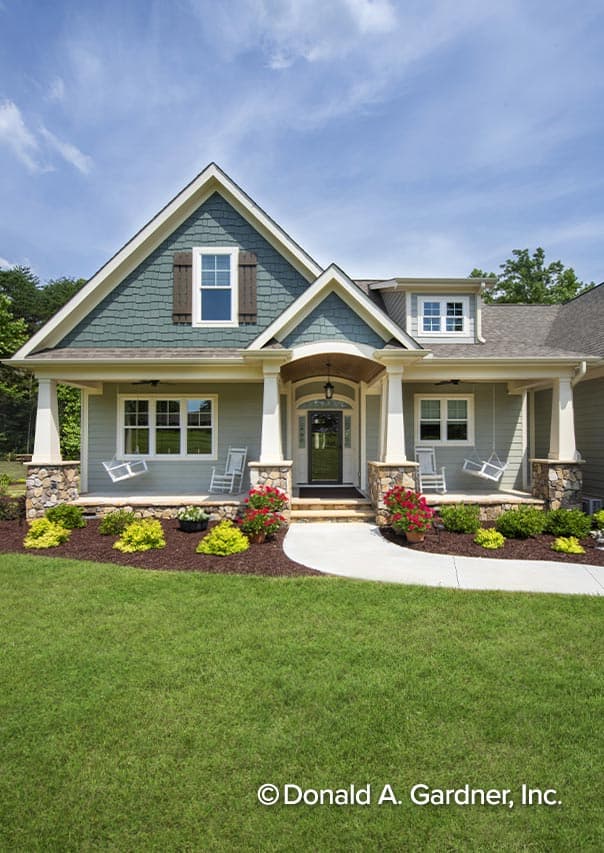

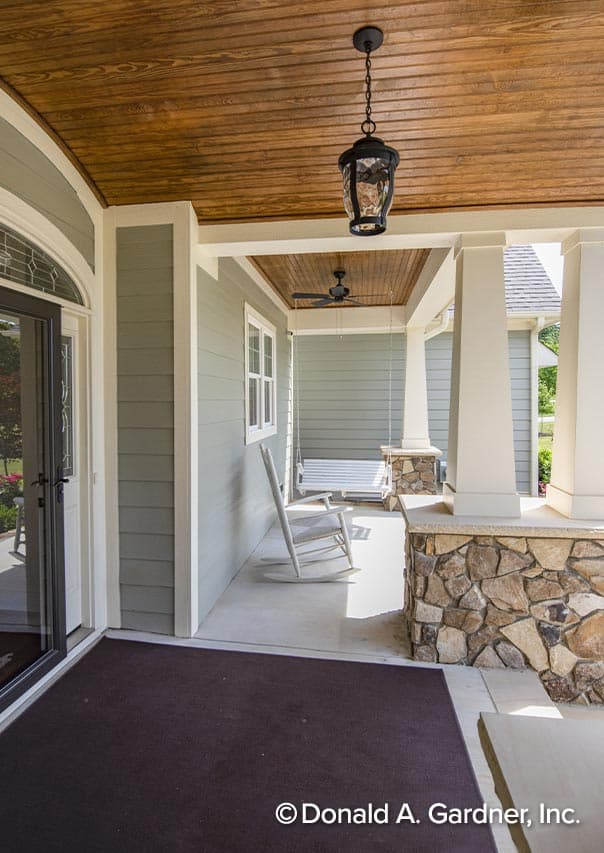

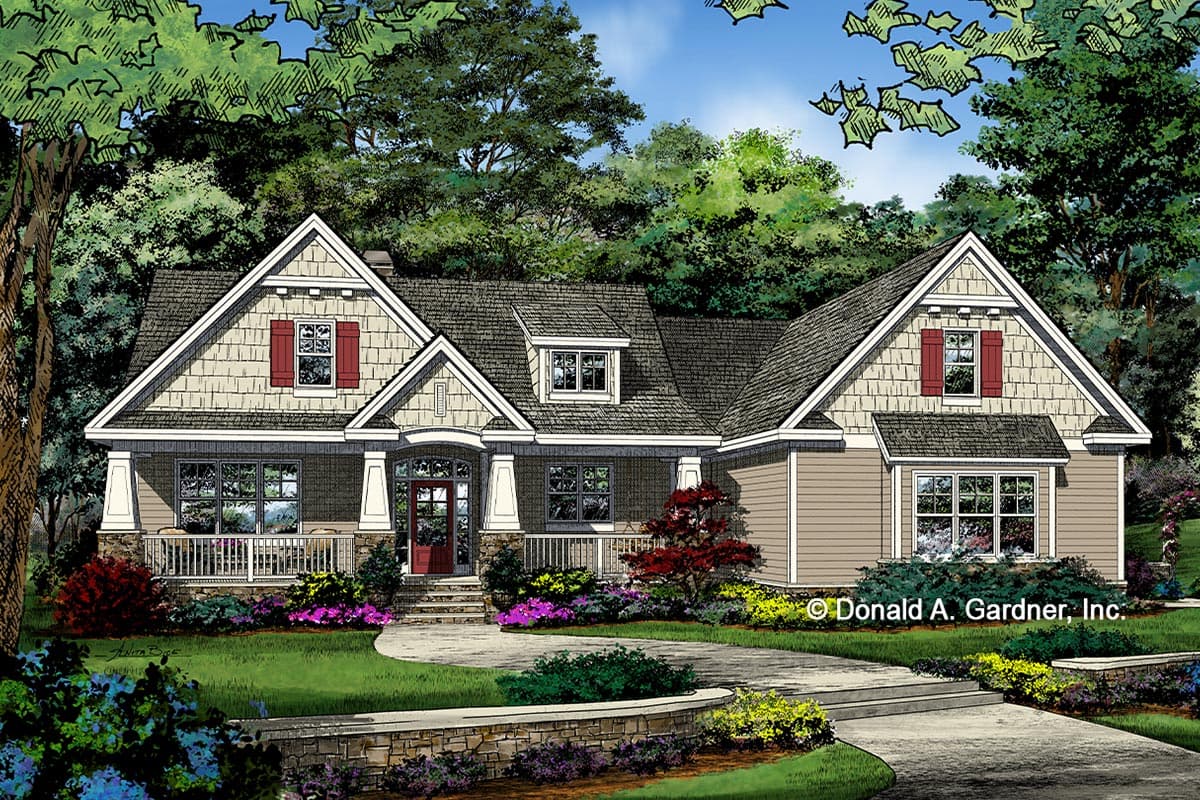

  • The front porch (36'6" by 7' with a 9' flat ceiling) of this New American Craftsman home plan is accented with an arched gable, framed by tapered columns on each side.

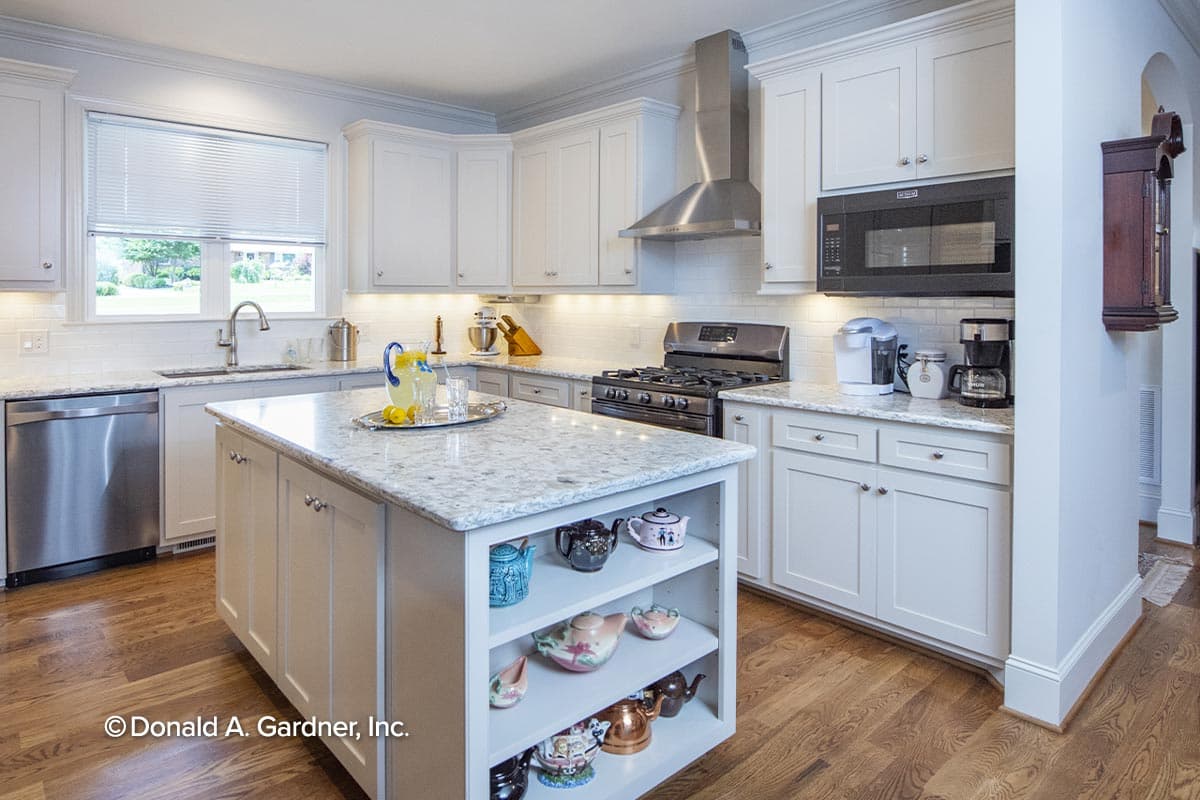

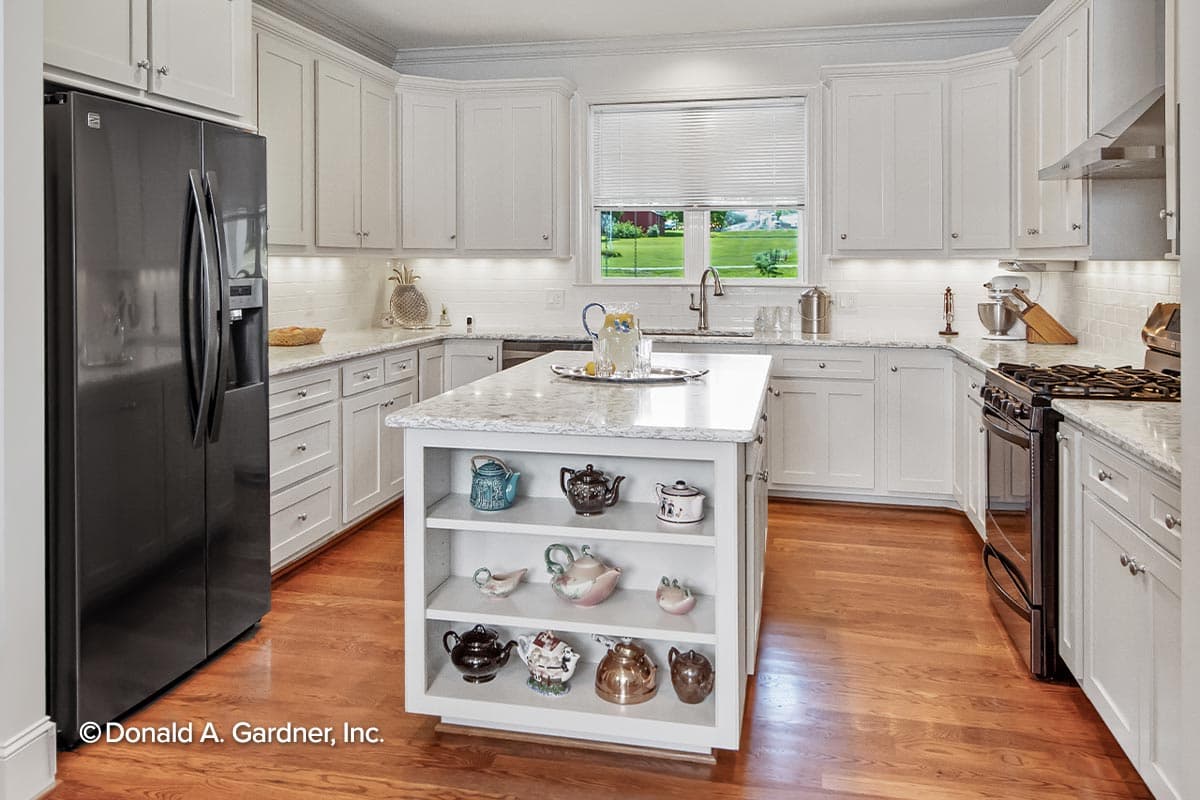

  • Inside, the kitchen is positioned for front views with a window over the sink and central prep island.
  • A walk-in pantry, bar with sink, spacious utility room with side entry porch, and abundant storage will appeal to the modern homeowner.

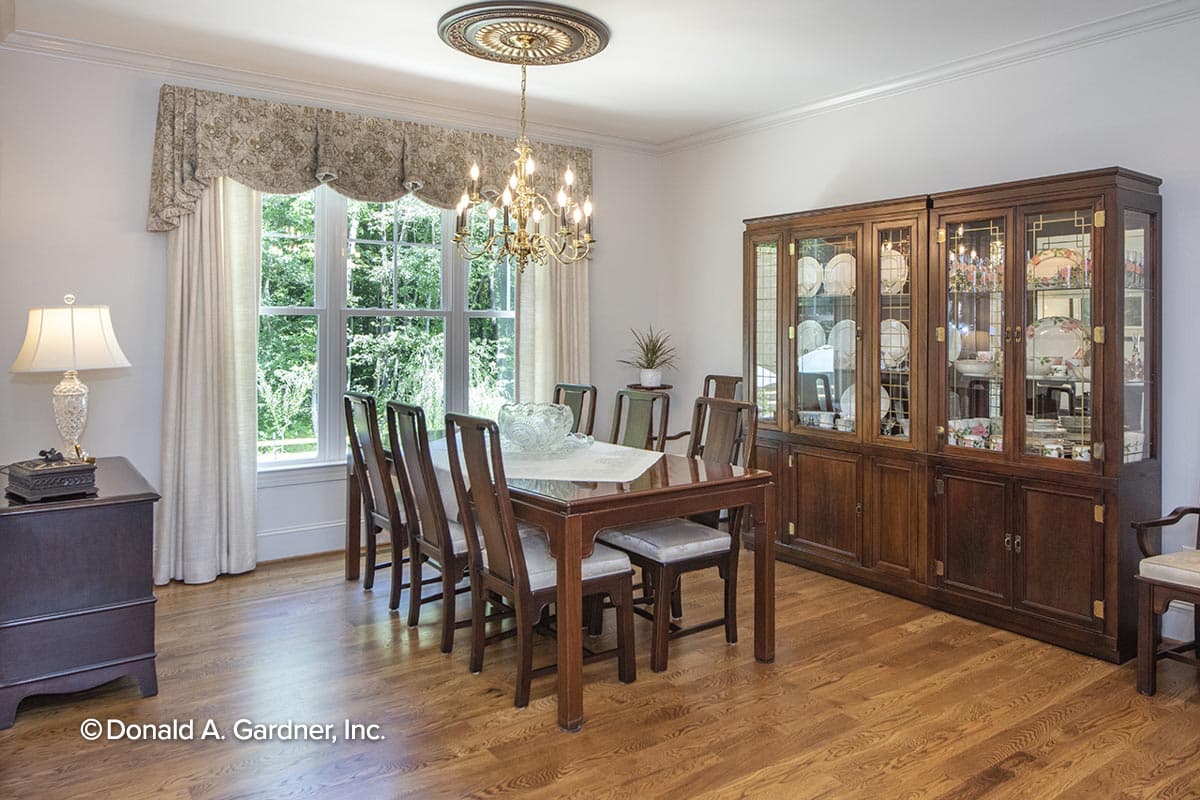

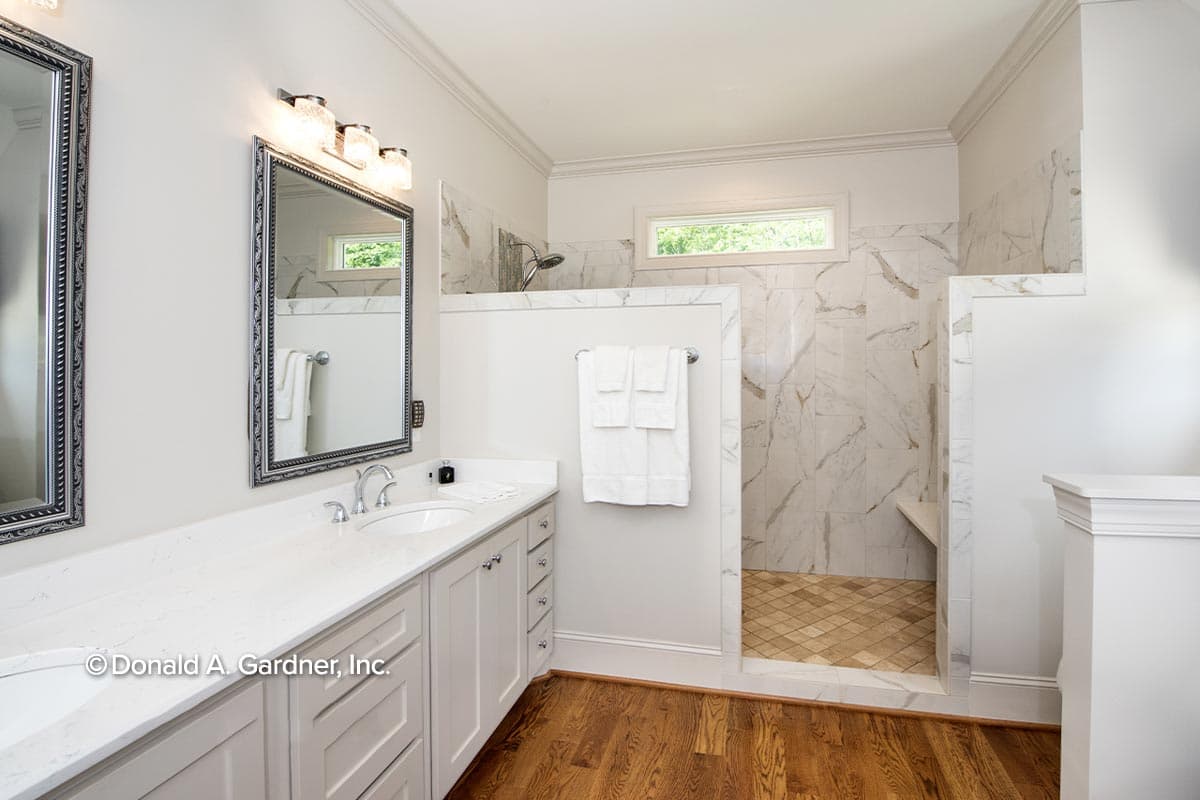

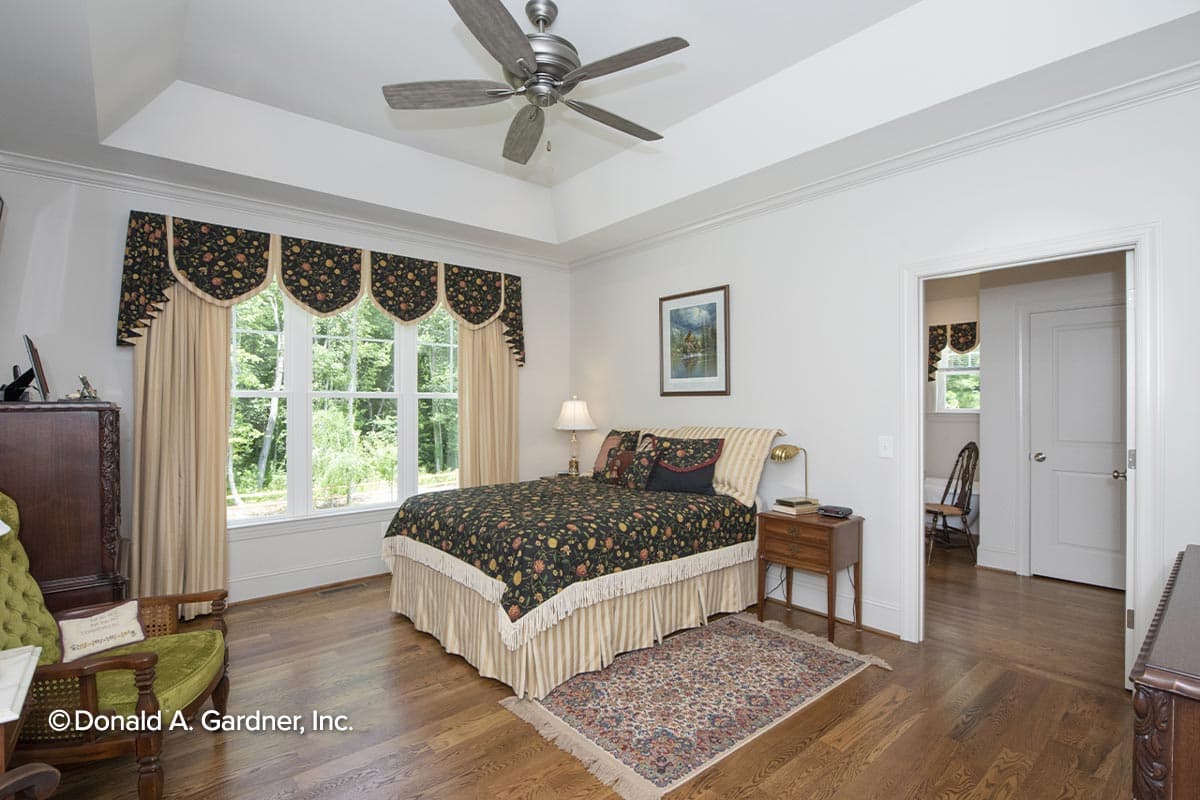

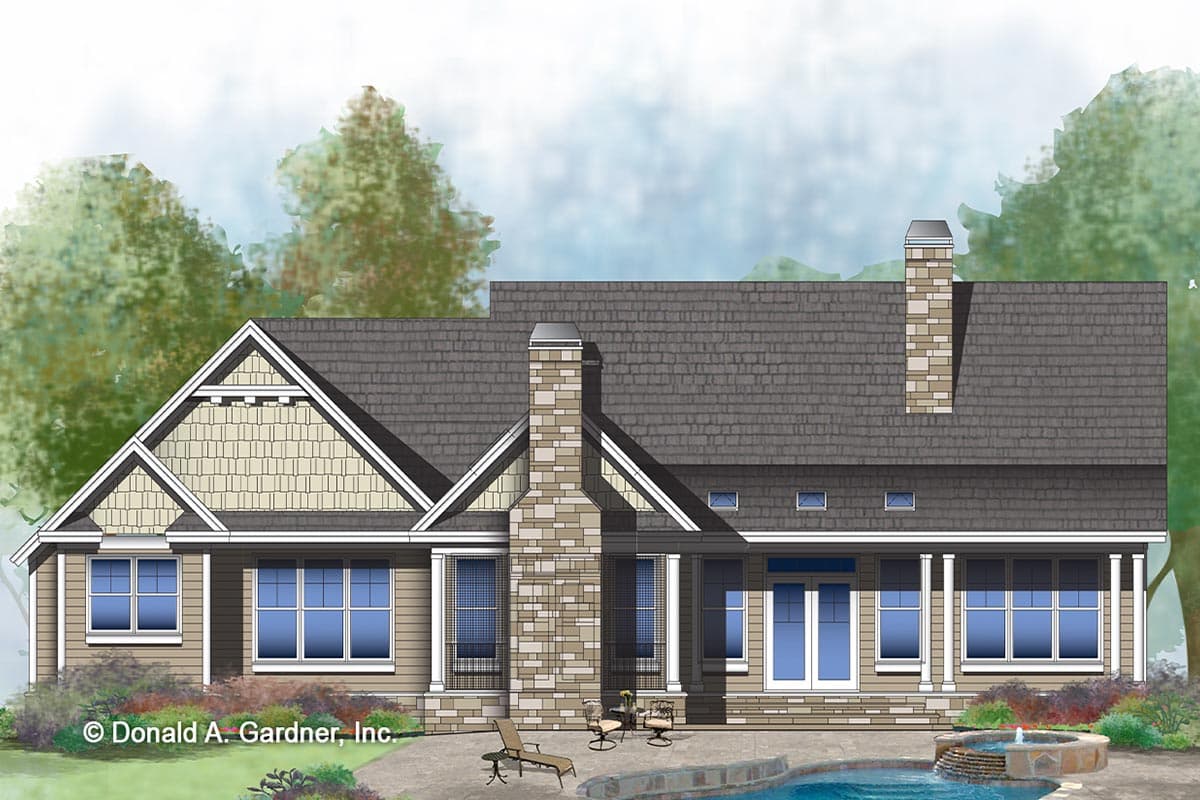

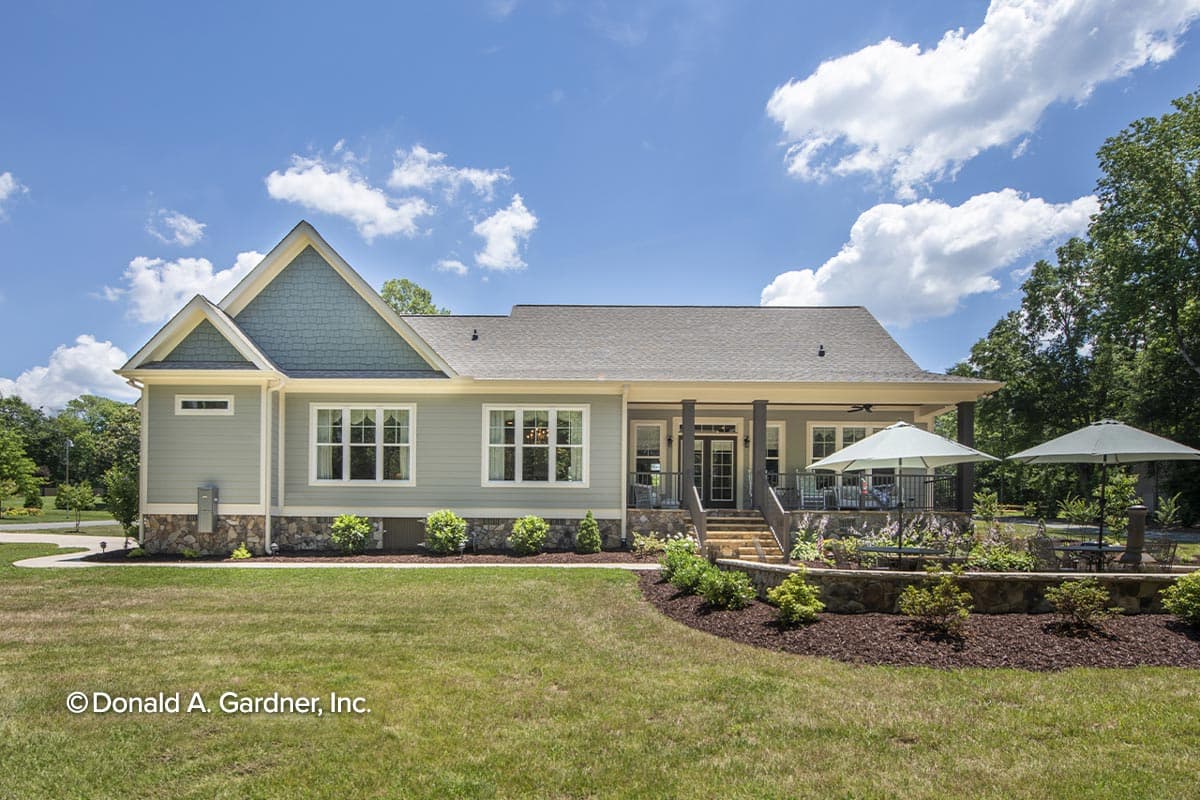

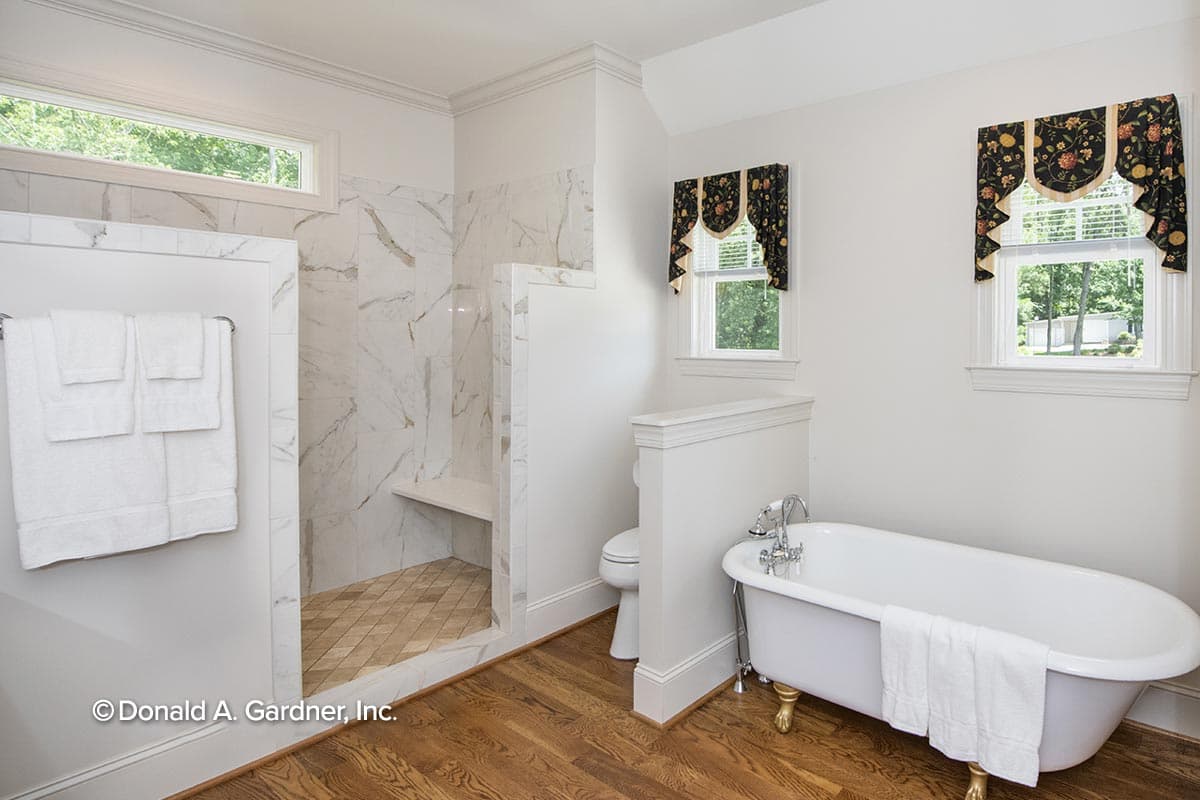

  • The dining room and master bedroom open to a grand screened porch with a 17'2" cathedral ceiling, skylights and a fireplace. This is connected to the back porch (27'10" by 7') which has access from the great room.

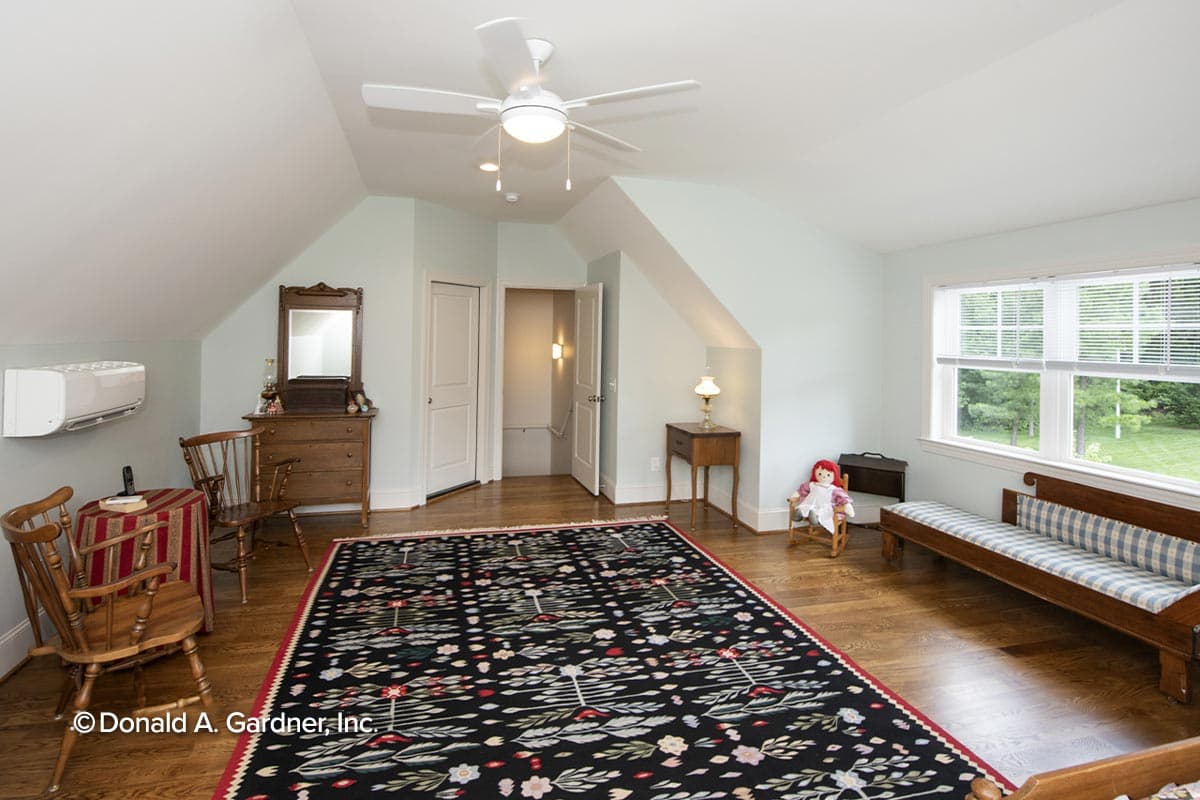

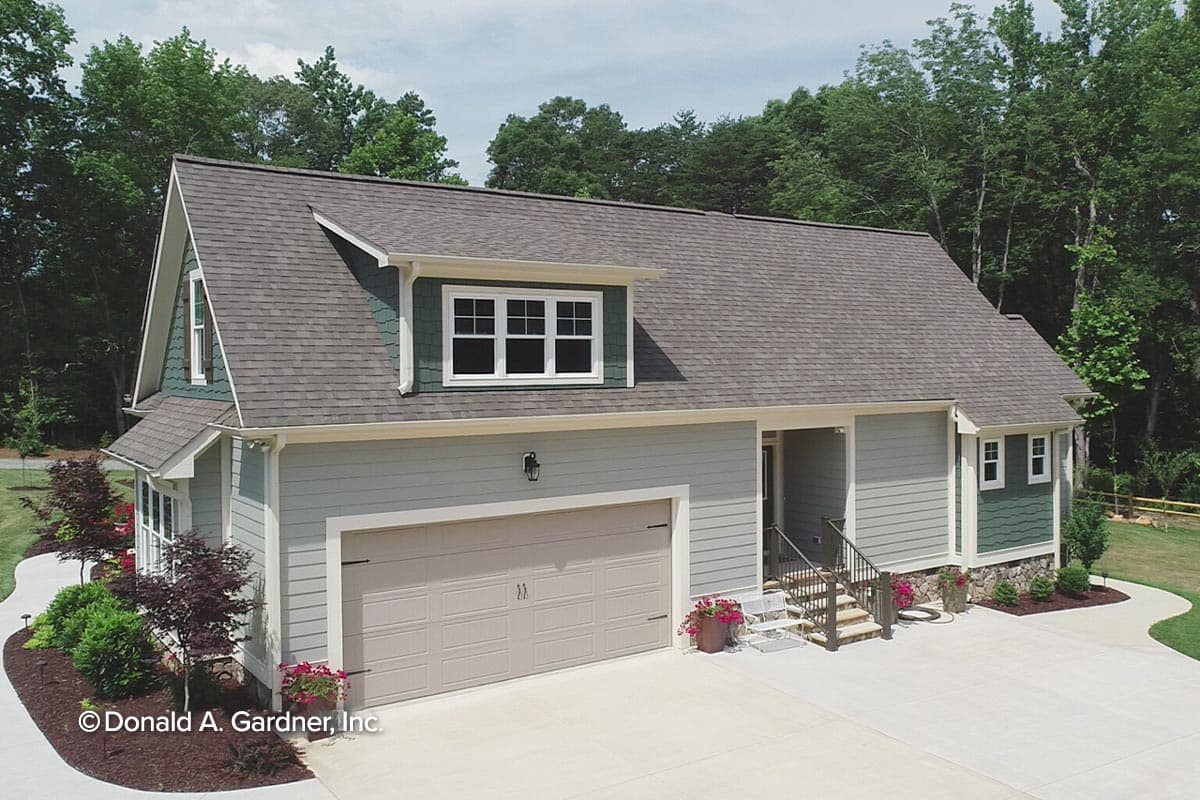

  • A 370 square foot bonus room above the garage offers a versatile space for all to enjoy.

1. Cover Sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped

2. Foundation Plan
This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.

3. Detailed Floor Plans
These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.

4. Interior Elevations
The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.

5. Roof Plan
The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.

6. Exterior Elevations
Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.

7. Cross-Section / Wall Section Details
Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.

8. Structural Plan
Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

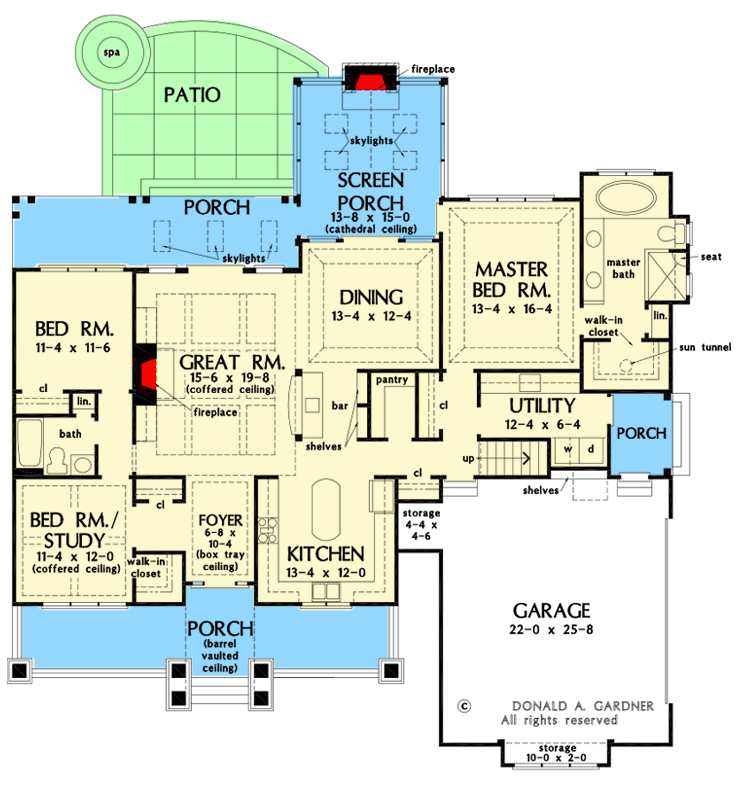

New American Craftsman Plan with Bonus Room and Screened Porch - 444028GDN floor plan - Main Level

Bonus Room

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

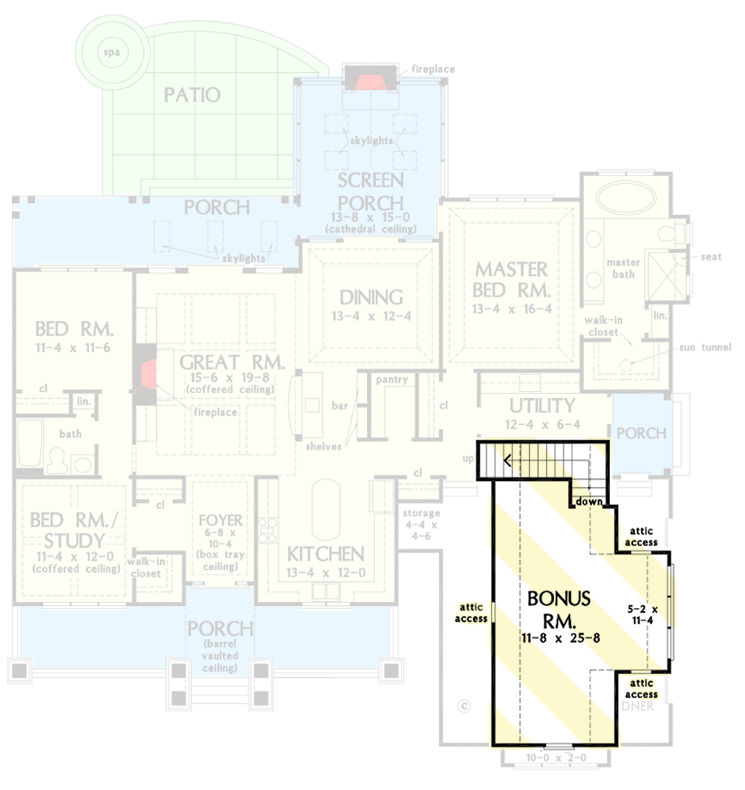

New American Craftsman Plan with Bonus Room and Screened Porch - 444028GDN floor plan - Bonus Room

Basement Option

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

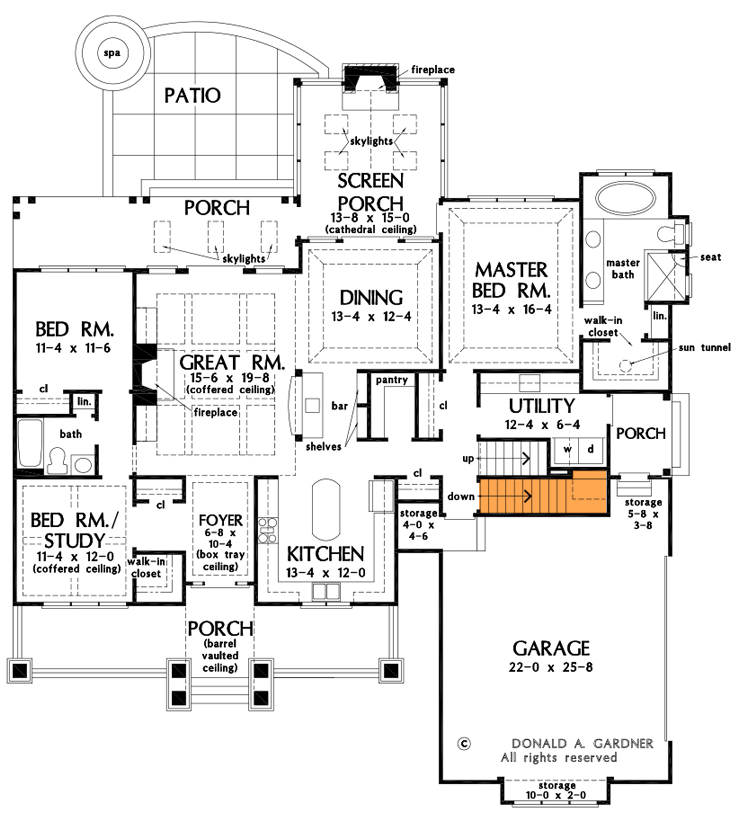

New American Craftsman Plan with Bonus Room and Screened Porch - 444028GDN floor plan - Basement Option

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,986 sq. ft.
  • 1st Floor: 1,986 sq. ft.

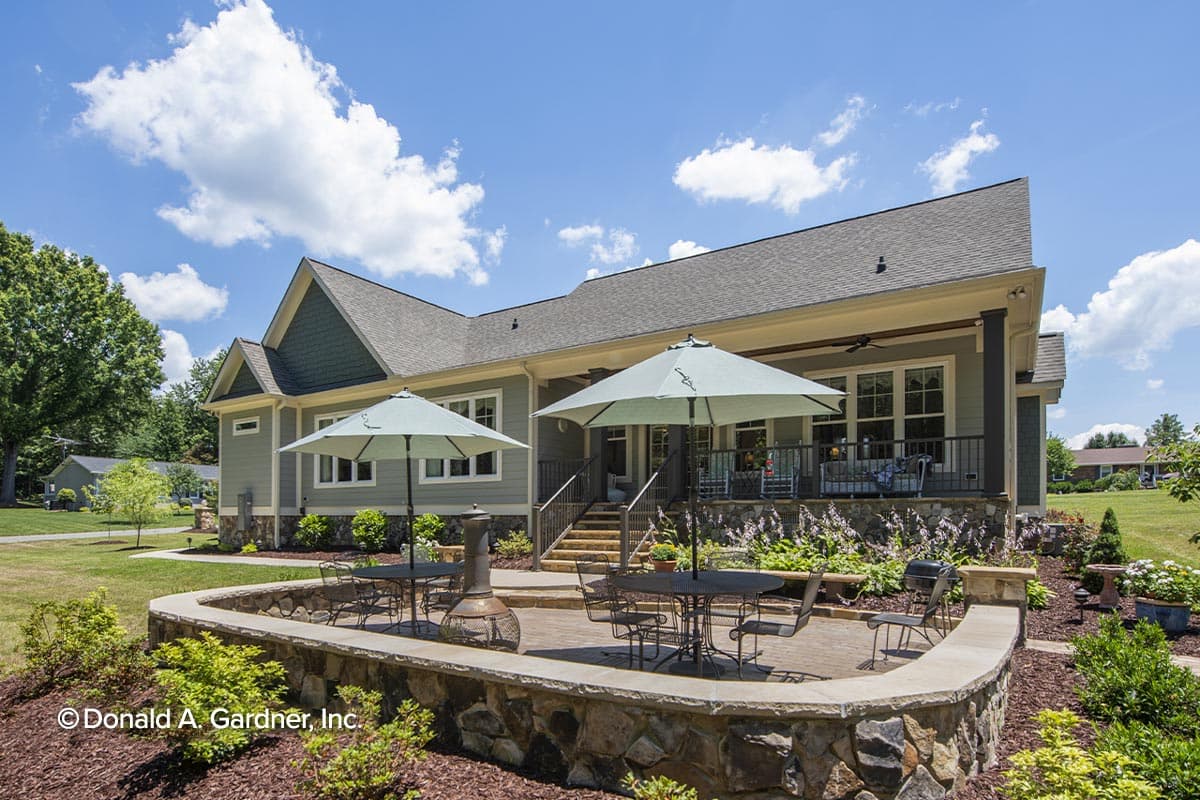

  • Covered Patio: 331 sq. ft.
  • Screened Porch: 237 sq. ft.
  • Porch, Rear: 193 sq. ft.
  • Porch, Front: 292 sq. ft.
  • Bonus: 370 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 66' 2"
  • Depth: 68' 2"
  • Max ridge height: 24' 10"

Garage

  • Type: Attached
  • Area: 636 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
Room Details Ceiling Type Width Depth Height
Foyer Tray 10' 0"
Dining Room Tray 10' 6"

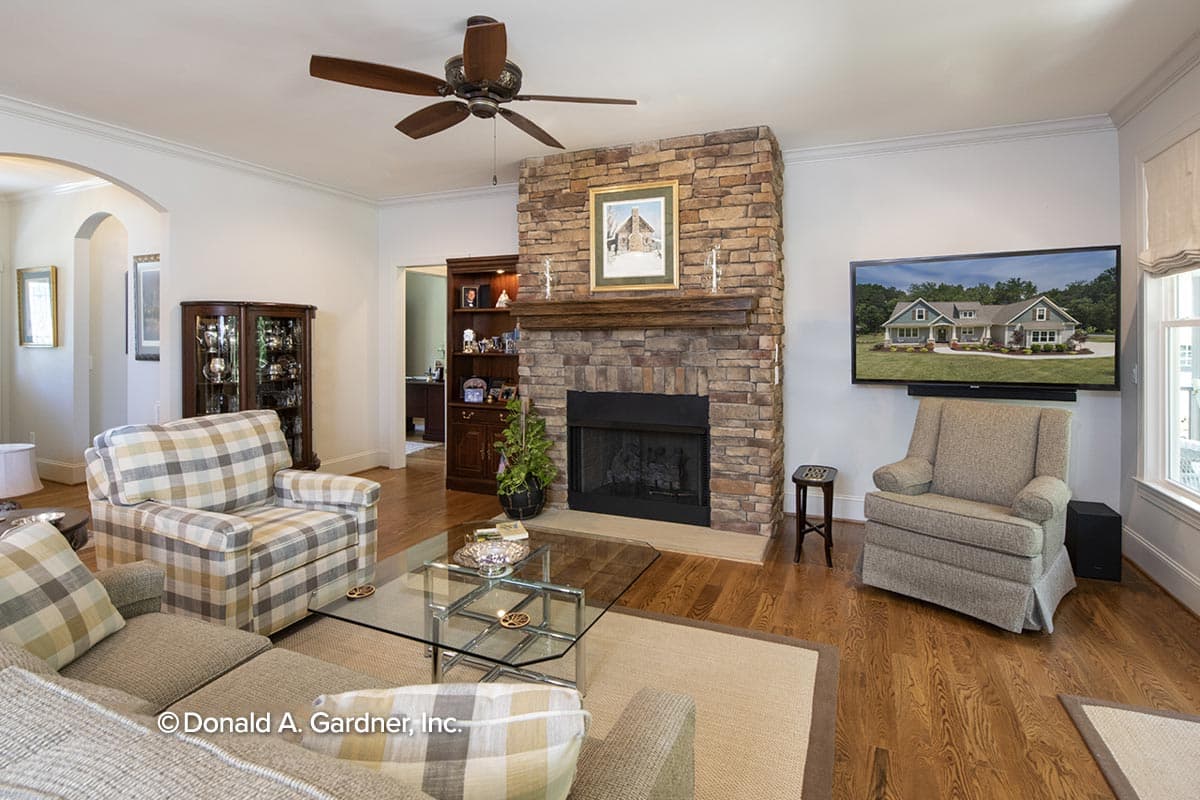

Great Room Coffered 11' 0"
Study Tray 10' 6"
Master Bedroom Coffered 10' 0"
Screened Porch Cathedral 17' 2"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

New American Craftsman Plan with Bonus Room and Screened Porch

  • 1,986

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set - Digital $1,250
  • PDF - Single-Build $1,450
  • CAD Unlimited + PDF $2,550
  • View all purchase option online

About This Plan

  • The front porch (36'6" by 7' with a 9' flat ceiling) of this New American Craftsman home plan is accented with an arched gable, framed by tapered columns on each side.
  • Inside, the kitchen is positioned for front views with a window over the sink and central prep island.
  • A walk-in pantry, bar with sink, spacious utility room with side entry porch, and abundant storage will appeal to the modern homeowner.
  • The dining room and master bedroom open to a grand screened porch with a 17'2" cathedral ceiling, skylights and a fireplace. This is connected to the back porch (27'10" by 7') which has access from the great room.
  • A 370 square foot bonus room above the garage offers a versatile space for all to enjoy.

Floor Plans

  • Main Level

  • Bonus Room

  • Basement Option

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,986 sq. ft.
  • 1st Floor: 1,986 sq. ft.
  • Covered Patio: 331 sq. ft.
  • Screened Porch: 237 sq. ft.
  • Porch, Rear: 193 sq. ft.
  • Porch, Front: 292 sq. ft.
  • Bonus: 370 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 66' 2"
  • Depth: 68' 2"
  • Max ridge height: 24' 10"

Garage

  • Type: Attached
  • Area: 636 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick
