New American Craftsman Plan with Study and Rear 4-Car Garage

Plan 340010STR

  • 3,108

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 4

    Cars

  • Enjoy the benefits of one-level living in this New American Craftsman home plan that has the perfect mix between common and private spaces.
  • The open floor plan allows the great room to flow into the spacious kitchen, which then flows into the breakfast nook. Adjacent outdoor living spaces make this home feel even larger.
  • The elongated kitchen island serves as a natural conversation hub when entertaining, ensuring that the cook will never feel isolated from the festivities.
  • The study shares the right wing of the home with the master suite, which boasts a tray ceiling, his and hers closets, and a bathroom with a commode room.
  • Two guest suites line the left side, along with the 4-car garage and utility room with plenty of storage space.
  • BUILDING RESTRICTION: This plan may not be built in New Hanover County, North Carolina.

What's Included


- Cover Sheet, Index

- Wall Sections & Notes

- Typical Detail & Notes

- Foundation Plan

- Floor Plans

- Reflected Ceiling Plan showing ceiling heights and treatments

- Floor Framing Plan (basement, crawlspace or 2-story homes only)

- Birds Eye Roof Plan

- All Elevations

- Building Section & Details

- Interior Elevations (Details may vary based on the design)

- Suggested Electrical Layout

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

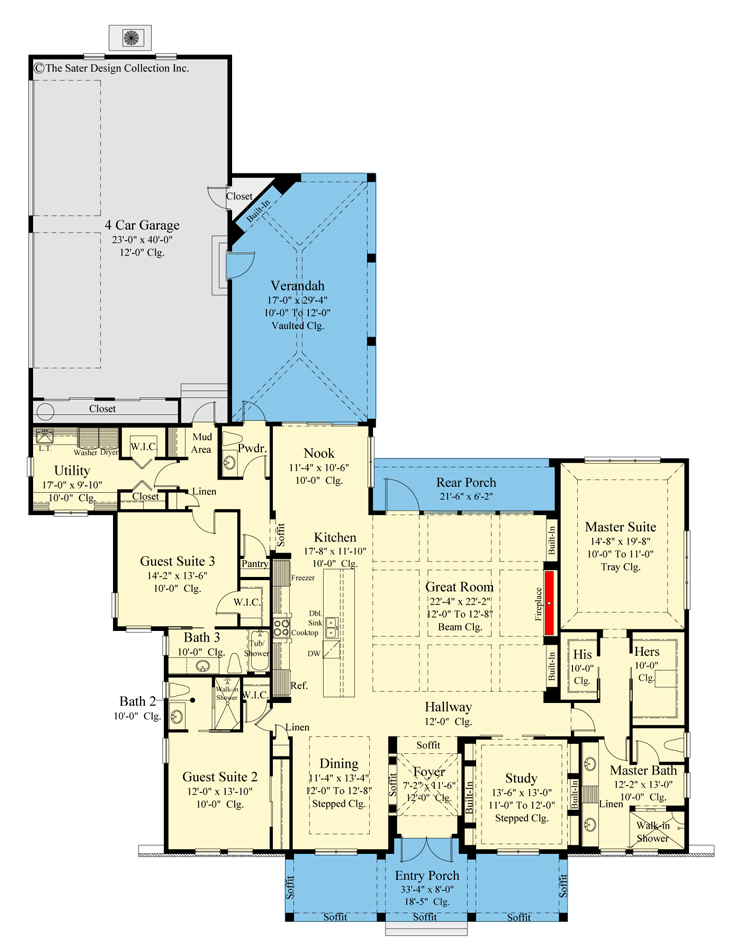

New American Craftsman Plan with Study and Rear 4-Car Garage - 340010STR floor plan - Main Level

New American Craftsman Plan with Study and Rear 4-Car Garage

  • 3,108

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 4

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 3,108 sq. ft.
  • 1st Floor: 3,108 sq. ft.

Dimensions

  • Width: 78' 0"
  • Depth: 102' 4"
  • Max ridge height: 25' 8"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1043 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): 2x6
