New American Craftsman with Finished Basement

Plan 95194RW

  • 2,188

    Heated s.f.

  • 2-4

    Beds

  • 2.5 - 4.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • Immediately capturing your gaze, the barrel-arched entry guides you through the front porch and into this New American Craftsman home plan.
  • The desirable open-concept living space takes advantage of the rearward views and extends onto a 10'-deep covered patio.
  • Cooking is a delight in this roomy kitchen with its oversized island and walk-in pantry, and the quiet den near the foyer provides the perfect spot for a TV.
  • The master bedroom occupies the right side of the main level, while a second bedroom can be found behind the 3-car garage.
  • Downstairs, two sizable bedrooms sit on either side of the family room, complete with a wet bar and cold storage.

The following details are included with this house plan:
  • Cover Page

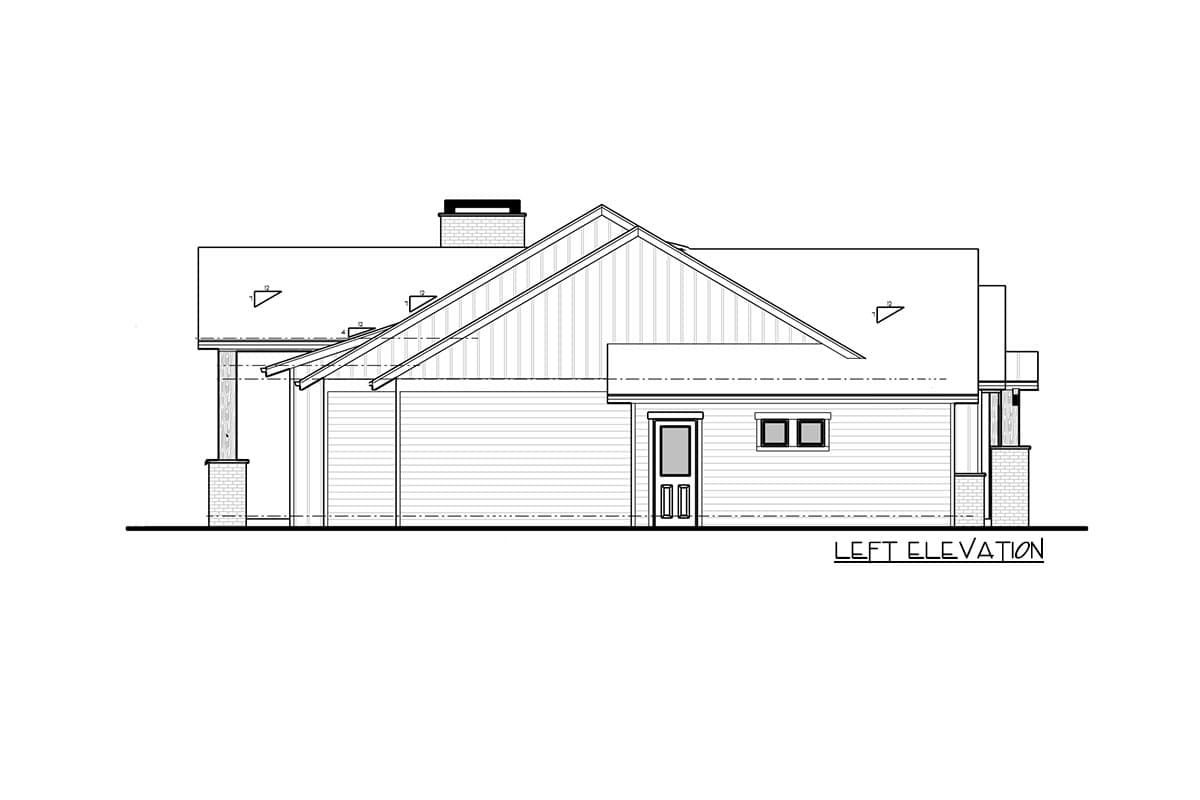

  • 4 elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

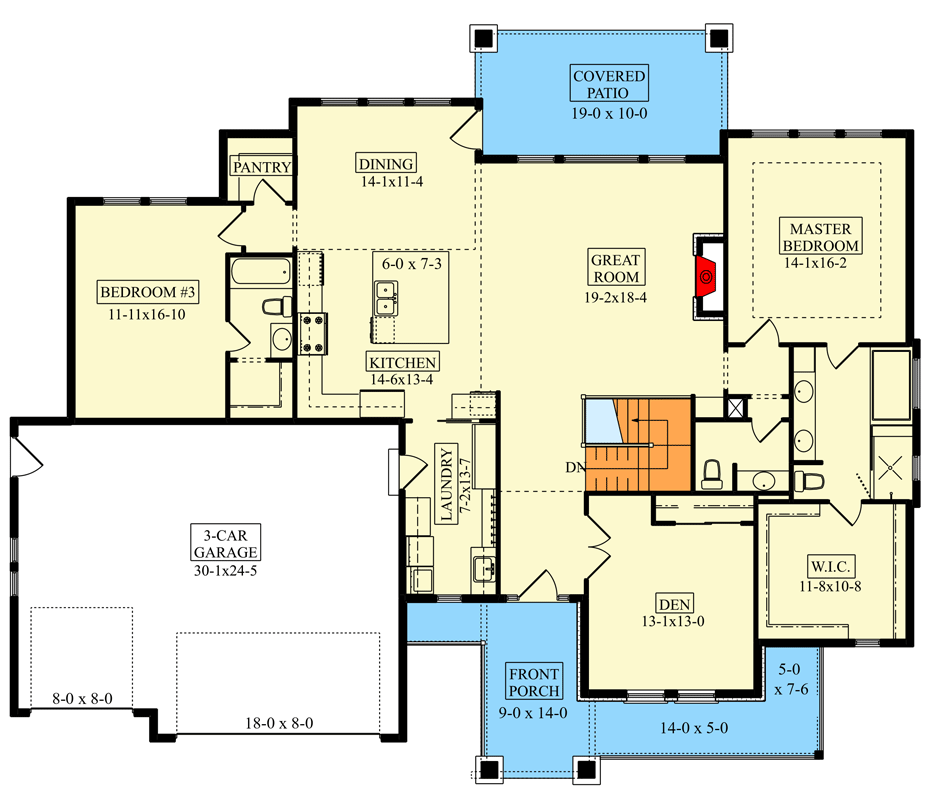

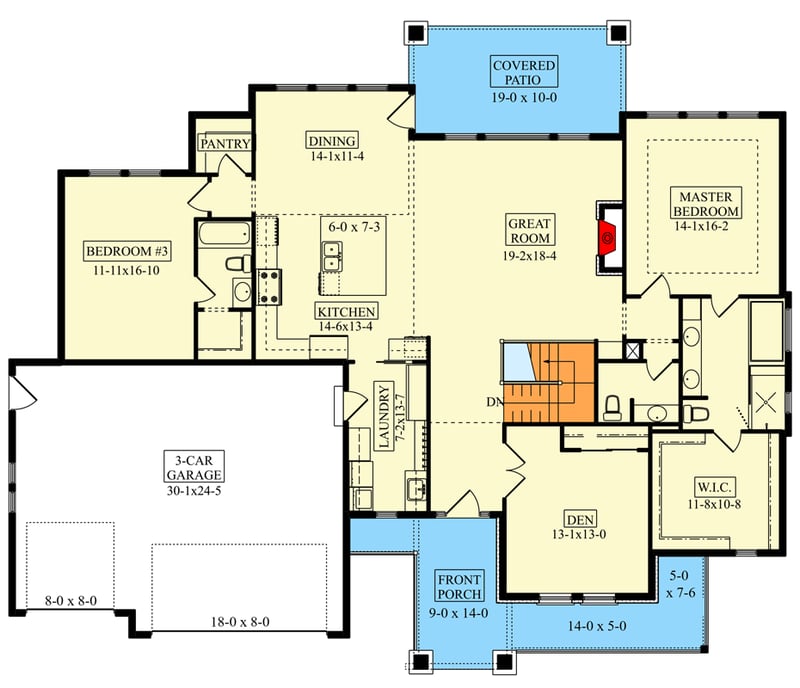

New American Craftsman with Finished Basement - 95194RW floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

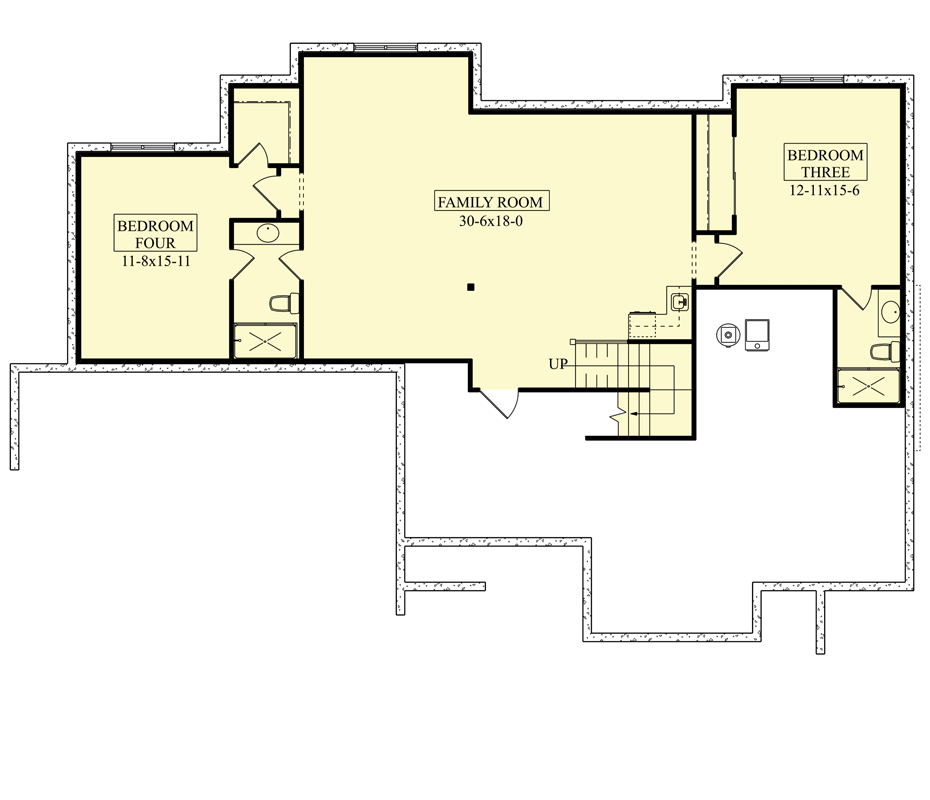

New American Craftsman with Finished Basement - 95194RW floor plan - Lower Level

New American Craftsman with Finished Basement

  • 2,188

    Heated s.f.

  • 2-4

    Beds

  • 2.5 - 4.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,188 sq. ft.
  • 1st Floor: 2,188 sq. ft.

Dimensions

  • Width: 71' 6"
  • Depth: 60' 0"
  • Max ridge height: 23' 0"

Beds/Baths

  • Bedrooms: 2, 3, or 4
  • Full bathrooms: 2, 3, or 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 747 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Truss
