Plan 42691DB New American Craftsman with Main-level Suite

New American Craftsman with Main-level Suite

Plan 42691DB

  • 2,007

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Details matter for this New American Craftsman, as evidenced by using two different shake shingle patterns, stone-based porch columns, and even the garage door profile which contribute to this home's enviable appeal.
  • Already an open layout, the family room ceiling slopes upward from the back, adding drama to the sense of expansiveness.
  • The flexibility of having a first-floor bedroom suite appeals to a wide cross-section of homebuyers, particularly households where climbing stairs is a difficulty for someone.
  • A second suite is located upstairs, along with two similarly-sized bedrooms, a compartmentalized bath, and laundry room.
  • When entering from the double garage, discover a drop zone, powder bath, and coat closet nearby, simplifying the process of coming and going.

Most plans include the following:


Cover Page:
Each home plan features the front elevation and informative reference sections including, general notes and design criteria*, abbreviations, and symbols for your plan.

Elevations:
Scaled elevations for the front, rear, and sides are provided. All elevations are detailed, and an aerial view of the roof is provided.

Foundations:
Foundations are fully engineered for each design, whether slab or basement.

Main Level Floor Plan:
The detailed drawings are fully dimensioned for ease of framing. Exterior wall thicknesses vary by plan. If necessary, contact us to clarify the standard exterior wall thickness for the plan(s) you are interested in.

Second Level Floor Plan (if any):
Dimensioned and drafted to the same degree of detail as the main level floor plan*.

Electrical and Sections:
Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.

Full technical support is provided to purchasers of each plan to answer your plan-related questions.

*Plans are drafted to meet the Uniform Building Code or IRC (International Residential Code) at the time they are designed (contact us for more information). Because codes and requirements can change and may vary from jurisdiction to jurisdiction, the designers cannot warrant compliance with any specific code or regulation. All plans can be adapted to your local building codes and requirements. It is the responsibility of the purchaser and/or builder of each plan to see that the structure is built in strict compliance with all governing municipal codes (city, county, state, and federal).

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

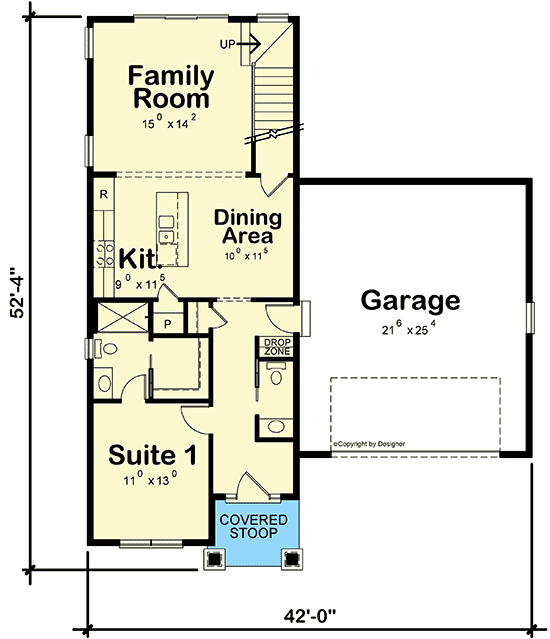

New American Craftsman with Main-level Suite - 42691DB floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
New American Craftsman with Main-level Suite - 42691DB floor plan - 2nd Floor

Plan details

New American Craftsman with Main-level Suite

  • 2,007

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set – Digital $685
  • PDF - Single-Build $1,055
  • PDF - Unlimited Build $1,555
  • CAD + PDF - Single-Build $1,830
  • CAD - Unlimited Build $2,330
  • View all purchase option online

About This Plan

  • Details matter for this New American Craftsman, as evidenced by using two different shake shingle patterns, stone-based porch columns, and even the garage door profile which contribute to this home's enviable appeal.
  • Already an open layout, the family room ceiling slopes upward from the back, adding drama to the sense of expansiveness.
  • The flexibility of having a first-floor bedroom suite appeals to a wide cross-section of homebuyers, particularly households where climbing stairs is a difficulty for someone.
  • A second suite is located upstairs, along with two similarly-sized bedrooms, a compartmentalized bath, and laundry room.
  • When entering from the double garage, discover a drop zone, powder bath, and coat closet nearby, simplifying the process of coming and going.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,007 sq. ft.
  • 1st Floor: 965 sq. ft.
  • 2nd Floor: 1,042 sq. ft.
  • Porch, Front: 52 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 42' 0"
  • Depth: 52' 4"
  • Max ridge height: 33' 0"

Garage

  • Type: Attached
  • Area: 579 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
