Plan 100324GHR
EXCLUSIVE

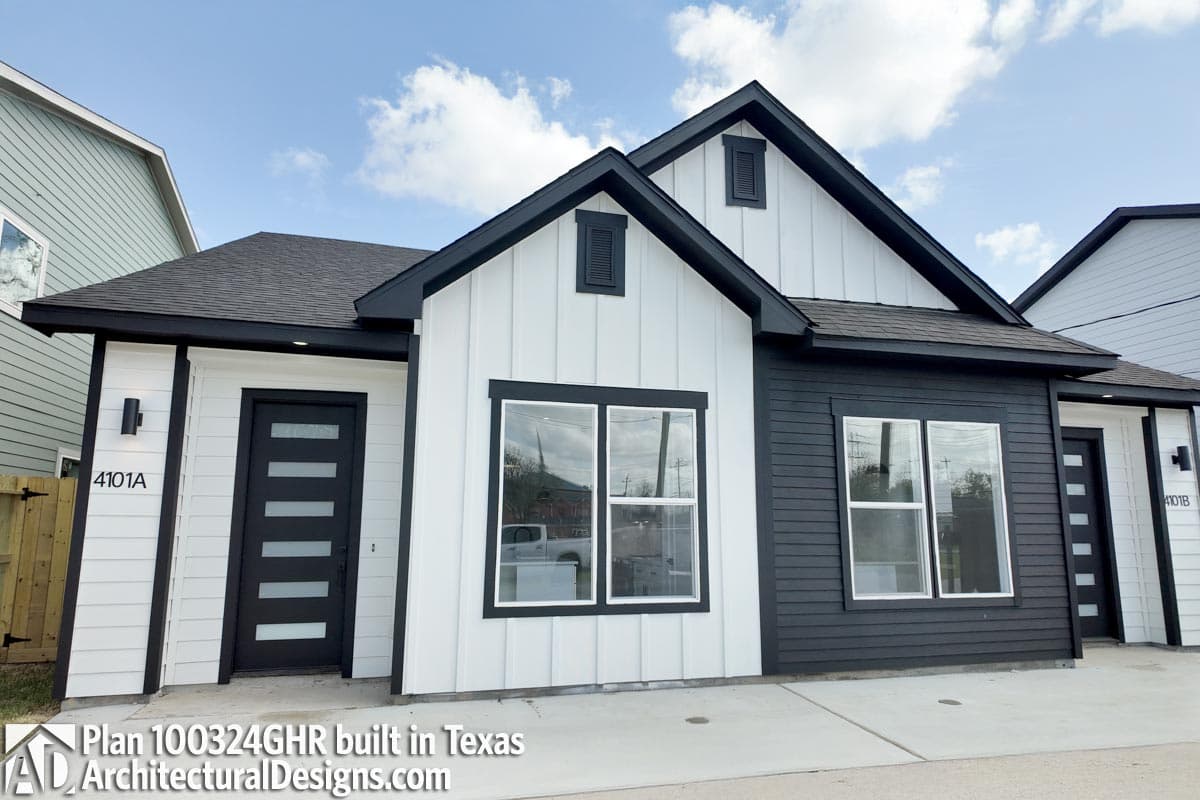

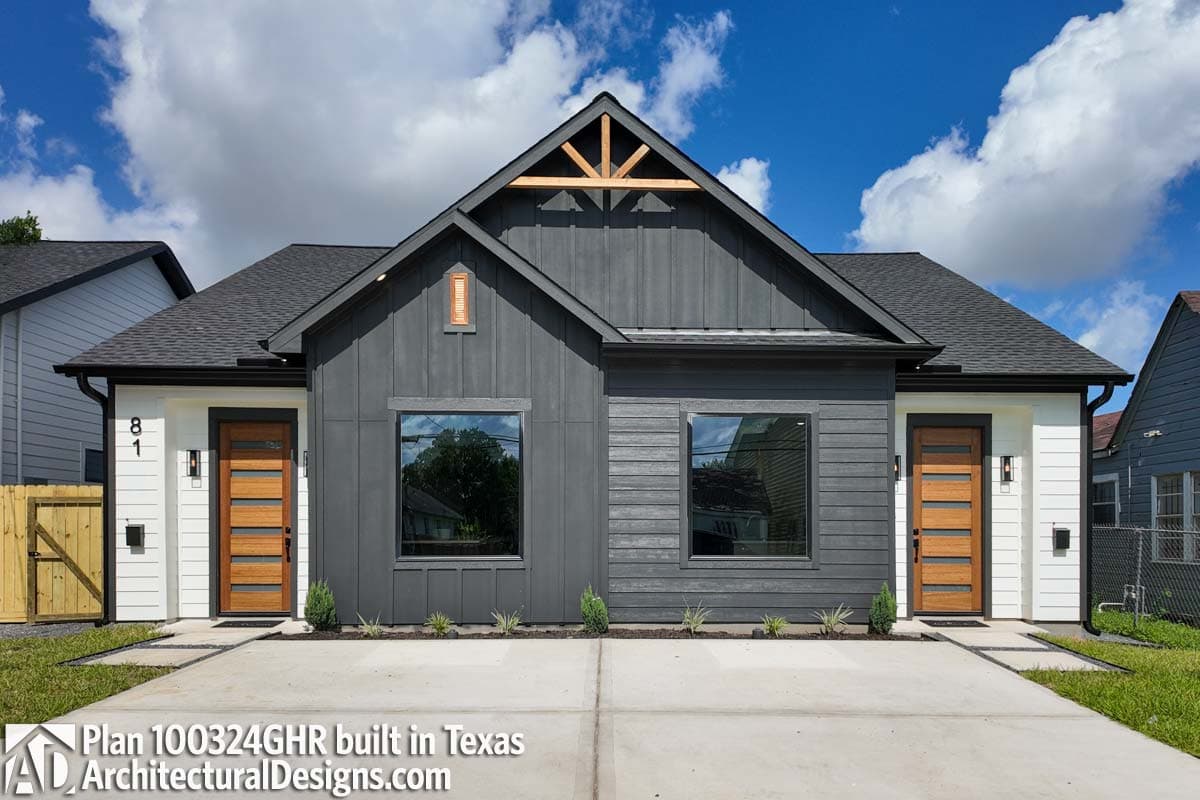

New American Duplex House Plan with 3 Bed 2 Bath Units - 1143 Sq Ft
Heated S.F.
2,286
Units
2
Width
39' 6"
Depth
60' 5"
What's Included
Plan Details
  • This duplex house plan gives you 3 bed, 2 bath units, each giving you 1,143 square feet of heated living space.
  • The front of each unit in this duplex house plan is open concept with the living room with tray ceiling open to the island kitchen and the dining area.
  • Beds 2 and 3 are located off the phall and share a hall bath. Laundry is conveniently located for both bedrooms.
  • The master suite is in back and has a walk-in closet and an ensuite bath. A door to the outside gives you a handy way to get in and out of the house in private.
  • Related Plan: Get an alternate exterior with duplex house plan 100315GHR.
Unit A
1,143 Sq. Ft.
1143 Sq. Ft. 1st Floor
3 Beds
2 Full Baths
None
19' w 60' d 21' h
Unit B
1,143 Sq. Ft.
114 Sq. Ft. 1st Floor
3 Beds
2 Full Baths
None
19' w 60' d 21' h
What's Included
  • Cover sheet with area, door & window schedules
  • Dimensioned floorplans with general notes, window & door sizes
  • Interior cabinet elevation
  • Foundation outline (perimeter dimensions only. All other construction details to be handled locally based on site and soil conditions)
  • Roof plan (Birdseye view with pitches)
  • Cornice details

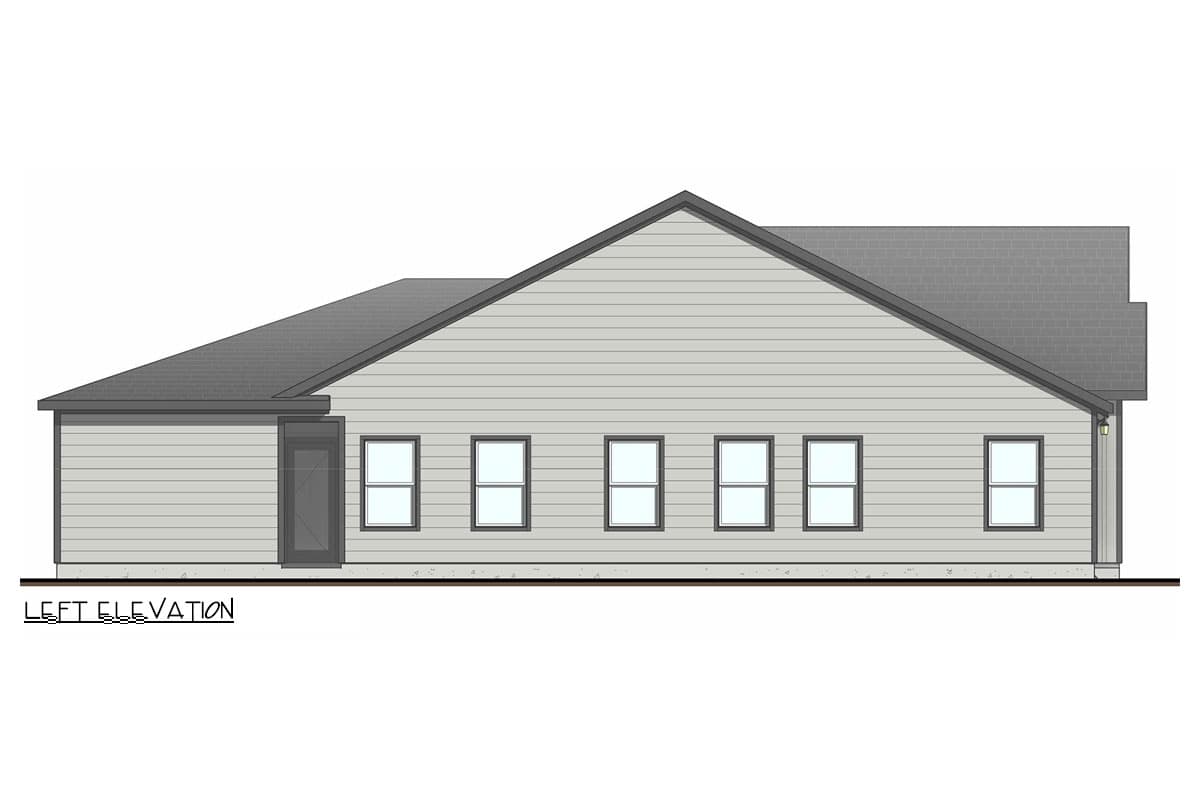

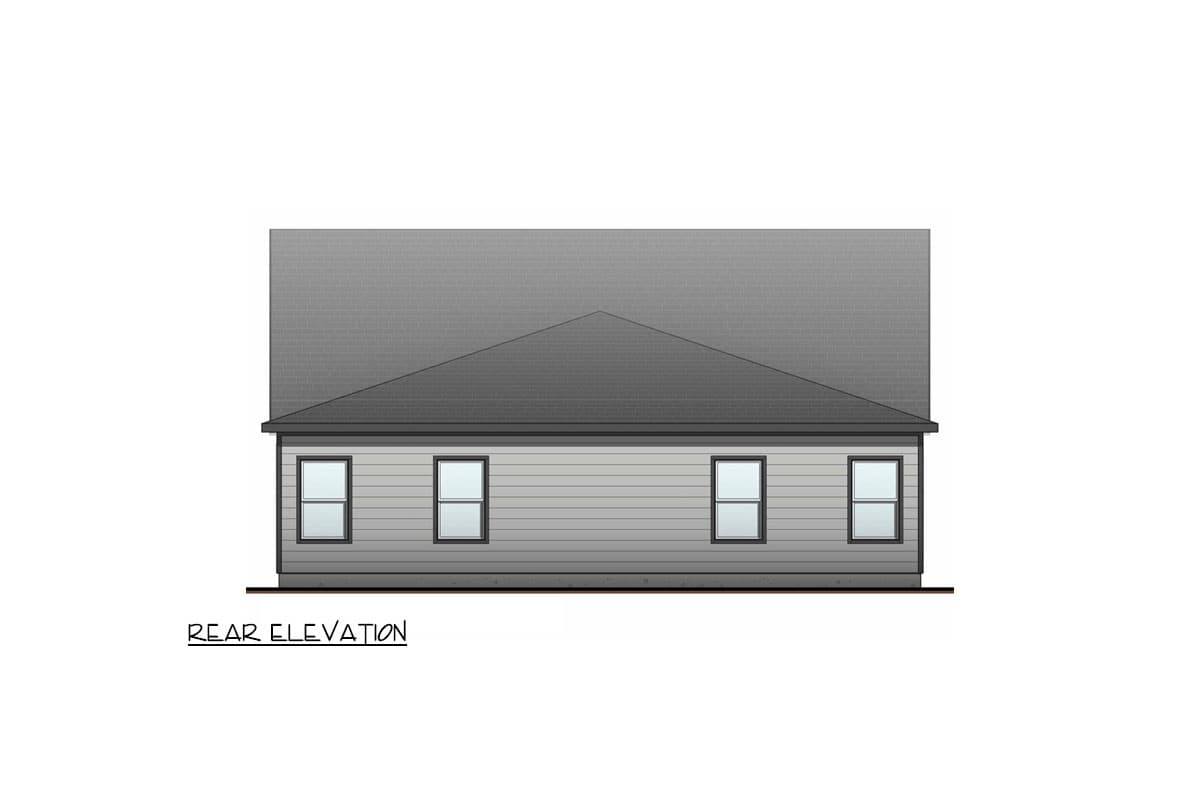

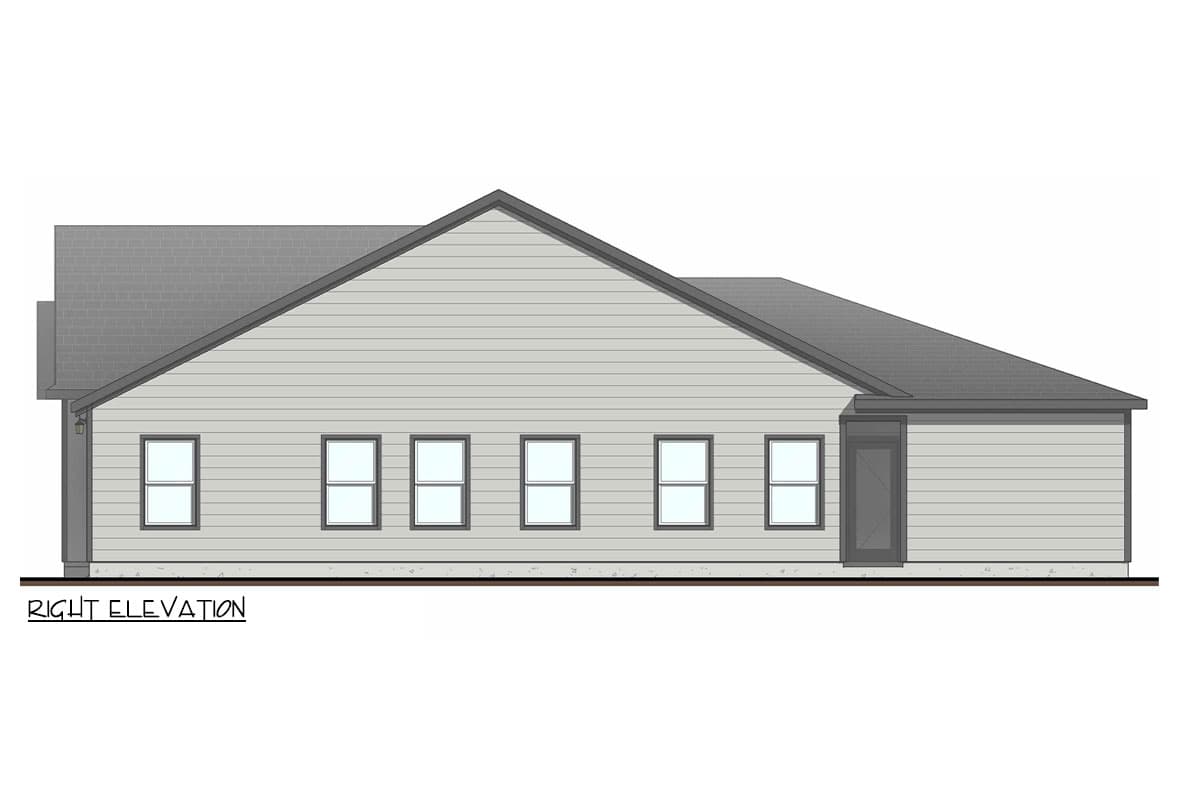

  • Exterior elevations (4 sides)
  • Building sections (if applicable)
  • Electrical plans
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

New American Duplex House Plan with 3 Bed 2 Bath Units - 1143 Sq Ft

  • 2,286

    Heated s.f.

  • 2

    Units

  • 39' 6"

    Width

  • 60' 5"

    Depth

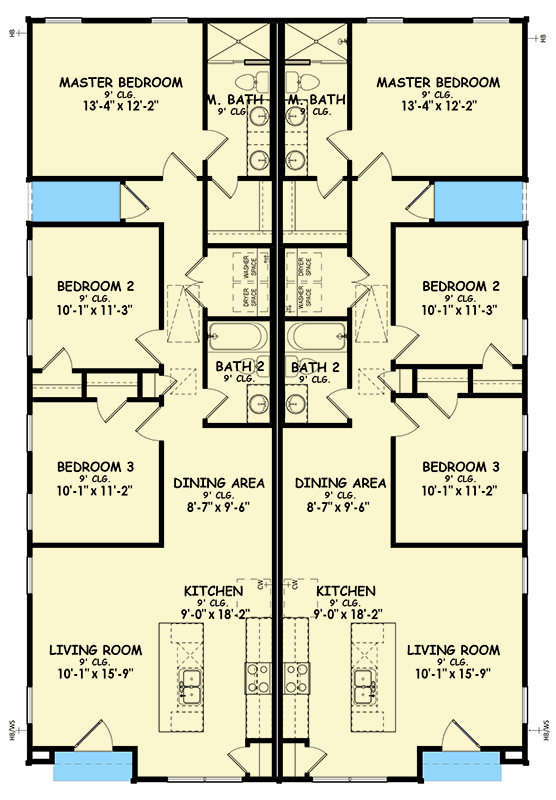

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,286 sq. ft.
  • 1st Floor: 2,286 sq. ft.

Dimensions

  • Width: 39' 6"
  • Depth: 60' 5"
  • Max ridge height: 21' 2"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 1"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site

New American Duplex House Plan with 3 Bed 2 Bath Units - 1143 Sq Ft

  • 2,286

    Heated s.f.

  • 2

    Units

  • 39' 6"

    Width

  • 60' 5"

    Depth

New American Duplex House Plan with 3 Bed 2 Bath Units - 1143 Sq Ft

  • 2,286

    Heated s.f.

  • 2

    Units

  • 39' 6"

    Width

  • 60' 5"

    Depth

Plan Details

Square Footage Breakdown

  • Total: 2,286 sq. ft.
  • 1st Floor: 2,286 sq. ft.

Dimensions

  • Width: 39' 6"
  • Depth: 60' 5"
  • Max ridge height: 21' 2"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 1"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Stick

    Main Level
