Plan 100320GHR

Exclusive

New American Duplex House Plan with 3 Bed Units - 1154 Sq Ft Each

Heated S.F.
2,308
Units
2
Width
Depth

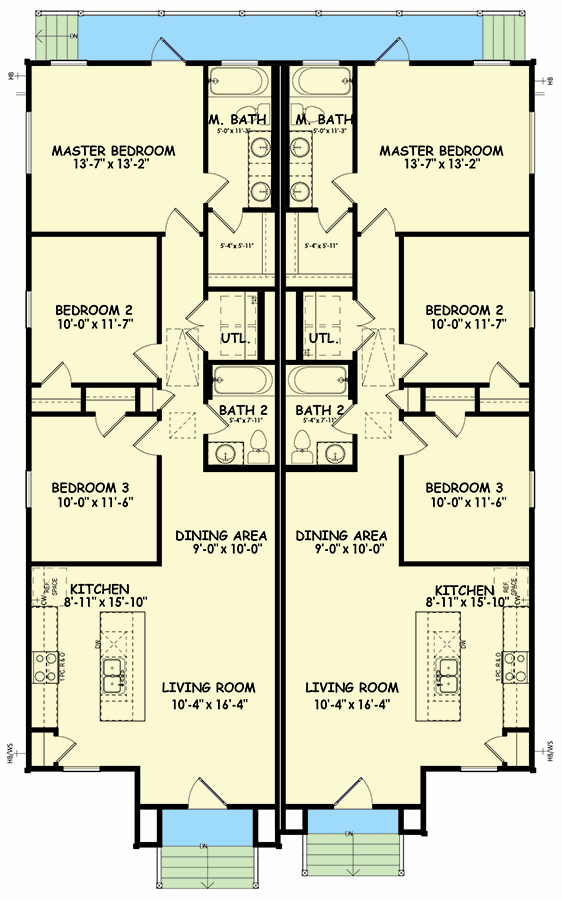

Floor Plan

Plan 100320GHR

Main Level
Main Level

Plan 100320GHR

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 100320GHR: New American Duplex House Plan with 3 Bed Units - 1154 Sq Ft Each - Floor Plan - Main Level - Cottage, New American, Traditional

Plan Details

  • Experience 2,308 sq. ft. of total heated living space, featuring 6 bedrooms and 4 full bathrooms within this traditional New American cottage-style duplex.
  • Enter into a welcoming living room that flows effortlessly into a spacious open-concept kitchen, ideal for modern living.
  • The heart of each unit includes a cozy living room and a generous dining area, making hosting gatherings a breeze.
  • The primary master suites are thoughtfully positioned on the main floor for convenience and privacy, accompanied by two additional bedrooms in each unit.
  • Enjoy the outdoors with front and rear porches, perfect for relaxing with a cup of coffee or enjoying a peaceful evening.
  • Optional foundation choices include slab and crawl spaces, providing flexibility depending on your needs.
Unit A
Heated Area
1,154Sq. Ft.
1154 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Dimensions
20'width
66'depth
24'height
Unfinished Areas
64 Sq. Ft. Porch, Rear
34 Sq. Ft. Porch, Front
Unit B
Heated Area
1,154Sq. Ft.
1154 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Dimensions
20'width
66'depth
24'height
Unfinished Areas
64 Sq. Ft. Porch, Rear
23 Sq. Ft. Porch, Front

What's Included

  • Cover sheet with area, door & window schedules
  • Dimensioned floorplans with general notes, window & door sizes
  • Interior cabinet elevation
  • Foundation outline (perimeter dimensions only. All other construction details to be handled locally based on site and soil conditions)
  • Roof plan (Birdseye view with pitches)
  • Cornice details
  • Exterior elevations (4 sides)
  • Building sections (if applicable)
  • Electrical plans
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,308 sq. ft.

1st Floor

2,308 sq. ft.

Porch, Front

34 sq. ft.

Porch, Rear

64 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Post/Beam

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

69' 4"

Max Ridge Height

24' 2"

Ceiling Heights

First Floor

10' 1"

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Cottage

New American

Traditional

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

2,308 sq. ft.

1st Floor

2,308 sq. ft.

Porch, Front

34 sq. ft.

Porch, Rear

64 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Post/Beam

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

69' 4"

Max Ridge Height

24' 2"

Ceiling Heights

First Floor

10' 1"

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Cottage

New American

Traditional

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Exclusive
