New American Duplex House Plan with Matching 3-Beds 2.5 Bath 2600 Sq Ft Units and Drive Under Garage

Heated S.F.
5,232
Units
2
Width
Depth

Floor Plan

Plan 147021RML

Main Level
Main Level
2nd Floor
2nd Floor
Lower Level
Lower Level

Plan 147021RML

M-F 9am-5pm EST |

1-203-761-8500

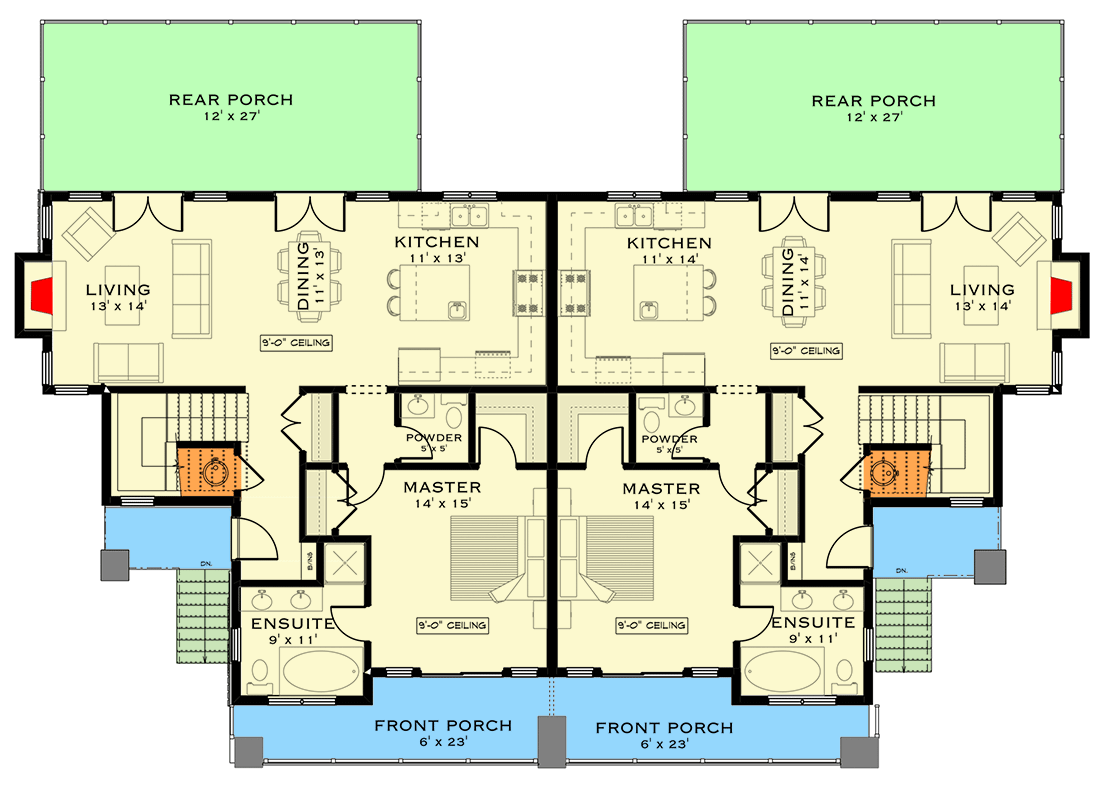

Main Level

Plan 147021RML: New American Duplex House Plan with Matching 3-Beds 2.5 Bath 2600 Sq Ft Units and Drive Under Garage - Floor Plan - Main Level - New American, Northwest, Prairie

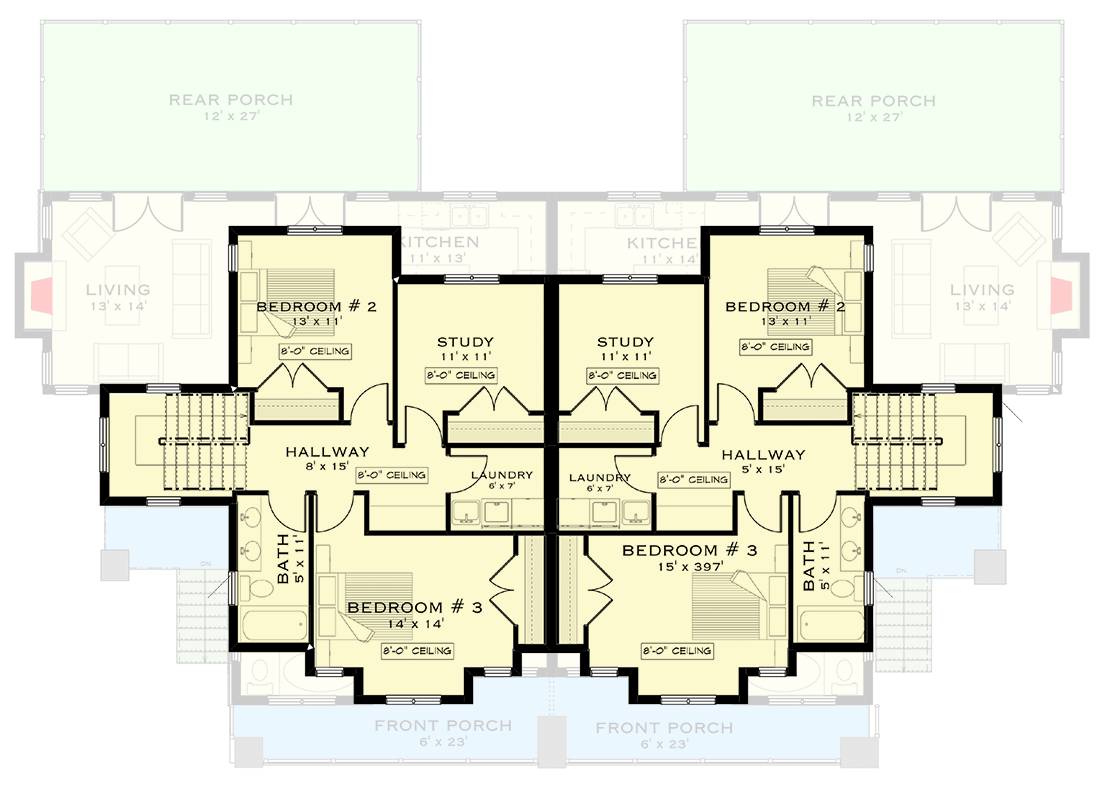

2nd Floor

Plan 147021RML: New American Duplex House Plan with Matching 3-Beds 2.5 Bath 2600 Sq Ft Units and Drive Under Garage - Floor Plan - 2nd Floor - New American, Northwest, Prairie

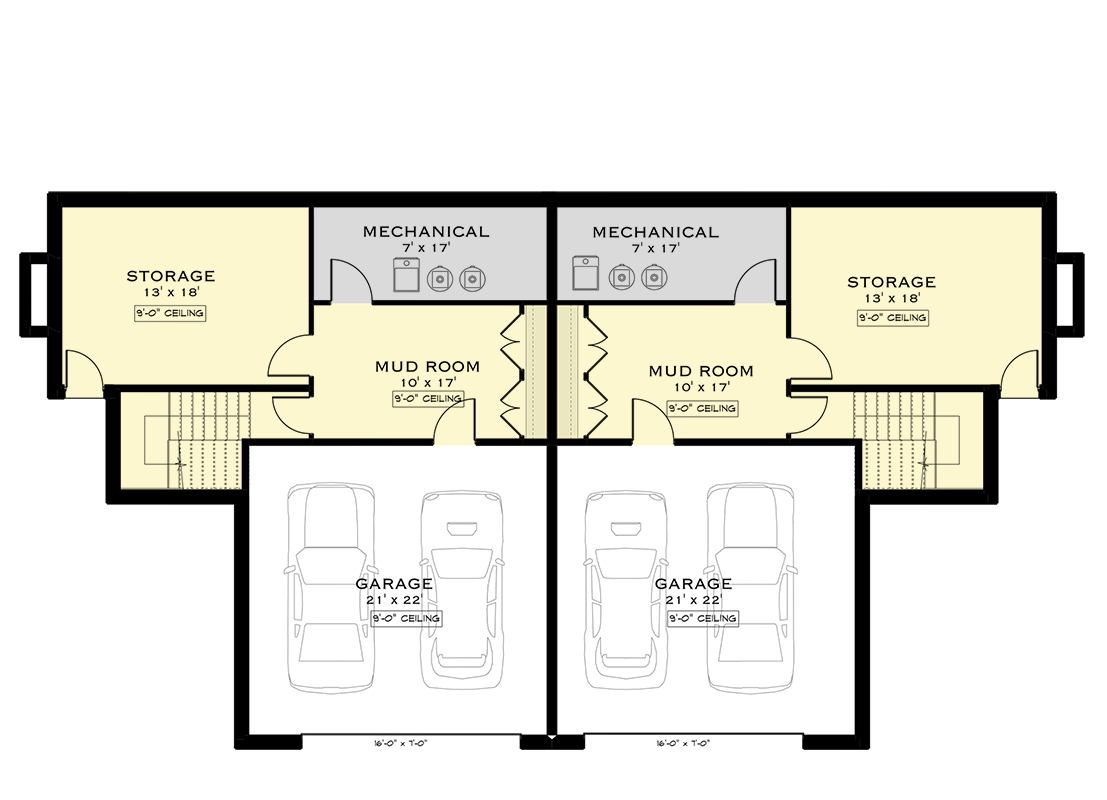

Lower Level

Plan 147021RML: New American Duplex House Plan with Matching 3-Beds 2.5 Bath 2600 Sq Ft Units and Drive Under Garage - Floor Plan - Lower Level - New American, Northwest, Prairie

Plan Details

  • Enjoy a spacious 5,232 sq ft New American style duplex plan featuring 4 bedrooms and 2.5 baths, complemented by a 4-car drive-under garage spanning 1,024 sq ft.
  • Enter into a welcoming open-concept main level that seamlessly connects the great room, kitchen, and dining areas, extending to a large rear porch.
  • The layout is thoughtfully designed with the master suite on the main level and two additional bedrooms, plus a flexible study upstairs.
  • Each unit boasts vaulted ceilings and a mudroom, ensuring practicality and comfort.
  • Outdoor spaces include both front and rear porches, perfect for relaxing or entertaining.
  • The lower level features a spacious mudroom, storage, and mechanical space, accessible from the drive-under garage, ensuring plenty of room for all your needs.
Unit A
Heated Area
2,616Sq. Ft.
648 Sq. Ft. LL
1117 Sq. Ft. 1st
798 Sq. Ft. 2nd
Beds
3 or 4Beds
Baths
2Full Baths
1Half Bath
Cars
Drive Under
512 Sq. Ft.
Dimensions
38' 7"width
41'depth
31' 3"height
Unfinished Areas
512 Sq. Ft. Garage
648 Sq. Ft. Basement Unfinished
183 Sq. Ft. Porch, Front
324 Sq. Ft. Porch, Rear
690 Sq. Ft. Porch, Combined
690 Sq. Ft. Deck & Porch
50 Sq. Ft. Entry
234 Sq. Ft. Storage
Unit B
Heated Area
2,616Sq. Ft.
648 Sq. Ft. LL
1117 Sq. Ft. 1st
798 Sq. Ft. 2nd
Beds
3 or 4Beds
Baths
2Full Baths
1Half Bath
Cars
Drive Under
512 Sq. Ft.
Dimensions
38' 7"width
41'depth
31' 3"height
Unfinished Areas
512 Sq. Ft. Garage
648 Sq. Ft. Basement Unfinished
183 Sq. Ft. Porch, Front
324 Sq. Ft. Porch, Rear
690 Sq. Ft. Porch, Combined
690 Sq. Ft. Deck & Porch
50 Sq. Ft. Entry
234 Sq. Ft. Storage

What's Included

  • Title Sheet w/ Color Rendering and Sheet Index
  • General Notes and Details
  • Foundation Plan and Notes
  • Dimensioned Floor Plan(s) with Window Schedule
  • Roof Plan
  • Building Sections and Details
  • Exterior Elevations

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

5,232 sq. ft.

Lower Level

1,296 sq. ft.

1st Floor

2,234 sq. ft.

2nd Floor

1,596 sq. ft.

Basement Unfinished

1,296 sq. ft.

Porch, Front

366 sq. ft.

Porch, Rear

648 sq. ft.

Porch, Combined

1,380 sq. ft.

Deck & Porch

1,380 sq. ft.

Entry

100 sq. ft.

Storage

468 sq. ft.

Beds/Baths

Bedrooms

6, 7, or 8

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

77' 2"

Depth

41' 0"

Max Ridge Height

31' 3"

Garage

Type

Drive Under, Attached

Area

1024 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

New American

Northwest

Prairie

Special Features

Bedrooms - Split

Den

Flex Room

Laundry - Upstairs

Library/Study

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

5,232 sq. ft.

Lower Level

1,296 sq. ft.

1st Floor

2,234 sq. ft.

2nd Floor

1,596 sq. ft.

Basement Unfinished

1,296 sq. ft.

Porch, Front

366 sq. ft.

Porch, Rear

648 sq. ft.

Porch, Combined

1,380 sq. ft.

Deck & Porch

1,380 sq. ft.

Entry

100 sq. ft.

Storage

468 sq. ft.

Beds/Baths

Bedrooms

6, 7, or 8

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

77' 2"

Depth

41' 0"

Max Ridge Height

31' 3"

Garage

Type

Drive Under, Attached

Area

1024 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

New American

Northwest

Prairie

Special Features

Bedrooms - Split

Den

Flex Room

Laundry - Upstairs

Library/Study

Master Suite - 1st Floor

Mudroom
