New American Farmhouse Just Over 3,000 Square Feet

Plan 580048DFT

  • 3,073

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Board and batten pair with shake siding to decorate the exterior of this New American Farmhouse plan, complete with a front porch to welcome you inside.
  • Tall ceilings above the foyer greet you and french doors to the right grant access to a home office.
  • The central kitchen, dining area, and great room are open to one another and extend onto a rear patio for outdoor living. The kitchen boasts a prep island and 7'11" by 6'7" pantry.
  • Enjoy the convenience of a main-level master suite that includes a 5-fixture bathroom and walk-in closet. On the opposite side of the living space, discover a flex room that can serve a variety of purposes.
  • Three family bedrooms are located upstairs, along with a playroom to help corral the toys.

  • Cover Sheet: General Notes and code criteria
  • Foundation Plan: Concrete layouts including footings, slabs and stem walls, dimensions, floor joist layout, plumbing fixture locations and construction notes and details
  • Floor Plan(s): Dimensions, wall framing, room sizes, door and window location and sizes, plumbing fixtures, kitchen layout with cabinetry location and construction notes and details
  • Roof Plan: Bird's eye view and general layout, roof pitches, eave sizes, special ceiling heights, trey ceilings located and construction notes and details
  • Section View(s): A cut or cuts through the home showing wall plate heights, stair sections, special construction sections including footings and crawl space or slab details
  • Exterior Elevations: Shows 2-D exterior views of all 4 sides of home locating and showing roof lines, roof pitches, material callouts, window locations, vents, trim style and plate heights
  • Electrical Plans: General layout of smoke detectors, carbon monoxide detectors, exhaust fans, lights, switches, outlets and GFI outlets

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

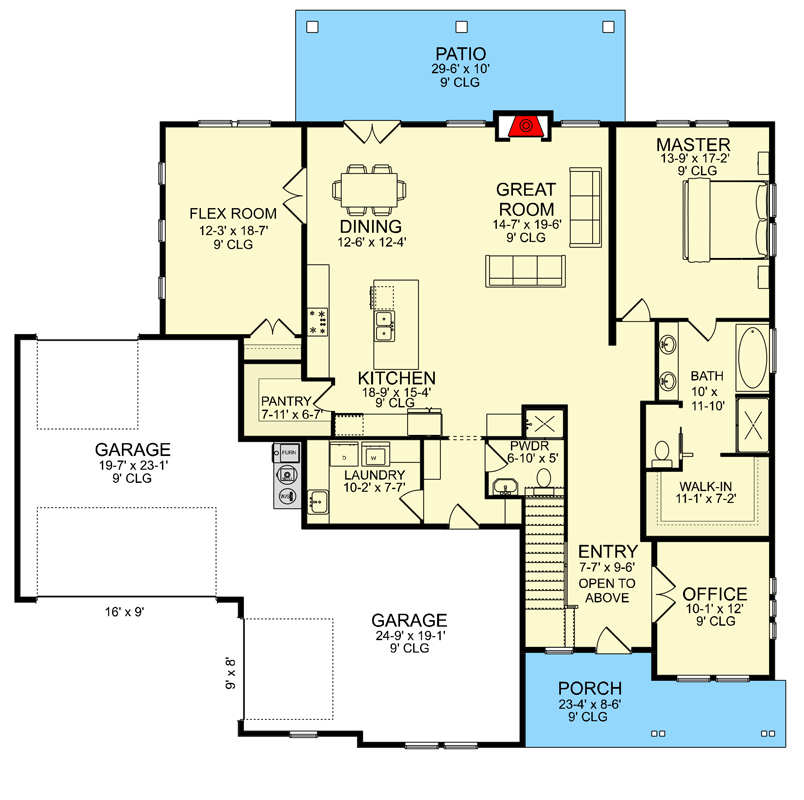

New American Farmhouse Just Over 3,000 Square Feet - 580048DFT floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

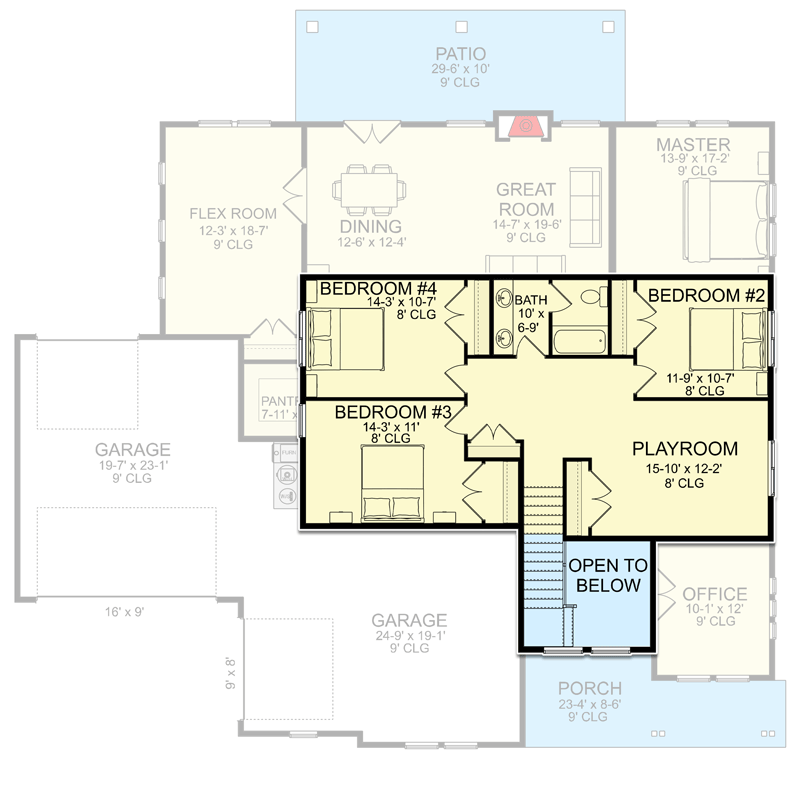

New American Farmhouse Just Over 3,000 Square Feet - 580048DFT floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,073 sq. ft.
  • 1st Floor: 2,102 sq. ft.
  • 2nd Floor: 971 sq. ft.
  • Covered Patio: 242 sq. ft.
  • Porch, Front: 140 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Crawl
  • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 68' 0"
  • Depth: 65' 0"

Garage

  • Type: Attached
  • Area: 1031 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

New American Farmhouse Just Over 3,000 Square Feet

  • 3,073

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,000
  • CAD + PDF - Single Build $3,000
  • View all purchase option online

About This Plan

  • Board and batten pair with shake siding to decorate the exterior of this New American Farmhouse plan, complete with a front porch to welcome you inside.
  • Tall ceilings above the foyer greet you and french doors to the right grant access to a home office.
  • The central kitchen, dining area, and great room are open to one another and extend onto a rear patio for outdoor living. The kitchen boasts a prep island and 7'11" by 6'7" pantry.
  • Enjoy the convenience of a main-level master suite that includes a 5-fixture bathroom and walk-in closet. On the opposite side of the living space, discover a flex room that can serve a variety of purposes.
  • Three family bedrooms are located upstairs, along with a playroom to help corral the toys.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,073 sq. ft.
  • 1st Floor: 2,102 sq. ft.
  • 2nd Floor: 971 sq. ft.
  • Covered Patio: 242 sq. ft.
  • Porch, Front: 140 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 68' 0"
  • Depth: 65' 0"

Garage

  • Type: Attached
  • Area: 1031 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Stick And Truss
