Plan 51854HZ

New American Farmhouse Plan with Attractive Shed Dormer Above Open Rafter Tail Porch

Heated S.F.
2,020
Beds
3
Baths
2.5
Stories
1
Cars
2

Floor Plan

Plan 51854HZ

Main Level
Main Level
Main Level - Basement Stairs Location
Main Level - Basement Stairs Location

Plan 51854HZ

M-F 9am-5pm EST |

1-203-761-8500

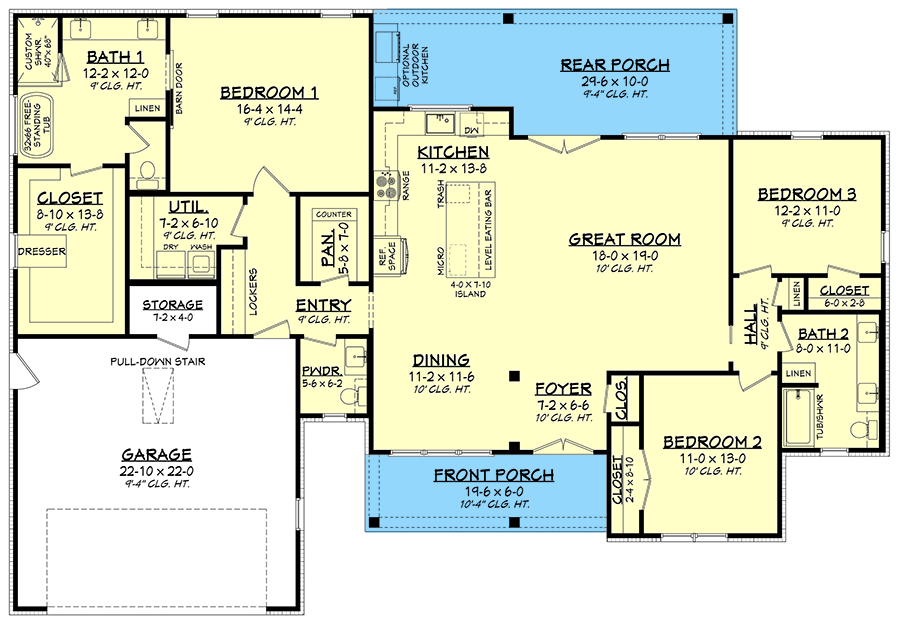

Main Level

Plan 51854HZ: New American Farmhouse Plan with Attractive Shed Dormer Above Open Rafter Tail Porch - Floor Plan - Main Level - Country, Craftsman, Farmhouse, Modern Farmhouse, New American

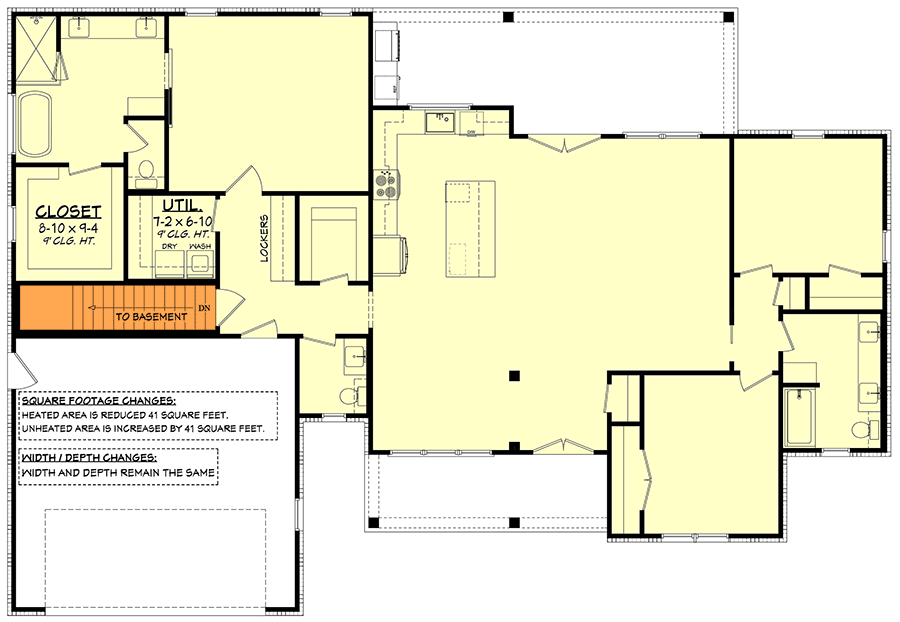

Main Level - Basement Stairs Location

Plan 51854HZ: New American Farmhouse Plan with Attractive Shed Dormer Above Open Rafter Tail Porch - Floor Plan - Main Level - Basement Stairs Location - Country, Craftsman, Farmhouse, Modern Farmhouse, New American

Plan Details

  • An attractive dormer sits above the front porch with its exposed rafter tails giving this 3 bedroom, 2.5 bath New American farmhouse plan great curb appeal (note, the dormer sheds light into the attic, not the home with its 10' ceilings).
  • As you enter, the foyer and dining room open into a large open living area with raised ceilings and large windows.  The large kitchen has views to the rear porch and features an island with eating bar as well as a large walk-in-pantry.
  • Bedroom 1 is oversized and offers a large bathroom and closet and has two windows on the back wall. Two more bedrooms are located across the home and share a bath.
  • The rear entry has lockers to help you organize along with a powder room that is conveniently located to the rest of the home. The rear porch is large and offers an optional outdoor kitchen.

What's Included

This house plan has 12 pages as follows:

Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation Plan and Details
Page 3  Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

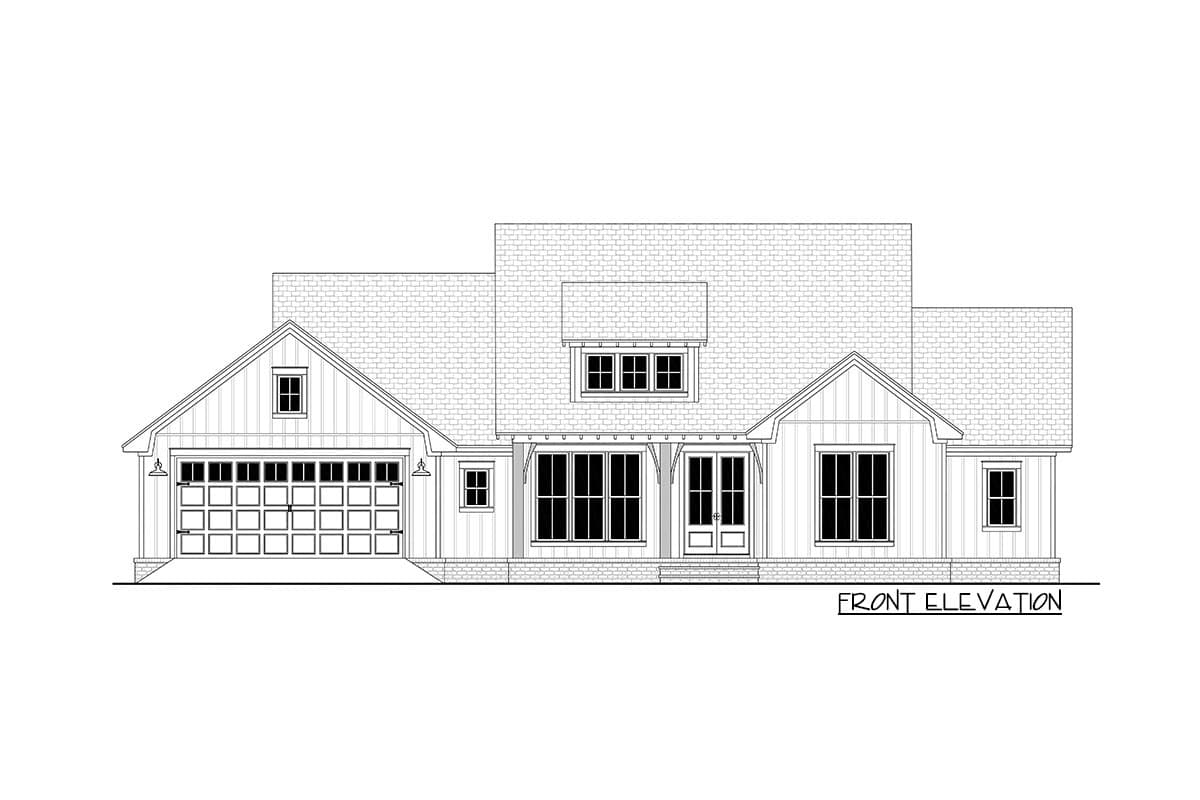

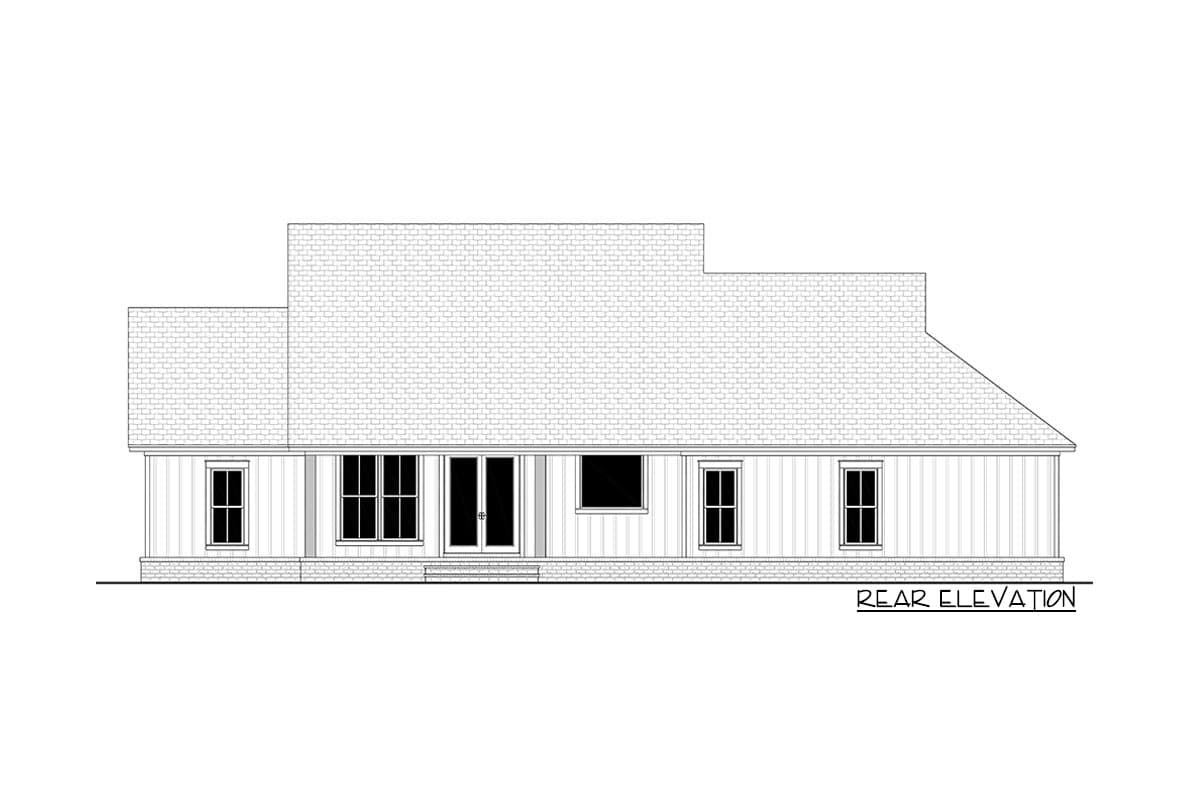

Page 4  Front and rear exterior views with additional notes and details

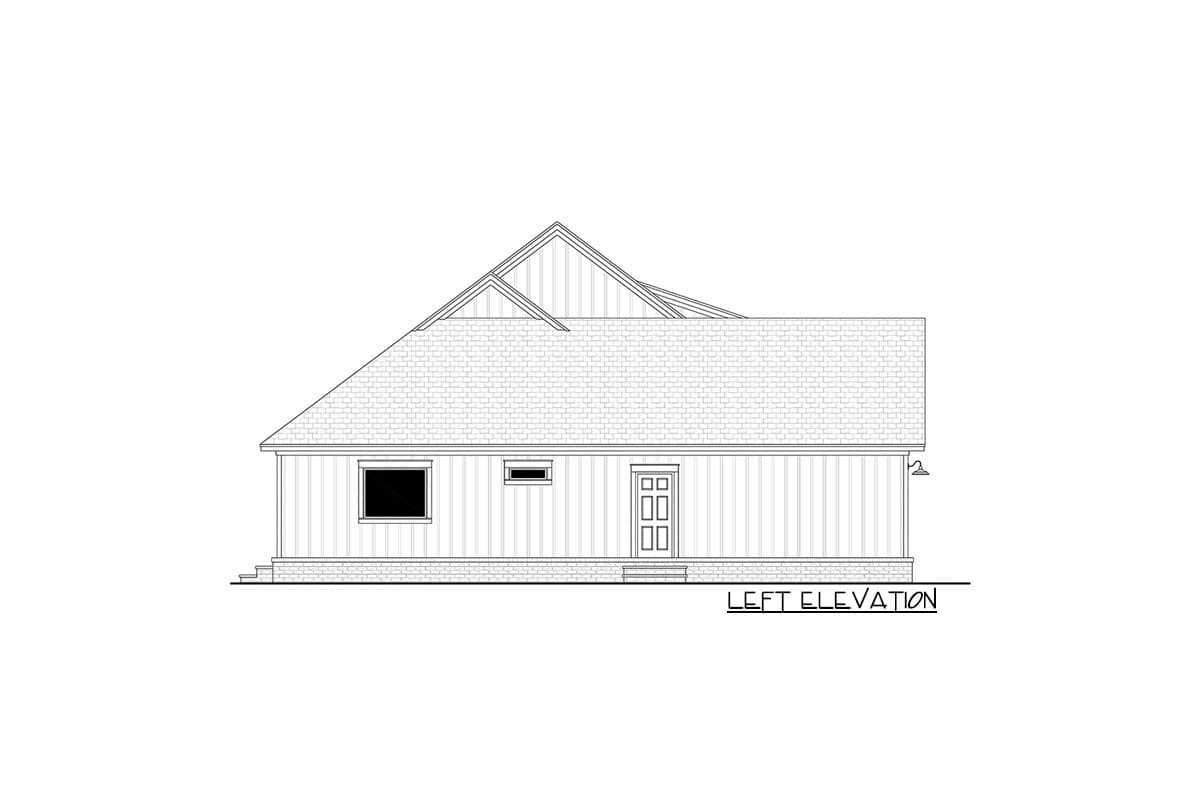

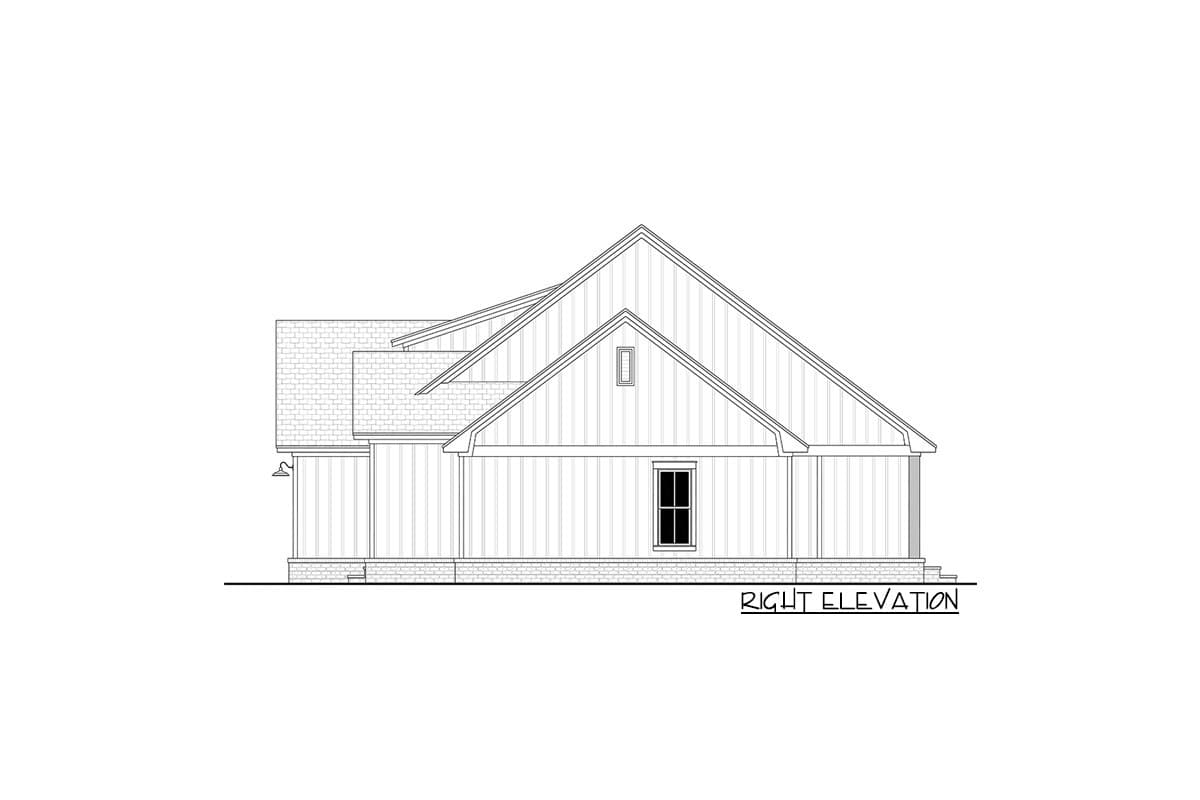

Page 5  Right and left exterior views with additional notes and details
Page 6  Cross Section & kitchen cabinet views
Page 7  Roof plan and span charts with additional details
Page 8  Electrical plan
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,020 sq. ft.

1st Floor

2,020 sq. ft.

Porch, Front

117 sq. ft.

Porch, Rear

268 sq. ft.

Storage

31 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

71' 6"

Depth

49' 0"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

523 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9' 4"

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

Farmhouse

Modern Farmhouse

New American

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Outdoor Kitchen

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

2,020 sq. ft.

1st Floor

2,020 sq. ft.

Porch, Front

117 sq. ft.

Porch, Rear

268 sq. ft.

Storage

31 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

71' 6"

Depth

49' 0"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

523 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9' 4"

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

Farmhouse

Modern Farmhouse

New American

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Outdoor Kitchen

Walk-in Pantry
