Plan 24415TW New American Farmhouse Plan with Barn-like 3-car Garage

3,059 3-4 4 1 3
1 Client
Album Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

New American Farmhouse Plan with Barn-like 3-car Garage

Plan 24415TW

  • 3,059

    Heated s.f.

  • 3-4

    Beds

  • 4

    Baths

  • 1

    Stories

  • 3

    Cars

  • This New American, farmhouse plan features board and batten siding, and a splash of red paint on the 3-car garage gives it a barn-like appearance.
  • Inside, the foyer takes you directly into the heart of the home, where a vaulted ceiling combines the great room, dining area, and kitchen. Oversized windows on the rear wall overlook the screened porch, complete with a fireplace.
  • U-shaped cabinets, counters, and appliances form the kitchen and surround an island with a bar sink. A neighboring home office is perfect for the work-at-home resident, or convert it into a fourth bedroom for guests.
  • The master suite is privately situated on the main level, and enjoys a large walk-in shower in the ensuite and a stackable washer / dryer unit in the adjoining closet.
  • Downstairs, you will find a wet bar in the recreation room that opens to a concrete patio. Bedrooms 2 and 3 can also be found on the lower level, along with an exercise room and two full baths. A second washer and dryer are located here as well.

The plans include the following:

  • Four elevations (front, rear, right & left) with finish details
  • Fully dimensioned floor plans which include window and door sizes
  • Foundation plan with footing details
  • Roof plan with cornice details
  • General framing details
  • Floor joists layout
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

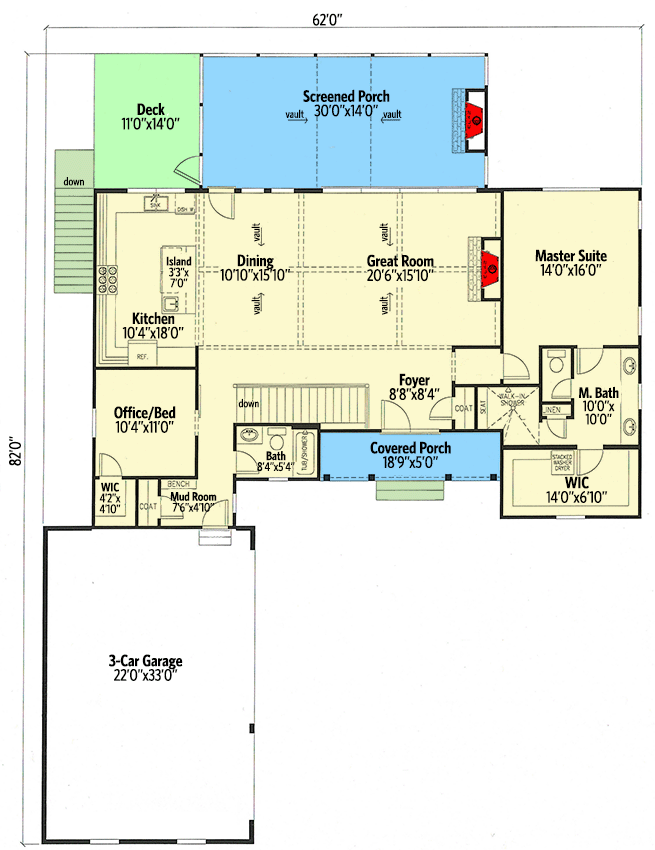

New American Farmhouse Plan with Barn-like 3-car Garage - 24415TW floor plan - Main Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

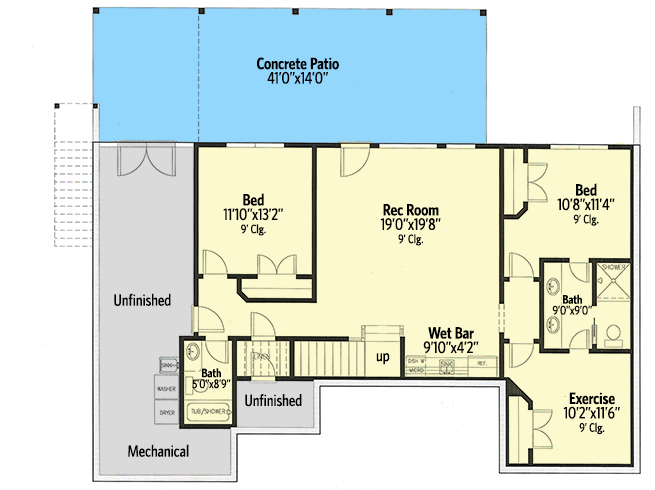

New American Farmhouse Plan with Barn-like 3-car Garage - 24415TW floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,059 sq. ft.
  • Lower Level: 1,290 sq. ft.
  • 1st Floor: 1,769 sq. ft.
  • Covered Patio: 574 sq. ft.
  • Deck: 154 sq. ft.
  • Screened Porch: 420 sq. ft.
  • Porch, Front: 93 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 4

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 62' 0"
  • Depth: 82' 0"
  • Max ridge height: 20' 3"

Garage

  • Type: Attached
  • Area: 721 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

New American Farmhouse Plan with Barn-like 3-car Garage

  • 3,059

    Heated s.f.

  • 3-4

    Beds

  • 4

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,350
  • CAD + PDF - Single-Build $1,550
  • View all purchase option online

About This Plan

  • This New American, farmhouse plan features board and batten siding, and a splash of red paint on the 3-car garage gives it a barn-like appearance.
  • Inside, the foyer takes you directly into the heart of the home, where a vaulted ceiling combines the great room, dining area, and kitchen. Oversized windows on the rear wall overlook the screened porch, complete with a fireplace.
  • U-shaped cabinets, counters, and appliances form the kitchen and surround an island with a bar sink. A neighboring home office is perfect for the work-at-home resident, or convert it into a fourth bedroom for guests.
  • The master suite is privately situated on the main level, and enjoys a large walk-in shower in the ensuite and a stackable washer / dryer unit in the adjoining closet.
  • Downstairs, you will find a wet bar in the recreation room that opens to a concrete patio. Bedrooms 2 and 3 can also be found on the lower level, along with an exercise room and two full baths. A second washer and dryer are located here as well.

Floor Plans

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,059 sq. ft.
  • Lower Level: 1,290 sq. ft.
  • 1st Floor: 1,769 sq. ft.
  • Covered Patio: 574 sq. ft.
  • Deck: 154 sq. ft.
  • Screened Porch: 420 sq. ft.
  • Porch, Front: 93 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 62' 0"
  • Depth: 82' 0"
  • Max ridge height: 20' 3"

Garage

  • Type: Attached
  • Area: 721 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Framing Type: Stick
Plan 24415TW
View this and more for this plan by visiting www.architechtecturaldesigns.com/24415TW
|
Need Help? 800-854-7852
|
Plan 24415TW
