Plan 710383BTZ New American Farmhouse Plan with Central Gable and Vaulted Open Concept Layout

2,148 3-4 2.5 - 3.5 2 2
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

New American Farmhouse Plan with Central Gable and Vaulted Open Concept Layout

Plan 710383BTZ

  • 2,148

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

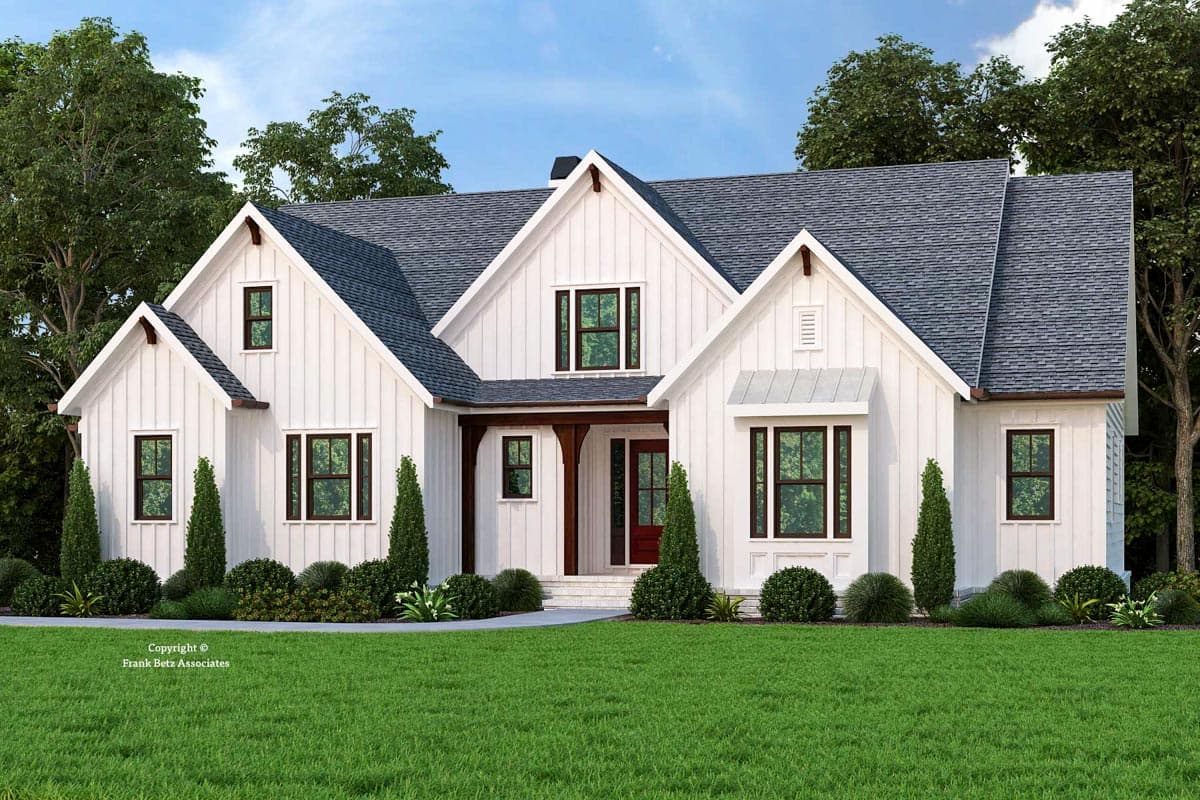

  • Multiple gables, board-and-batten siding and a central gable above the covered entry are the focal points of this New American farmhouse plan and combine to give it a warm and inviting feeling. A 7' wide and 4'8" deep porch provides cover at the front door.
  • The main floor is open concept, light filled and voluminous. The living, dining and kitchen are vaulted (16' high) with a continuous ridge line throughout the entire space. A warming fireplace and large window groupings accent the rooms. A large island in the fully equipped kitchen will surely be a gathering point.
  • The master suite is secluded and private. It features a beamed ceiling and boxed bay window. The master bath has a free standing soaking tub and large shower. There are two additional bedrooms and a compartmentalized hall bath.
  • The upper level is optional and includes an additional bedroom, bathroom and multi-purpose bonus room over the garage.

The plans include the following:

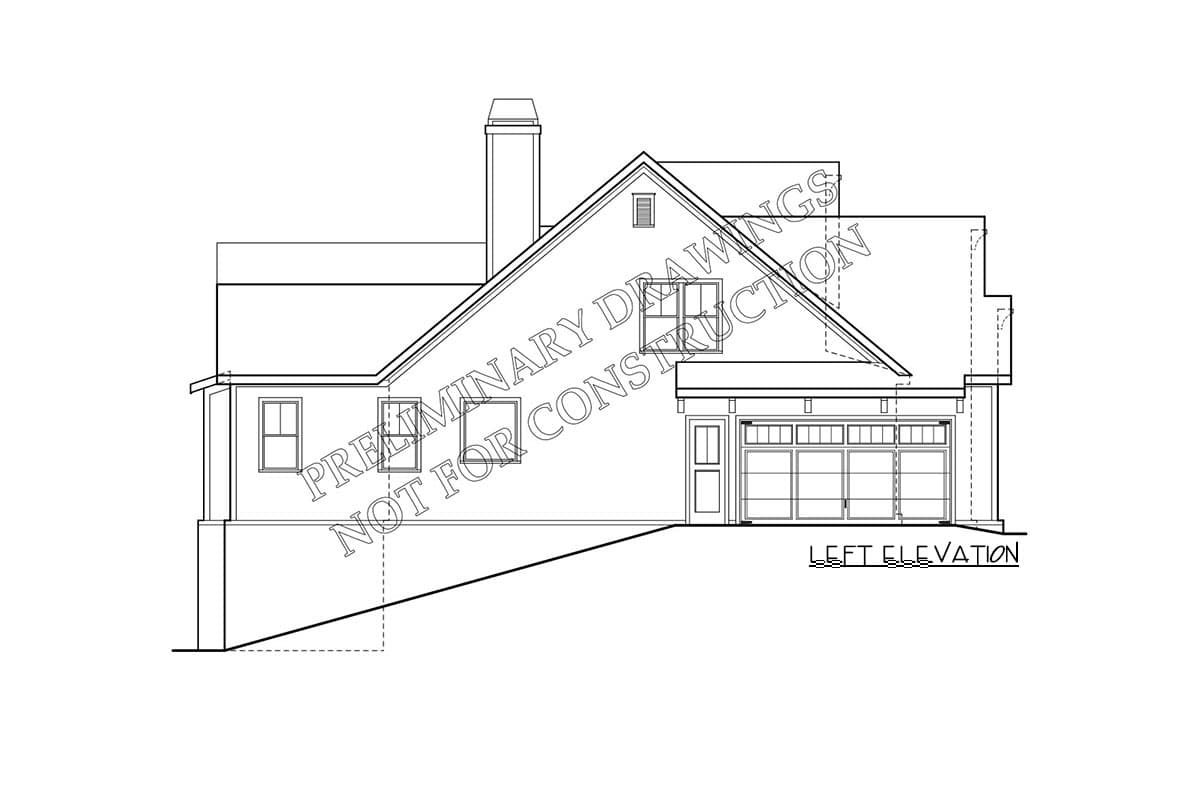

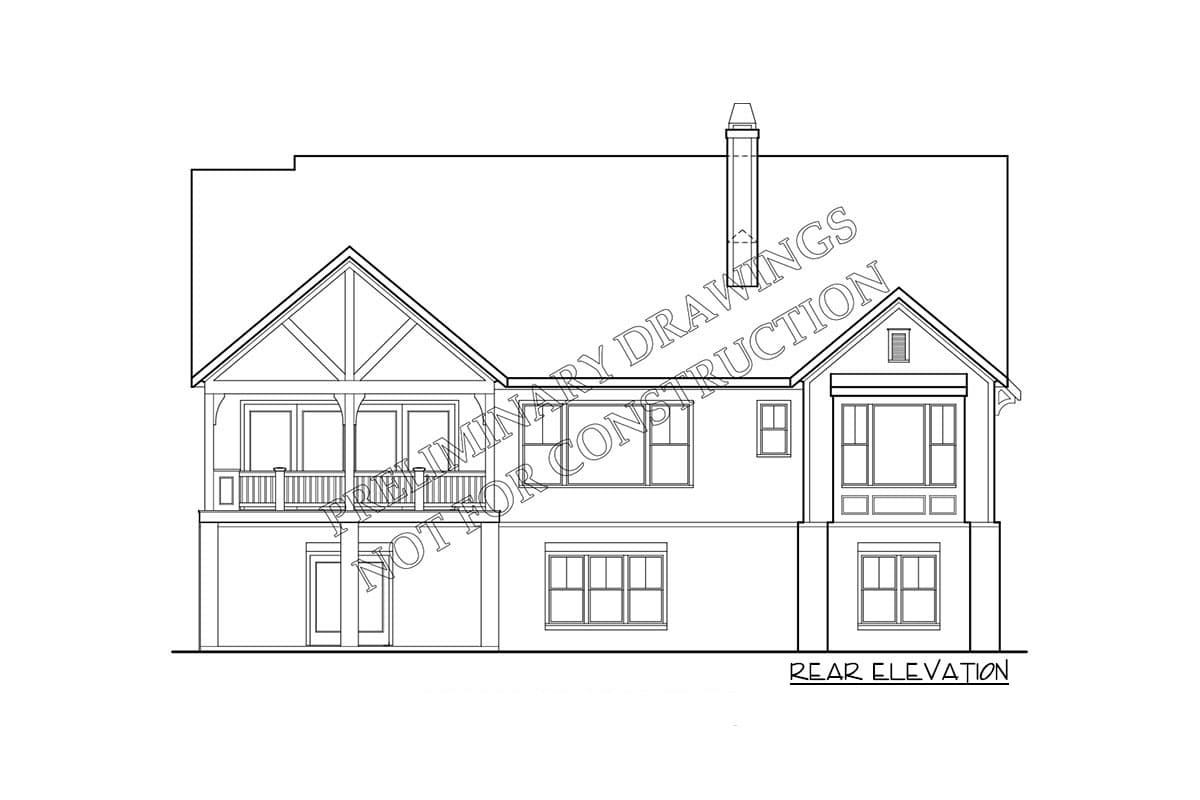

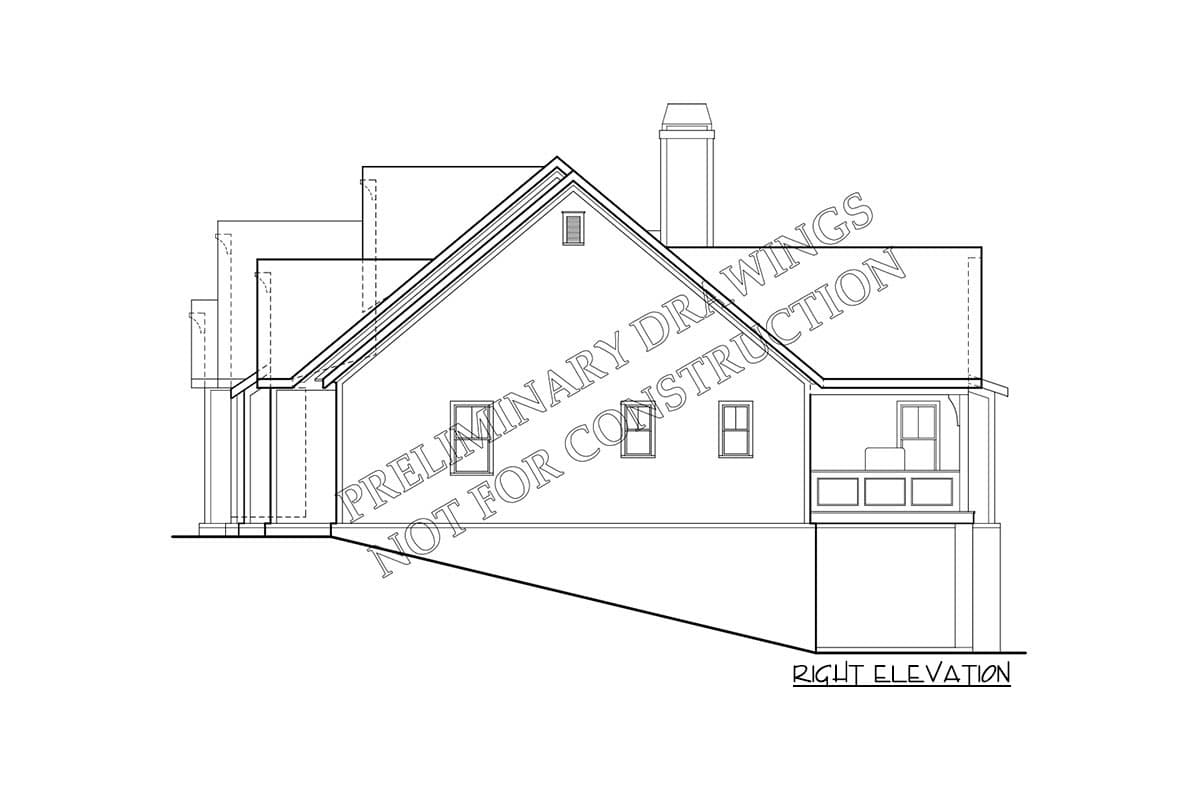

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

          Architectural or Engineering Stamp
          Site Plan
          Mechanical Drawings (location of heating and air equipment and duct work)
          Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
          Energy calculations

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

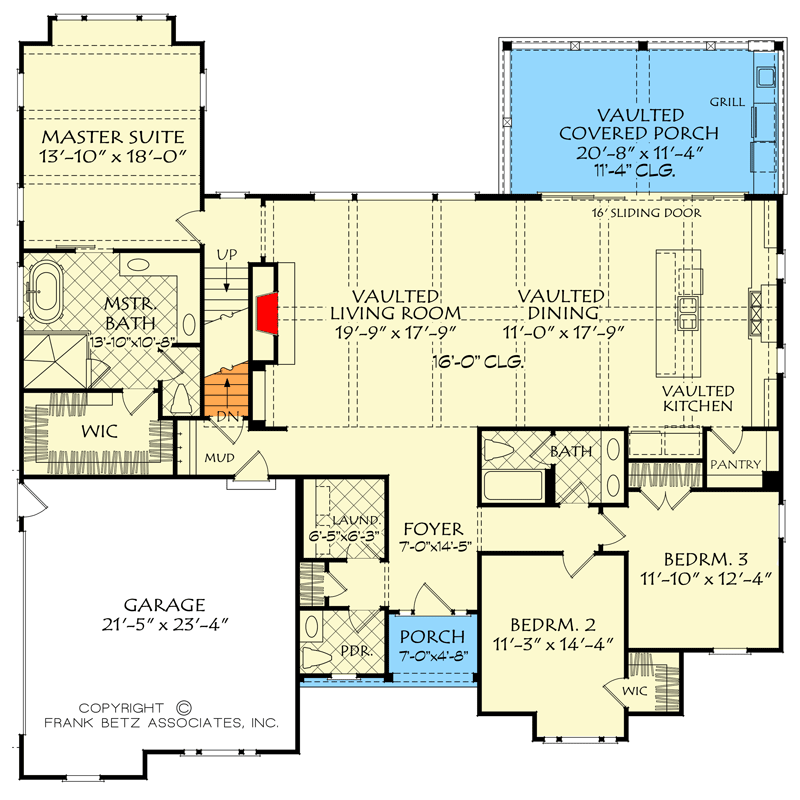

New American Farmhouse Plan with Central Gable and Vaulted Open Concept Layout - 710383BTZ floor plan - Main Level

Bonus Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

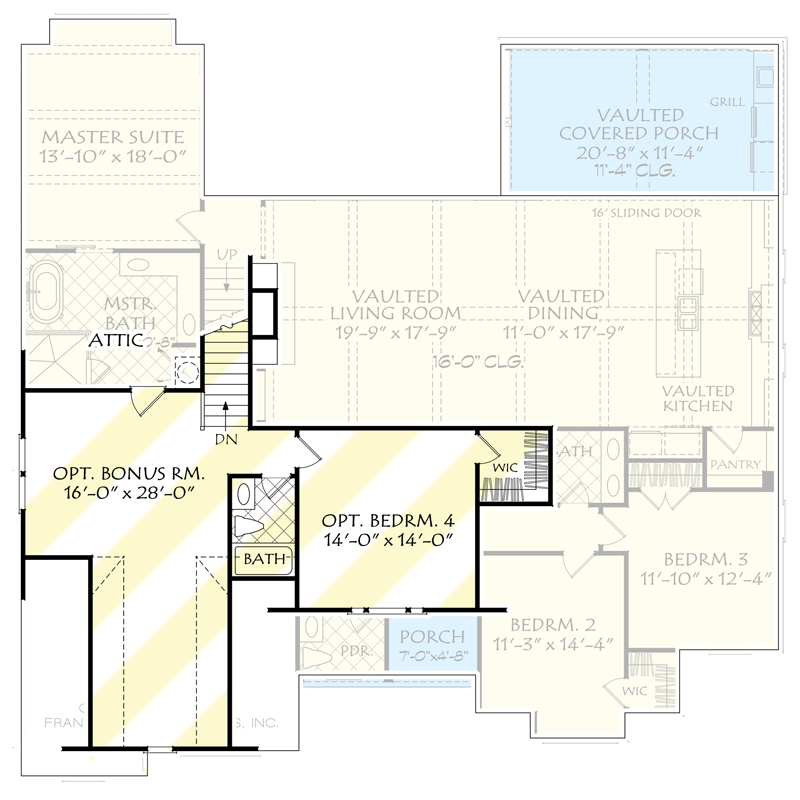

New American Farmhouse Plan with Central Gable and Vaulted Open Concept Layout - 710383BTZ floor plan - Bonus Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,148 sq. ft.
  • 1st Floor: 2,148 sq. ft.
  • Bonus: 704 sq. ft.
  • Basement Unfinished: 2,148 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 60' 0"
  • Depth: 60' 0"
  • Max ridge height: 26' 10"

Garage

  • Type: Attached
  • Area: 491 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 10 on 12

Architectural Style

Special features

New American Farmhouse Plan with Central Gable and Vaulted Open Concept Layout

  • 2,148

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,895
  • 5 Sets + PDF $2,175
  • PDF - Unlimited Build $2,195
  • PDF - Unlimited Build + 5-Sets $2,475
  • CAD - Unlimited Build $3,595
  • View all purchase option online

About This Plan

  • Multiple gables, board-and-batten siding and a central gable above the covered entry are the focal points of this New American farmhouse plan and combine to give it a warm and inviting feeling. A 7' wide and 4'8" deep porch provides cover at the front door.
  • The main floor is open concept, light filled and voluminous. The living, dining and kitchen are vaulted (16' high) with a continuous ridge line throughout the entire space. A warming fireplace and large window groupings accent the rooms. A large island in the fully equipped kitchen will surely be a gathering point.
  • The master suite is secluded and private. It features a beamed ceiling and boxed bay window. The master bath has a free standing soaking tub and large shower. There are two additional bedrooms and a compartmentalized hall bath.
  • The upper level is optional and includes an additional bedroom, bathroom and multi-purpose bonus room over the garage.

Floor Plans

  • Main Level

  • Bonus Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,148 sq. ft.
  • 1st Floor: 2,148 sq. ft.
  • Bonus: 704 sq. ft.
  • Basement Unfinished: 2,148 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 60' 0"
  • Depth: 60' 0"
  • Max ridge height: 26' 10"

Garage

  • Type: Attached
  • Area: 491 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
Plan 710383BTZ
View this and more for this plan by visiting www.architechtecturaldesigns.com/710383BTZ
|
