Plan 710414BTZ New American Farmhouse with 2-story Family Room and a Porte-cochere

New American Farmhouse with 2-story Family Room and a Porte-cochere

Plan 710414BTZ

  • 3,839

    Heated s.f.

  • 5

    Beds

  • 5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This New American Farmhouse plan has a welcoming front porch that frames the entry doors with timber columns and has plenty of room for rocking chairs. Painted brick and board-and-batten siding wrap the home. A porte-cochere and detached garage provide additional parking and drop off point.
  • The main level contains the open, bright and connected living spaces along with the owner's suite. The kitchen has a large island that is sure to be a favorite family spot. There is a guest suite on the main floor as well, perfect for an elderly parent or guests.
  • The rear entry area is super-sized for a busy family with built-ins for organization, large laundry and pantry. The powder room is designed with a swimming pool in mind and has access from the rear yard.
  • The upper level has three additional sleeping rooms, each with bath access and walk-in-closets. The optional bonus space has private access via a rear stair, perfect for a home office.

The plans include the following:

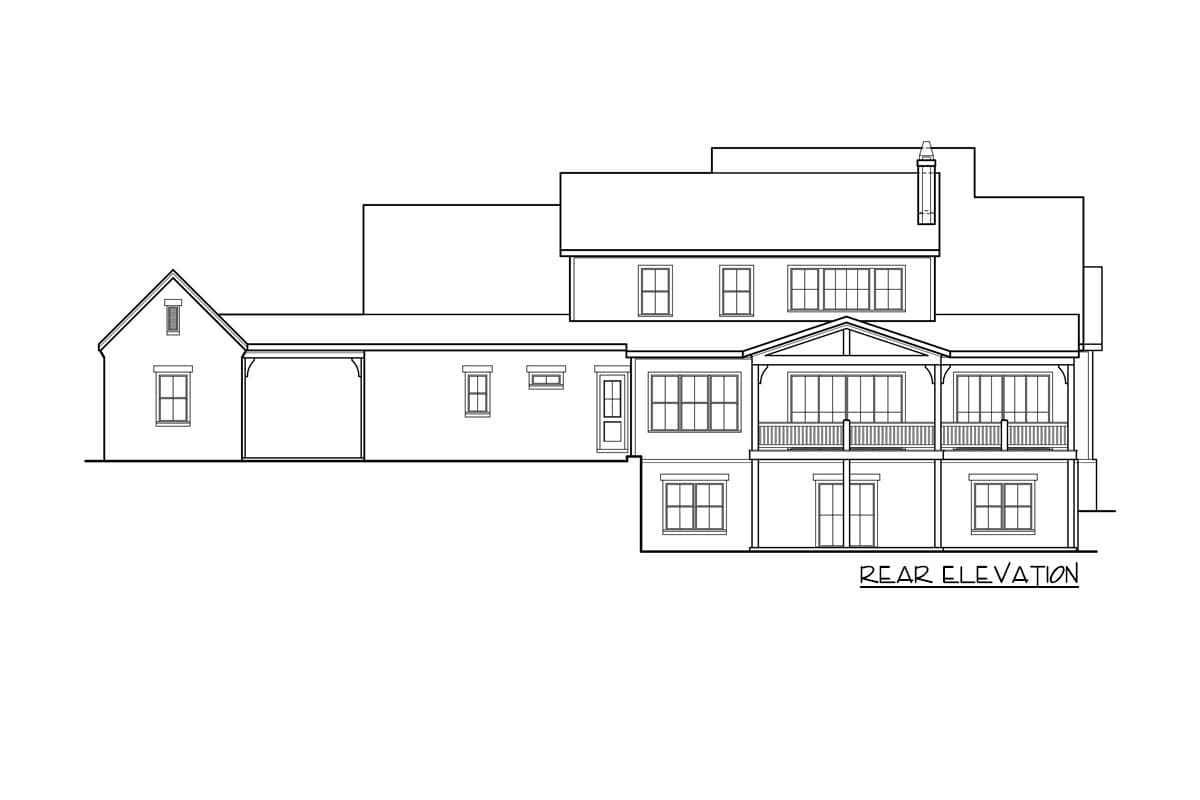

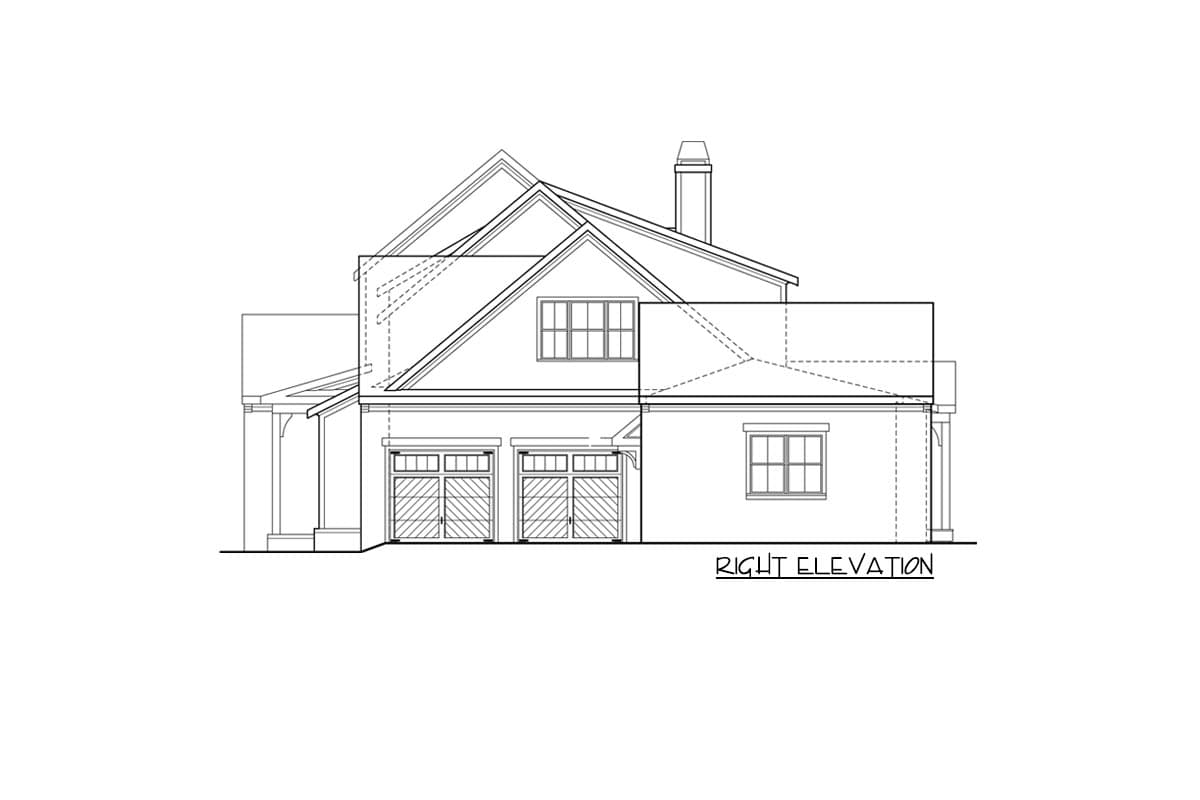

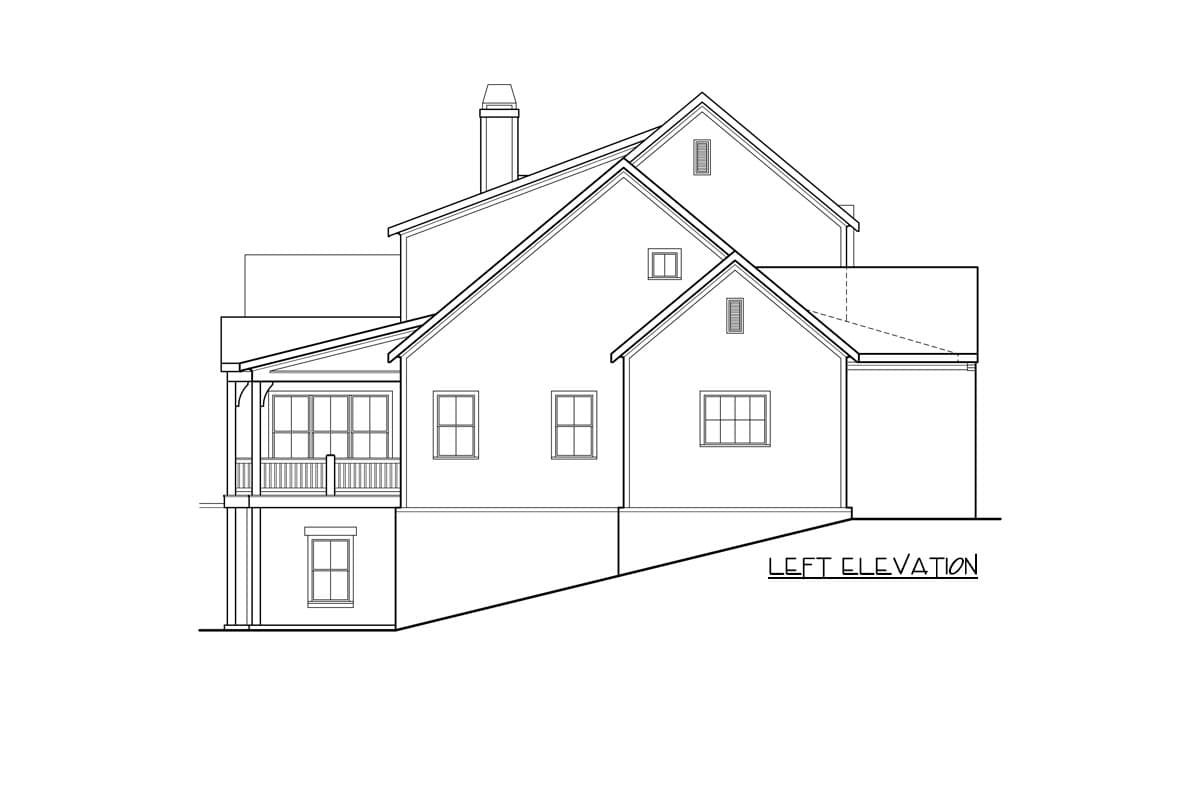

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

          Architectural or Engineering Stamp
          Site Plan
          Mechanical Drawings (location of heating and air equipment and duct work)
          Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
          Energy calculations

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

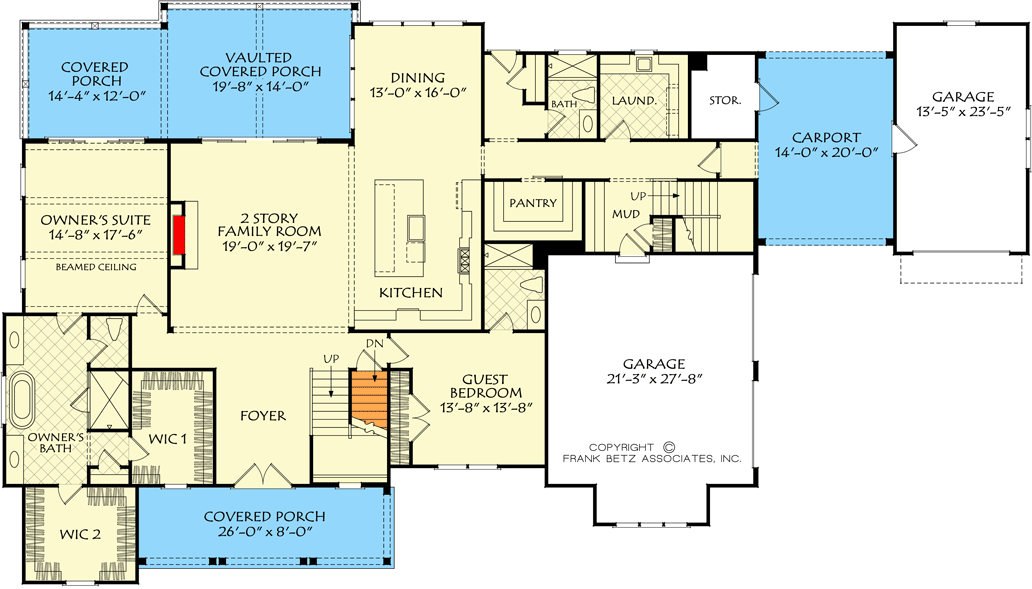

New American Farmhouse with 2-story Family Room and a Porte-cochere - 710414BTZ floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

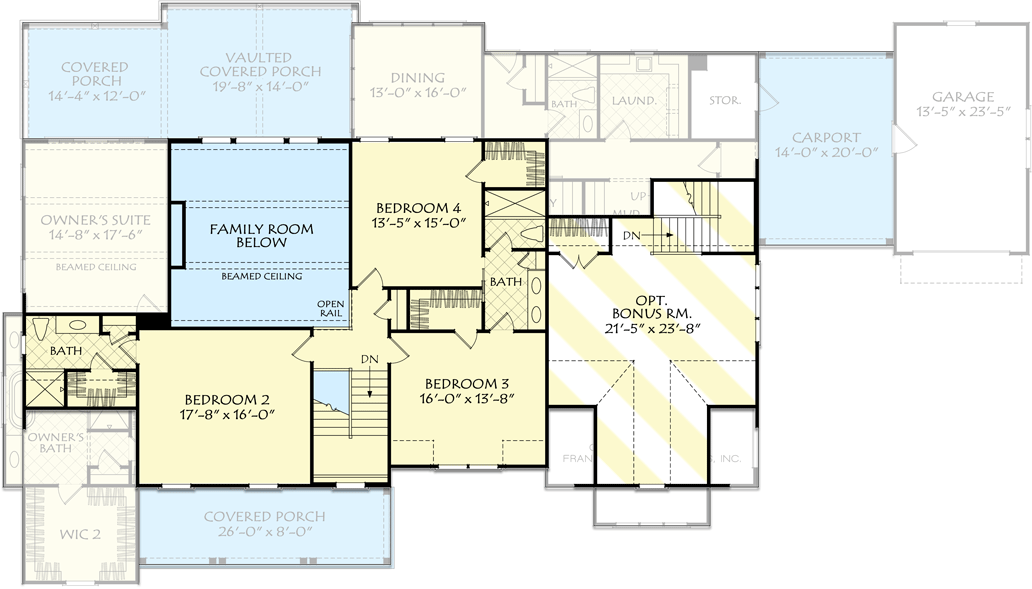

New American Farmhouse with 2-story Family Room and a Porte-cochere - 710414BTZ floor plan - 2nd Floor

Plan details

New American Farmhouse with 2-story Family Room and a Porte-cochere

  • 3,839

    Heated s.f.

  • 5

    Beds

  • 5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,095
  • PDF - Unlimited Build $2,295
  • 5 Sets + PDF $2,375
  • PDF - Unlimited Build + 5-sets $2,575
  • CAD - Unlimited Build $4,145
  • View all purchase option online

About This Plan

  • This New American Farmhouse plan has a welcoming front porch that frames the entry doors with timber columns and has plenty of room for rocking chairs. Painted brick and board-and-batten siding wrap the home. A porte-cochere and detached garage provide additional parking and drop off point.
  • The main level contains the open, bright and connected living spaces along with the owner's suite. The kitchen has a large island that is sure to be a favorite family spot. There is a guest suite on the main floor as well, perfect for an elderly parent or guests.
  • The rear entry area is super-sized for a busy family with built-ins for organization, large laundry and pantry. The powder room is designed with a swimming pool in mind and has access from the rear yard.
  • The upper level has three additional sleeping rooms, each with bath access and walk-in-closets. The optional bonus space has private access via a rear stair, perfect for a home office.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,839 sq. ft.
  • 1st Floor: 2,742 sq. ft.
  • 2nd Floor: 1,097 sq. ft.
  • Porch, Rear: 449 sq. ft.
  • Porch, Front: 208 sq. ft.
  • Carport: 295 sq. ft.
  • Bonus: 489 sq. ft.
  • Basement Unfinished: 2,742 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5

Foundation Type

    • Standard Foundations: Daylight

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 106' 0"
  • Depth: 60' 0"
  • Max ridge height: 32' 6"

Garage

  • Type: Carport, Attached
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
