New American House Plan Over 4500 Square Feet with Two Offices and Two Laundry Rooms
Heated S.F.
4,662
Beds
4
Baths
3.5
Stories
1
Cars
3
What's Included
Plan Details

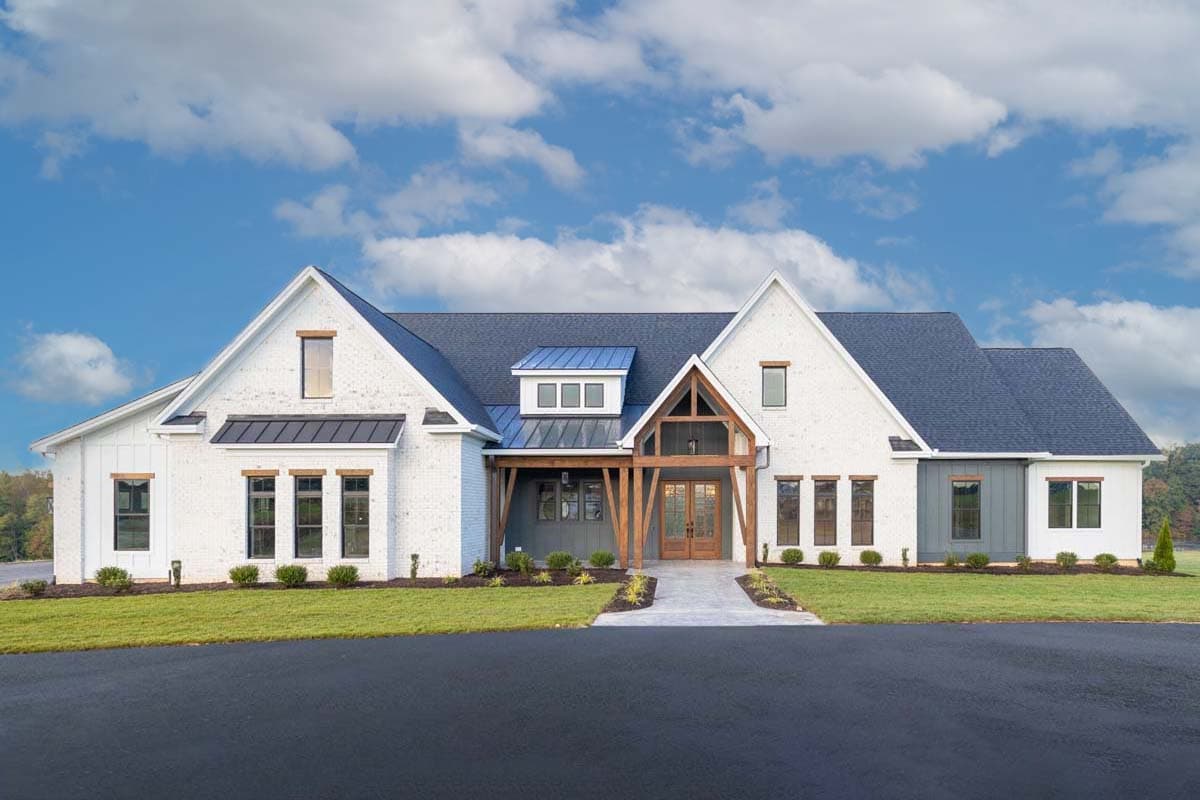

  • This 4,662 square foot New American house plan gives you 4 beds, 3.5 baths and 2 home offices. The exterior has an attractive mix of painted brick and board and batten siding with wood accents around the covered entry and metal accents around and above the porch.

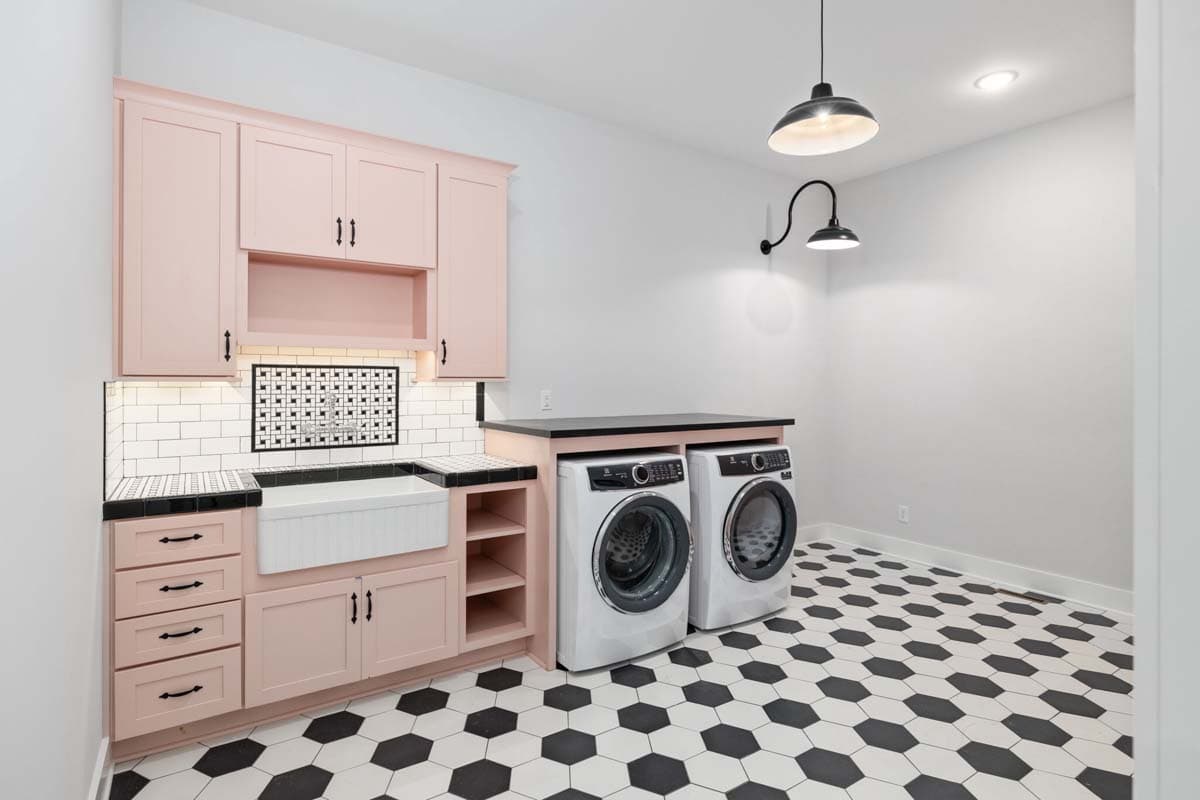

  • Two is the theme in this house plan: two offices, two fireplaces and two laundry rooms.
  • One of the two offices is located off the foyer while the second one is on the right side of the home is accessible from the hallways as well as through a pair of French doors on the outside. There is also a den located by Bed 2.
  • The fireplaces are located in the family room and the vaulted living room and both are visible from the island kitchen with walk-in and butler's pantry.
  • The garage has two bays - one with a 16' by 8' overhead door and the other with a 12' by 8' overhead door - and gives you 1,449 square feet of paring space. A workshop is located on the left and can be sealed off from the garage by a wall and door or left open to the garage.
What's Included
  • Title sheet with general notes
  • Elevations
  • Foundation plan

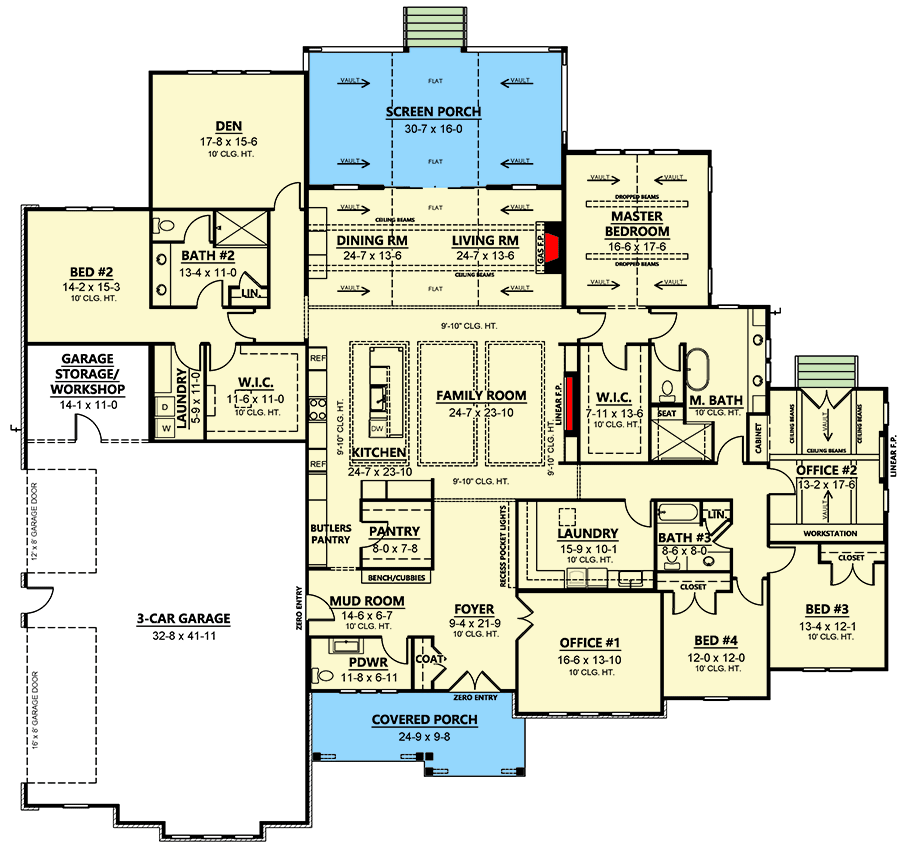

  • Detailed floor plans
  • Roof framing plan
  • Cross sections & details
  • Interior trim details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
