Plan 280043JWD
New American House Plan with Bonus Room above Garage
Heated S.F.
2,237
Beds
3-4
Baths
2
Stories
1-2
Cars
2
What's Included
Plan Details

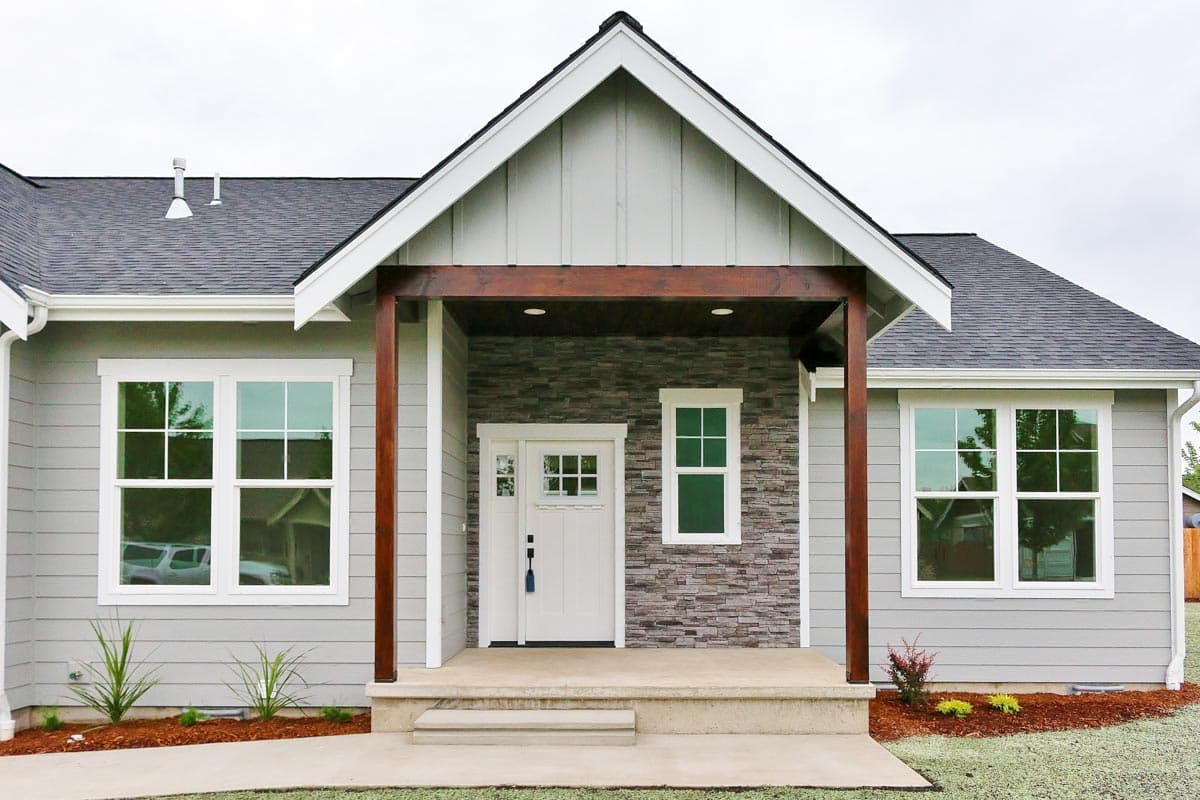

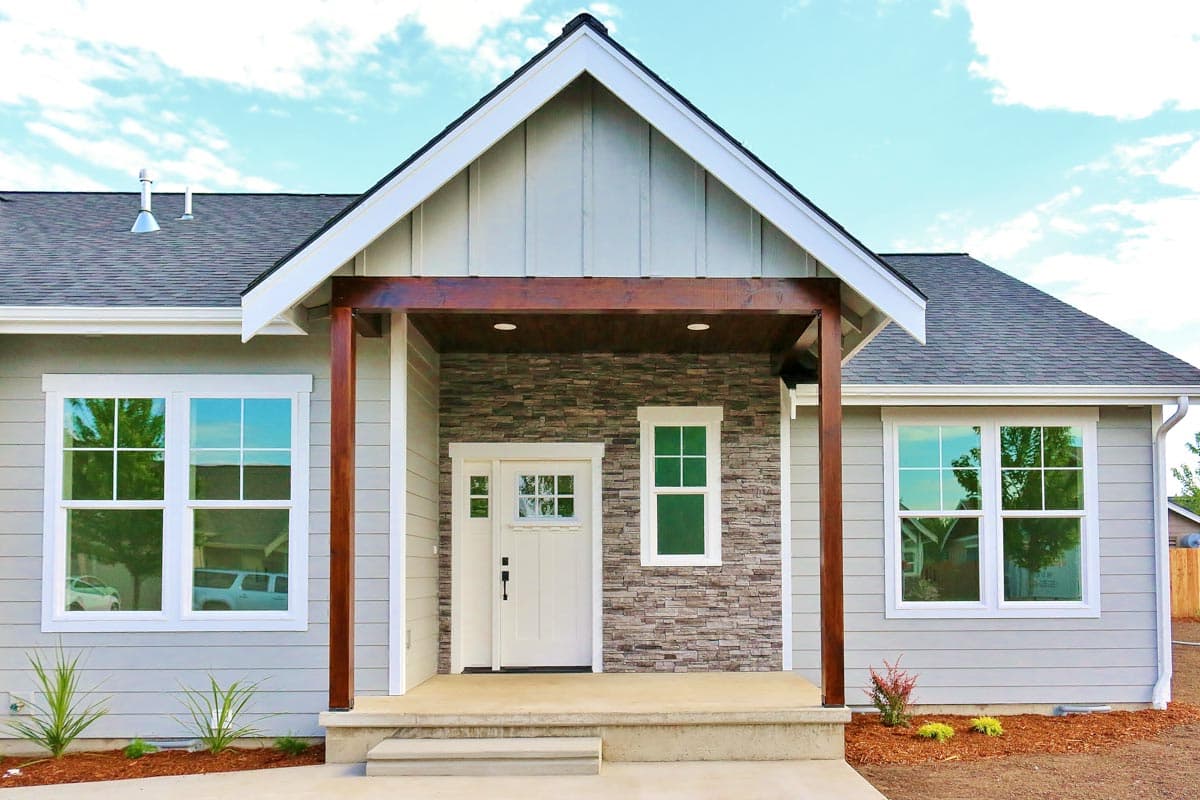

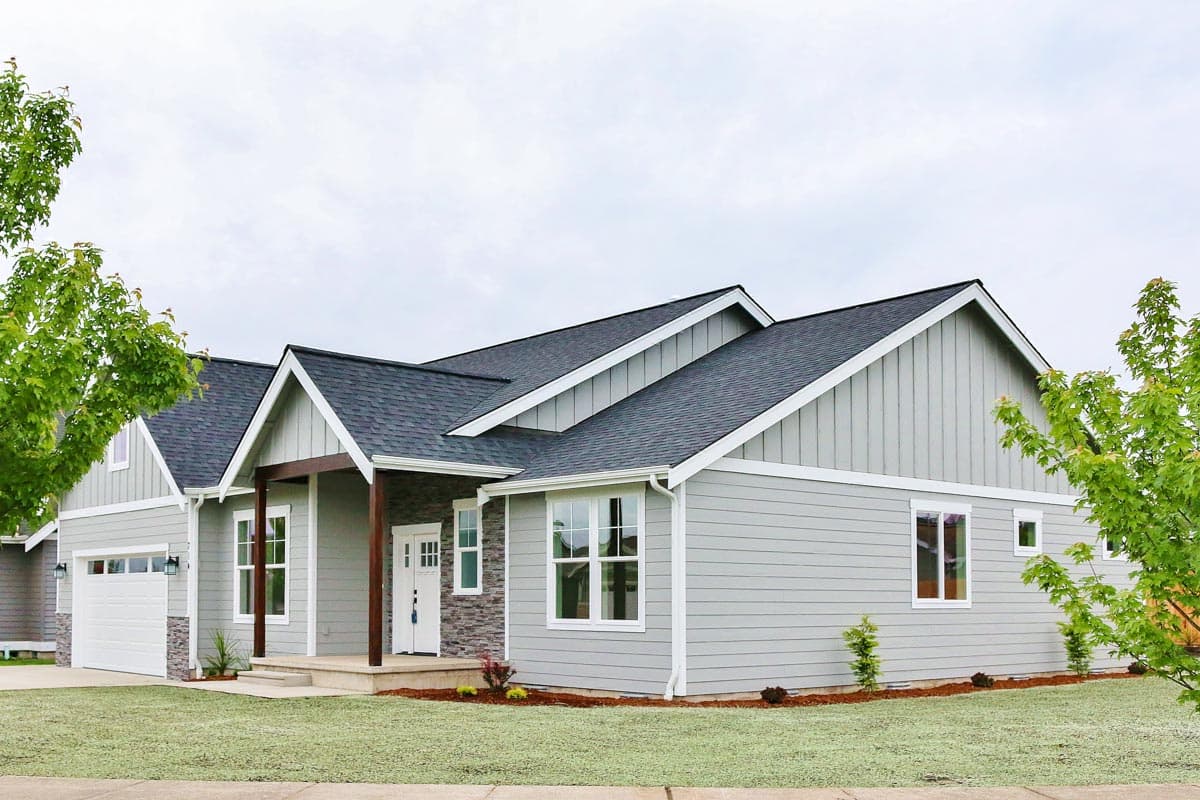

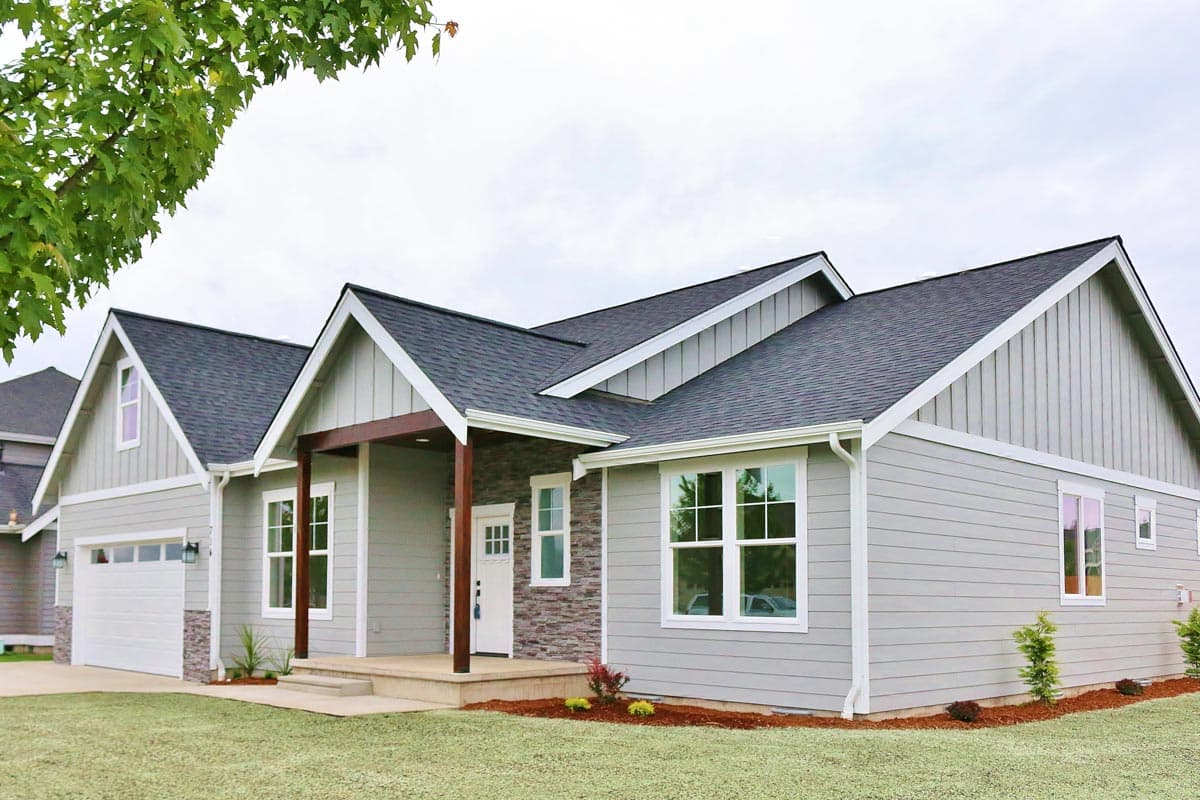

  • Stone accents add texture to the exterior of this New American house plan, complete with a welcoming front porch.

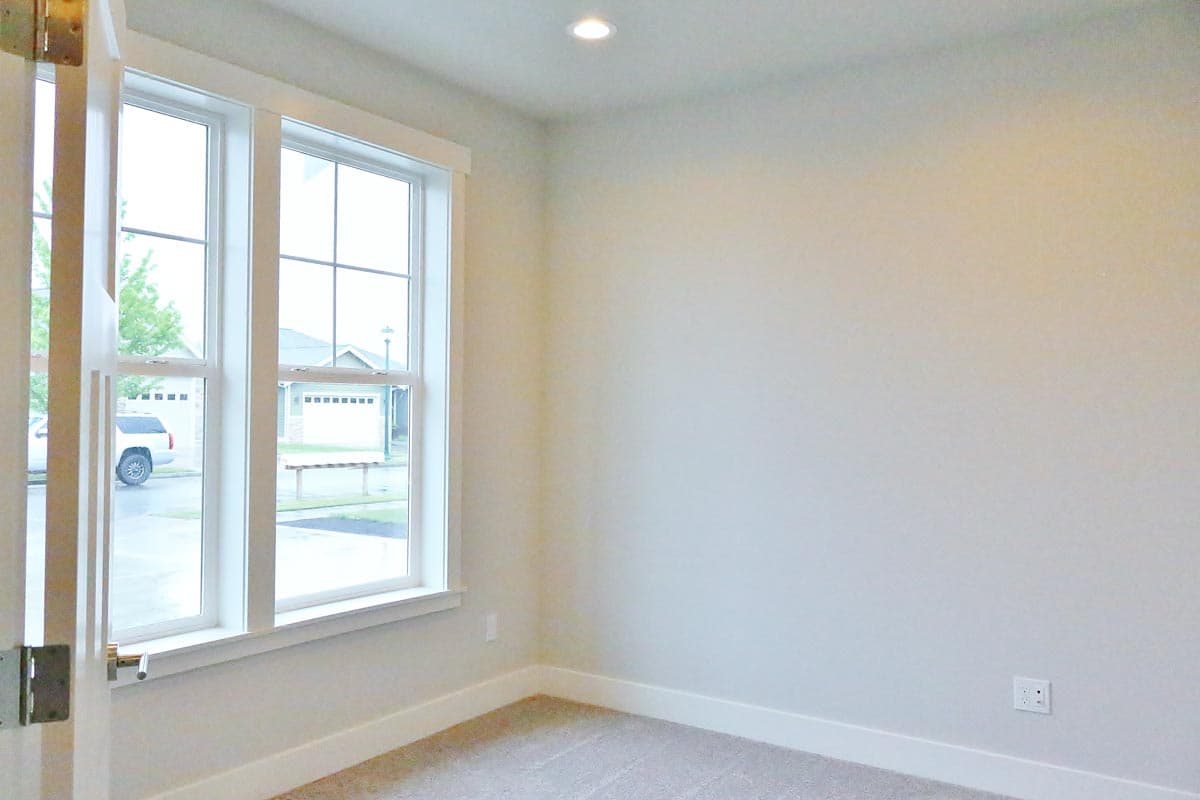

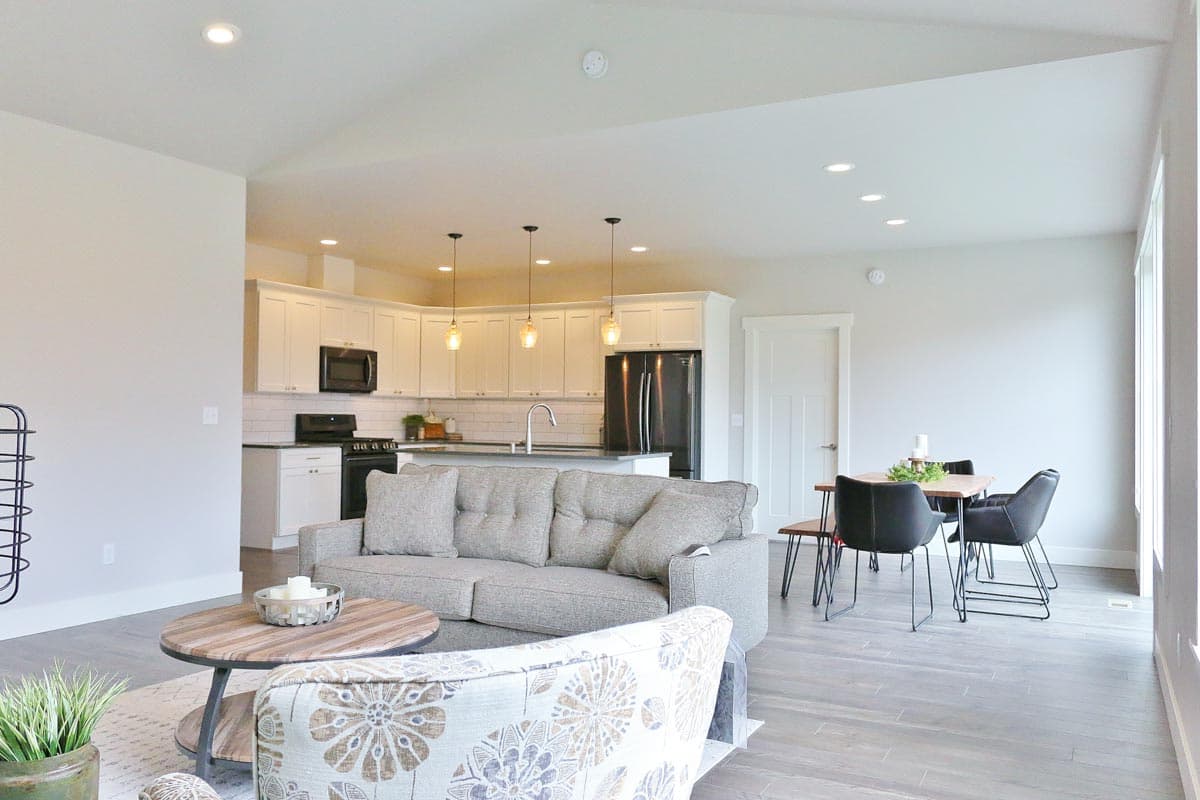

  • A den quietly sits to the left of the formal entry, offering a secluded space for privacy when needed. The heart of the home is located towards the back, and offers a desirable open-concept floor plan.

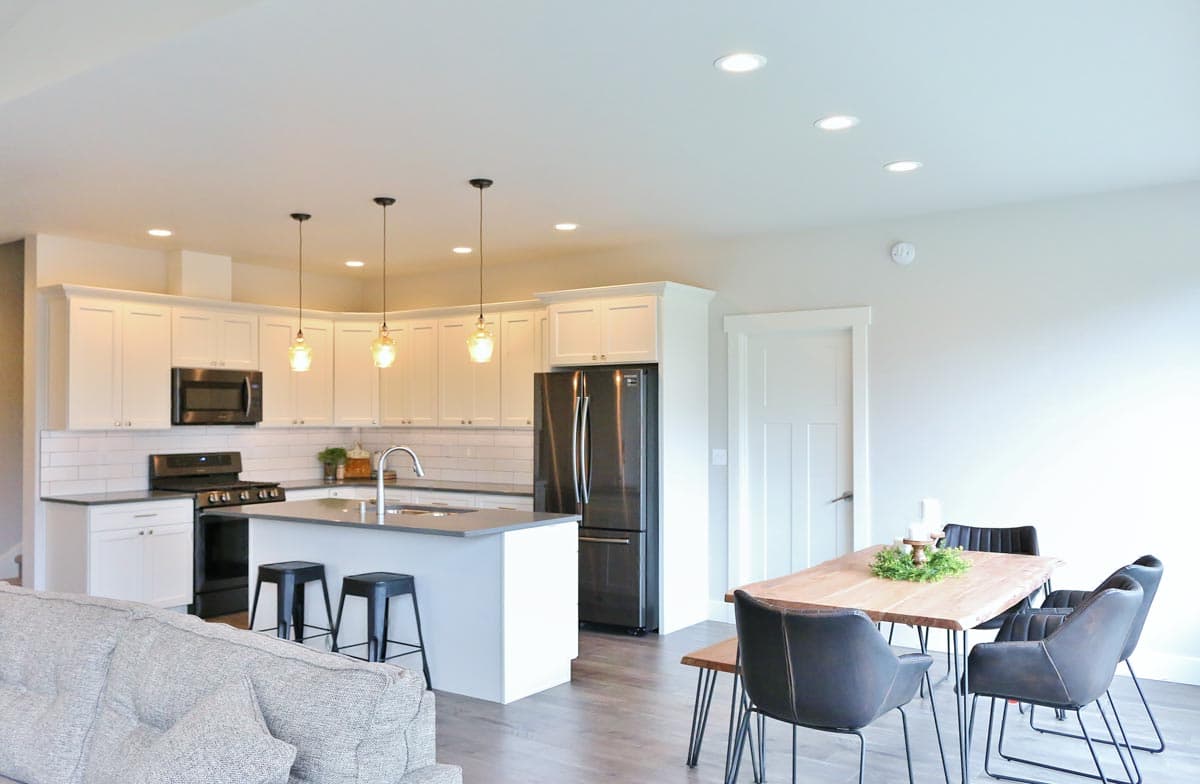

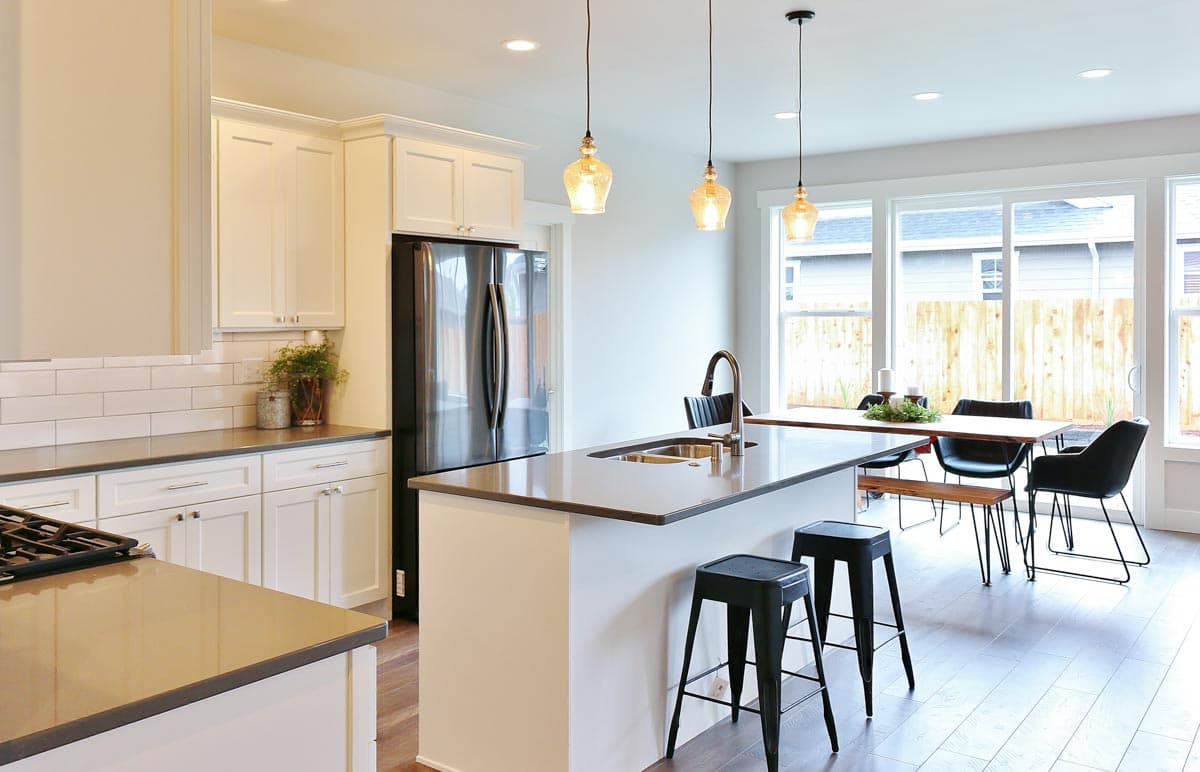

  • Sliding doors off the dining room allow access to the back patio, and a kitchen island adds workspace for meal prep.

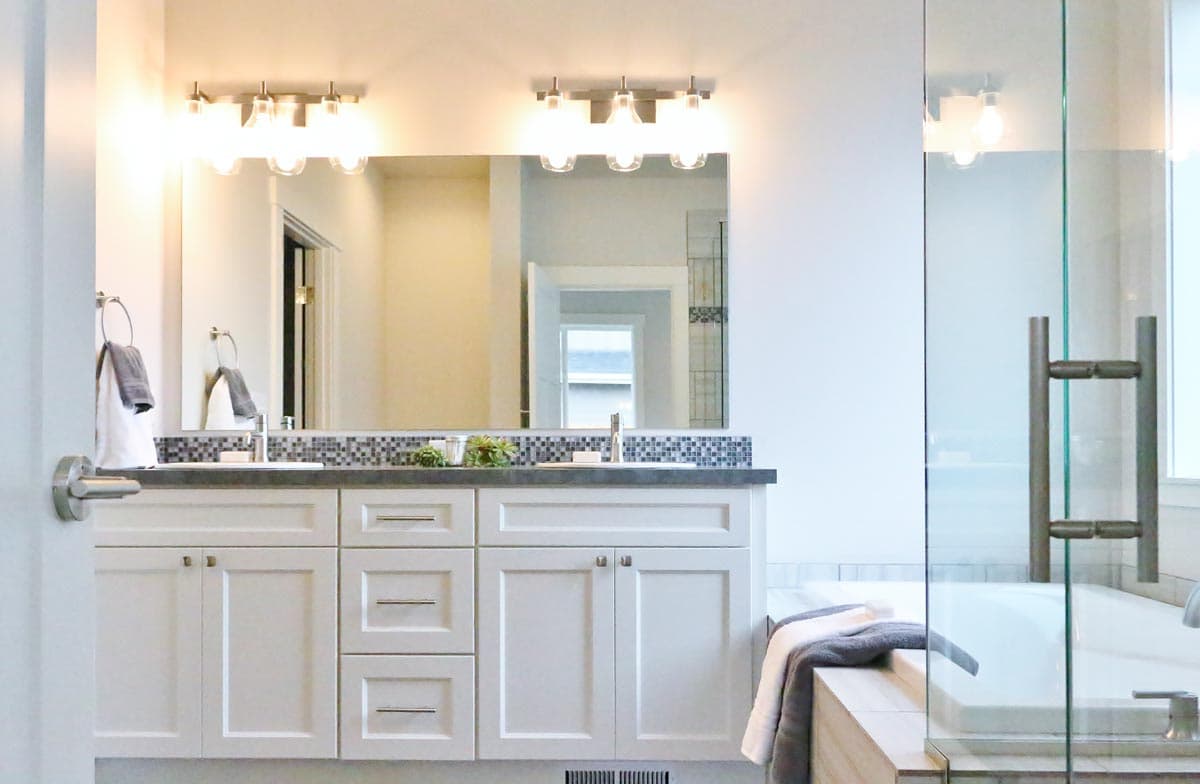

  • The master bedroom is privately situated on the left side of the home, and features a 5-fixture bath and a walk-in closet. Two additional bedrooms are located off the foyer and share a full bath.

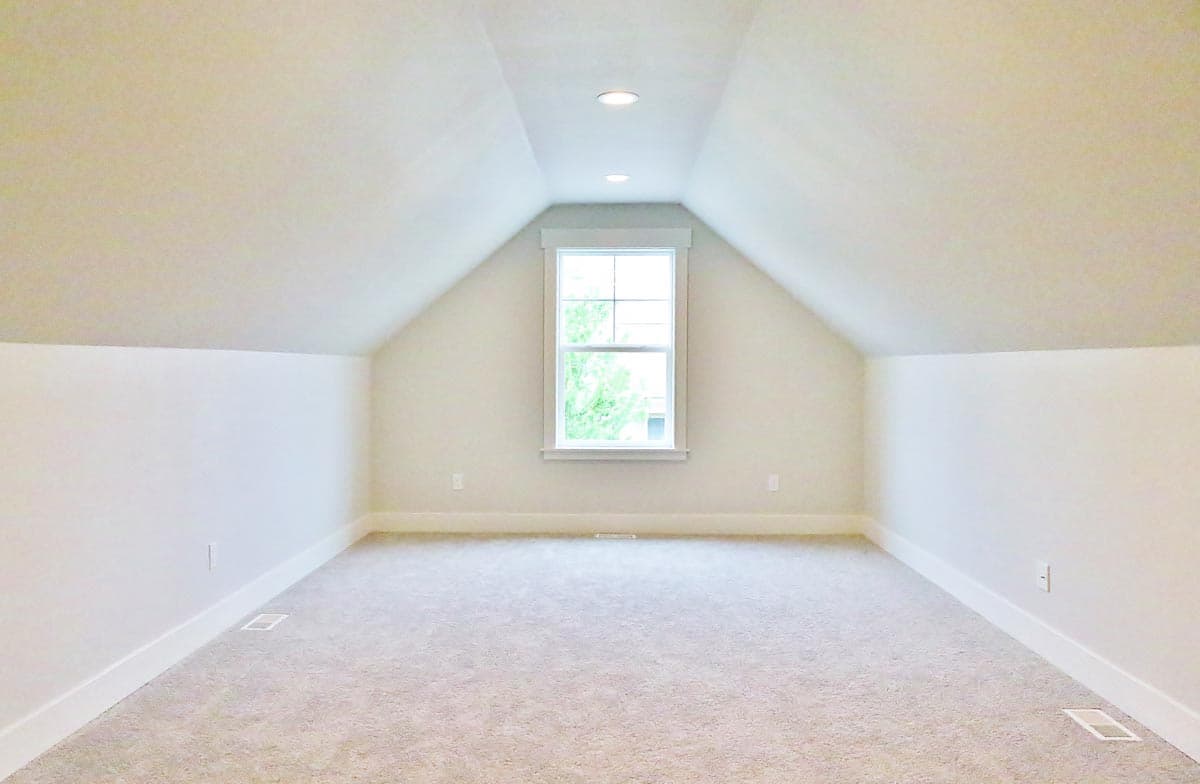

  • The forward-facing, double garage features a bonus room above for maximum flexibility.
  • IMPORTANT NOTE:  The total heated square footage includes the bonus room.
What's Included

  • Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

New American House Plan with Bonus Room above Garage

  • 2,237

    Heated s.f.

  • 3-4

    Beds

  • 2

    Baths

  • 1-2

    Floors

  • 2

    Car garage

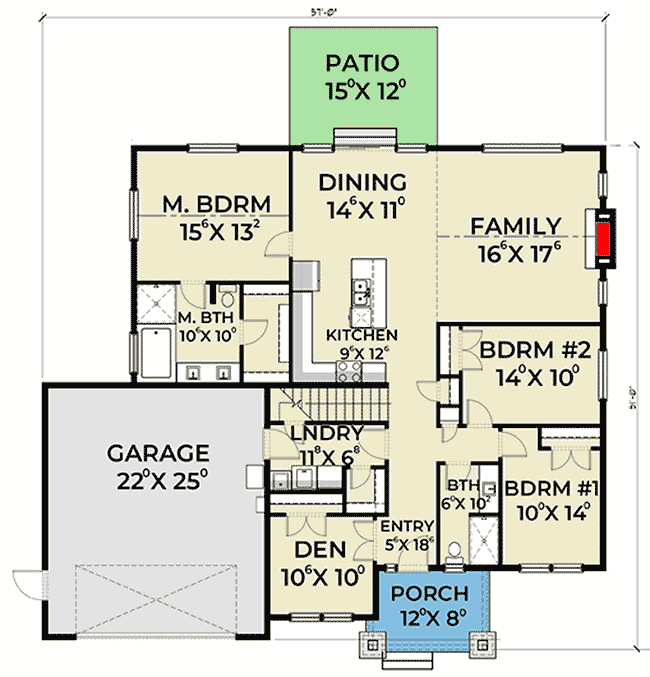

Floor Plan

  • Main Level

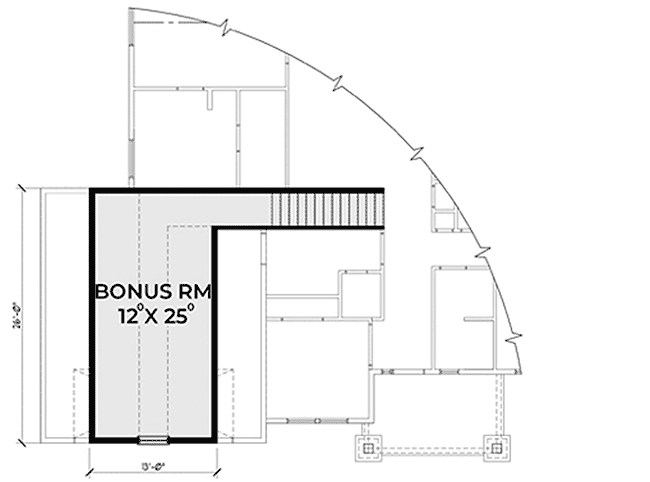

  • Bonus Level

Plan Details

Square Footage Breakdown

  • Total: 2,237 sq. ft.
  • 1st Floor: 1,878 sq. ft.

Dimensions

  • Width: 57' 0"
  • Depth: 51' 0"
  • Max ridge height: 23' 6"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 579 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 10
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss
