Plan 52470WM

New American House Plan with Main-Level Master and 2-Car Garage

Heated S.F.
1,624
Beds
4
Baths
3
Stories
2
Cars
2

Floor Plan

Plan 52470WM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 52470WM

M-F 9am-5pm EST |

1-203-761-8500

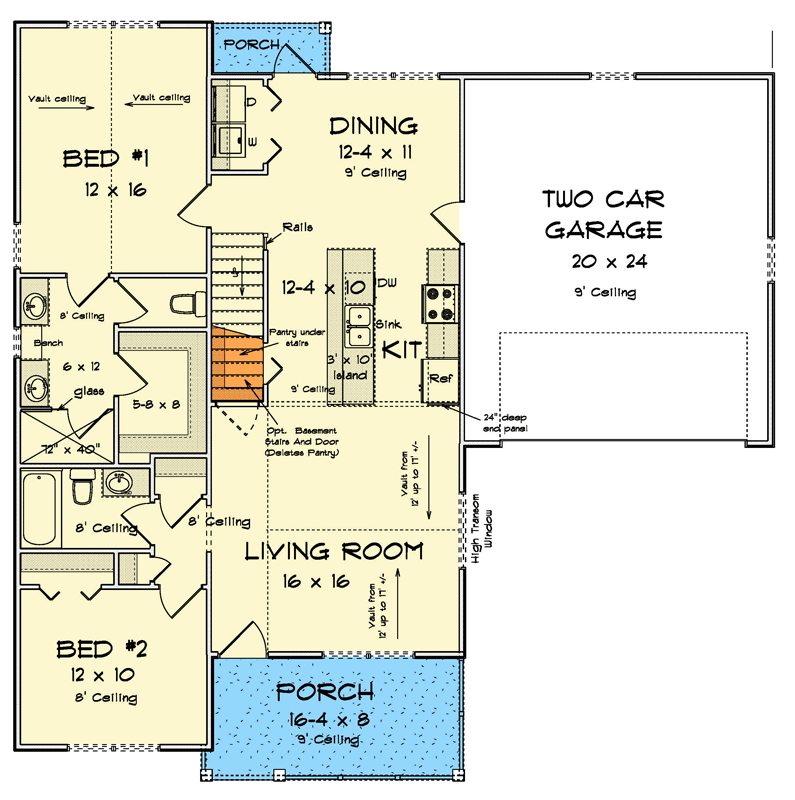

Main Level

Plan 52470WM: New American House Plan with Main-Level Master and 2-Car Garage - Floor Plan - Main Level - Craftsman, New American

2nd Floor

Plan 52470WM: New American House Plan with Main-Level Master and 2-Car Garage - Floor Plan - 2nd Floor - Craftsman, New American

Plan Details

  • This inviting 1,624 sq. ft. New American Craftsman house plan features 4 bedrooms, 3 full bathrooms, and a spacious 480 sq. ft. two-car garage, showcasing a crisp white siding exterior with dark trim accents.
  • Upon entering from the charming front porch, guests are welcomed into an open-concept living space where the living room, dining area, and kitchen flow seamlessly, creating an expansive and connected feel. The main level also thoughtfully includes a dedicated laundry area.
  • The heart of the home is an open kitchen, complete with an island and ample counter space, which overlooks the dining area, perfect for intimate meals or larger gatherings. A breakfast nook provides a cozy spot for morning coffee, while a pantry offers exceptional storage and convenience.
  • The luxurious main-level master suite offers a private retreat, strategically separated from the other bedrooms for enhanced privacy. Two additional bedrooms are also located on the first floor, while a fourth bedroom is privately situated on the second level, ideal for guests or a quiet home office.
  • Enjoy tranquil moments on the welcoming 132 sq. ft. front porch, perfect for greeting guests or unwinding, and a smaller 26 sq. ft. rear porch provides a private outdoor escape.

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,624 sq. ft.

1st Floor

1,211 sq. ft.

2nd Floor

413 sq. ft.

Porch, Front

132 sq. ft.

Porch, Rear

26 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

49' 0"

Depth

49' 0"

Max Ridge Height

24' 9"

Garage

Type

Standard, Attached

Area

480 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Craftsman

New American

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry
