New American House Plan with Outdoor Fireplace - 2142 Sq Ft

Plan 185005PHD

  • 2,142

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Stories

  • 2

    Cars

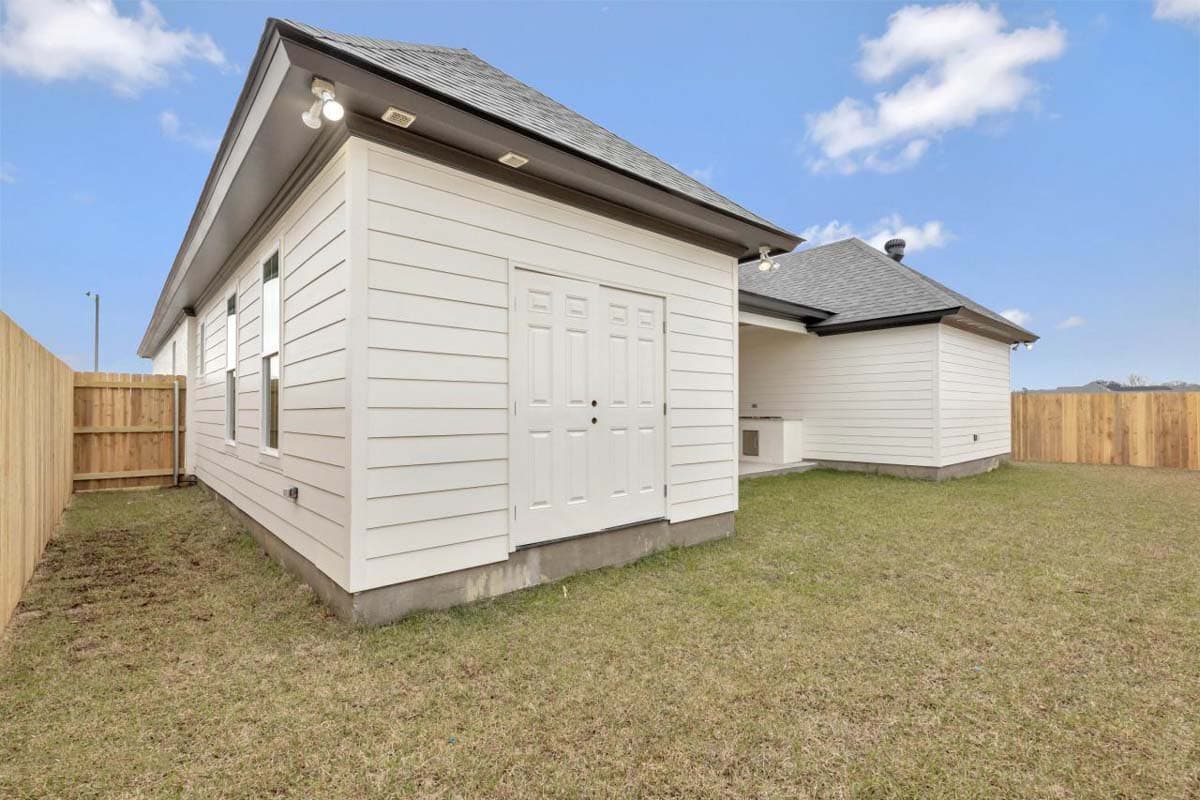

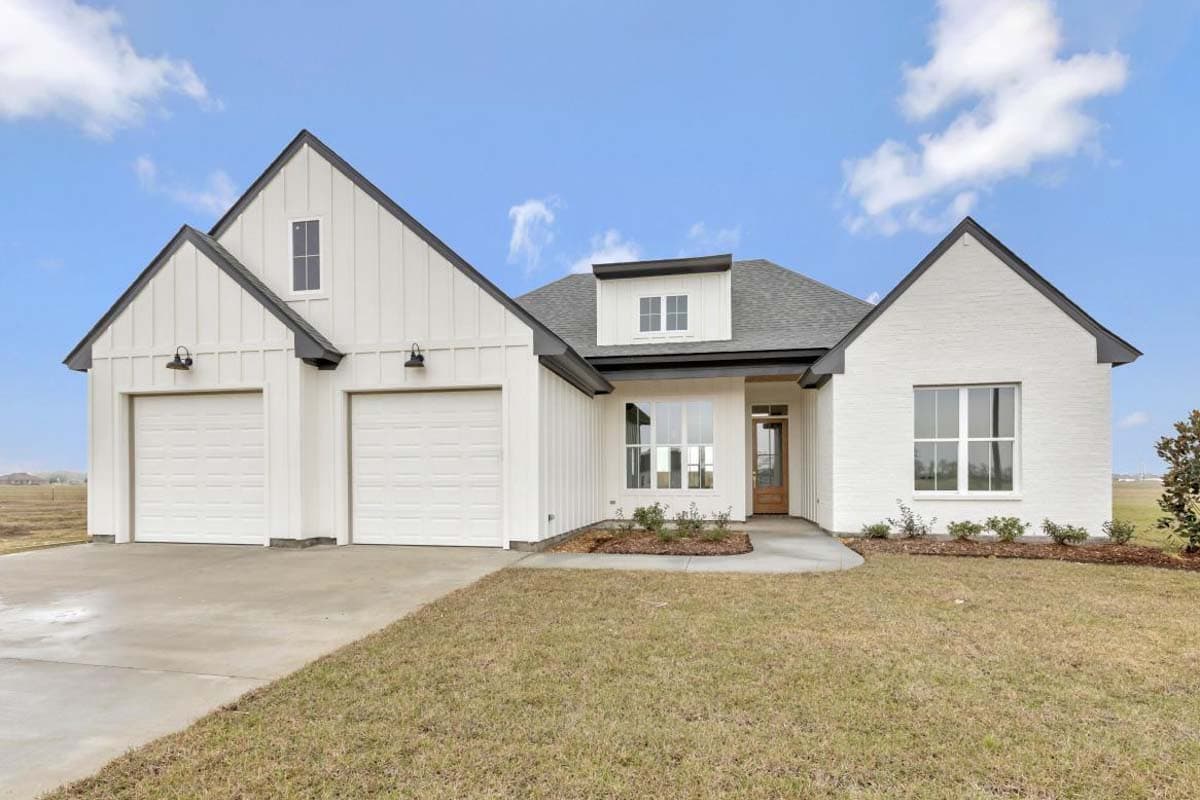

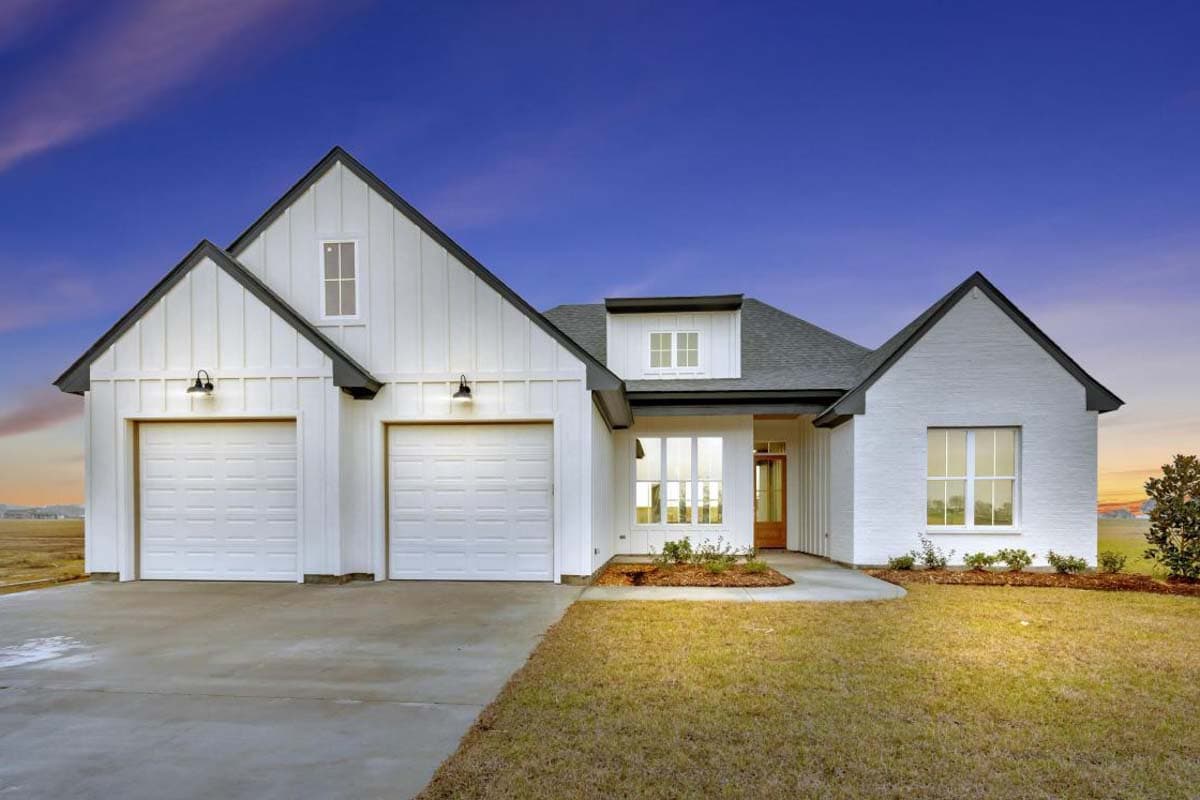

  • Natural light, spacious rooms and a split floor plan for the basis of this 4 bed New American house plan. Board and batten siding and an attractive false dormer add to the curb appeal.

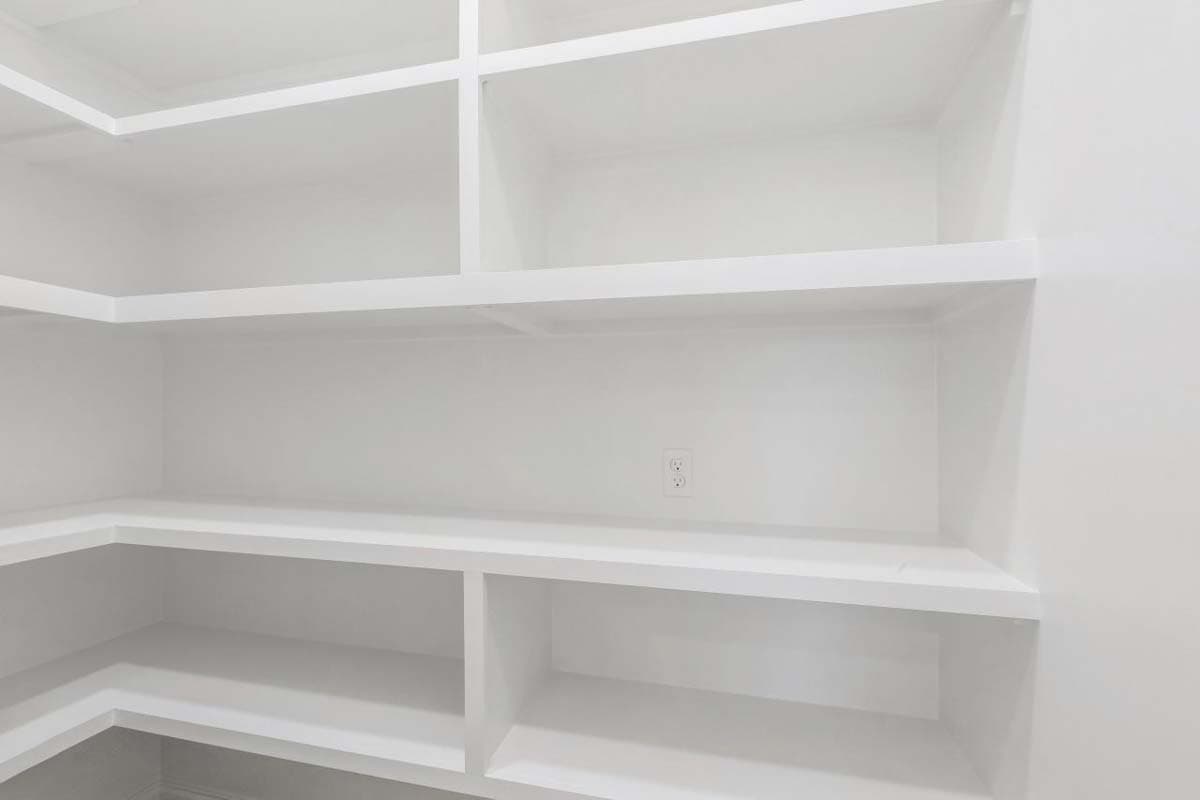

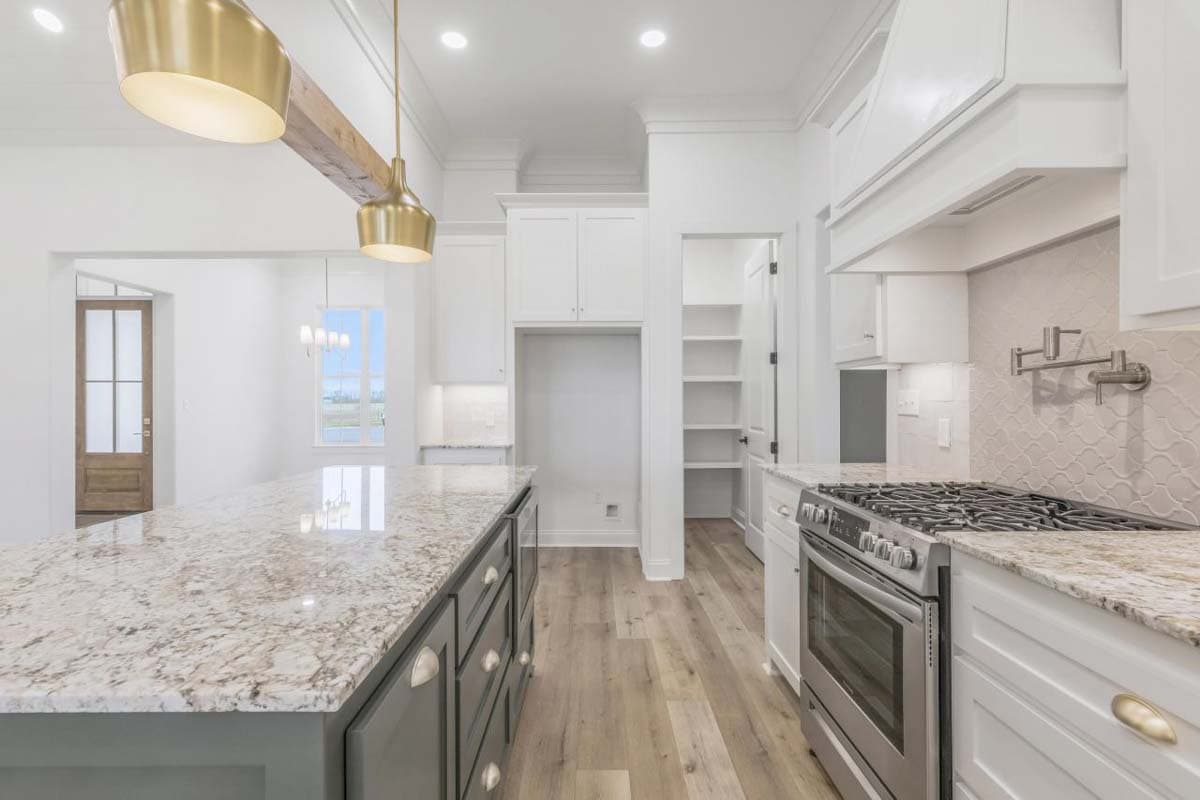

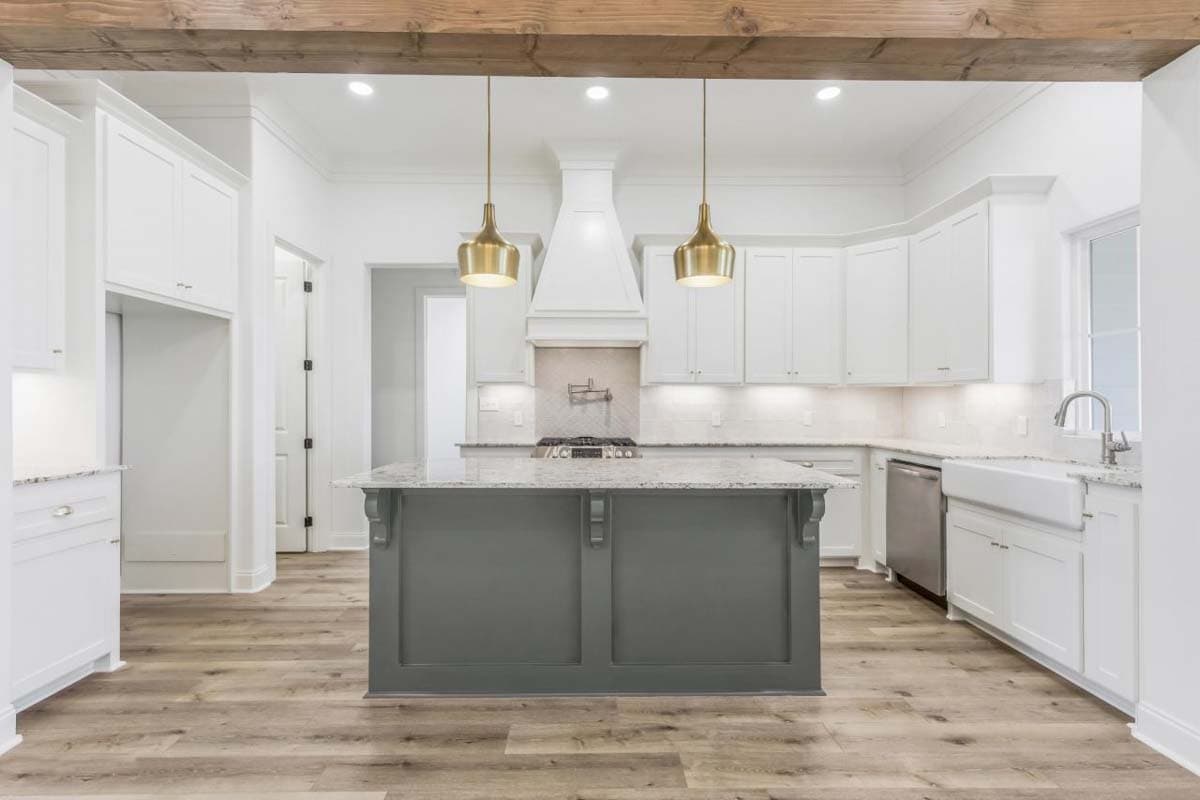

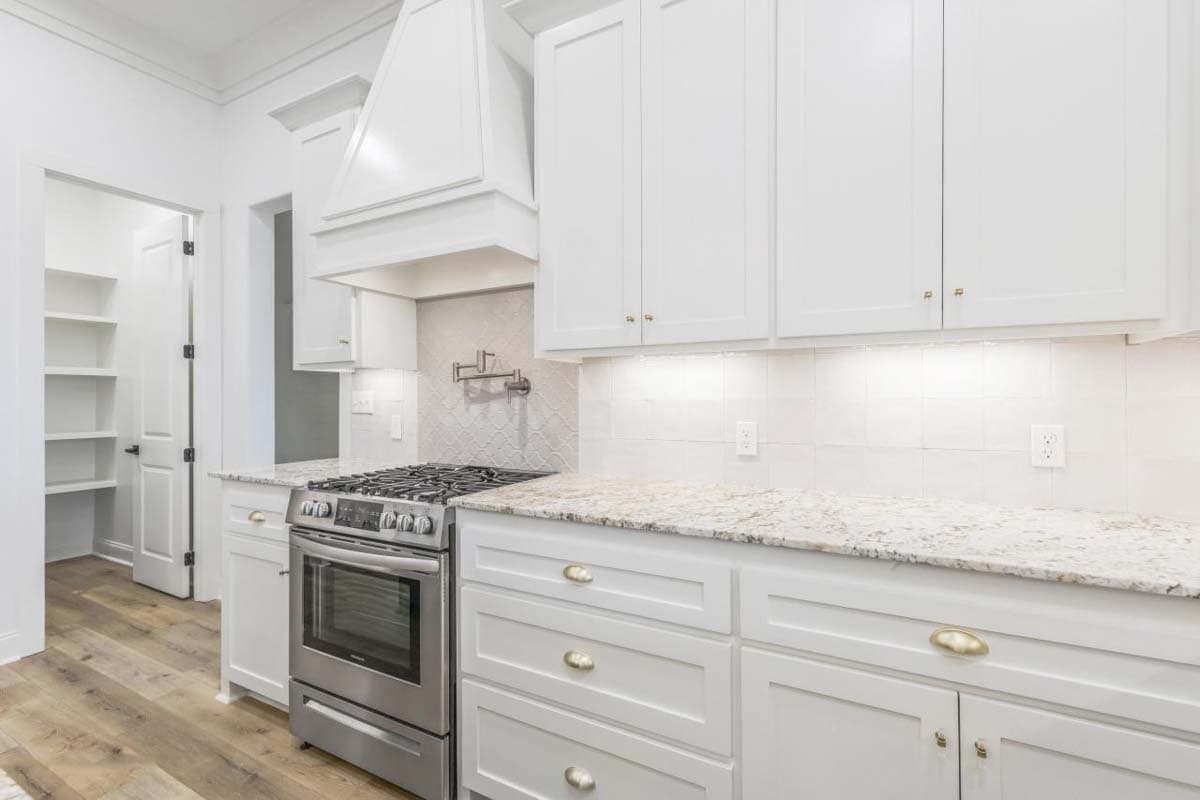

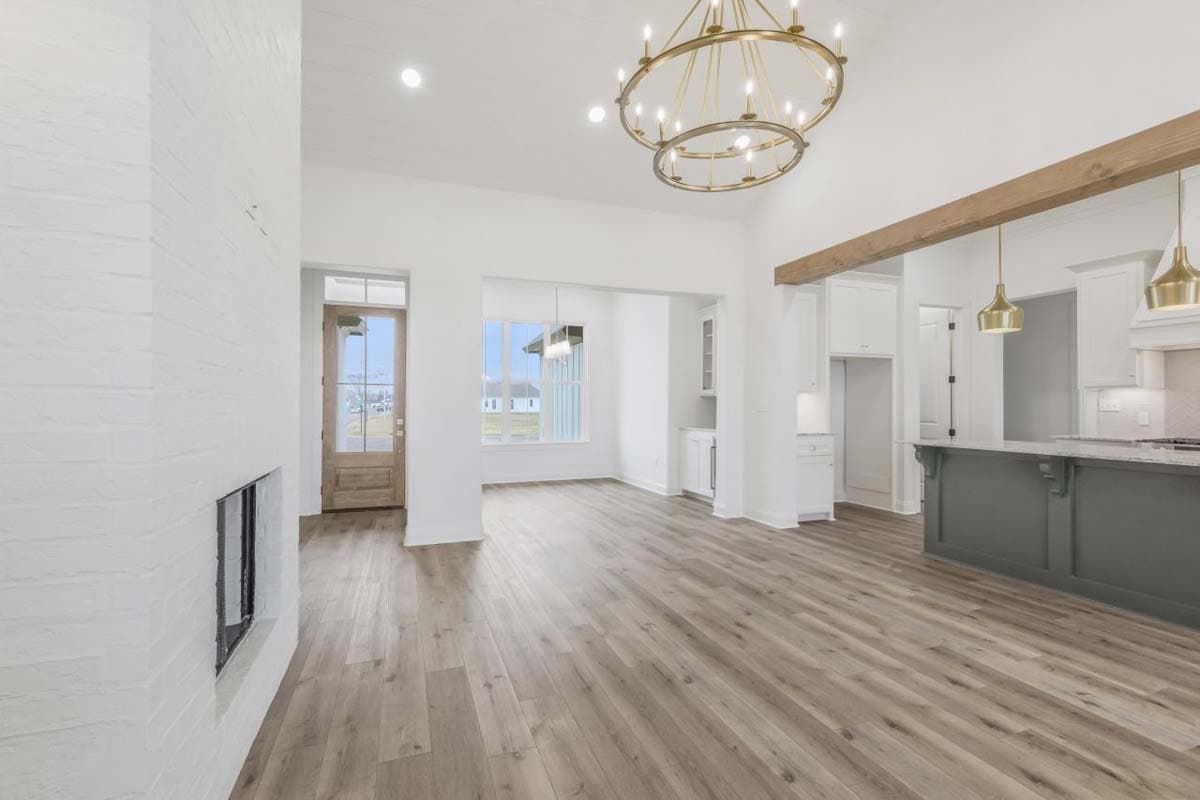

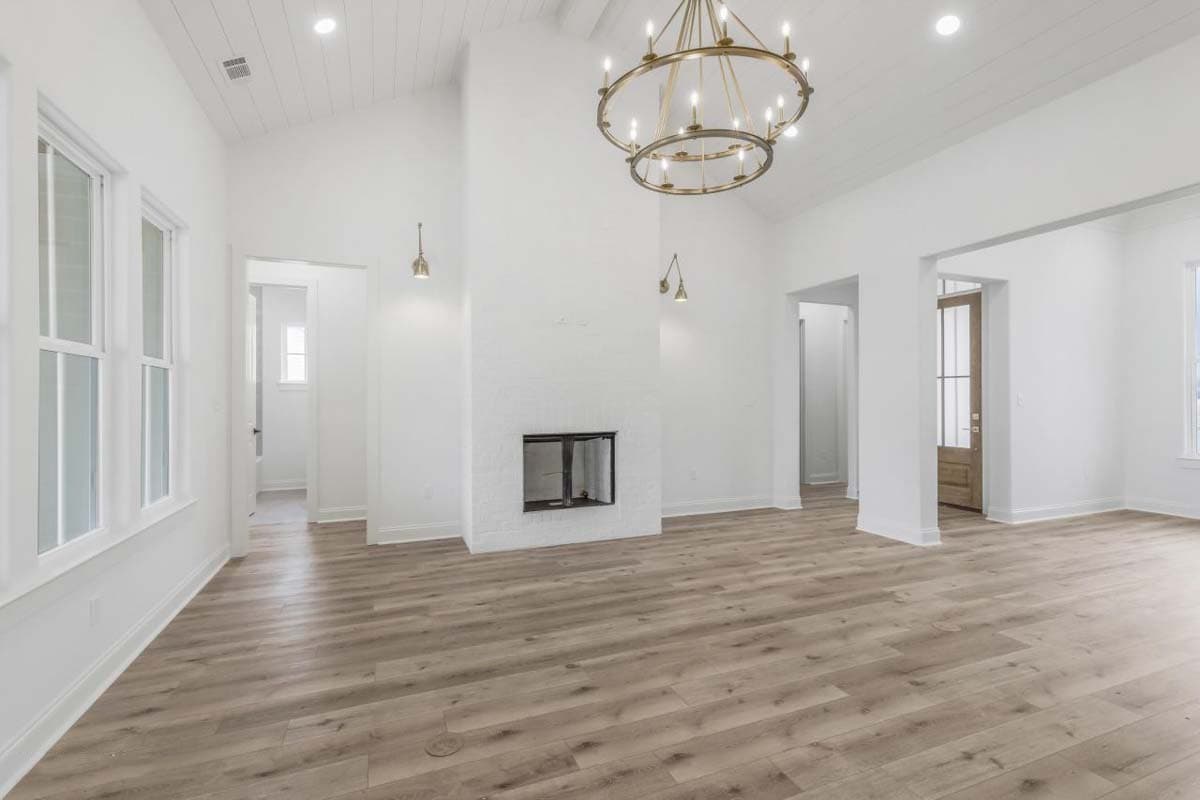

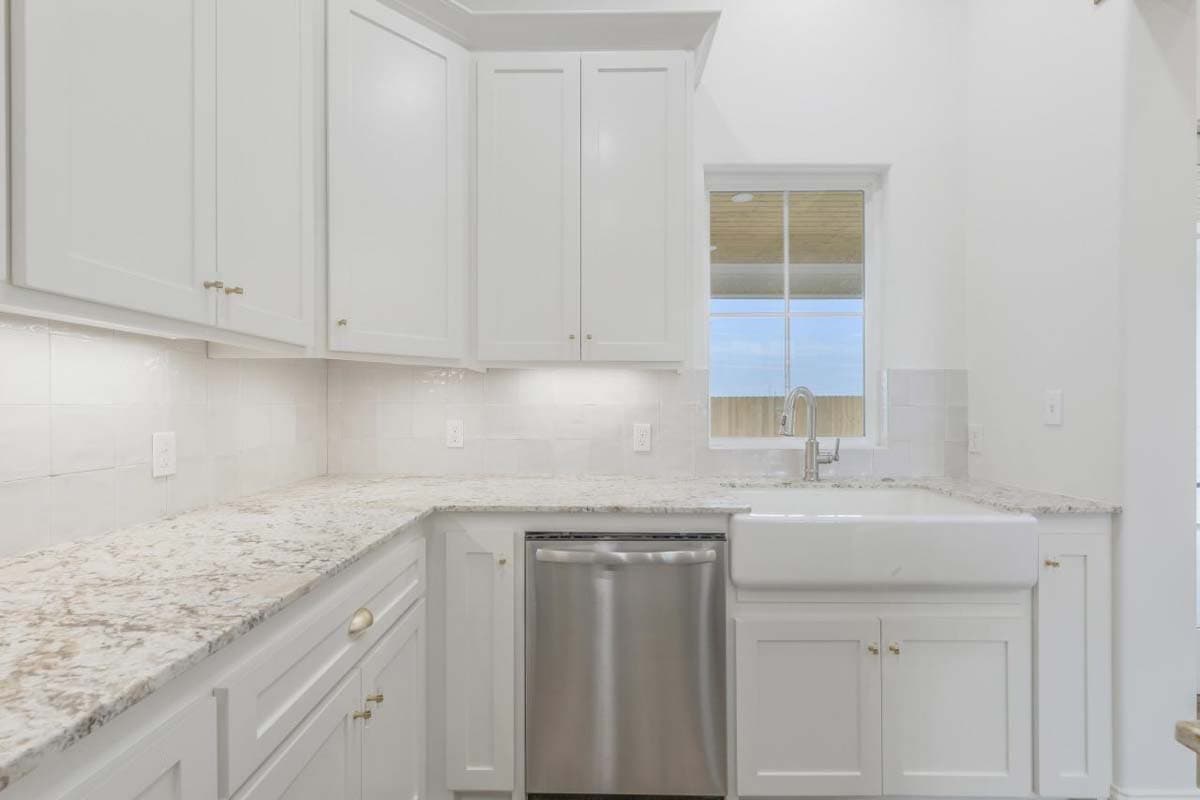

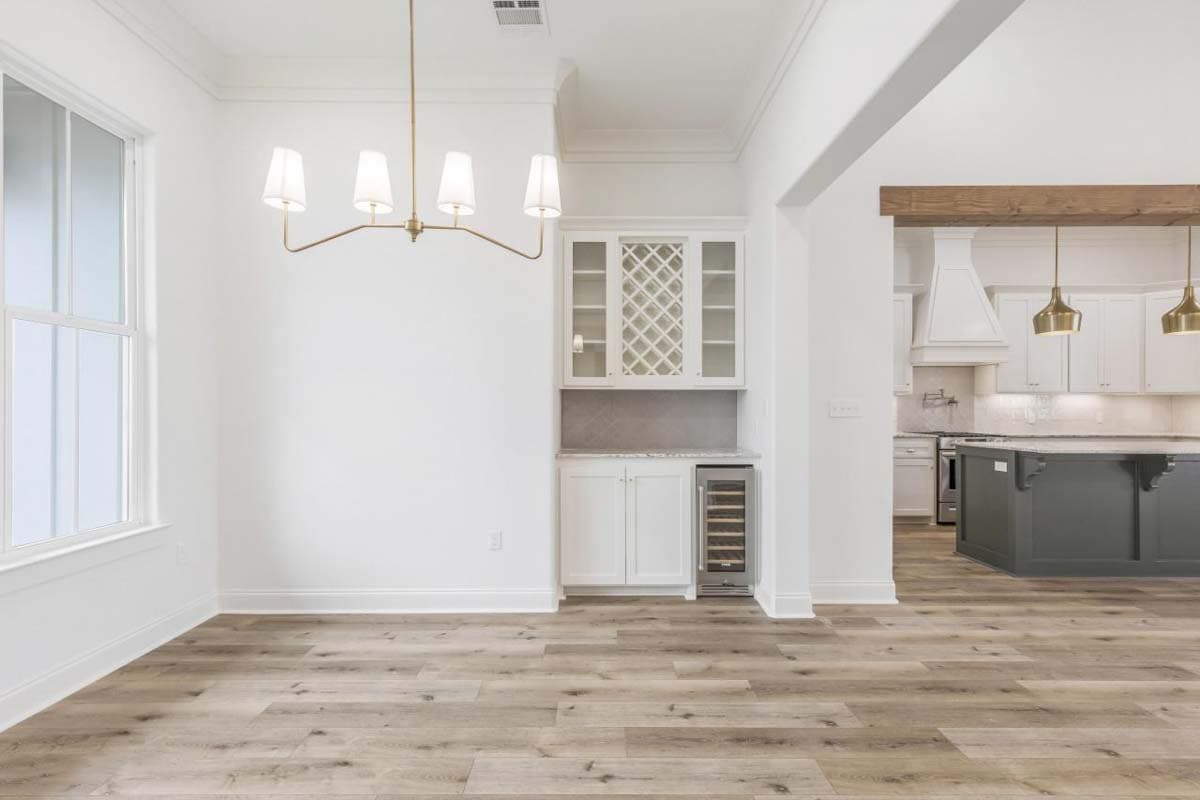

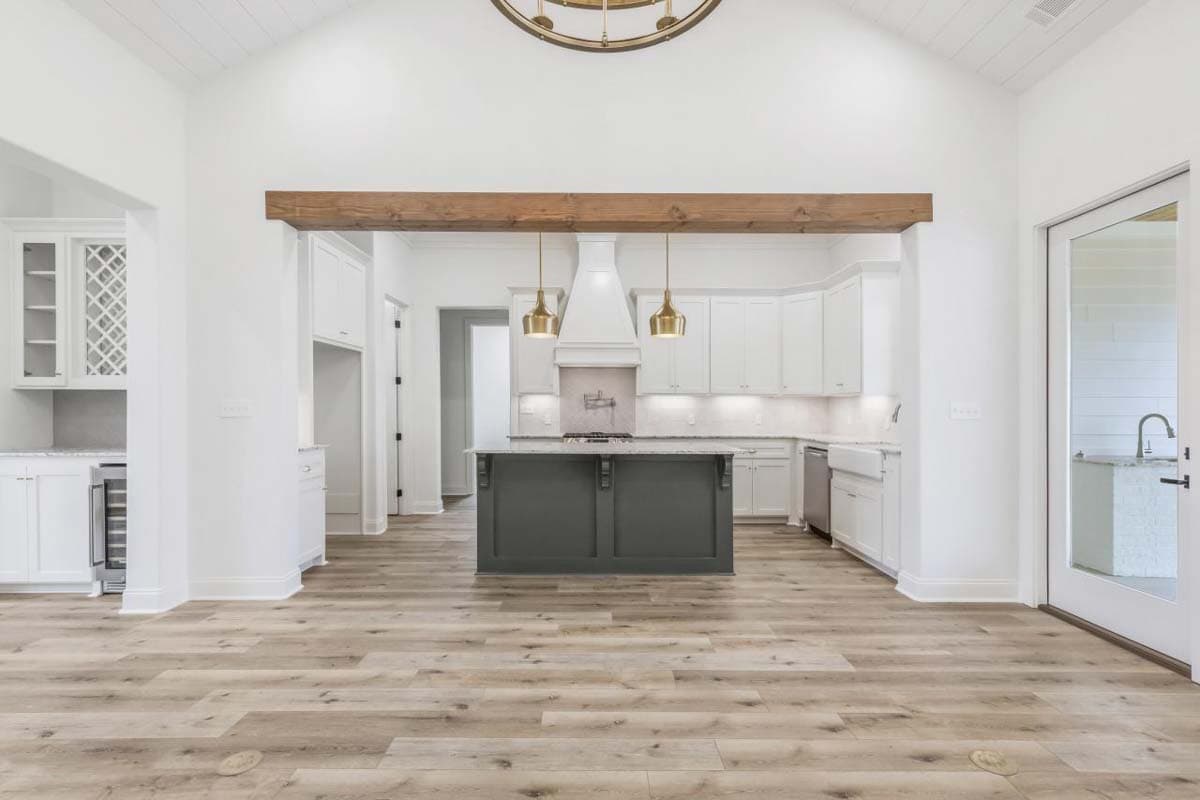

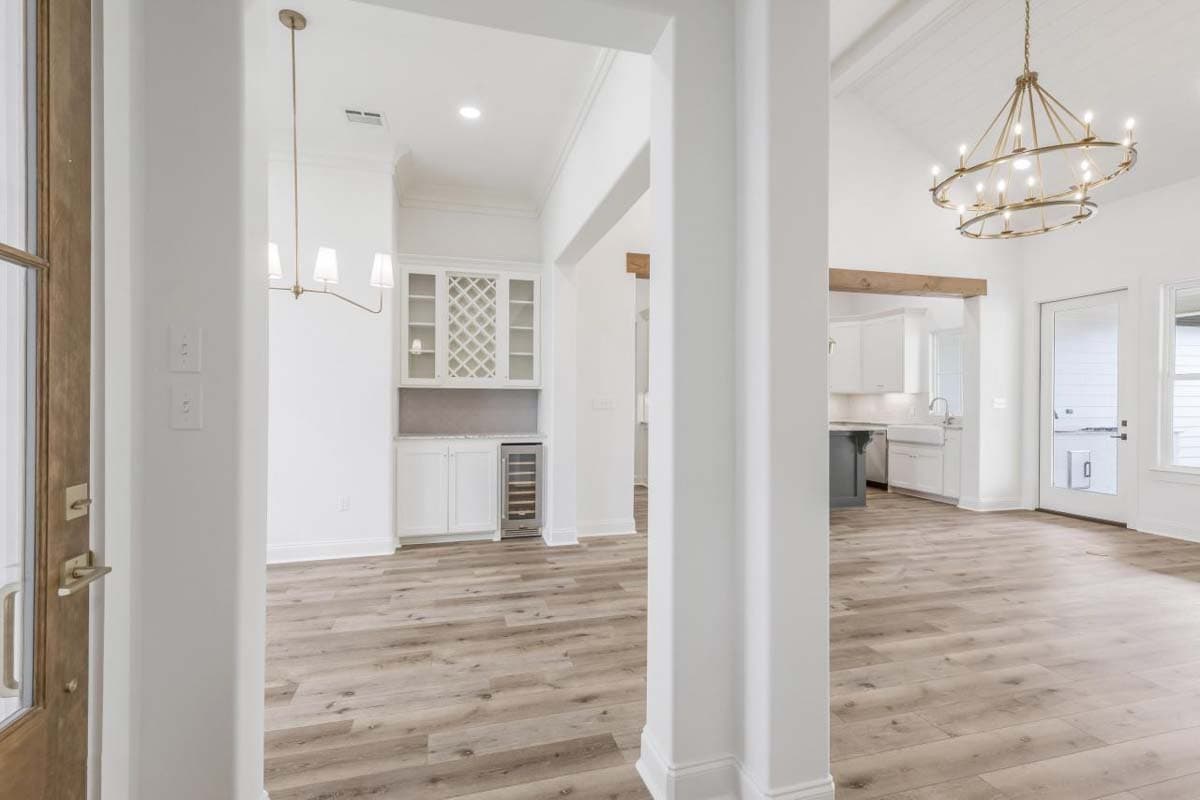

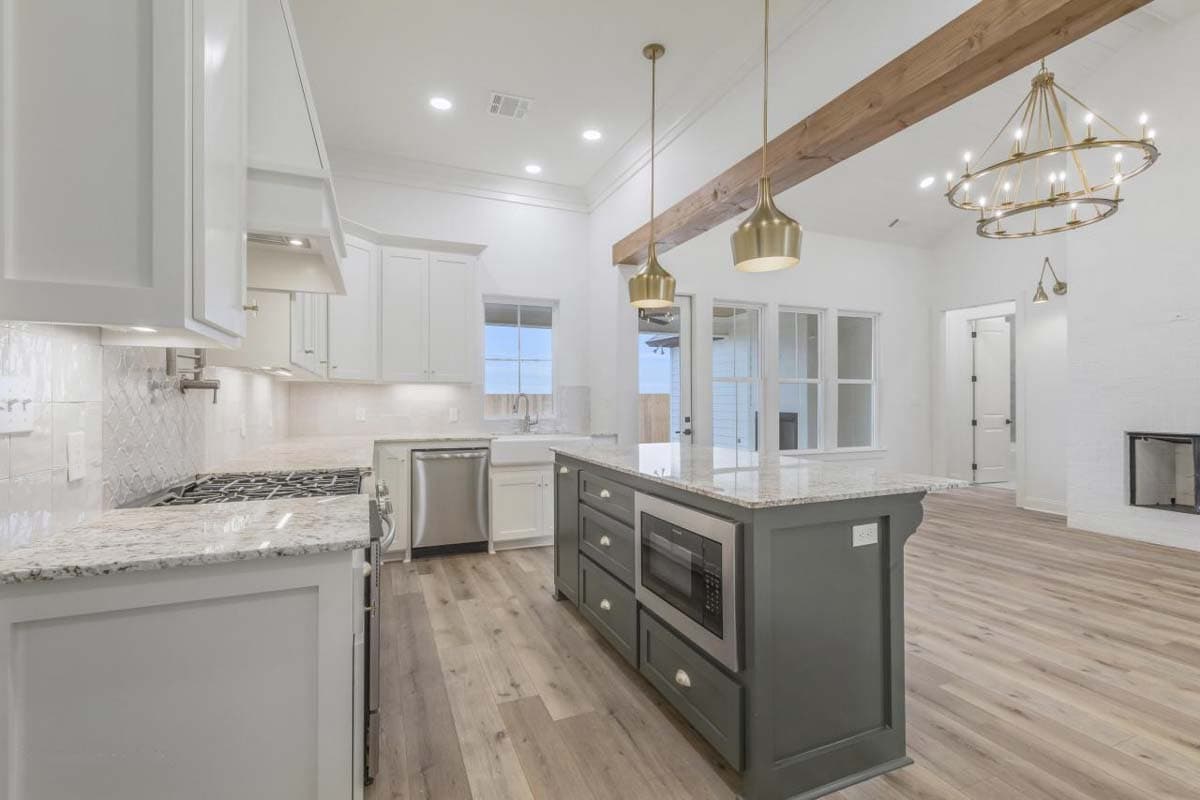

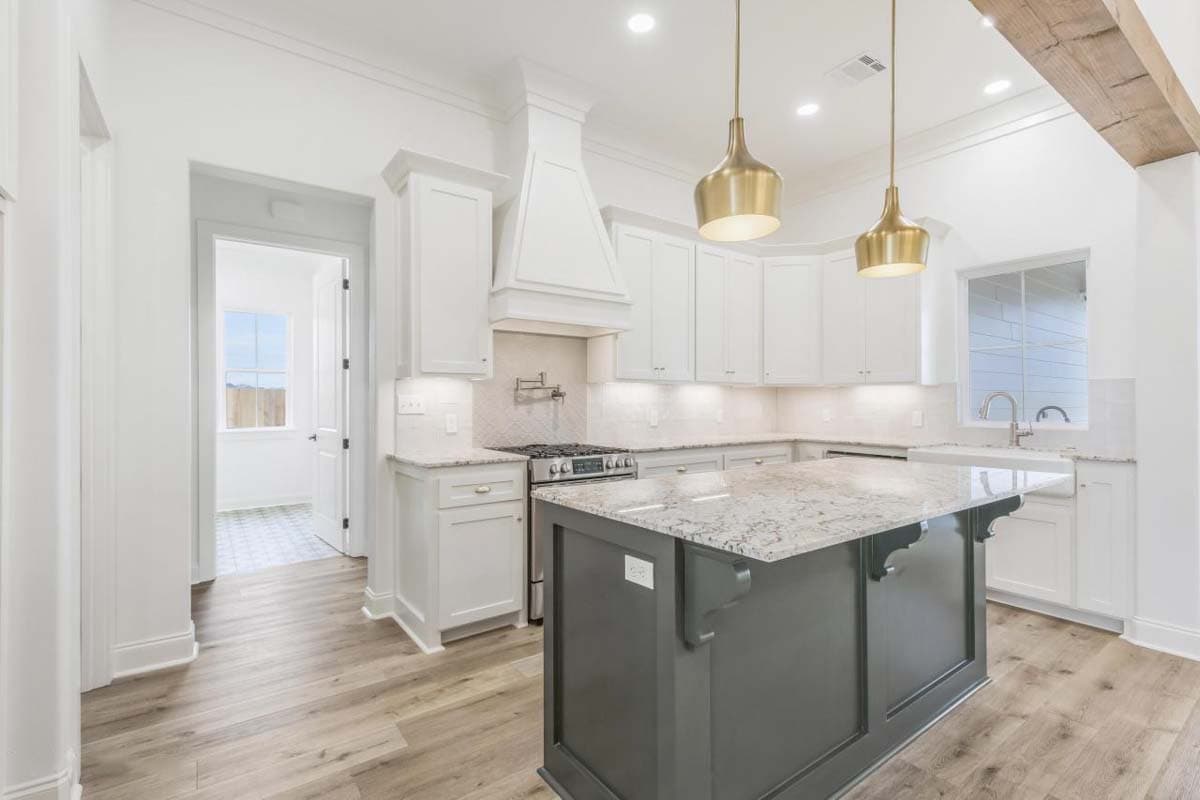

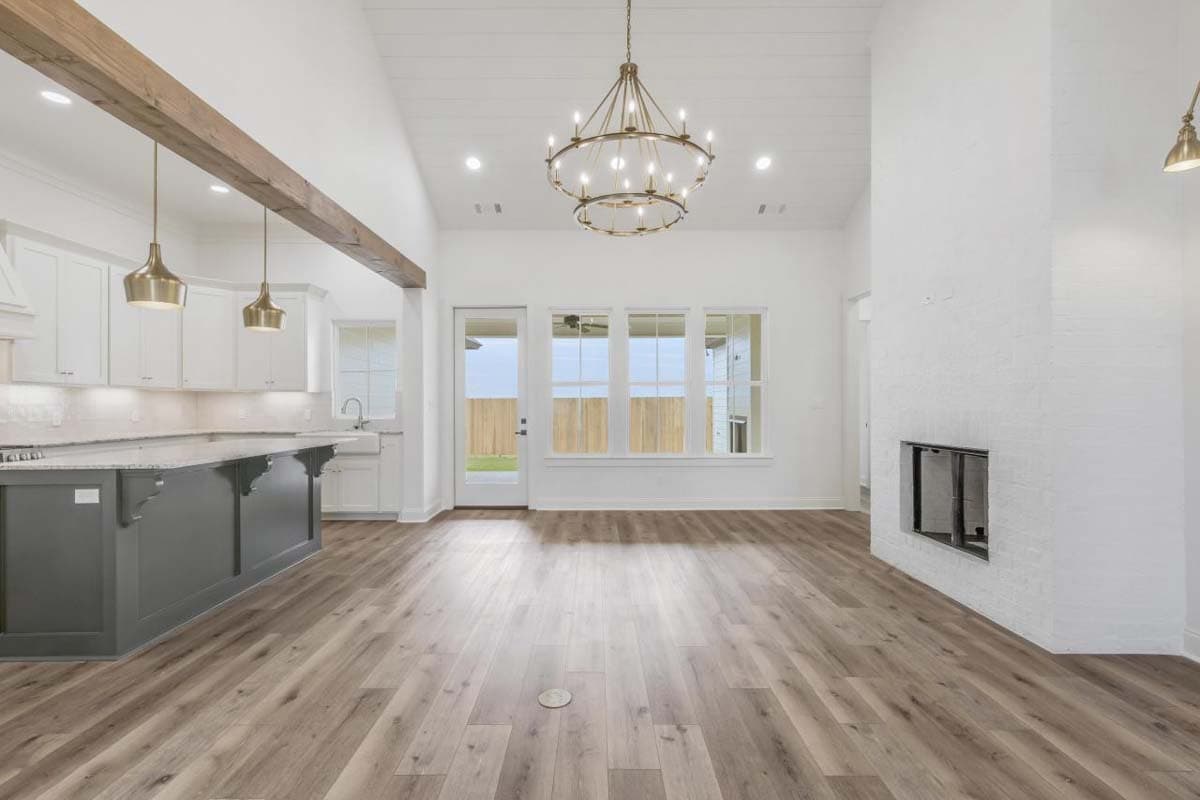

  • The living room has a cathedral ceiling. A wood lintel opening separates the living room and kitchen. The kitchen offers a kitchen island, walk-in pantry, and plenty of cabinet storage.

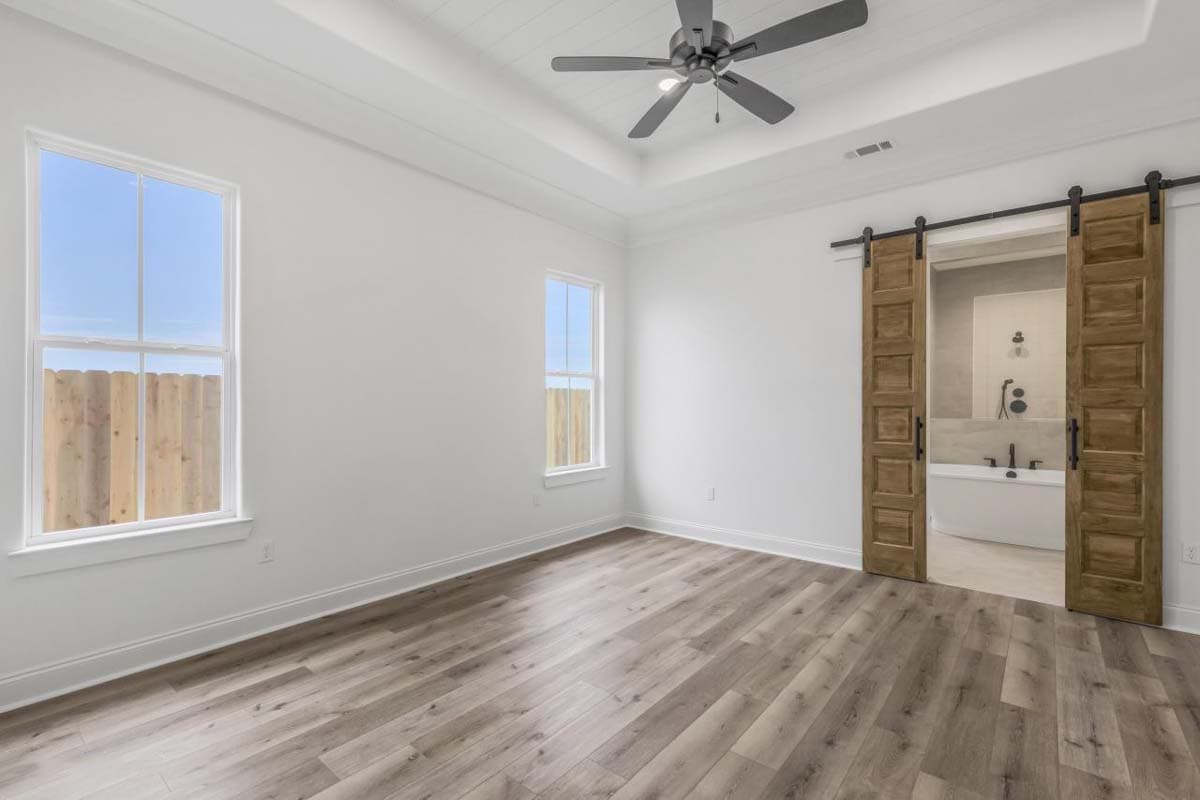

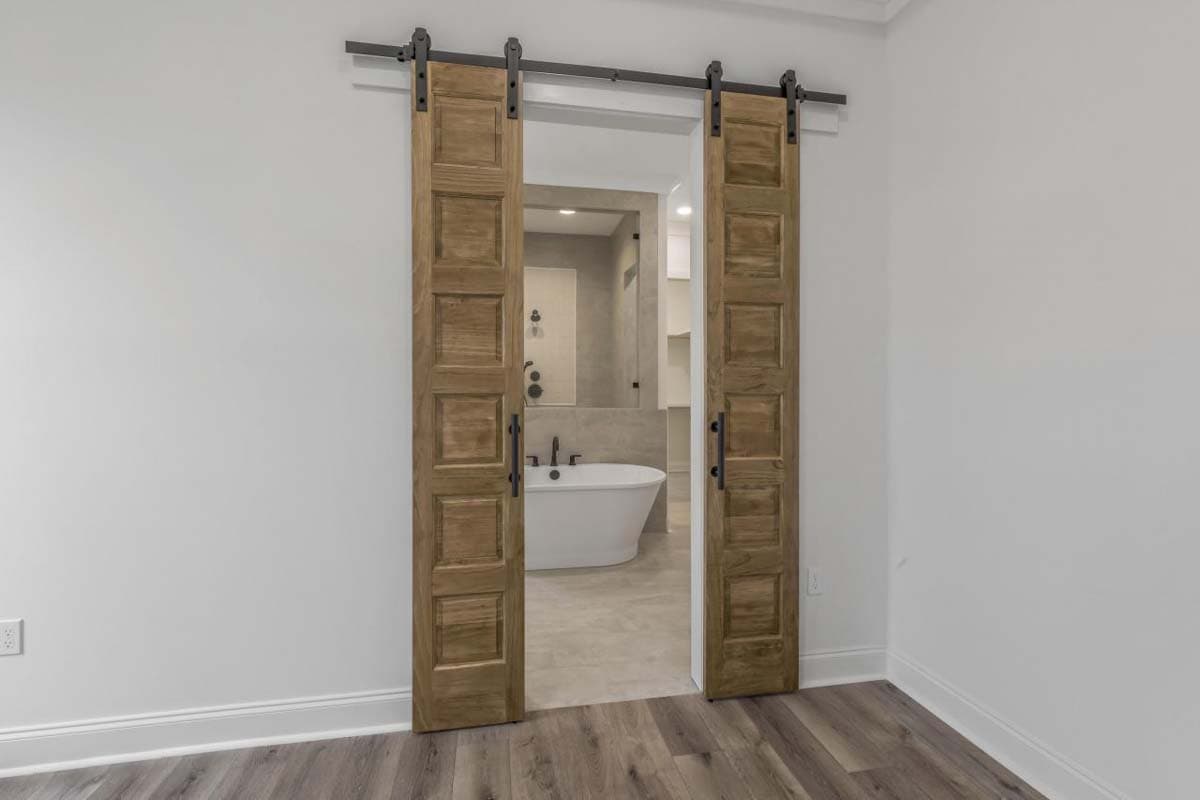

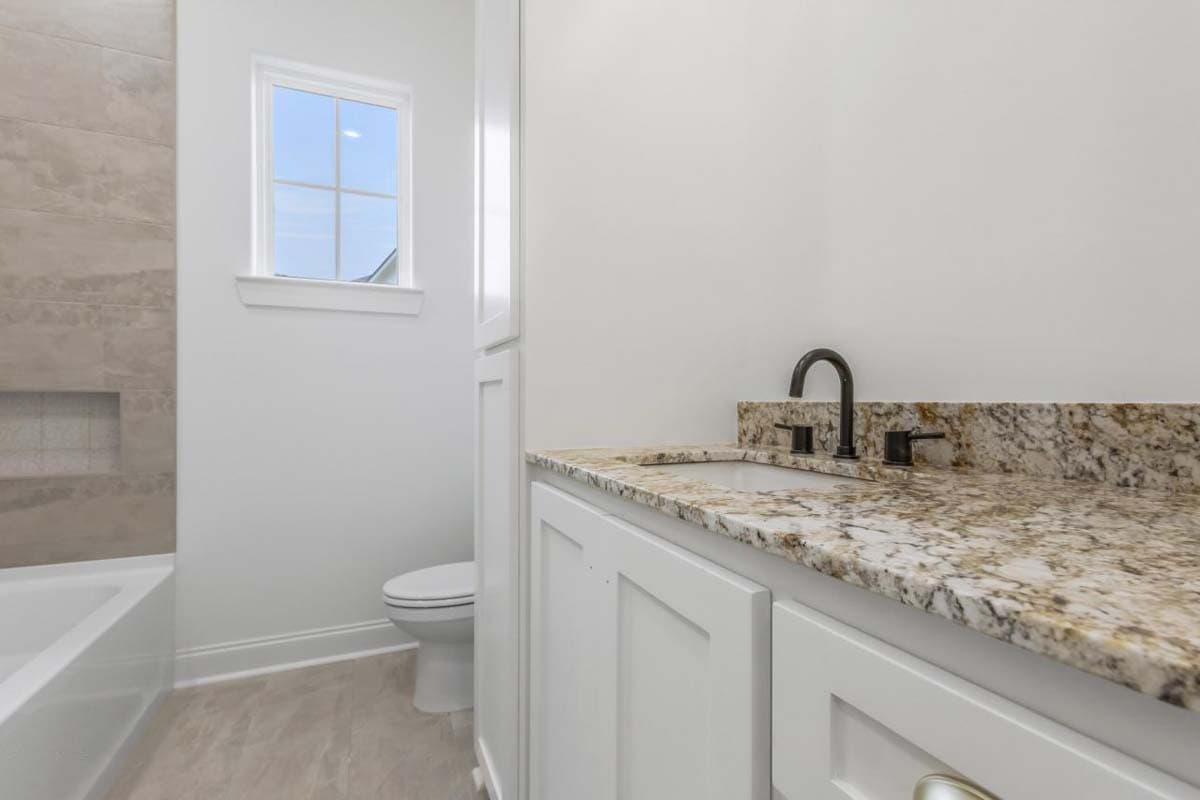

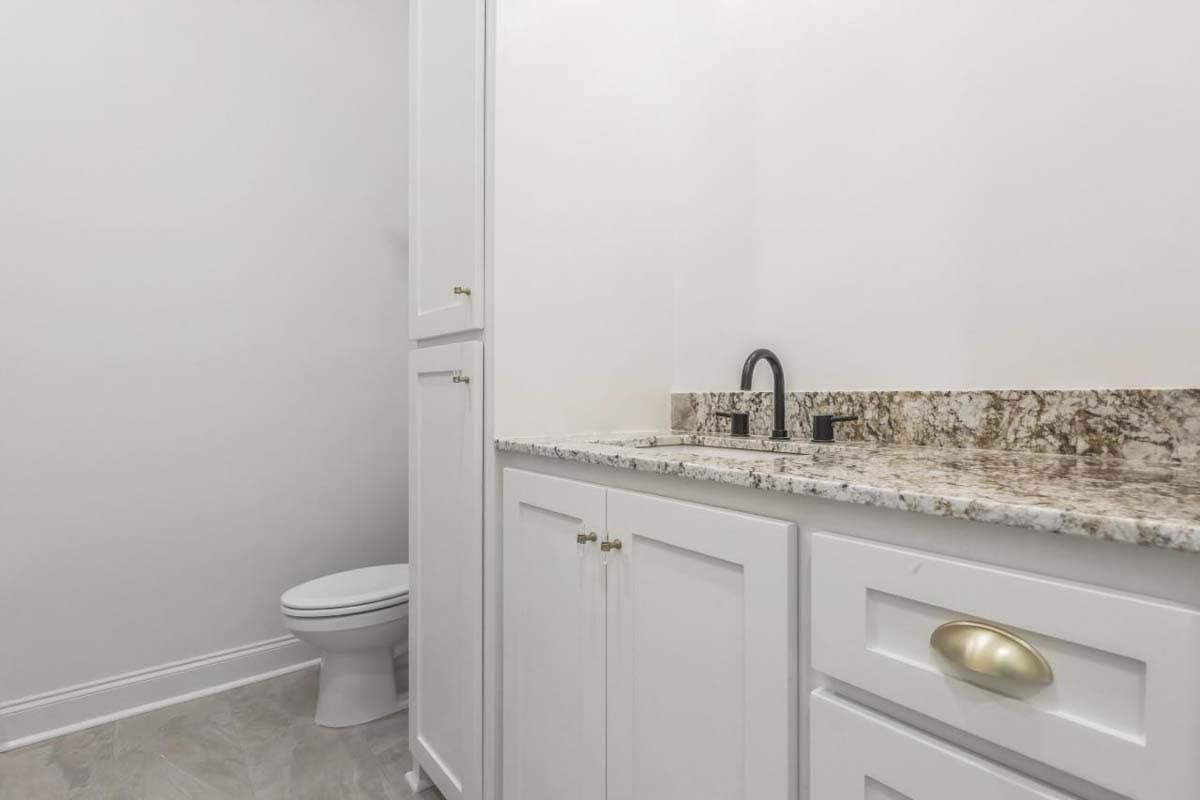

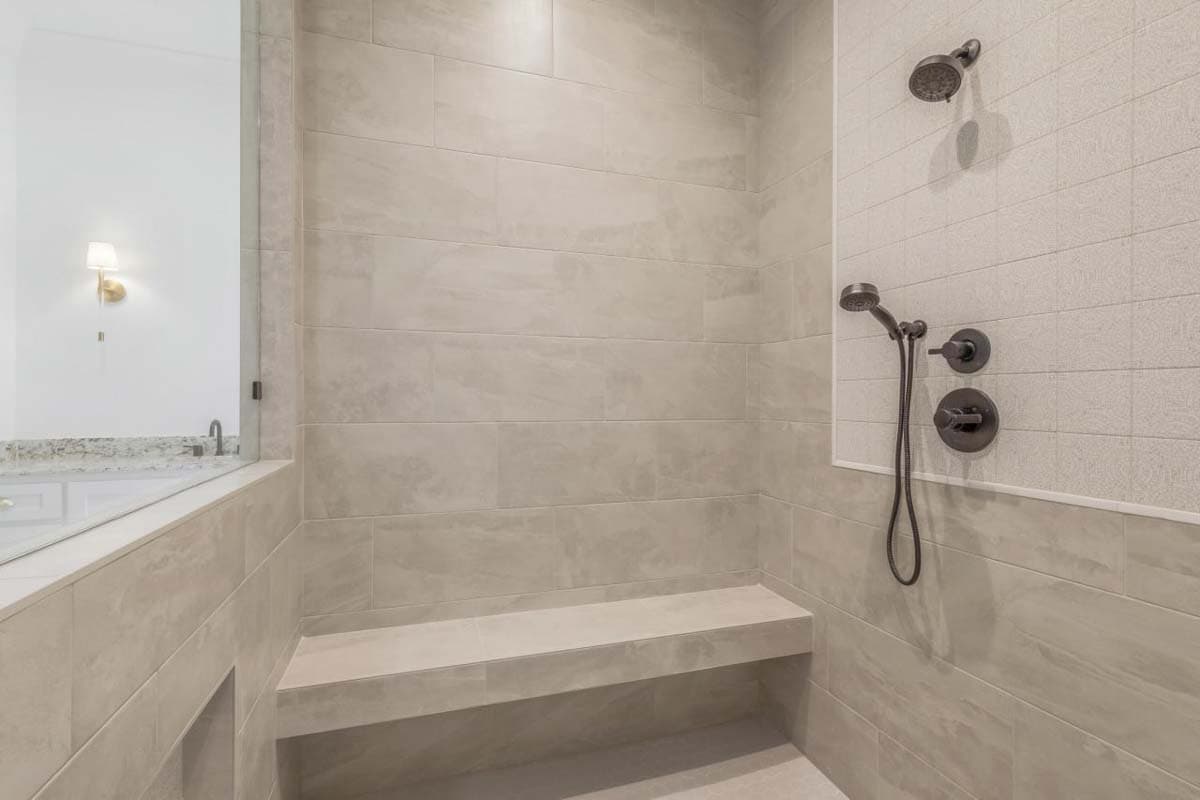

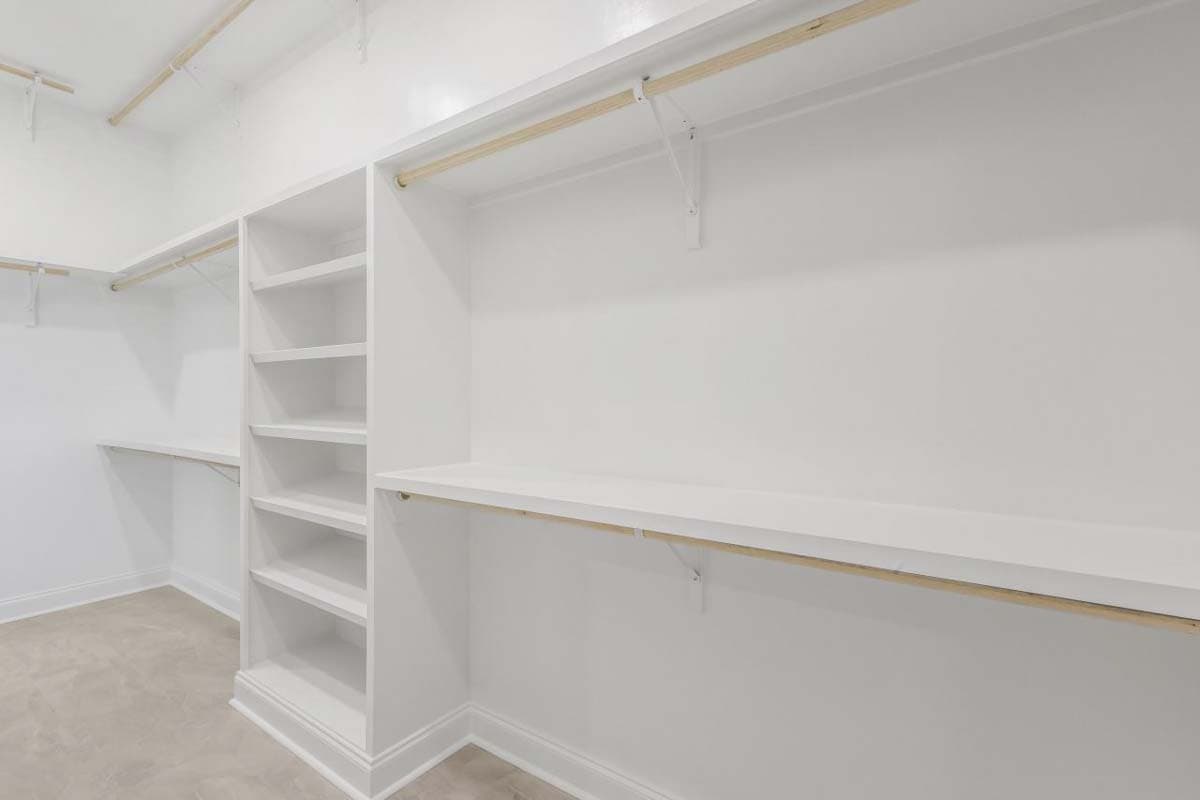

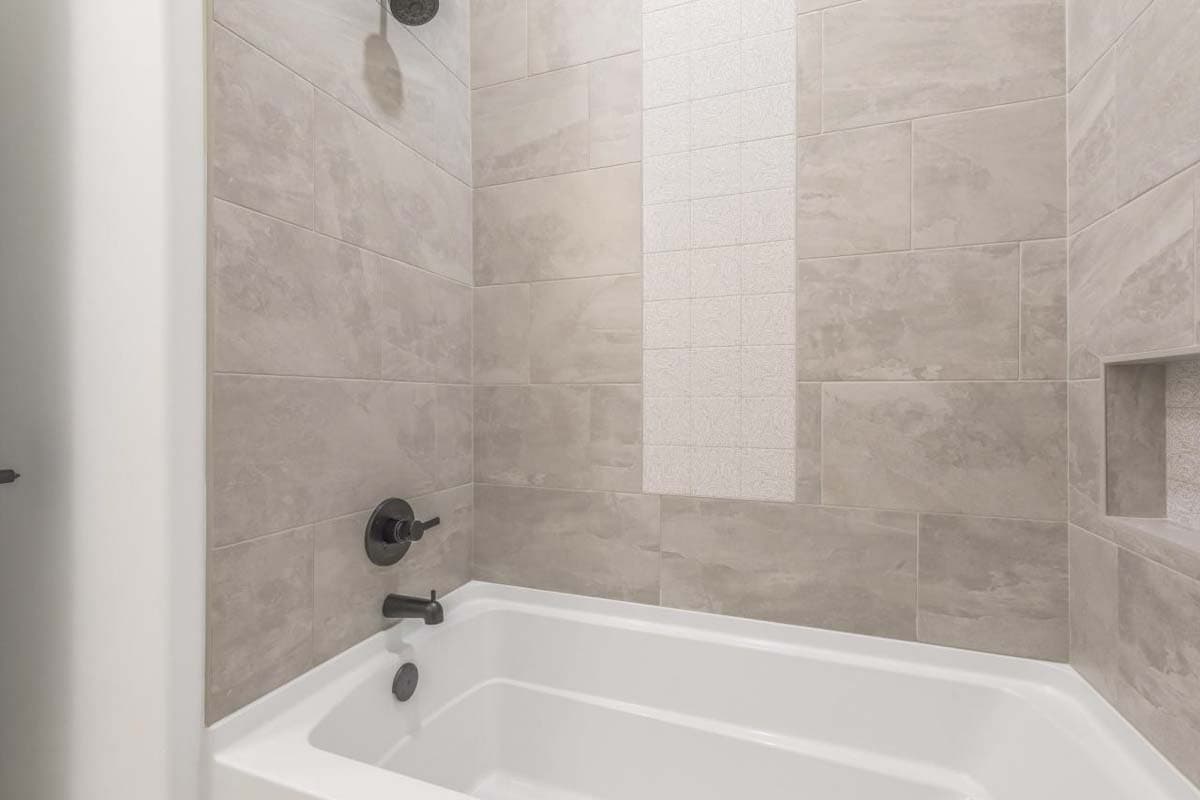

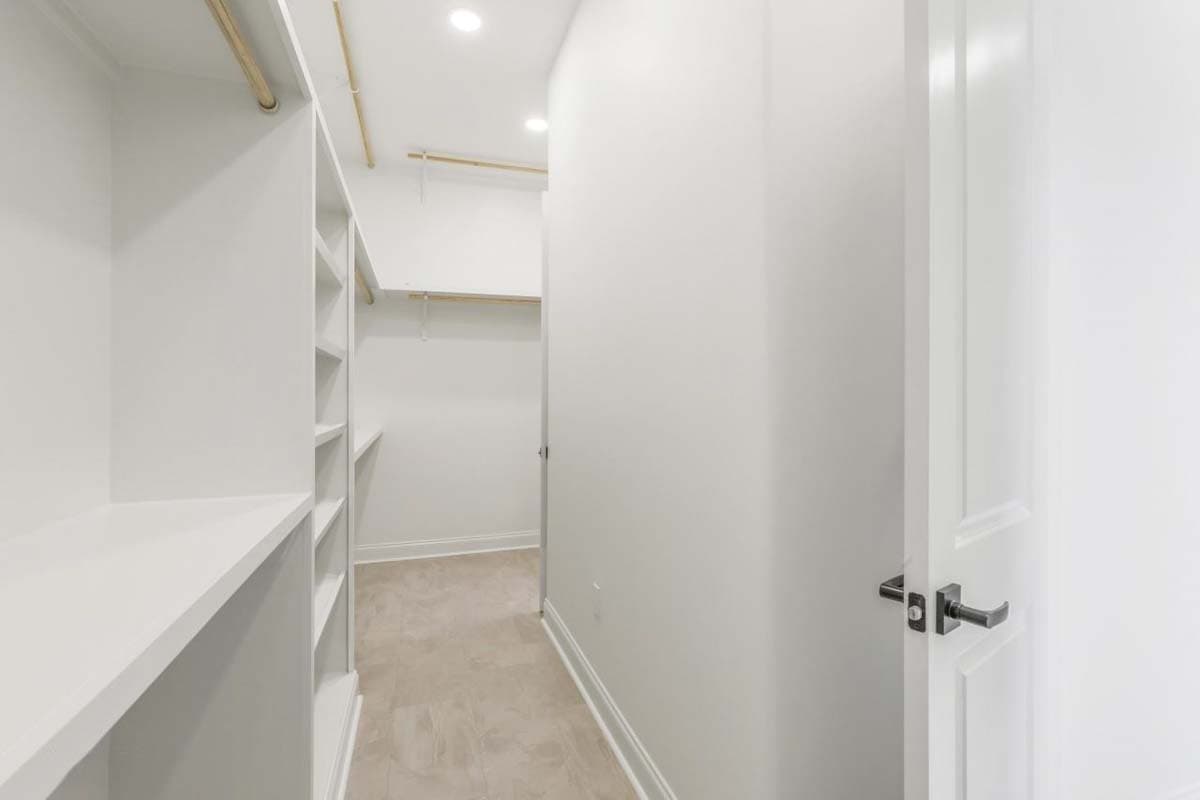

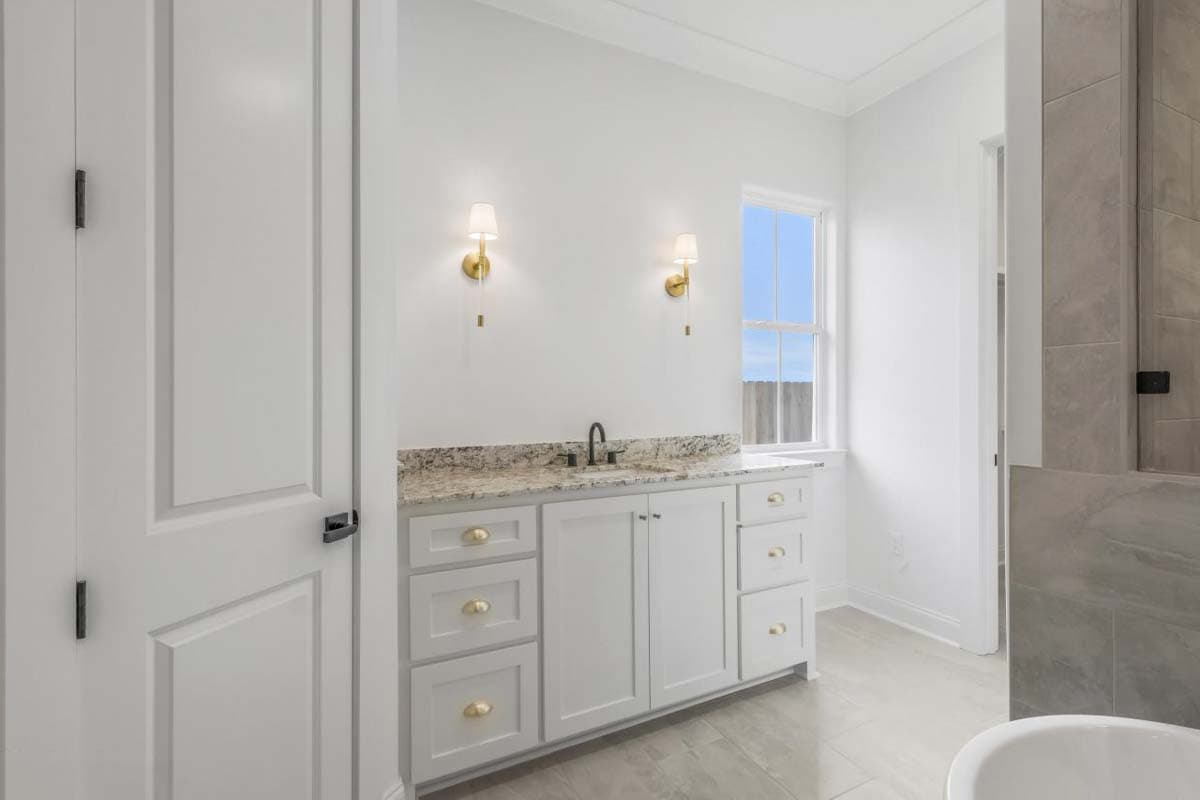

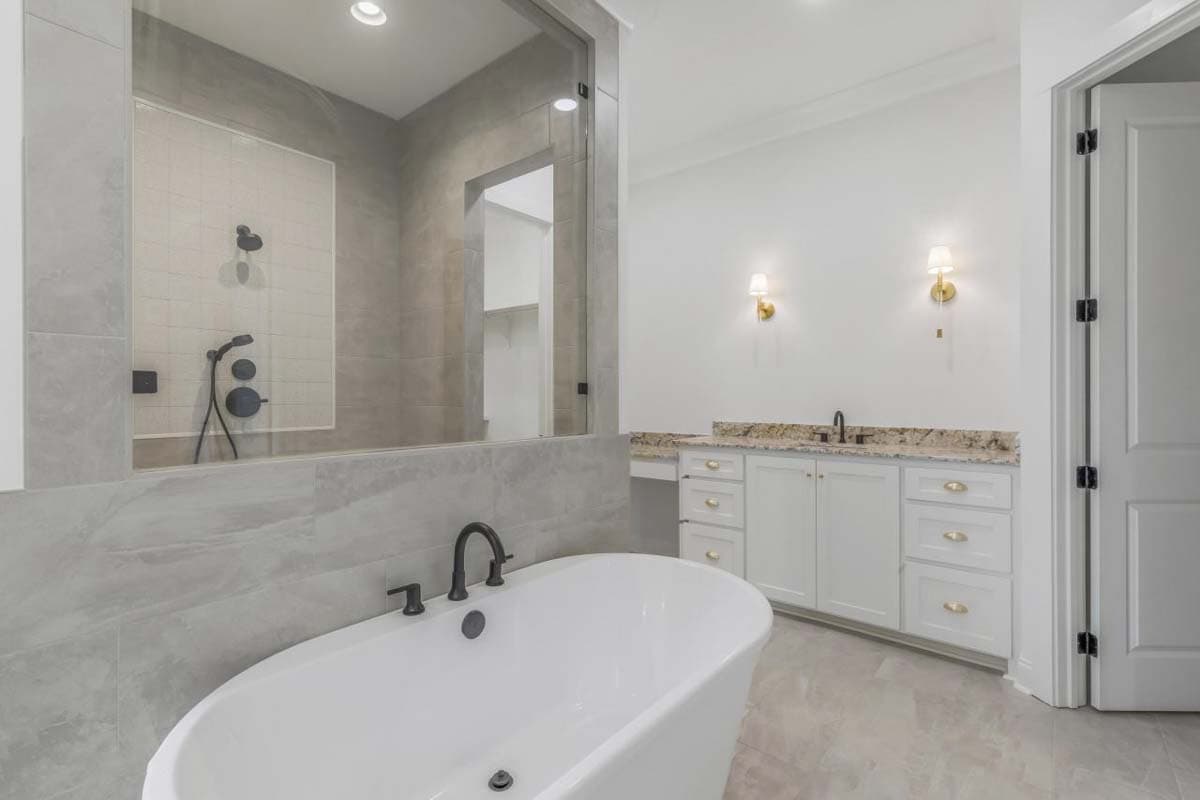

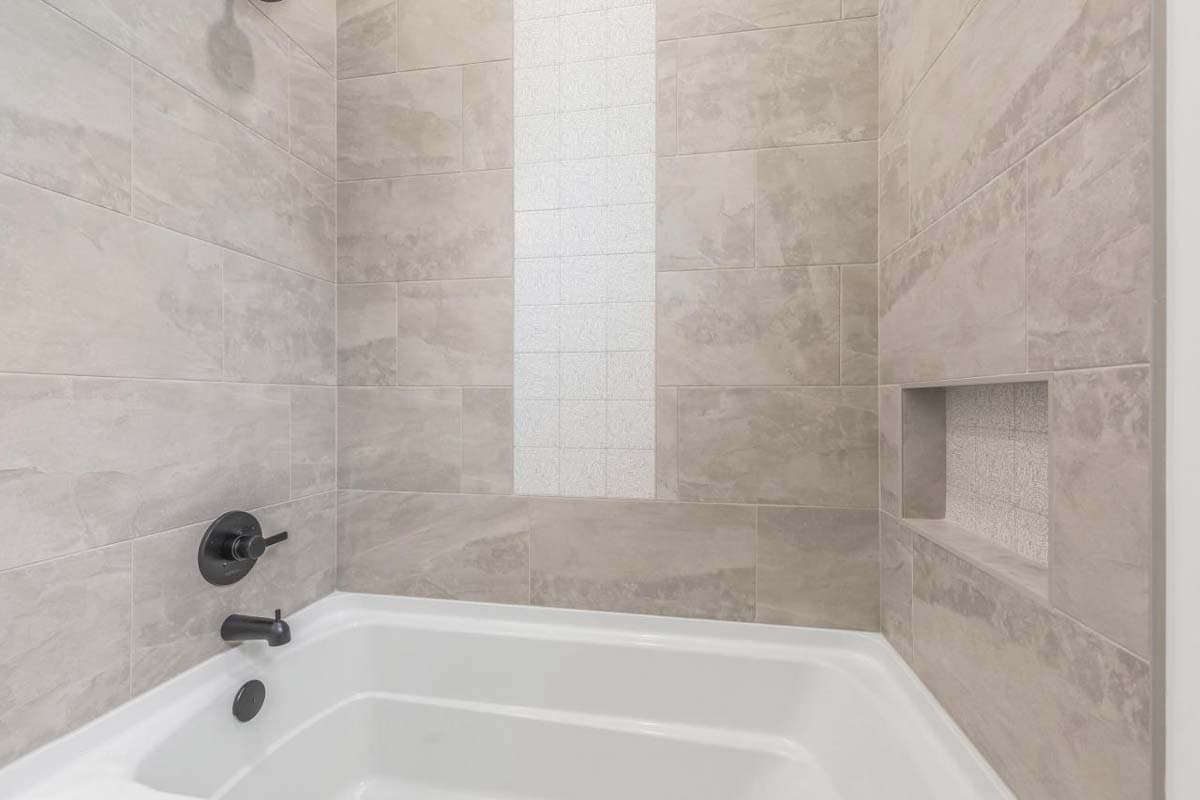

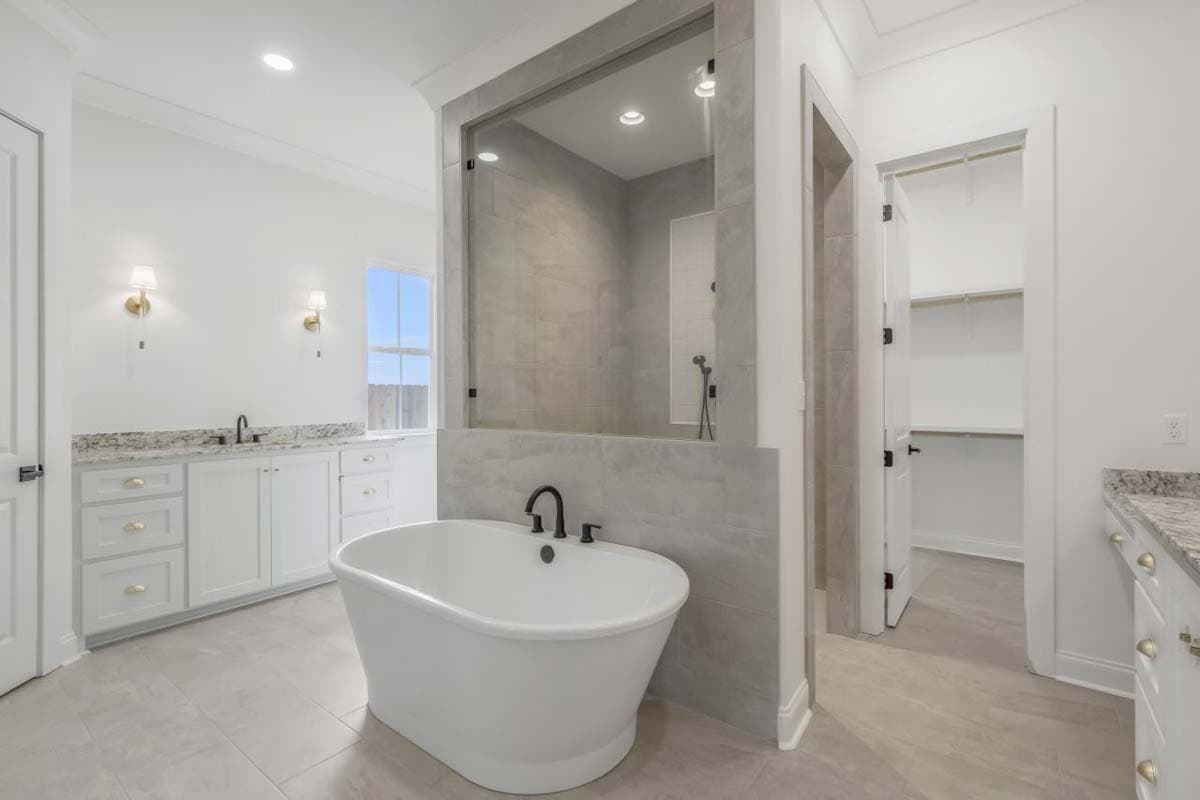

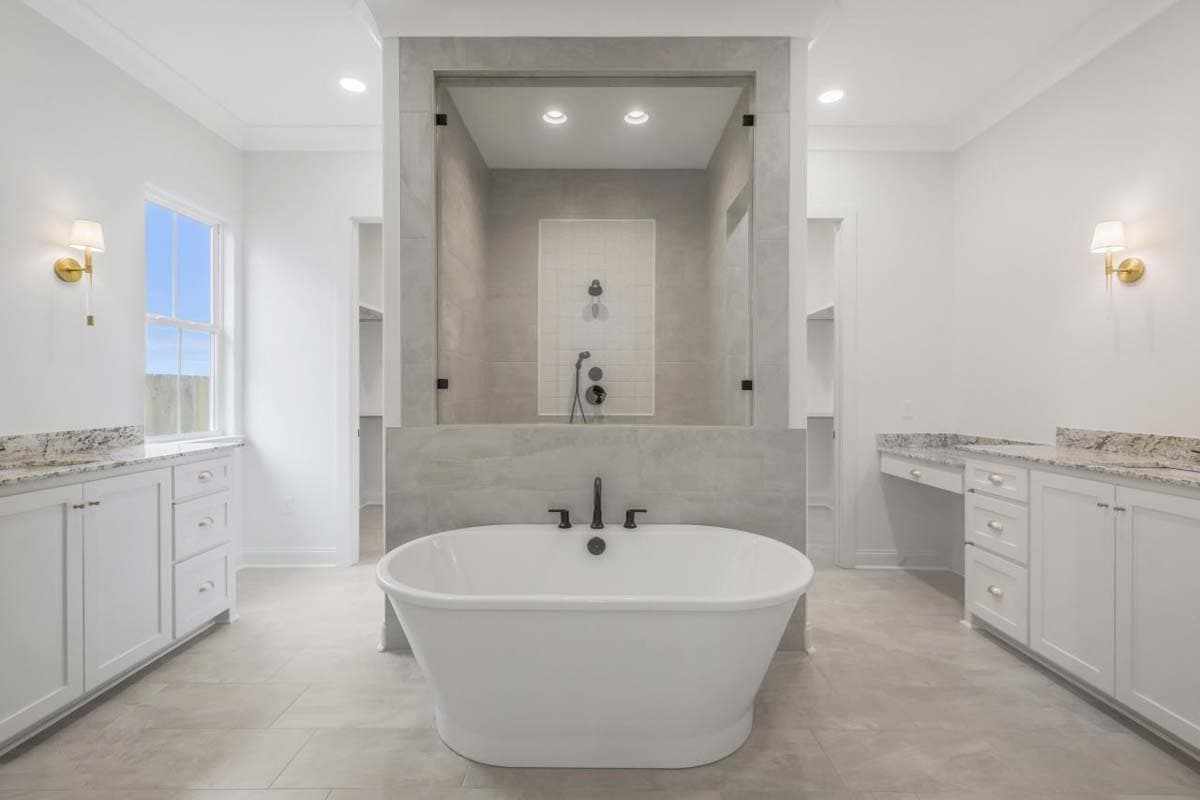

  • The master bedroom has a 10’ to 11’ tray ceiling. The master bath is a dream with large separate vanities, a freestanding tub w/ the custom shower behind and two entries into the master closet. Both bathrooms have custom tiled walls with tub inserts and linen cabinets.

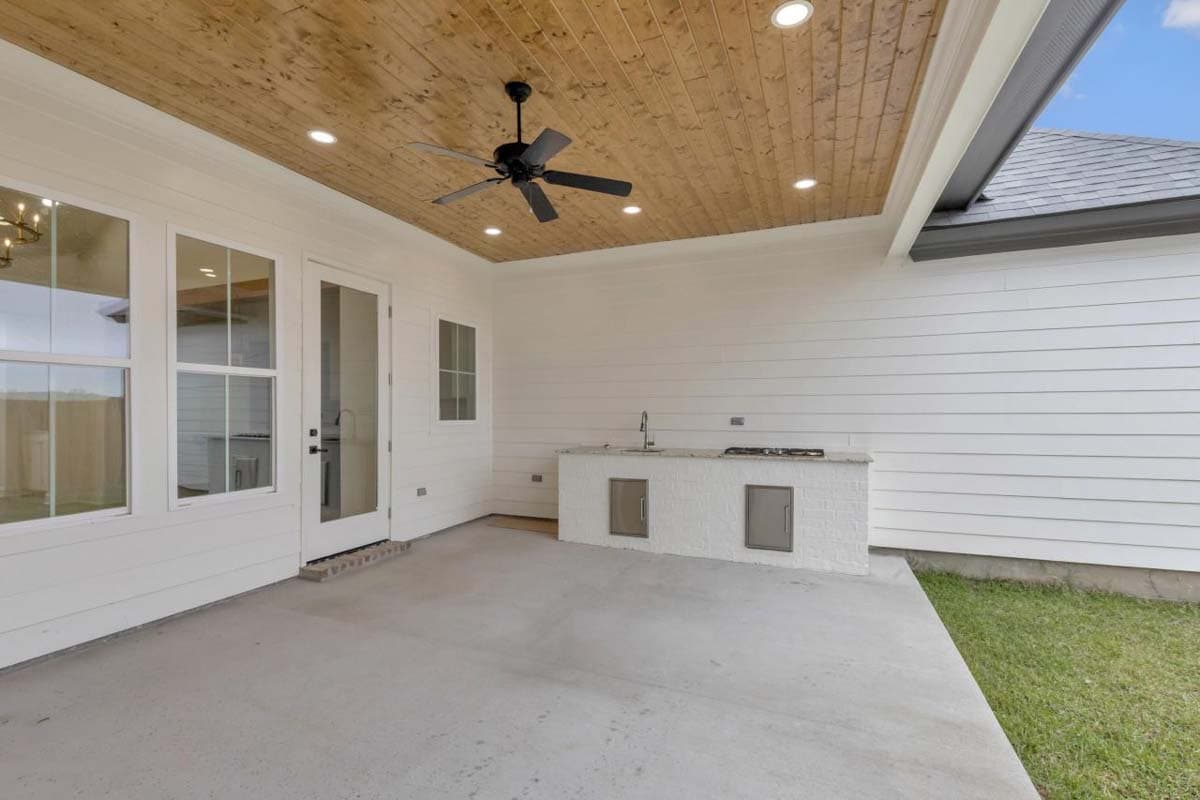

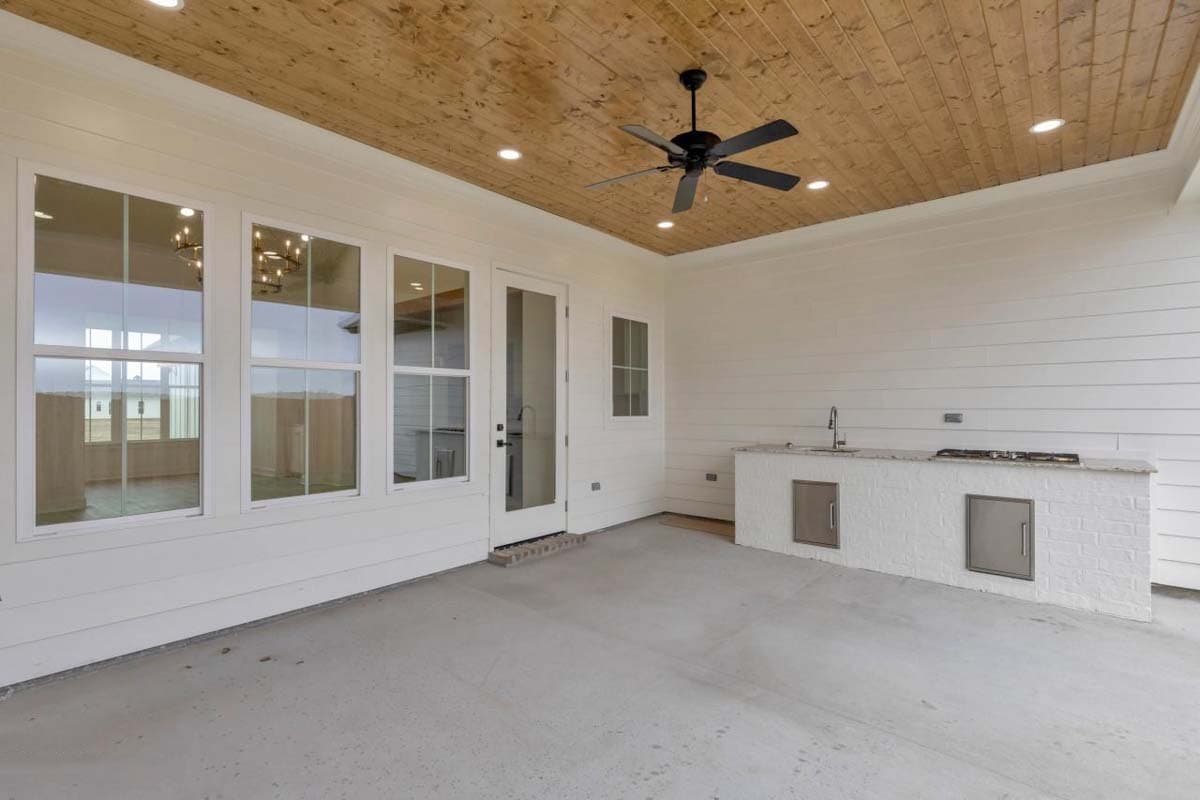

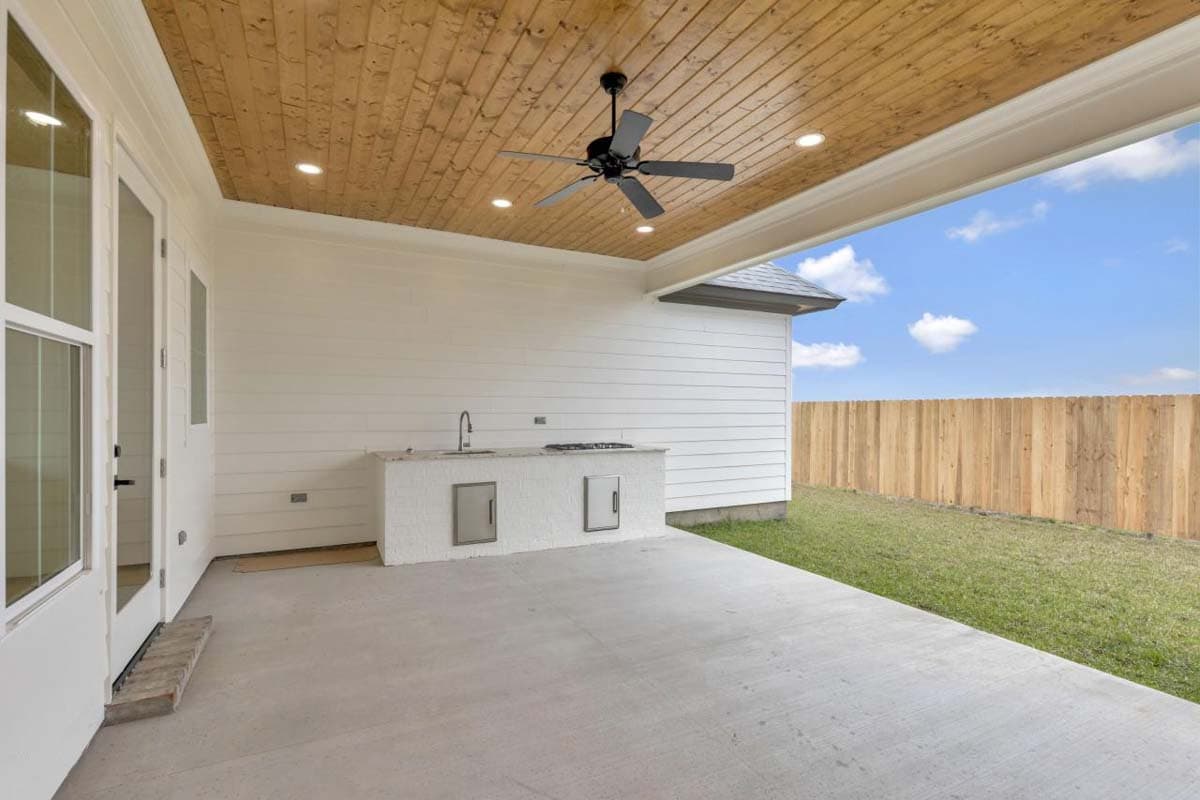

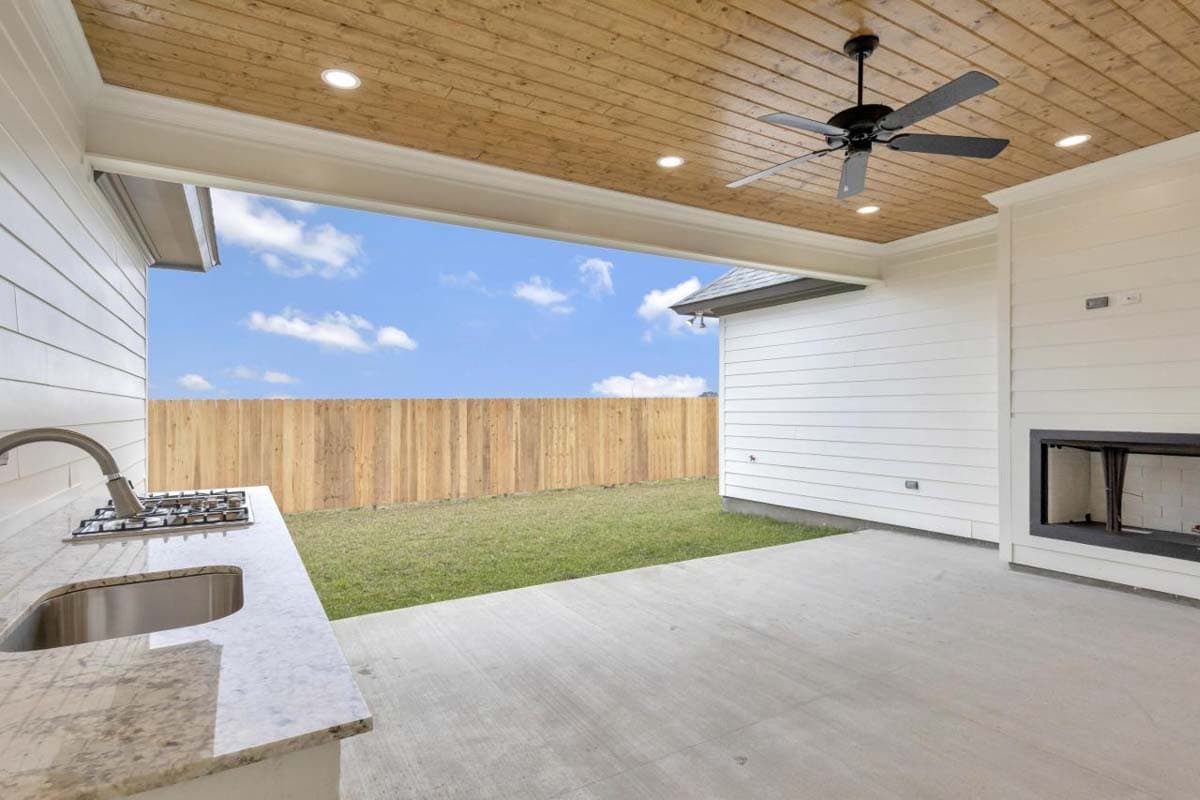

  • The rear porch offers a cooktop and sink as well as another fireplace.

What is Included in Our Plans?

We work with hundreds of designers and architects who work in a variety of styles.  It is important to note. Their plan packages may contain different details.

We strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below are examples of sheets that may be included in plan sets - please be aware that not every plan includes every one of these pages:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

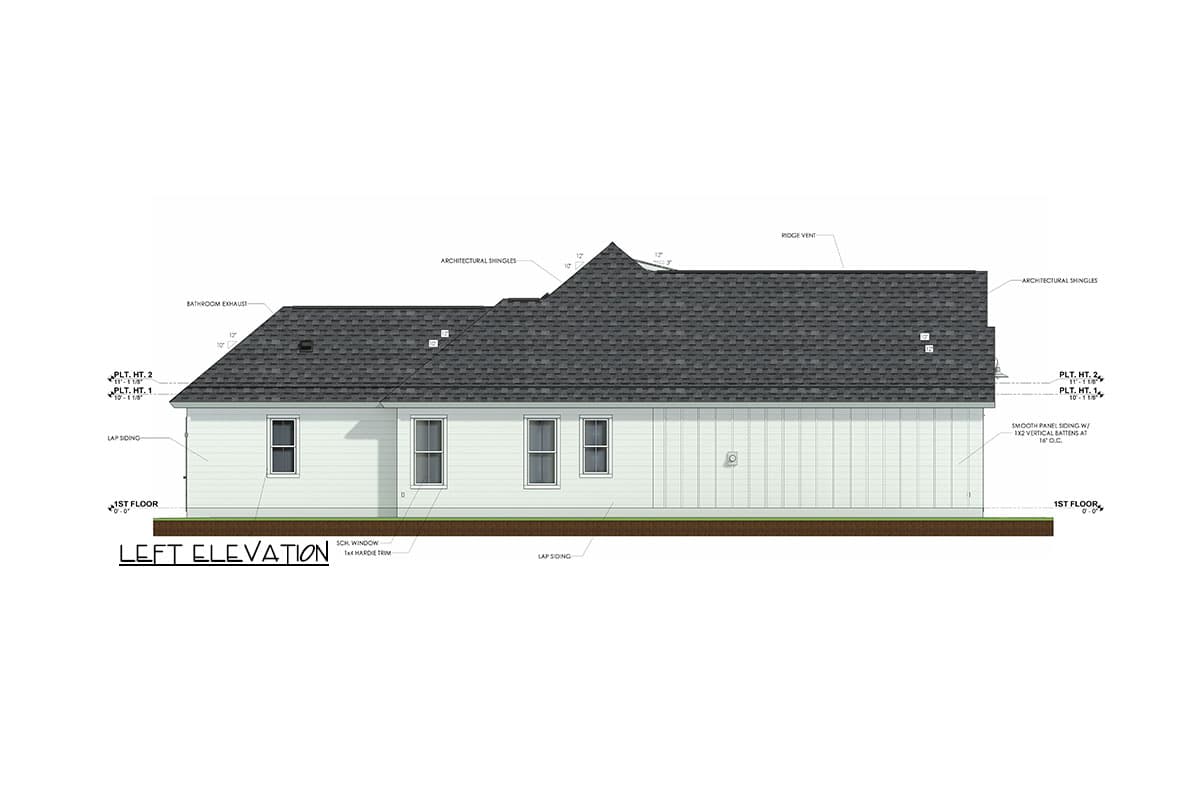

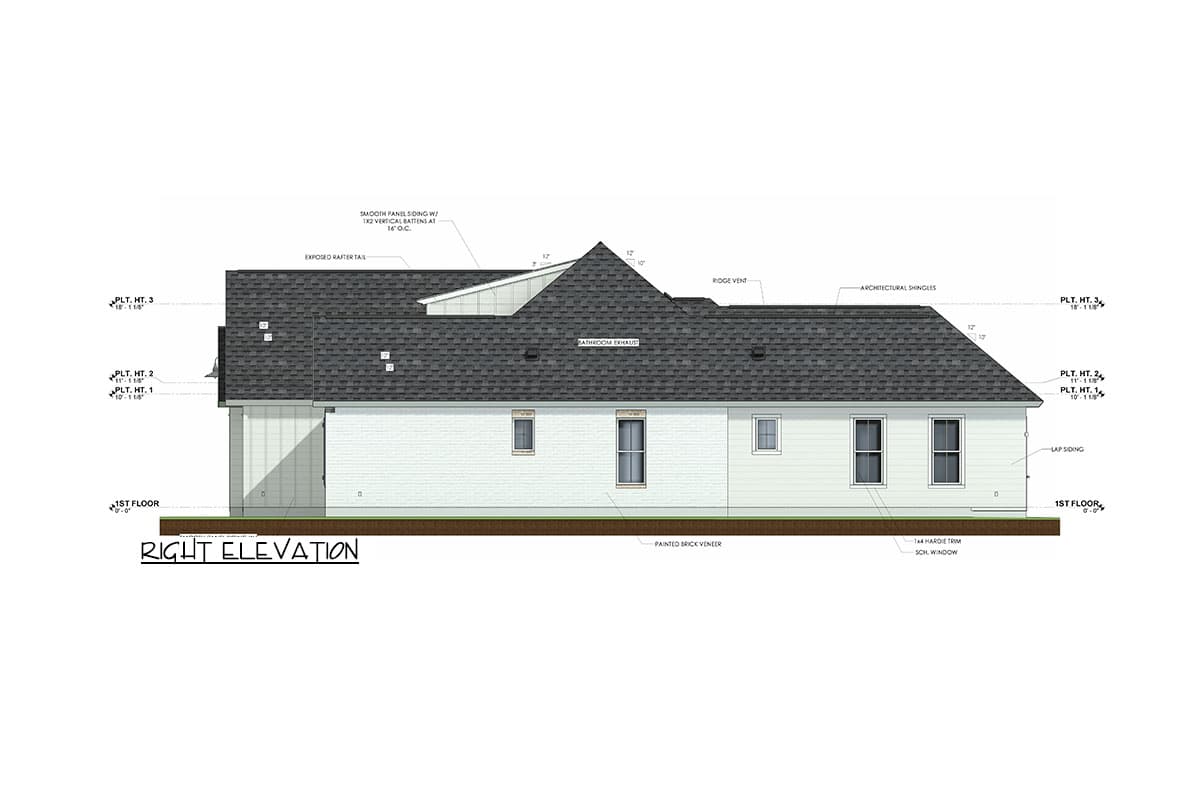

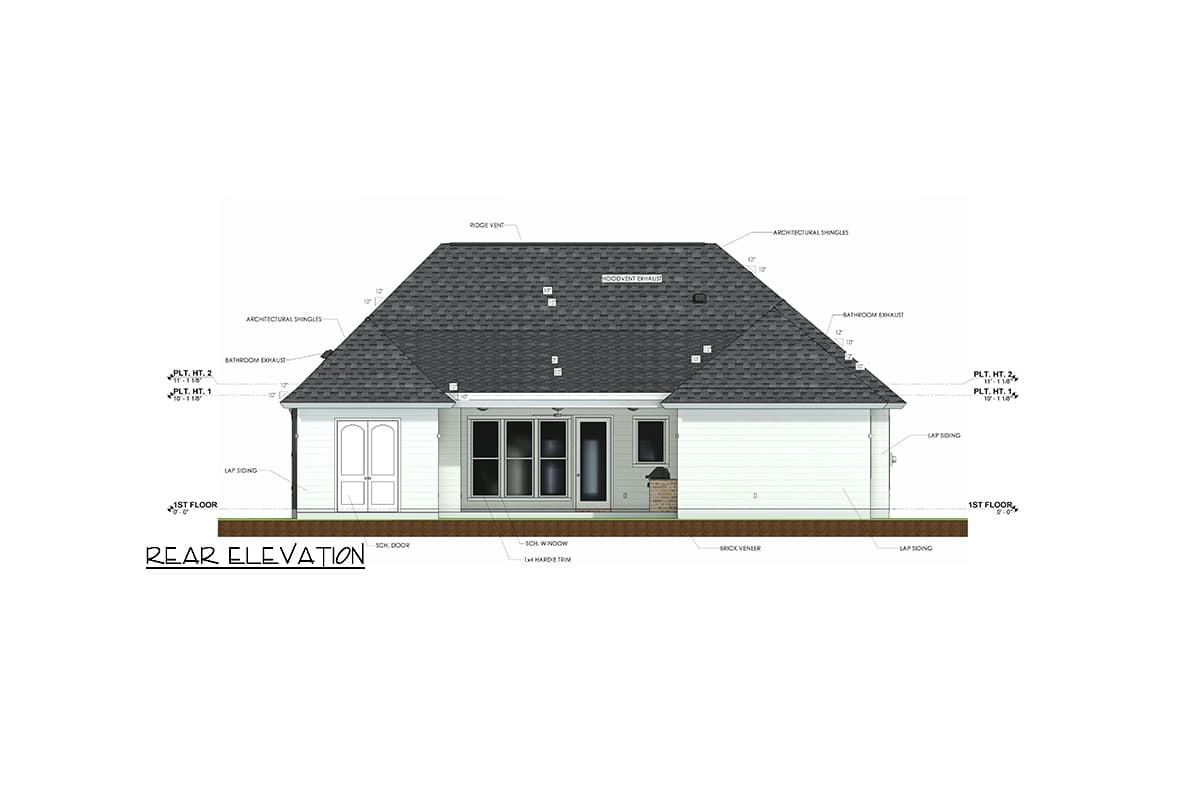

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations
  •           Materials list - MAY be available as a purchasable option under the "Options" tab

Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable Reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

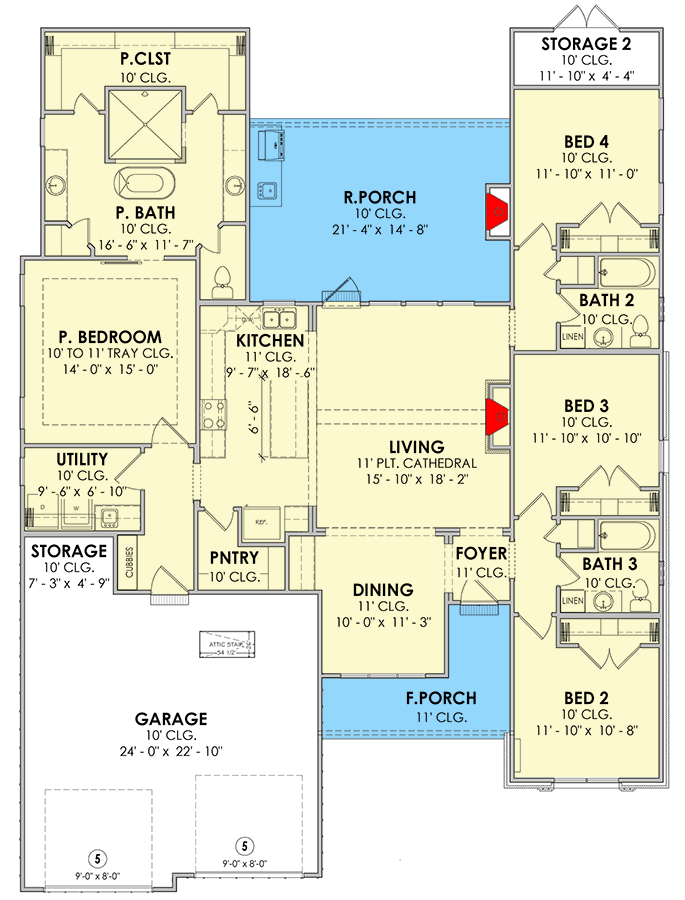

New American House Plan with Outdoor Fireplace - 2142 Sq Ft - 185005PHD floor plan - Main Level

New American House Plan with Outdoor Fireplace - 2142 Sq Ft

  • 2,142

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,142 sq. ft.
  • 1st Floor: 2,142 sq. ft.

Dimensions

  • Width: 53' 2"
  • Depth: 70' 11"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 587 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" Living 11' 0"
