New American House Plan with Roof Deck and Basement Expansion - 2608 Sq Ft

Plan 95230RW

  • 2,608

    Heated s.f.

  • 2

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • This 2 bed, 2.5 bath New American house plan gives you 2,608 square feet of heated living space with additional expansion in the basement below (2 more beds, 2 baths and 1,853 square feet of expansion space to be exact).
  • A 3-car 1,012 square foot garage is set behind a 9' by 8' overhead door and  a 18' by 9' overhead door. There is a person door in back and access to the well-appointed mud room, too.
  • A home office is located to the left of the foyer. Go past the stairs and you'll discover an open concept layout with the great room open to the kitchen and dining area. The great room has a fireplace and a 12' ceiling and enjoys indoor-outdoor living with the back wall collapsible, connecting to the covered patio beyond.
  • Both bedrooms are clustered on the right with the master suite with fireplace having covered patio access.

The following details are included with this house plan:
  • Cover Page
  • 4 elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

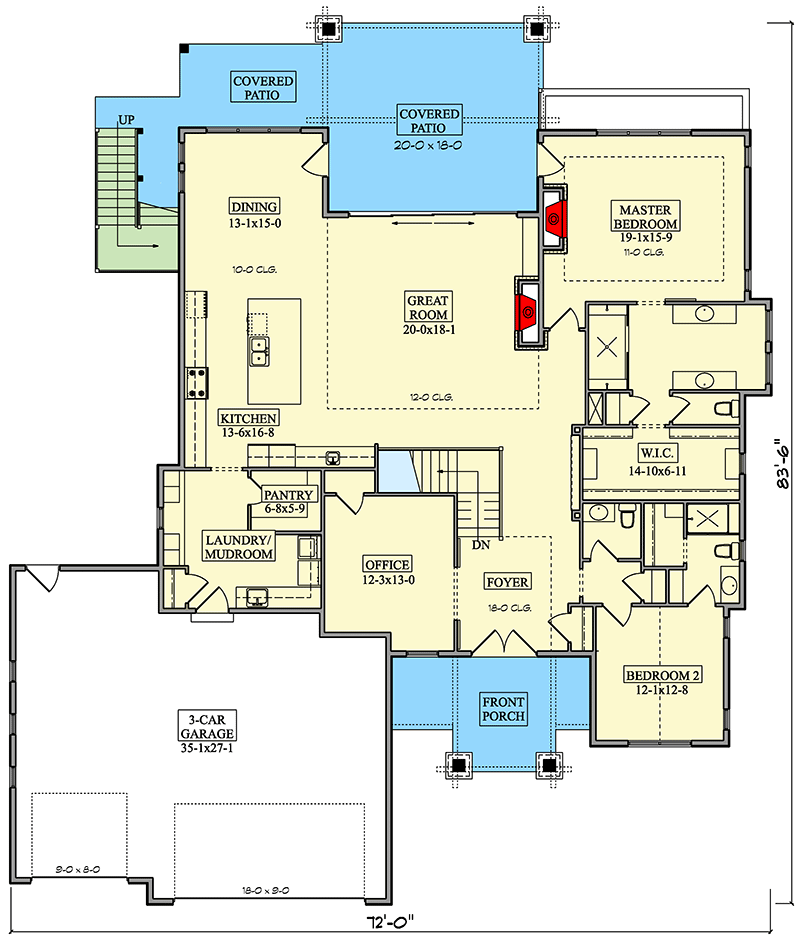

New American House Plan with Roof Deck and Basement Expansion - 2608 Sq Ft - 95230RW floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

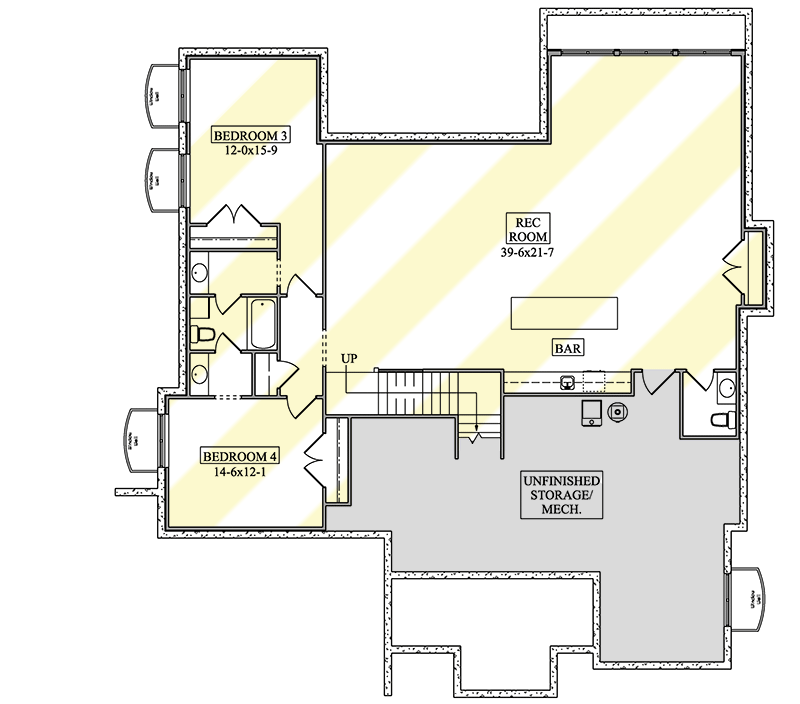

New American House Plan with Roof Deck and Basement Expansion - 2608 Sq Ft - 95230RW floor plan - Lower Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

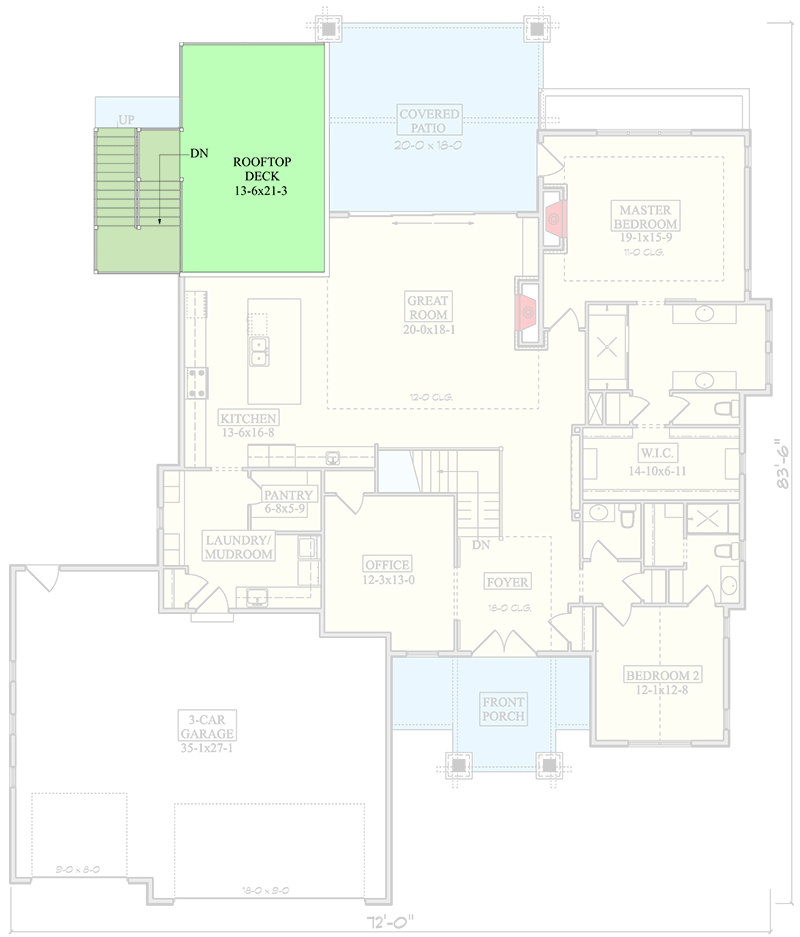

New American House Plan with Roof Deck and Basement Expansion - 2608 Sq Ft - 95230RW floor plan - Roof Deck

New American House Plan with Roof Deck and Basement Expansion - 2608 Sq Ft

  • 2,608

    Heated s.f.

  • 2

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Lower Level

  • Roof Deck

Plan Details

Square Footage Breakdown

  • Total: 2,608 sq. ft.
  • 1st Floor: 2,608 sq. ft.

Dimensions

  • Width: 72' 0"
  • Depth: 83' 6"
  • Max ridge height: 24' 9"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1012 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
