Plan 51857HZ

New American Modern Farmhouse with One Bedroom on the Main Floor and Three Bedroom Upstairs

Heated S.F.
3,145
Beds
4
Baths
3.5
Stories
2
Cars
2

Floor Plan

Plan 51857HZ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 51857HZ

M-F 9am-5pm EST |

1-203-761-8500

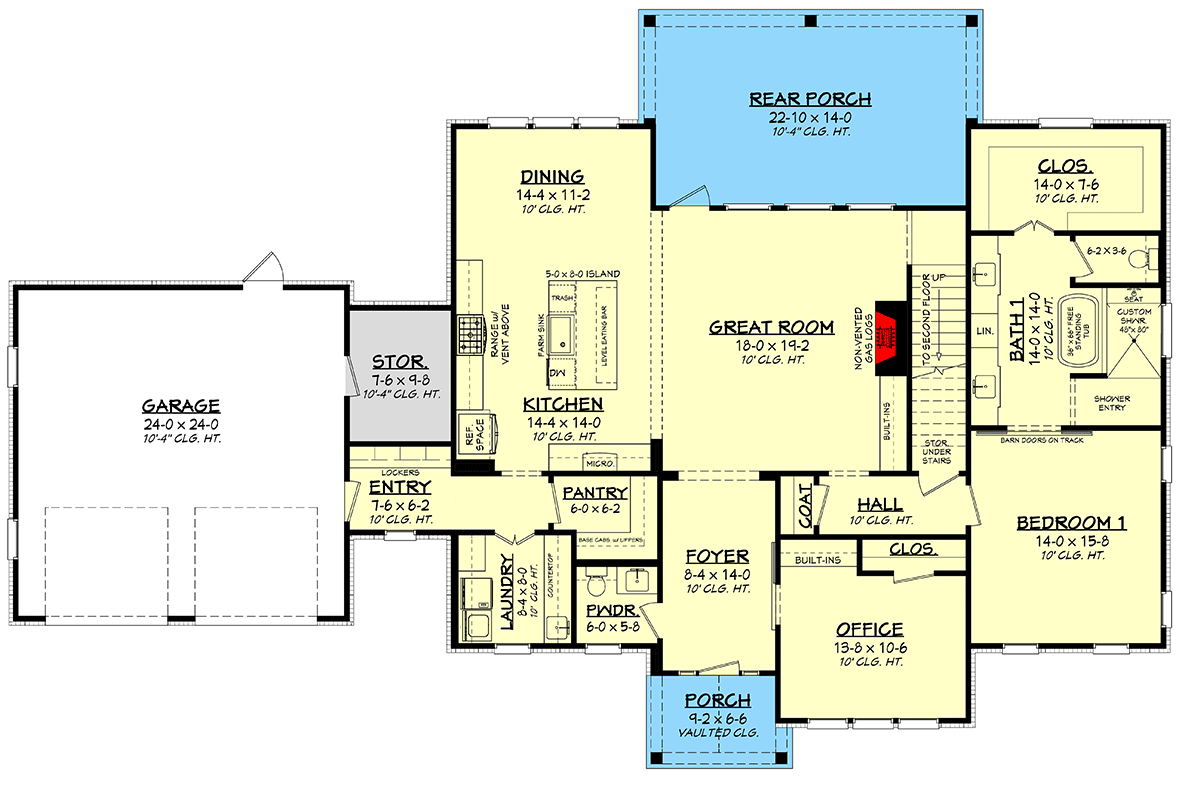

Main Level

Plan 51857HZ: New American Modern Farmhouse with One Bedroom on the Main Floor and Three Bedroom Upstairs - Floor Plan - Main Level - Country, Craftsman, Farmhouse, Modern Farmhouse, New American, Traditional

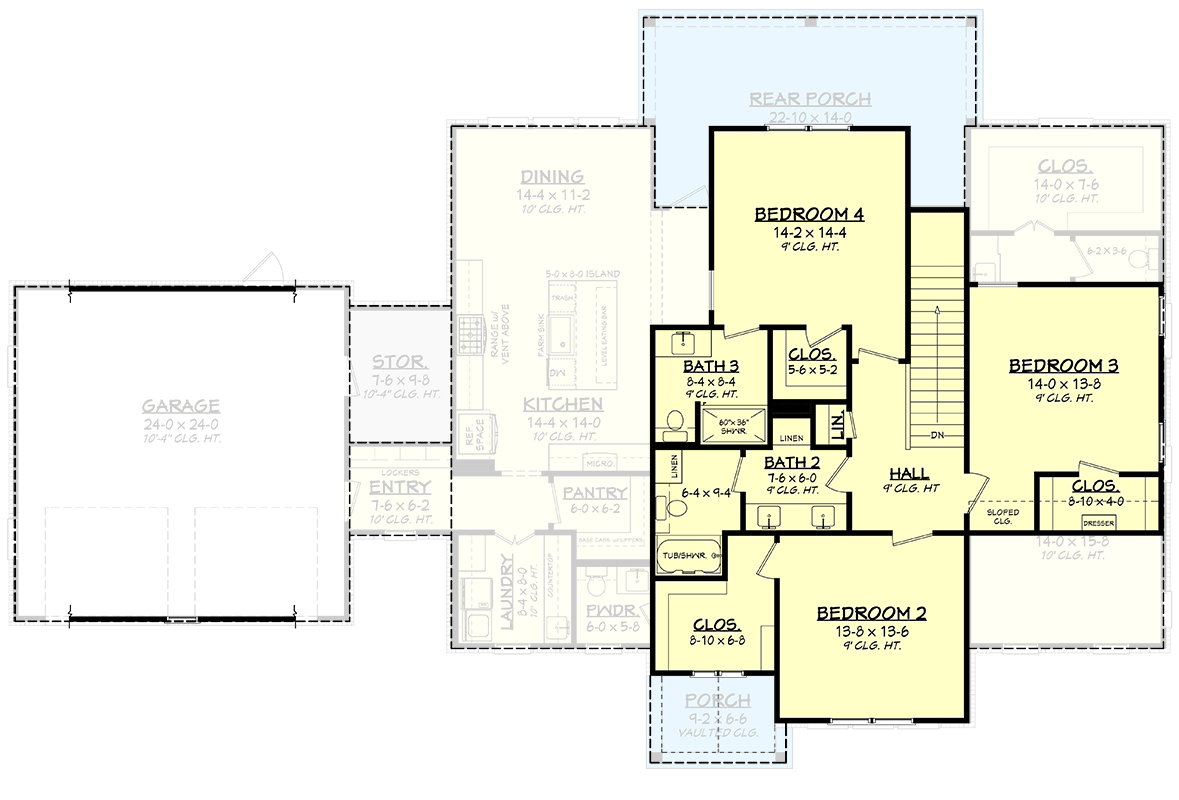

2nd Floor

Plan 51857HZ: New American Modern Farmhouse with One Bedroom on the Main Floor and Three Bedroom Upstairs - Floor Plan - 2nd Floor - Country, Craftsman, Farmhouse, Modern Farmhouse, New American, Traditional

Plan Details

  • Board and batten siding, a touch of brick and timbers framing the covered entry combine to give this 4-bedroom, 2-story house plan a New American Modern Farmhouse vibe.
  • A barn door on the right of the foyer opens to reveal your very own home office. With built-ins and a closet - along with its location at the front of the home - make this a great place to work from home in.
  • Step further into the home and you find your self in an open floor plan. The great room - with fireplace and built-ins to the right - is open tot he kitchen. It has a large 5' by 8' island with sink, dishwasher and trash on one side and seating on the other. A roomy walk-in pantry is steps away, as is the garage, making unloading groceries a breeze. Enjoy meals in the dining room overlooking the back or eat on the 14'-deep back porch.
  • The main bedroom is on the main floor and is a private space. The large bathroom has separate vanities, a free standing tub, and a custom shower with a spacious walk-in closet. Upstairs, you'll find three enormous bedrooms with two large baths.
  • The garage entry offers lockers for storage and easy access to the laundry room.

What's Included

This plan has 15 pages as follows:

Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation Plan and Details
Page 3  Detailed first floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
Page 4  Detailed first floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
Page 5  Exterior views with additional notes and details
Page 6  Exterior views with additional notes and details
Page 7  Cross Section & kitchen cabinet views
Page 8  Roof plan and span charts with additional details
Page 9  Misc. details
Page 10 First floor electrical plan
Page 11 Second floor electrical plan
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
