New American Ranch Plan with Rear Garage and Bonus Room - 2712 Sq Ft

Plan 69441AM

  • 2,712

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 1-2

    Stories

  • 3

    Cars

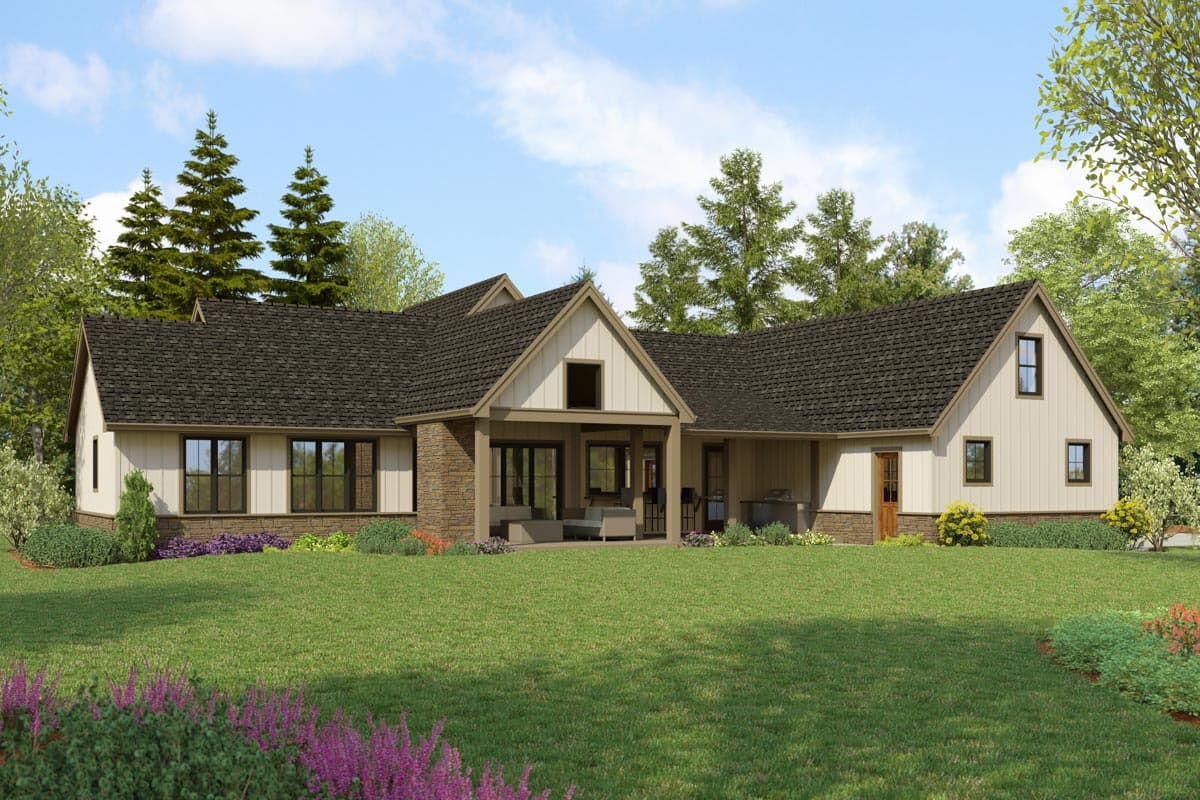

  • Stone accents and a ribbed metal roof accentuate the stunning exterior of this New American Ranch home plan that delivers over 2,700 square feet of living space.
  • An expansive living / dining space is crowned by a vaulted ceiling that continues onto the rear covered porch, where an accordion-style door allows for a seamless transition between the spaces.
  • The island kitchen features a sliding window above the sink to easily connect with the built-in grill and outdoor eating bar.
  • The right wing of the home is dedicated to the homeowner with an office across from the master bedroom. Three family bedrooms line the left side of the home.
  • The service areas are clustered near the 3-car garage and include a mudroom with a built-in bench, pantry, and coat closet. The 462 sq ft bonus room above the garage completes the design while adding a versatile space for the family to enjoy.

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
New American Ranch Plan with Rear Garage and Bonus Room - 2712 Sq Ft - 69441AM floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
New American Ranch Plan with Rear Garage and Bonus Room - 2712 Sq Ft - 69441AM floor plan - 2nd Floor

New American Ranch Plan with Rear Garage and Bonus Room - 2712 Sq Ft

  • 2,712

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,712 sq. ft.
  • 1st Floor: 2,712 sq. ft.

Dimensions

  • Width: 88' 6"
  • Depth: 67' 0"
  • Max ridge height: 24' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 800 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
