New American Style ADU with Tidy Front Porch - 651 Sq Ft
Heated S.F.
651
Beds
1
Baths
1
Stories
1
Tour
What's Included
Plan Details
  • This New American Style ADU (Accessory Dwelling Unit) gives you 1 bedroom, 1 bath, a tidy front porch and 651 square feet of heated living. The facade features welcoming covered front porch and large windows that not only fill the home with natural light but also provide views of the surrounding landscape. The combination of board-and-batten siding, a metal roof, and a gabled roofline gives the house a timeless appeal.
  • Inside, an entry niche has a drop zone to control clutter. An open concept living area has the living room seamlessly flowing into the island kitchen with a farmhouse sink, and ample counter space.
  • The bedroom comes with a large window framing your views and a bathroom featuring a tub/shower combo and a vanity.
  • The laundry room comes equipped full sized washer/dryer and additional linen storage.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement

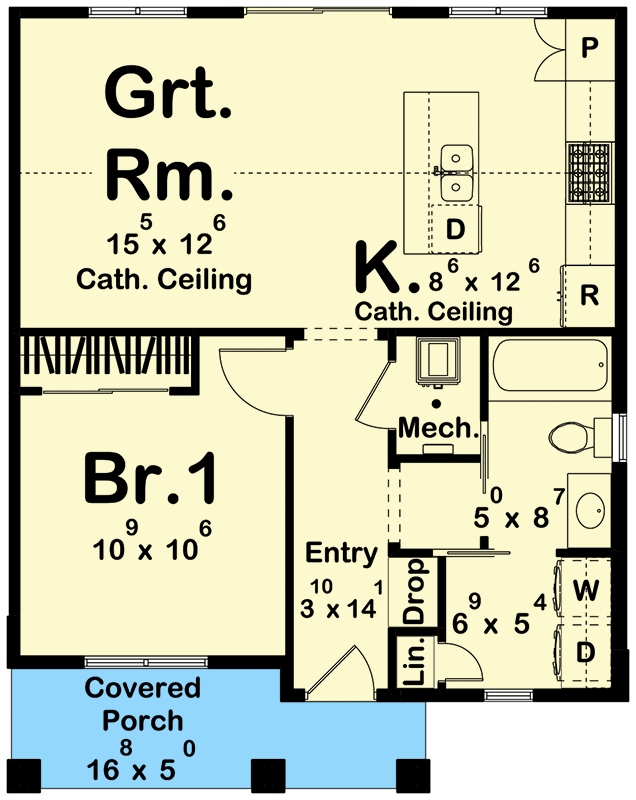

  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section
  • Cabinets Elevations
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

New American Style ADU with Tidy Front Porch - 651 Sq Ft

  • 651

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Floors

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 651 sq. ft.
  • 1st Floor: 651 sq. ft.

Dimensions

  • Width: 24' 8"
  • Depth: 31' 4"
  • Max ridge height: 16' 2"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 10 on 12
