Nicely Detailed Cottage

Plan 1934GT

This plan plants 3 trees

1,891
Heated s.f.
3
Beds
2
Baths
1
Stories

The inviting veranda that wraps around this cottage is topped by an eye-catching metal roof. A beautifully detailed front gable and three dormer windows add to the appeal. Inside, airy ceilings range in height from nine to 14 feet.
The raised foyer ushers guests inside in style. Separated from both the foyer and the dining room by half-walls, the living room features a fireplace flanked by bookshelves. A pass-through to the wet bar in the kitchen saves many trips back and forth.
The family chef will love the spacious kitchen, where a cooktop island frees up counter space. The adjacent breakfast nook is set in a cheerful bay.
Secluded in the rear, the master suite is a serene oasis, with private access to the veranda. A charming niche and a walk-in closet are features of the bedroom. In the compartmented master bathroom, light from four windows streams into the oversized garden tub.
Bedroom two, boasting built-in bookshelves and another walk-in closet, shares the hall bath with the third bedroom.
Foundation: slab.

Each plan set includes the following:

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

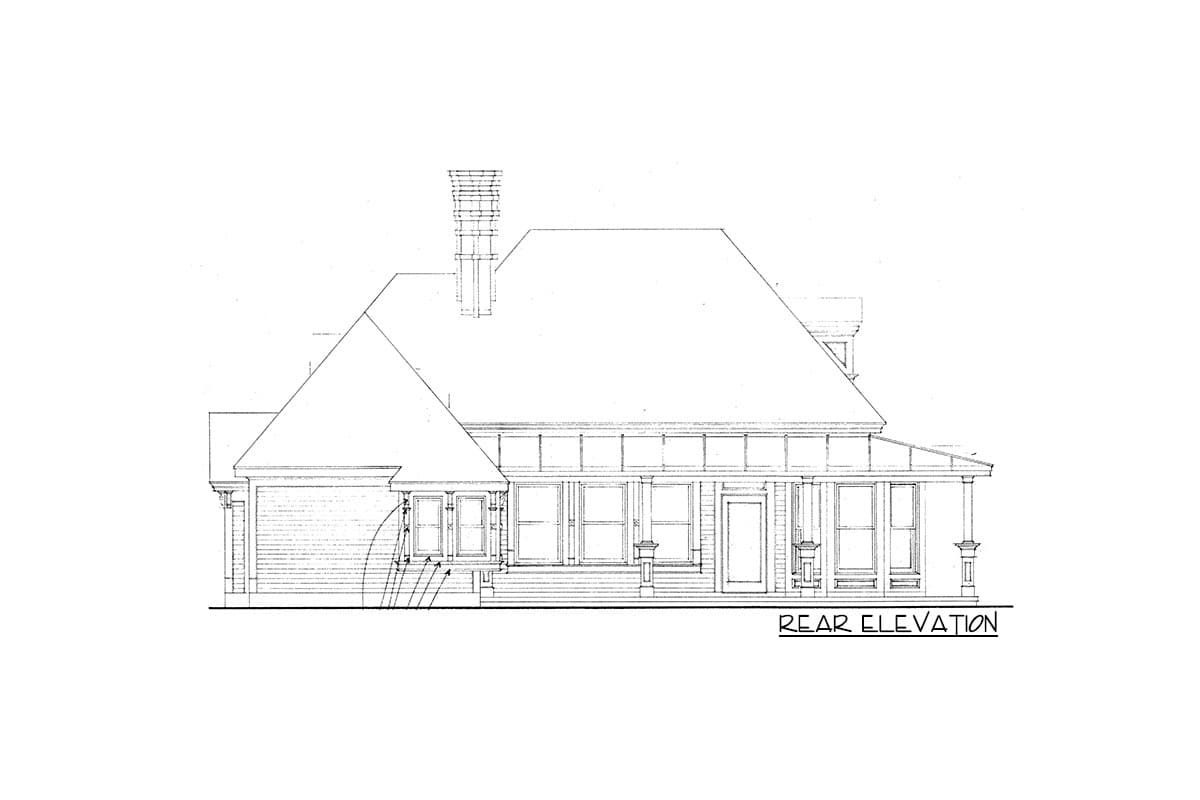

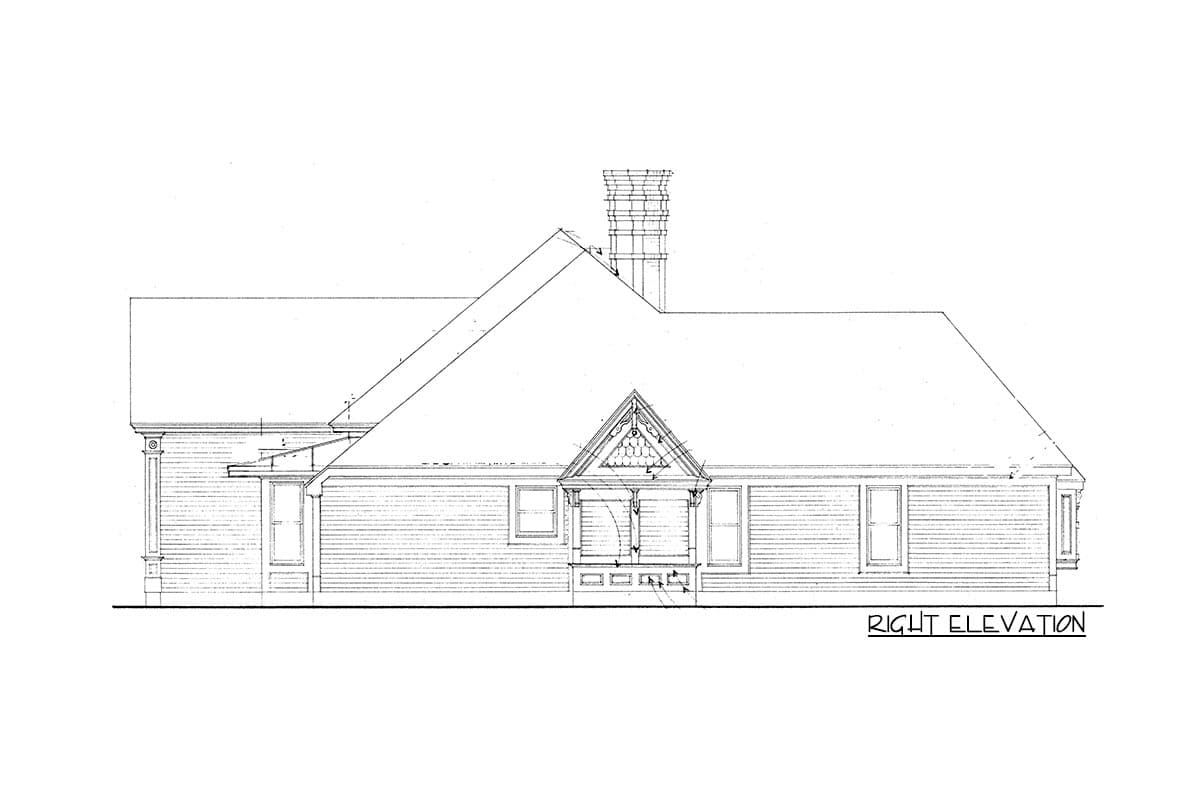

Exterior Elevations: A blueprint picture of all four sides showing exterior elevations with roof pitches, elements and measurements drawn to 1/4” scale.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Nicely Detailed Cottage - 1934GT floor plan - Main Level

Plan details

Square Footage Breakdown

Total Heated Area: 1,891 sq. ft.
1st Floor: 1,891 sq. ft.

Deck: 612 sq. ft.

Beds/Baths

Bedrooms: 3

Full bathrooms: 2

Foundation Type

Standard Foundations: Slab

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Dimensions

Width: 52' 0"
Depth: 63' 0"
Max ridge height: 26' 0"

Ceiling Heights

Floor / Height: First Floor / 9' 0"

Roof Details

Primary Pitch: 10 on 12
Secondary Pitch: 14 on 12

Framing Type: Stick

Architectural Style
