Plan 67743MG

Northwest Bungalow

Heated S.F.
1,751
Beds
1 - 2
Baths
2
Stories
1
Cars
2

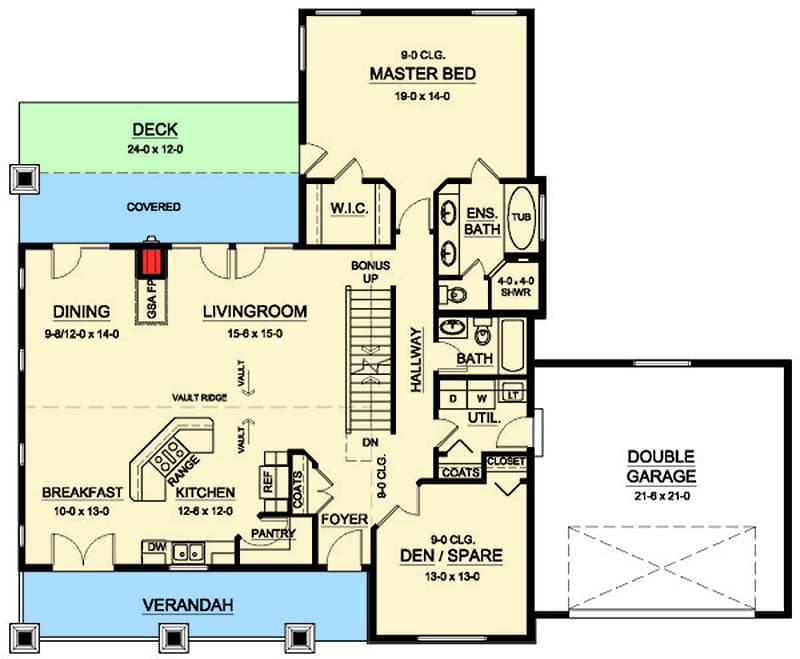

Floor Plan

Plan 67743MG

Main Level
Main Level

Plan 67743MG

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 67743MG: Northwest Bungalow - Floor Plan - Main Level - Bungalow, Craftsman, Northwest

Plan Details

  • Transom windows brighten this Northwest bungalow that has one or two bedrooms.
  • The huge great room area is united by a vaulted ceiling that tops the kitchen, dining room, breakfast nook and living room.
  • The kitchen island faces most of the living area with the cooktop stove having the best views.
  • The home comes with both shaded and uncovered outdoor space plus a front verandah.
  • A huge master bedroom suite resides in back away from street noise.
  • Use the front-facing den as a second bedroom if desired.

What's Included

  • Foundation plan
  • Electrical plan calling out locations,  not wiring
  • Fully dimensioned floor plans

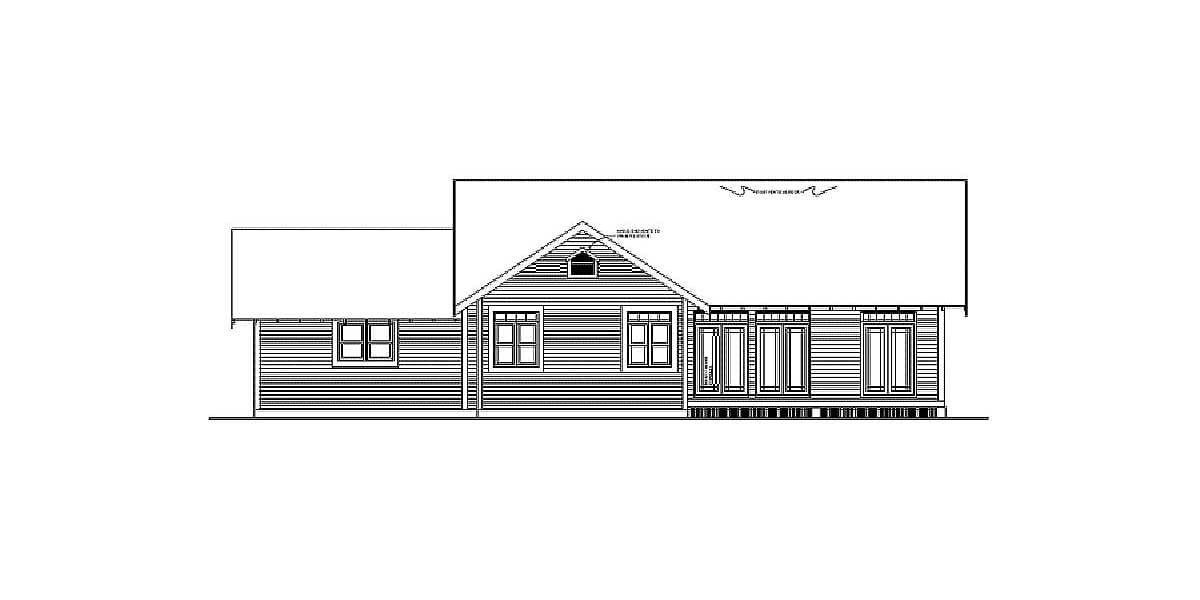

  • Elevations
  • Cross section
  • Wall details, etc.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,751 sq. ft.

1st Floor

1,751 sq. ft.

Basement Unfinished

1,716 sq. ft.

Bonus

303 sq. ft.

Deck

288 sq. ft.

Beds/Baths

Bedrooms

1 or 2

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

66' 0"

Depth

54' 0"

Max Ridge Height

24' 7"

Garage

Type

Attached

Area

452 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9'

Room

Ceiling Type

Height

Living Room

Vaulted

0' 0''

Dining Room

Vaulted

0' 0''

Kitchen

Vaulted

0' 0''

Breakfast Room

Vaulted

0' 0''

Roof Details

Primary Pitch

8 on 12

Architectural Style

Bungalow

Craftsman

Northwest

Special Features

Breakfast Nook

Den

Master Suite - 1st Floor

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

1,751 sq. ft.

1st Floor

1,751 sq. ft.

Basement Unfinished

1,716 sq. ft.

Bonus

303 sq. ft.

Deck

288 sq. ft.

Beds/Baths

Bedrooms

1 or 2

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

66' 0"

Depth

54' 0"

Max Ridge Height

24' 7"

Garage

Type

Attached

Area

452 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9'

Room

Ceiling Type

Height

Living Room

Vaulted

0' 0''

Dining Room

Vaulted

0' 0''

Kitchen

Vaulted

0' 0''

Breakfast Room

Vaulted

0' 0''

Roof Details

Primary Pitch

8 on 12

Architectural Style

Bungalow

Craftsman

Northwest

Special Features

Breakfast Nook

Den

Master Suite - 1st Floor

Walk-in Pantry
