Plan 72602DA

Northwest Craftsman House Plan: Open Concept, 3 Beds, First-Floor Master

Name: Plan 72602DA: Northwest Craftsman House Plan: Open Concept, 3 Beds, First-Floor Master
Brand: Architectural Designs
SKU: 72602DA
Price: 2360.0 USD
Availability: InStock

Heated S.F.

2,091

Beds

Baths

2.5

Stories

Cars

Floor Plan

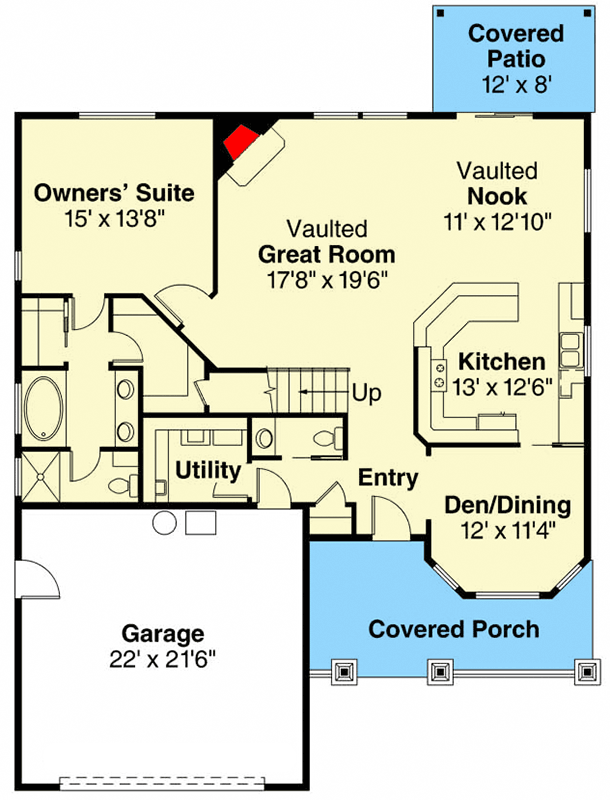

Main Level

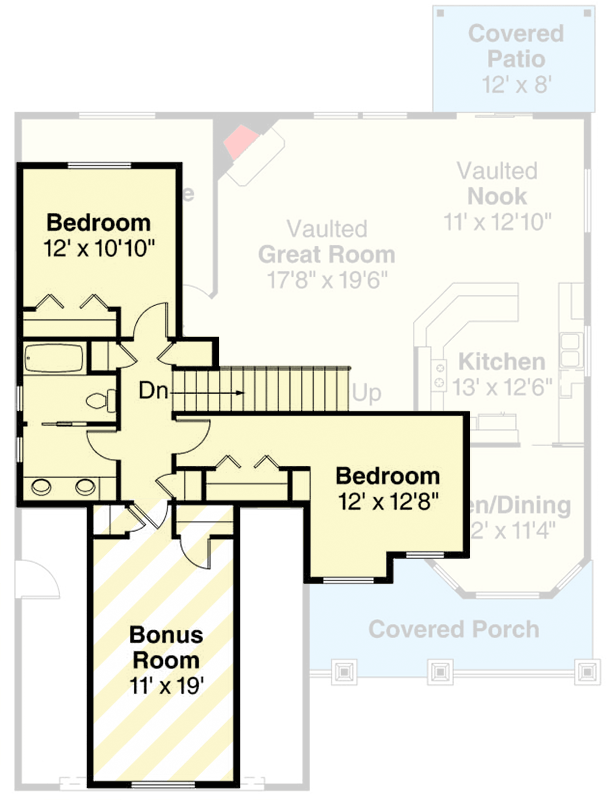

2nd Floor

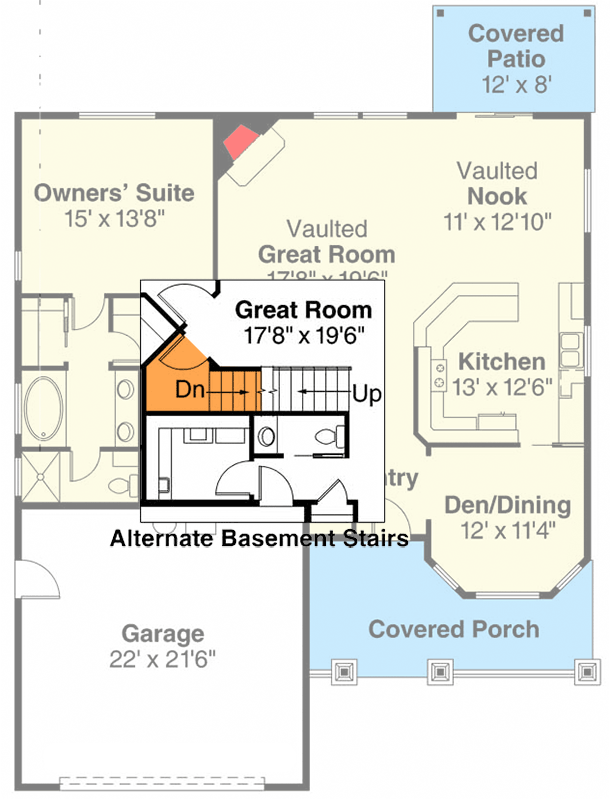

3rd Floor

Plan Details

This inviting 2,091 sq. ft. Northwest Craftsman House Plan features 3 bedrooms, 2.5 bathrooms, and an attached 504 sq. ft. two-car garage, all wrapped in a charming facade with tapered columns and multipaned windows.
Step inside to an entry filled with natural light, where a convenient coat closet, powder room, and utility room are immediately accessible. To the right, a bright, versatile room awaits, perfect for a den, formal dining space, or a dedicated home office.
The rear of the home unfolds into a dramatic, open-concept living space with a vaulted great room and a vaulted breakfast nook, seamlessly connected to the well-appointed kitchen. Windows flood these interconnected areas with light, while a cozy gas fireplace anchors the great room, creating an ideal setting for daily life and gatherings. Sliding glass doors from the nook lead to a covered patio, perfect for morning coffee or evening relaxation.
The spacious owner's suite, conveniently located on the first floor, offers a private sanctuary complete with two walk-in closets and a luxurious en-suite bathroom. Upstairs, two additional bedrooms share a full bathroom, providing comfortable accommodations for family or guests.
Upstairs, a deep bonus room provides flexible space that can be tailored to your lifestyle, whether as a vibrant play area, a dedicated media room, or a serene home gym.
Enjoy the outdoors on the wide, welcoming covered porch at the front, perfect for greeting guests or enjoying a quiet moment. At the rear, a covered patio extends the living space outdoors, offering a shaded spot for al fresco dining or simply unwinding.
This thoughtfully designed plan offers the future flexibility of an optionally finished bonus room on the second floor, allowing you to expand your heated living space as your needs evolve.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

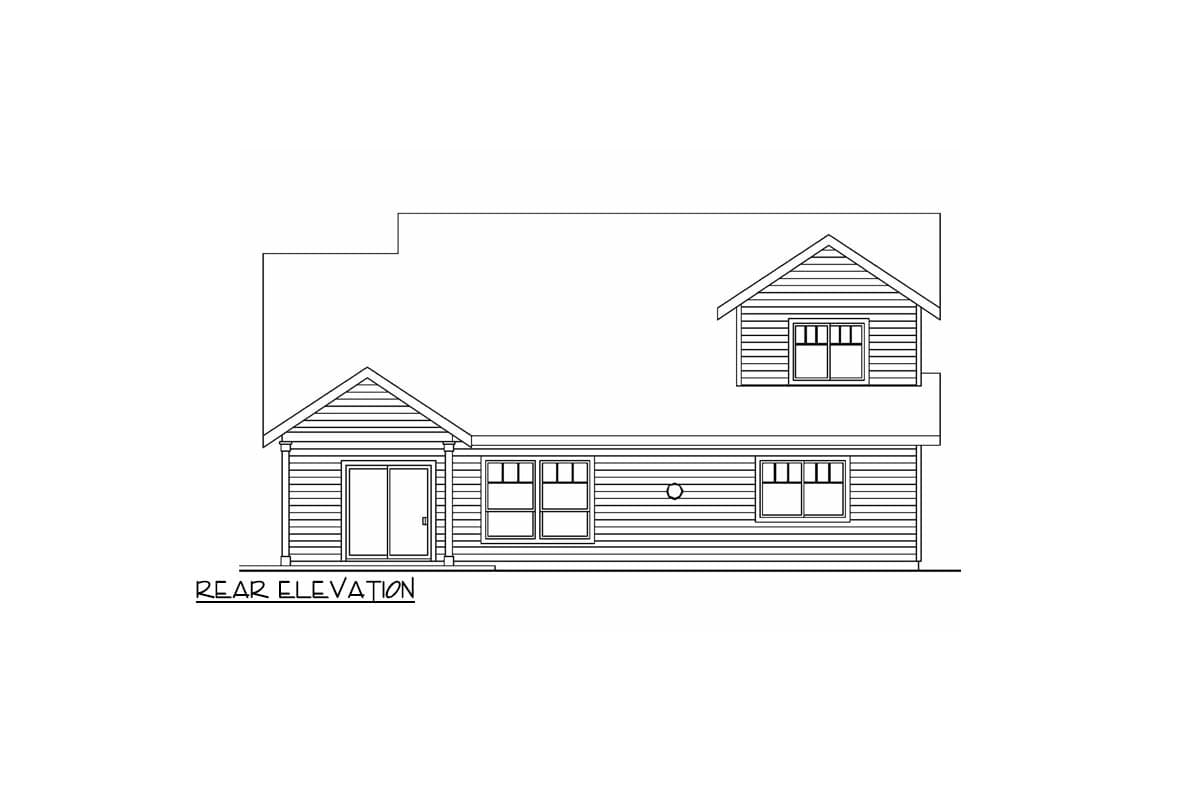

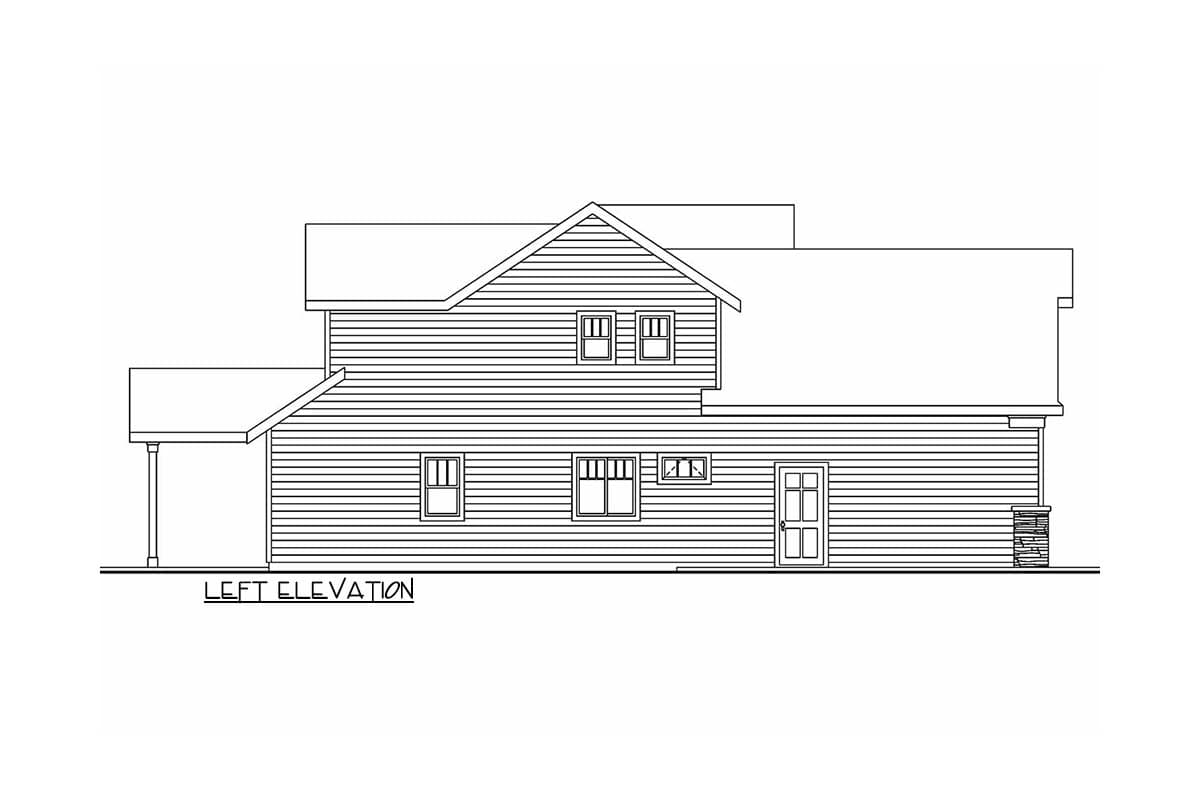

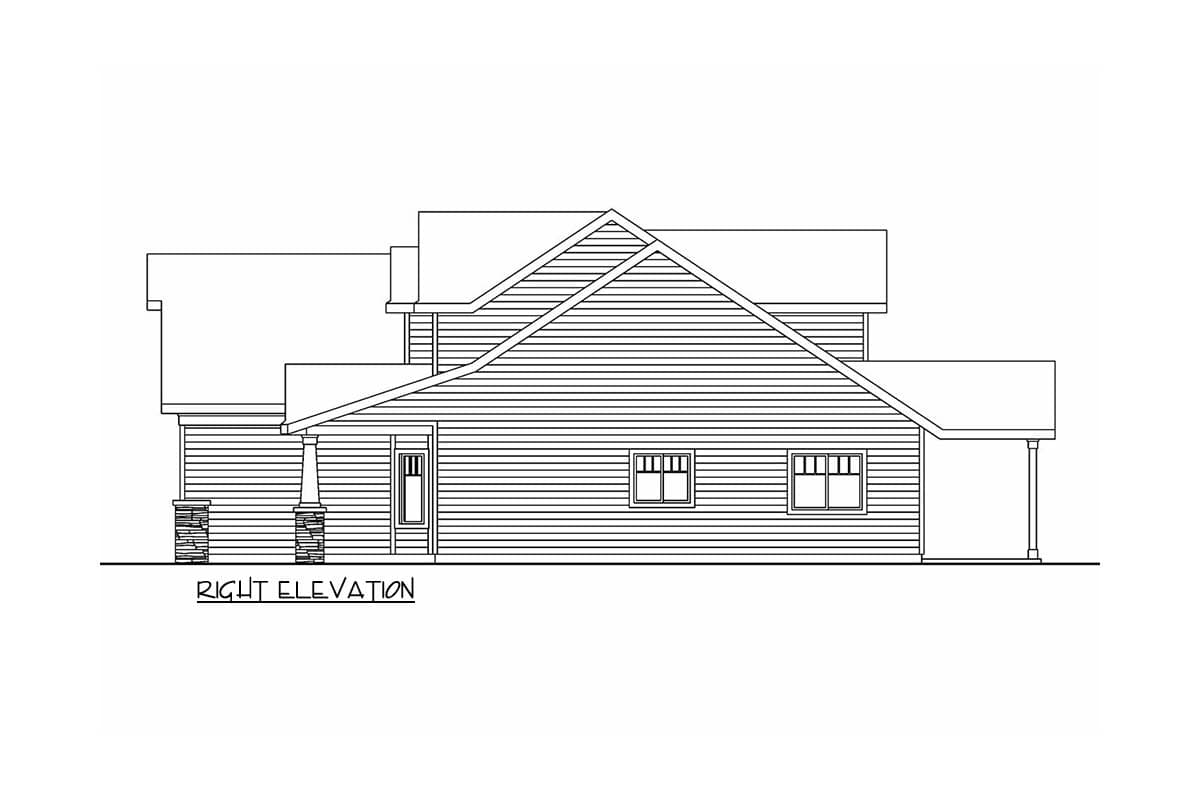

Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
