Plan 28102J

Northwest Craftsman Plan with Vaulted Great Room and Master Bedroom

Heated S.F.
2,248
Beds
3 - 4
Baths
2
Stories
1
Cars
3

Floor Plan

Plan 28102J

Main Level
Main Level
Drive Under Garage
Drive Under Garage

Plan 28102J

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 28102J: Northwest Craftsman Plan with Vaulted Great Room and Master Bedroom - Floor Plan - Main Level - Craftsman, Northwest, Traditional

Drive Under Garage

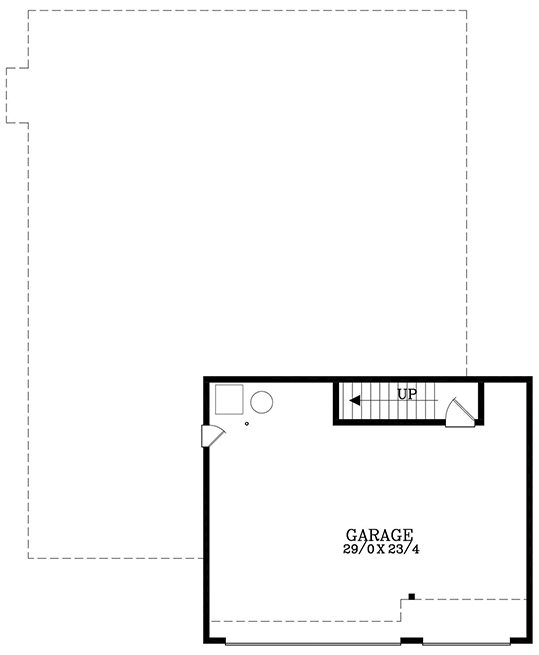

Plan 28102J: Northwest Craftsman Plan with Vaulted Great Room and Master Bedroom - Floor Plan - Drive Under Garage - Craftsman, Northwest, Traditional

Plan Details

  • Two gabled peaks with steep pitches catch your eye when passing by this Northwest Craftsman home plan that gives you 2,248 square feet of living space.
  • Once inside, a study (or bedroom) resides behind french doors to the left, while a few steps up, the heart of the home seamlessly connects to the dining area and vaulted great room.
  • A walk-in pantry supports the island kitchen and a rear patio gives you a great space to grill.
  • With rearward views, the vaulted master bedroom provides the homeowner with privacy and a 5-fixture bathroom with a walk-in closet.
  • A sizable bonus room (included in the total square footage) offers a flexible space that can serve a variety of purposes. Continue downstairs to find the double garage.

What's Included

  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,248 sq. ft.

1st Floor

2,248 sq. ft.

Porch, Front

64 sq. ft.

Porch, Rear

120 sq. ft.

Covered Patio

120 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

46' 0"

Depth

55' 9"

Max Ridge Height

35' 0"

Garage

Type

Attached, Drive Under

Area

750 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Room

Ceiling Type

Height

Foyer

Raised

12' 0''

Den

Raised

12' 0''

Great Room

Vaulted

9' 0''

Master Bedroom

Vaulted

9' 0''

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Traditional

Special Features

Breakfast Nook

Den

Flex Room

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

2,248 sq. ft.

1st Floor

2,248 sq. ft.

Porch, Front

64 sq. ft.

Porch, Rear

120 sq. ft.

Covered Patio

120 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

46' 0"

Depth

55' 9"

Max Ridge Height

35' 0"

Garage

Type

Attached, Drive Under

Area

750 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Room

Ceiling Type

Height

Foyer

Raised

12' 0''

Den

Raised

12' 0''

Great Room

Vaulted

9' 0''

Master Bedroom

Vaulted

9' 0''

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Traditional

Special Features

Breakfast Nook

Den

Flex Room

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Walk-in Pantry
