Plan 23932JD
Northwest Craftsman with Detached Carriage House - Architectural Designs
Heated S.F.
4,952
Beds
6
Baths
5.5
Stories
3
Floor Plan
Detached Garage/ADU - Main Level
Reverse Floor Plan
Northwest Craftsman with Detached Carriage House - Architectural Designs - 23932JD floor plan - Detached Garage/ADU - Main Level

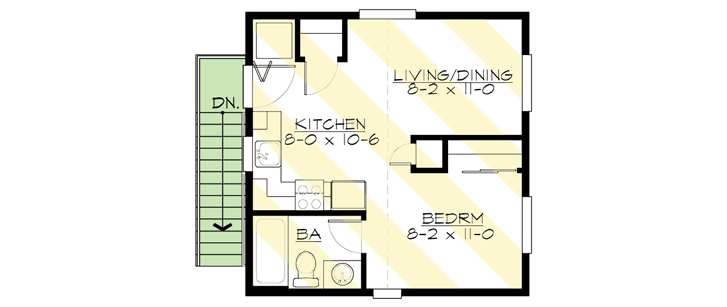

Detached Garage/ADU - Upper Level (Optionally Finished)
Reverse Floor Plan
Northwest Craftsman with Detached Carriage House - Architectural Designs - 23932JD floor plan - Detached Garage/ADU - Upper Level (Optionally Finished)
Plan Details
  • Deep overhanging eaves outline this Northwest Craftsman home plan, decorated in shake shingles with brick accents, and delivering over 4,900 square feet of living space.
  • The open great room and kitchen consume the majority of the main level with a built-in breakfast nook that juts out from the rear elevation.
  • A quiet home office can be found just off the foyer, across from the formal dining room with a butler's pantry connecting it to the kitchen.
  • Upstairs, discover four bedroom suites, including the master suite, and the laundry room. Bedrooms 5 and 6 are separated by a rec room on the third floor.
  • A detached double garage plan is included with a 1-bedroom apartment accessible from an exterior staircase.
  • NOTE: If building in the state of Washington, your plan purchase cannot be done online.  Please contact us directly.
What's Included
  • Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
  • Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
  • Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

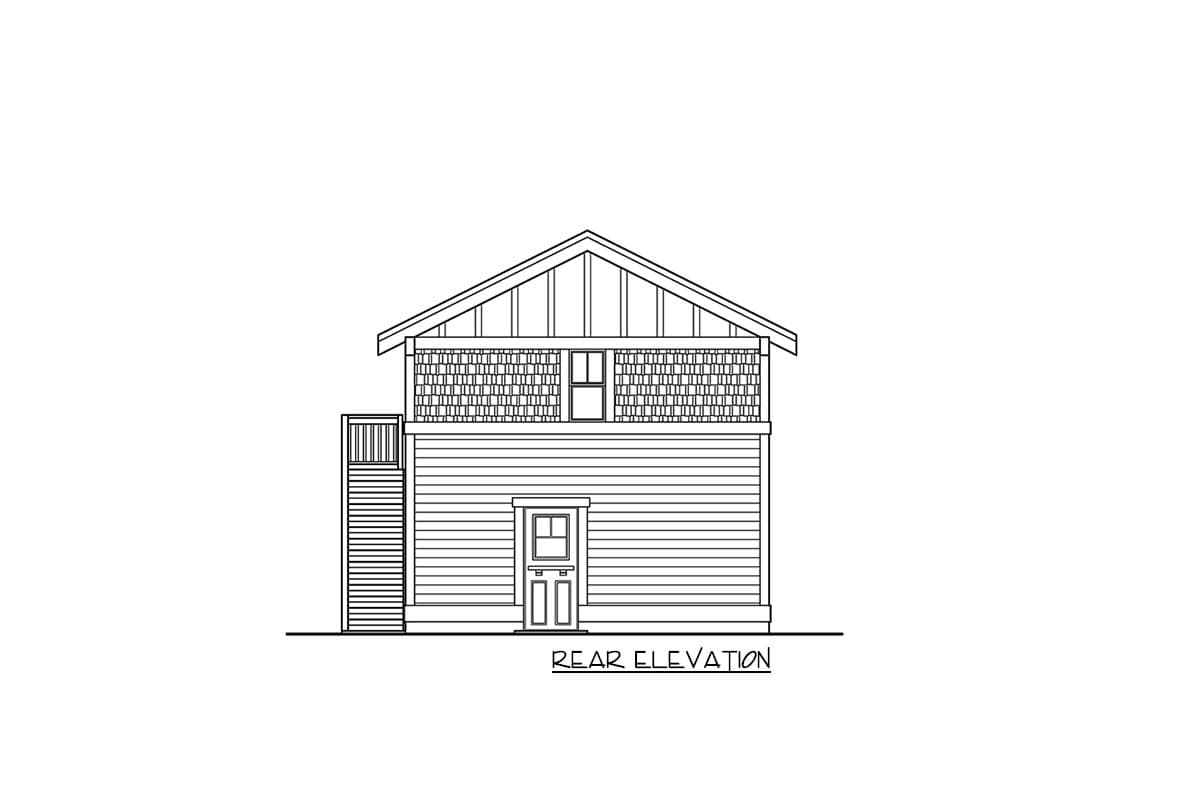

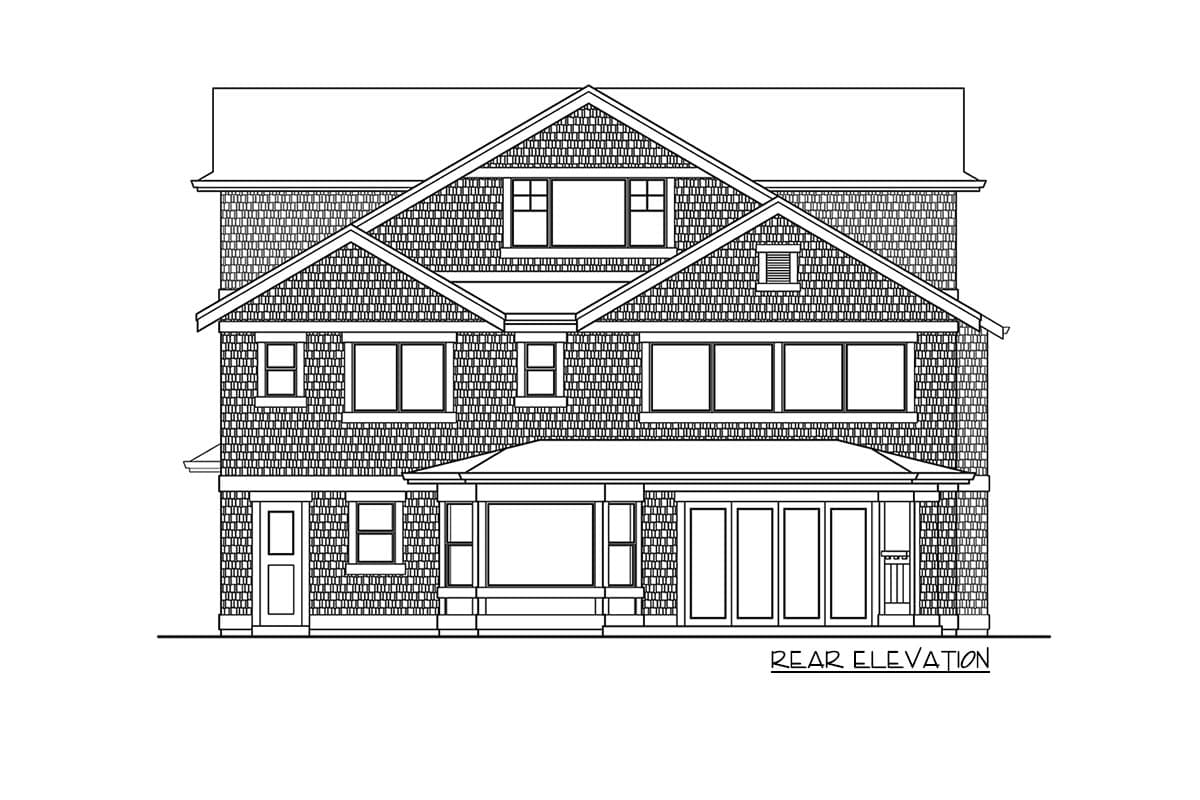

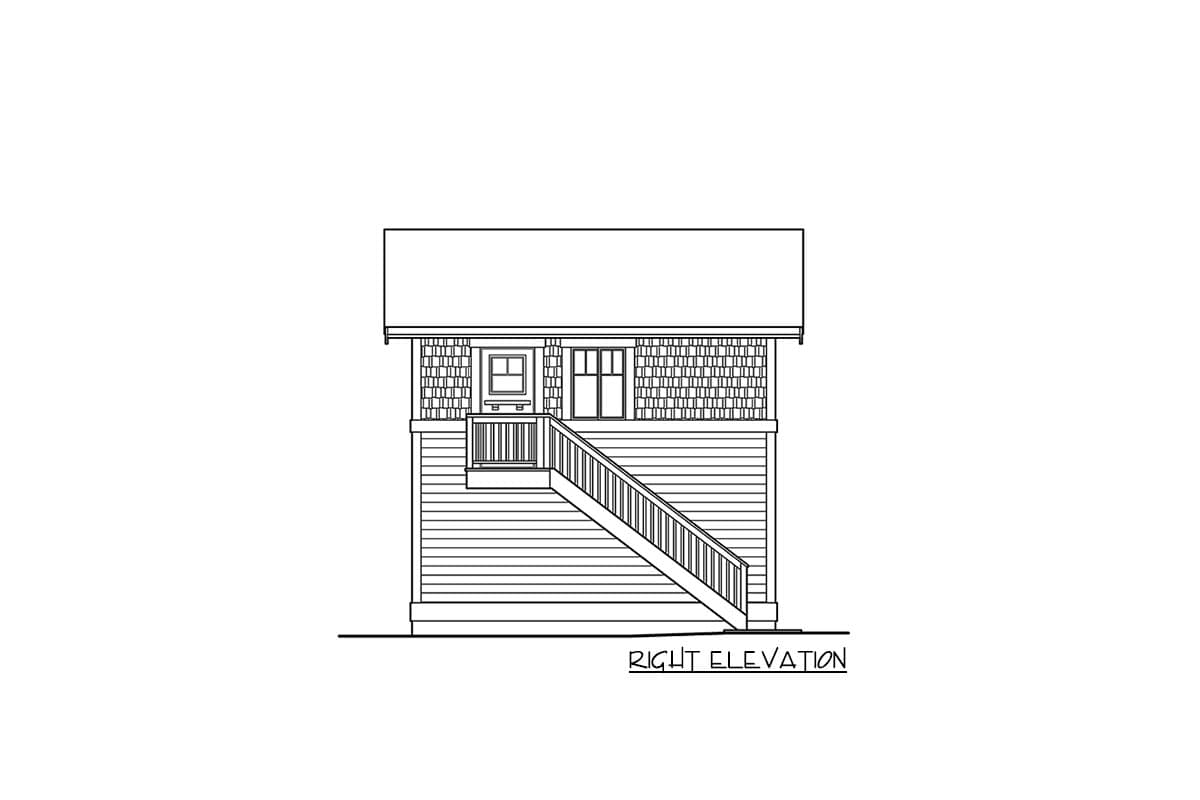

  • Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
What's Not Included
  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Northwest Craftsman with Detached Carriage House - Architectural Designs

  • 4,952

    Heated s.f.

  • 6

    Beds

  • 5.5

    Baths

  • 3

    Floors

Floor Plan

  • Main Level

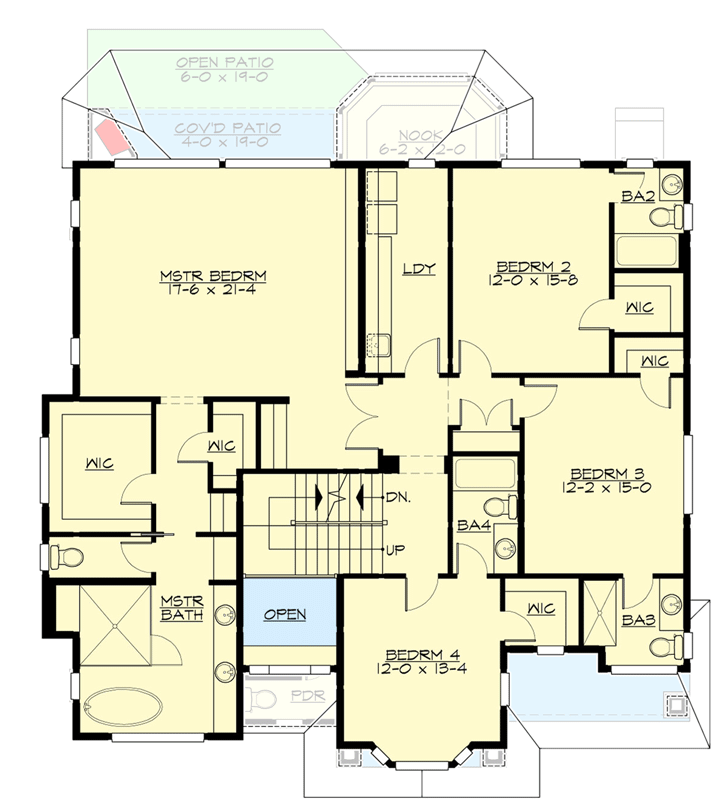

  • 2nd Floor

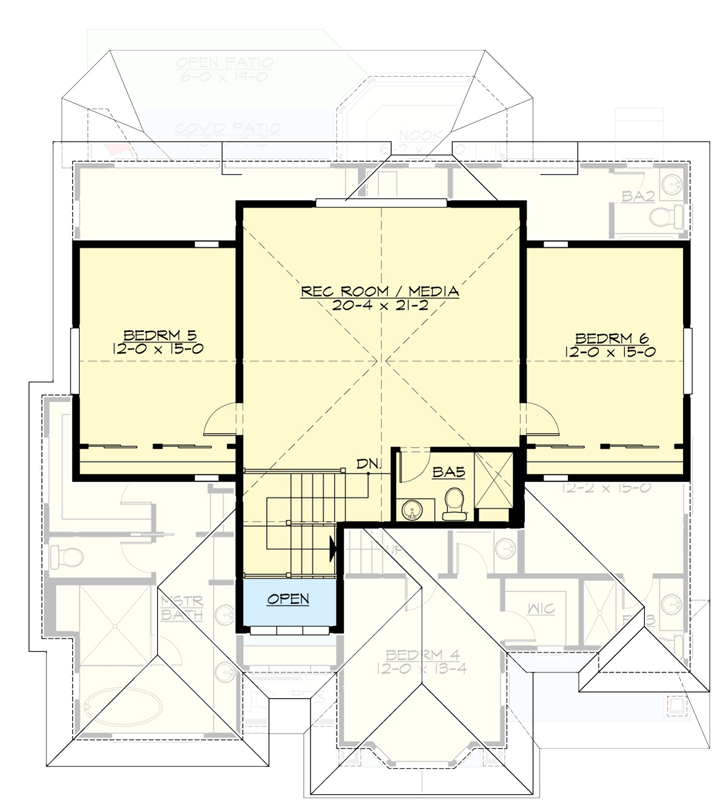

  • 3rd Floor

  • Detached Garage/ADU - Main Level

  • Detached Garage/ADU - Upper Level (Optionally Finished)

Plan Details

Square Footage Breakdown

  • Total: 4,952 sq. ft.
  • 1st Floor: 2,000 sq. ft.
  • 2nd Floor: 1,978 sq. ft.
  • 3rd Floor: 978 sq. ft.

Dimensions

  • Width: 49' 6"
  • Depth: 52' 10"
  • Max ridge height: 34' 9"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0" Third Floor 7' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick And Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site
