Northwest House Plan with Lots of Amenities

2,876 4-5 3 + 1-2 3
Pageloader

Northwest House Plan with Lots of Amenities

Plan 890028AH

  • 2,876

    Heated s.f.

  • 4-5

    Beds

  • 3 +

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • A three car courtyard style garage frames the entrance to this attractive Northwest house plan.
  • The L-shaped main living area is all open concept so you can see from the kitchen to the dining room and the big vaulted great room.
  • Windows on three sides plus transoms really brighten the dining area so you have light and wonderful views of your backyard.
  • The split bedroom configuration separates the three family bedrooms from the big master suite.
  • Other amenities include a giant walk-in pantry off the kitchen, a computer nook tucked away near the dining room and lockers in the large mud room.
  • Finish the optional second floor to gain a fabulous in-law suite that adds 678 square feet to the total living area.

Plans include the following

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

Framing plans are NOT included.


Floor Plan

Plan details



Northwest House Plan with Lots of Amenities

  • 2,876

    Heated s.f.

  • 4 - 5

    Beds

  • 3 +

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $1,060
  • 8 Sets $1,100
  • Reproducible Set $1,325
  • PDF - single-use $1,325
  • CAD $2,120
  • View all purchase option online

About This Plan

  • A three car courtyard style garage frames the entrance to this attractive Northwest house plan.
  • The L-shaped main living area is all open concept so you can see from the kitchen to the dining room and the big vaulted great room.
  • Windows on three sides plus transoms really brighten the dining area so you have light and wonderful views of your backyard.
  • The split bedroom configuration separates the three family bedrooms from the big master suite.
  • Other amenities include a giant walk-in pantry off the kitchen, a computer nook tucked away near the dining room and lockers in the large mud room.
  • Finish the optional second floor to gain a fabulous in-law suite that adds 678 square feet to the total living area.

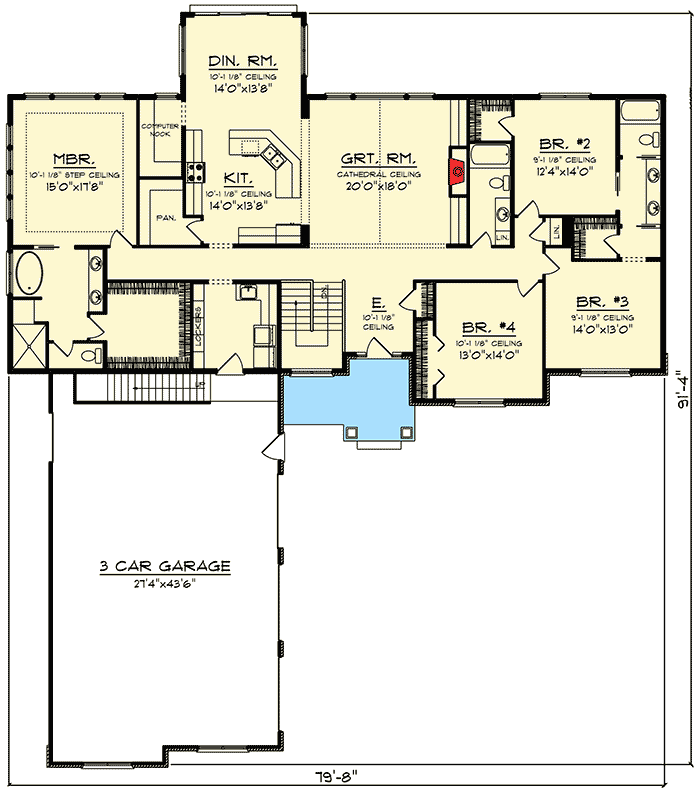

Floor Plans

  • Main Level

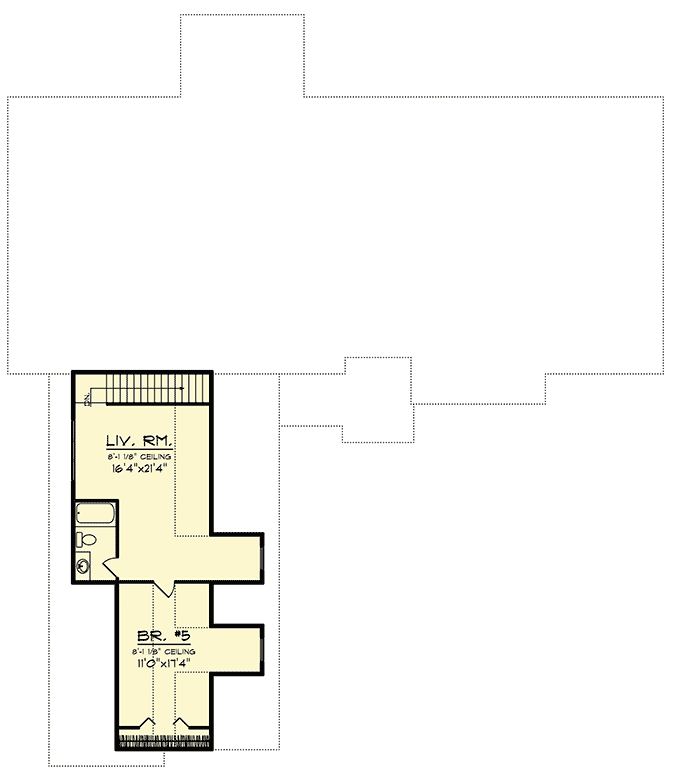

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,876 sq. ft.
  • 1st Floor: 2,876 sq. ft.
  • Bonus: 698 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3 or 4

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 79' 8"
  • Depth: 91' 4"
  • Max ridge height: 26' 0"

Garage

  • Type: Attached
  • Area: 1307 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Truss

Architectural Style

  • Craftsman
  • Northwest

Special features

  • 1st Floor Master Suite
  • Bonus Room
  • Butler Walk-in Pantry
  • CAD Available
  • In-Law Suite
  • Jack & Jill Bath
  • PDF
  • Split Bedrooms
