Northwest House Plan with Rustic Touches

Plan 12946KN

  • 3,922

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Not your plain, ordinary house plan, this Northwest home has rustic wood shakes, an irregular shape and decorative wood trim that sets it apart from others.
  • From the foyer, you have sight lines that go through the formal dining room right out onto the covered outdoor living area.
  • The vaulted and beamed living room is anchored by a big fireplace on one side.
  • From here you can see the outdoor fireplace with lots of room for chairs.
  • There's even a fireplace in the spacious kitchen that has a wall of windows by the sink and a large walk-in pantry.
  • A vaulted master bedroom awaits homeowners along with a huge master bathroom.
  • Even the utility room is huge, with lots of counter space.
  • Two more bedrooms on the second floor lie close to the giant bonus room that is lined with built-ins on three walls.

Floor plans at ¼" scale

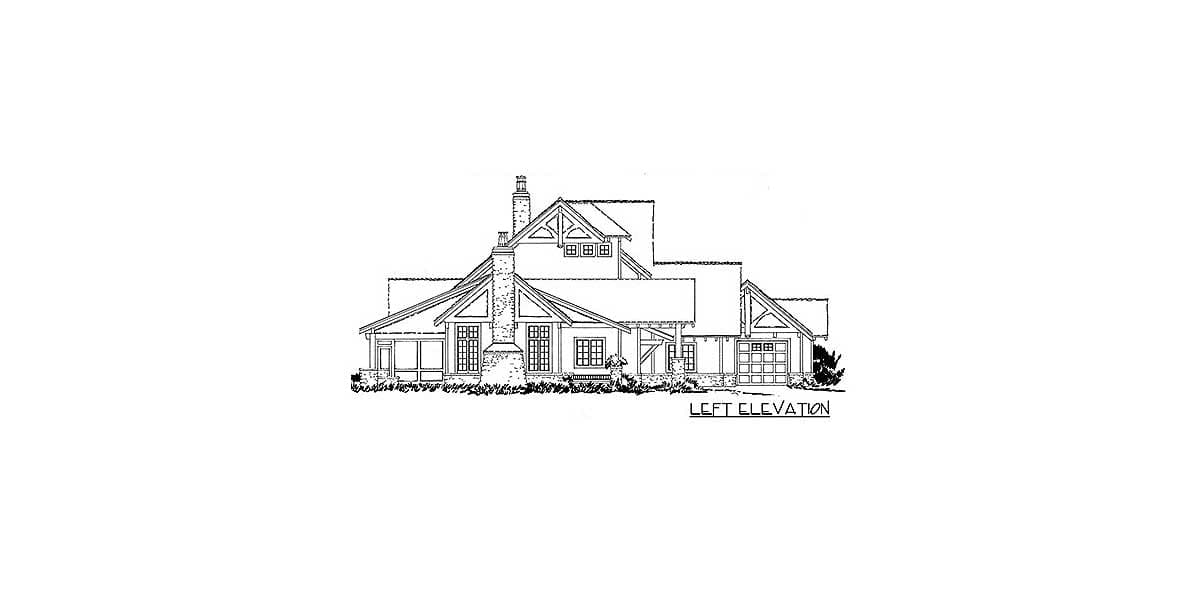

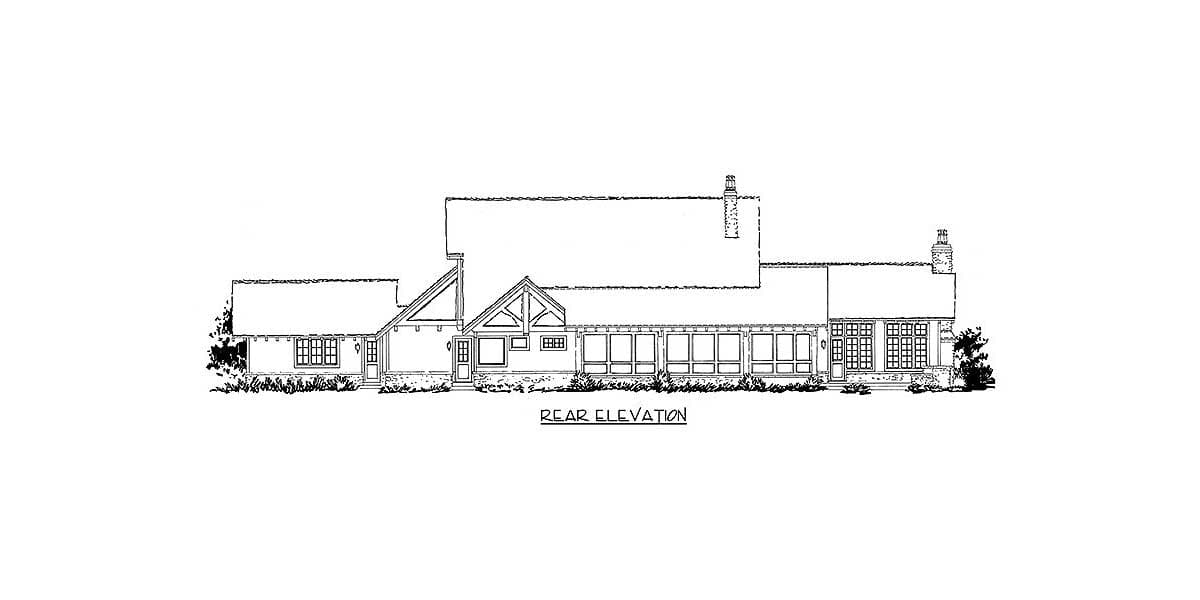

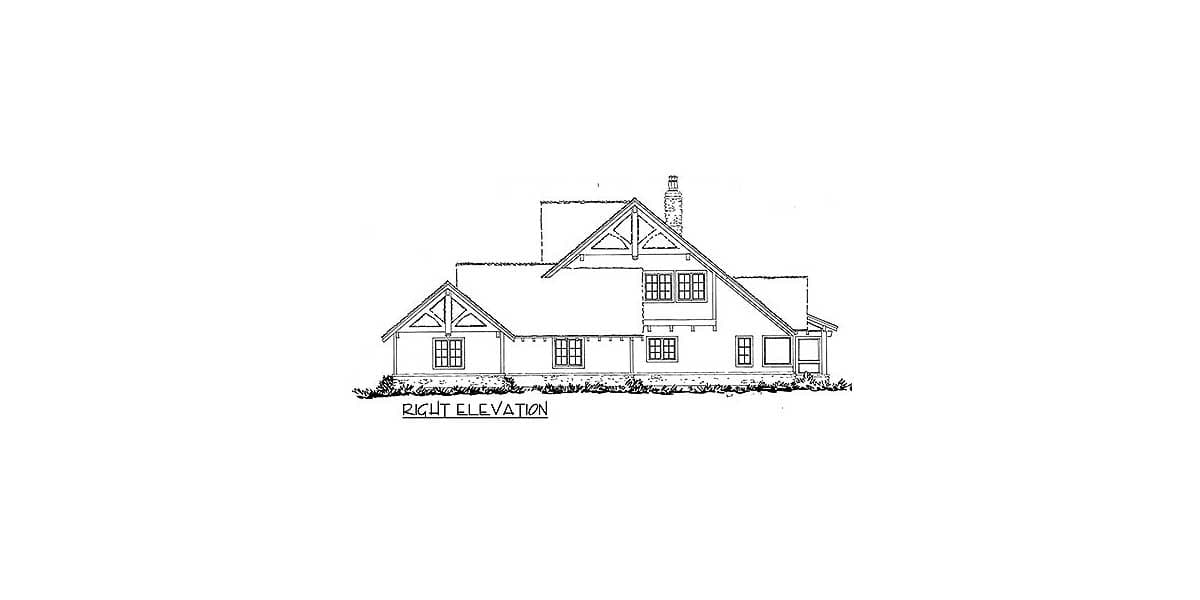

All exterior elevations at ¼" scale

Roof plan at ¼" scale

Building sections at ¼" scale

Completed foundation plan at ¼" scale

Completed floor/roof framing plan at ¼" scale

Building height profiles at ¼" scale

Door and window schedules

General construction notes and building schedules

Exterior finish schedule

Architectural details

Construction details for cabinets, interior built-ins and stairs

Designations for all floor, wall and ceiling surfaces

Details and specifications for all ceiling treatments

All square footage calculations

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

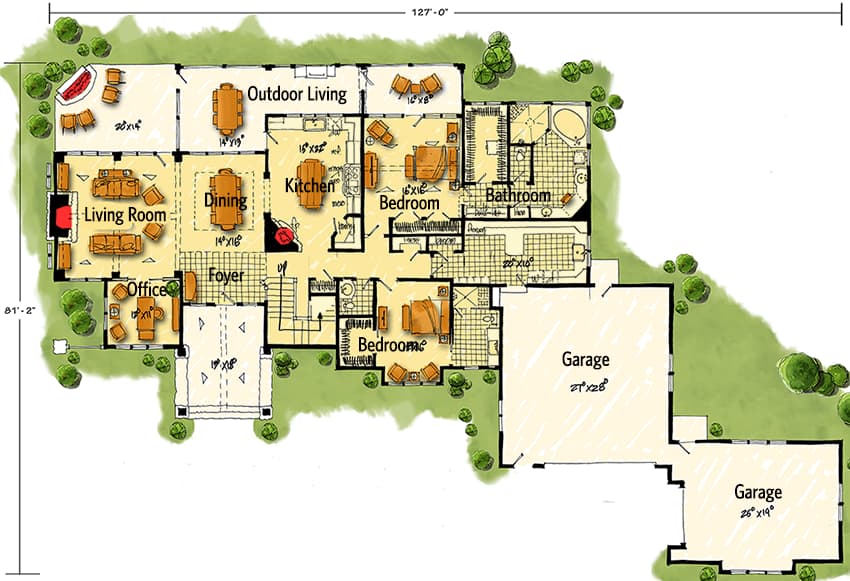

Northwest House Plan with Rustic Touches - 12946KN floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

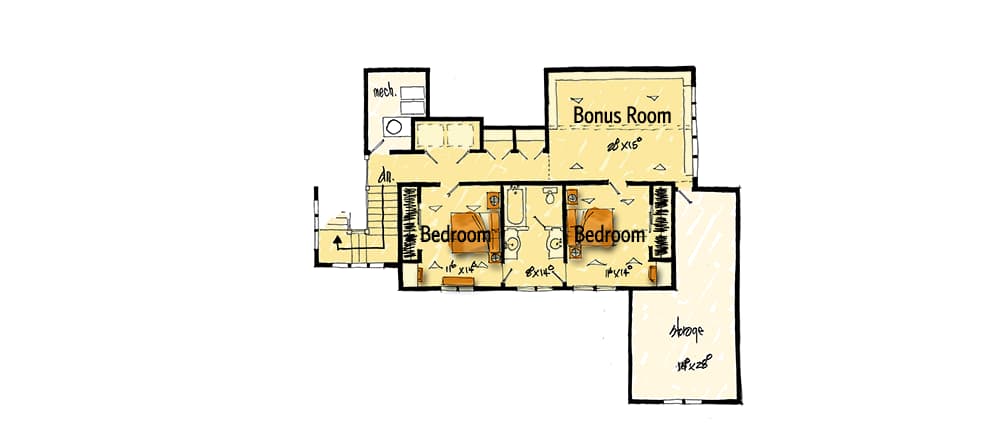

Northwest House Plan with Rustic Touches - 12946KN floor plan - 2nd Floor

Plan details

Northwest House Plan with Rustic Touches

  • 3,922

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • Study Set – Digital $1,075
  • PDF - Single-Build $2,550
  • CAD - Single-Build $3,375
  • View all purchase option online

About This Plan

  • Not your plain, ordinary house plan, this Northwest home has rustic wood shakes, an irregular shape and decorative wood trim that sets it apart from others.
  • From the foyer, you have sight lines that go through the formal dining room right out onto the covered outdoor living area.
  • The vaulted and beamed living room is anchored by a big fireplace on one side.
  • From here you can see the outdoor fireplace with lots of room for chairs.
  • There's even a fireplace in the spacious kitchen that has a wall of windows by the sink and a large walk-in pantry.
  • A vaulted master bedroom awaits homeowners along with a huge master bathroom.
  • Even the utility room is huge, with lots of counter space.
  • Two more bedrooms on the second floor lie close to the giant bonus room that is lined with built-ins on three walls.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,922 sq. ft.
  • 1st Floor: 2,878 sq. ft.
  • 2nd Floor: 1,044 sq. ft.
  • Porch, Rear: 730 sq. ft.
  • Porch, Front: 342 sq. ft.
  • Bonus: 348 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 129' 0"
  • Depth: 81' 2"
  • Max ridge height: 34' 2"

Garage

  • Type: Attached
  • Area: 1345 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 12' 0" Second Floor / 9' 0"
