Plan 95146RW

One-bed Craftsman Guest House Plan with Vaulted Living Room

Name: Plan 95146RW: One-bed Craftsman Guest House Plan with Vaulted Living Room
Brand: Architectural Designs
SKU: 95146RW
Price: 1047.63 USD
Availability: InStock

Heated S.F.

744

Beds

Baths

Stories

Floor Plan

Main Level

Plan Details

A large dormer is centered above the 6'-deep - 14'-deep taking into account the recessed covered entry - on this one-bed Craftsman guest house plan. Use it as an ADU, a down-size home or as an income-generating AirBnb.
French doors open to the living room with the ceiling vaulted with an 8:12 pitch. Sliding doors on the back wall open to the covered patio and the room is open to the kitchen with a large island.
The bedroom has a vaulted ceiling (8:12 pitch) and has access to the back patio through sliding doors and a walk-in closet accessible through the bathroom.
Laundry is located across the home.

What's Included

Cover Page

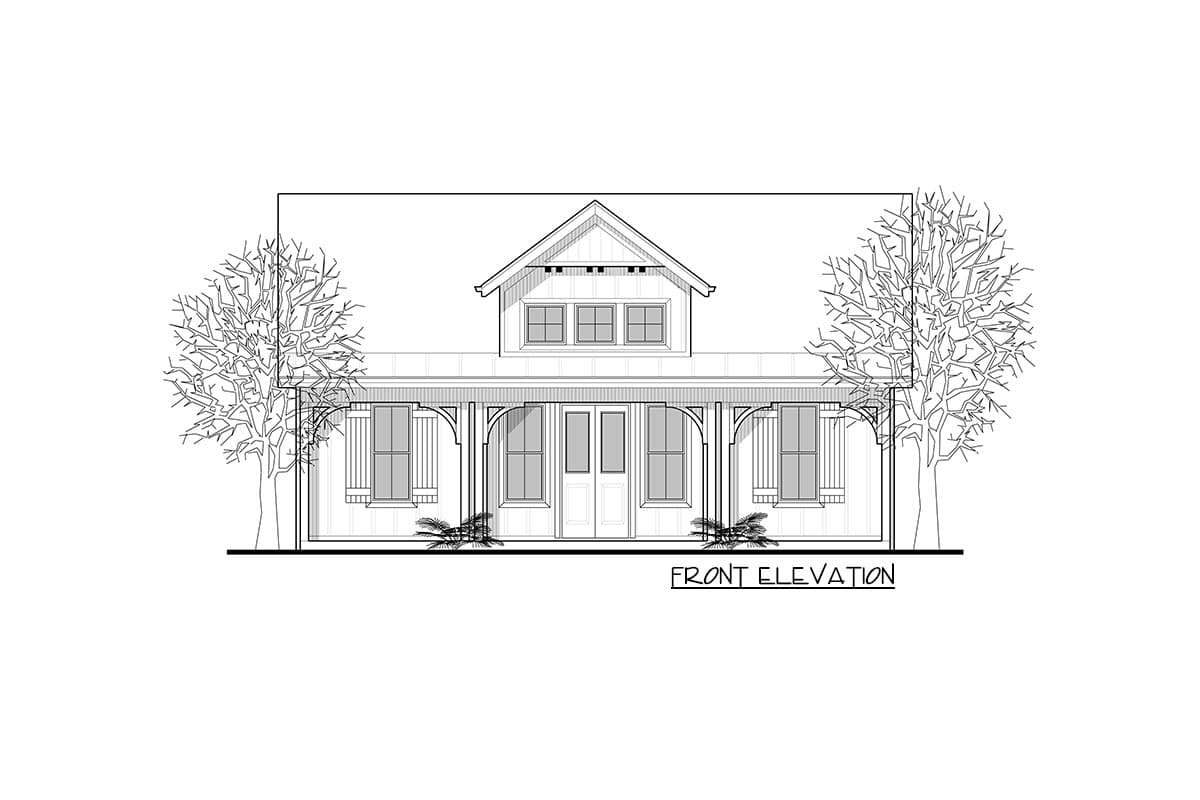

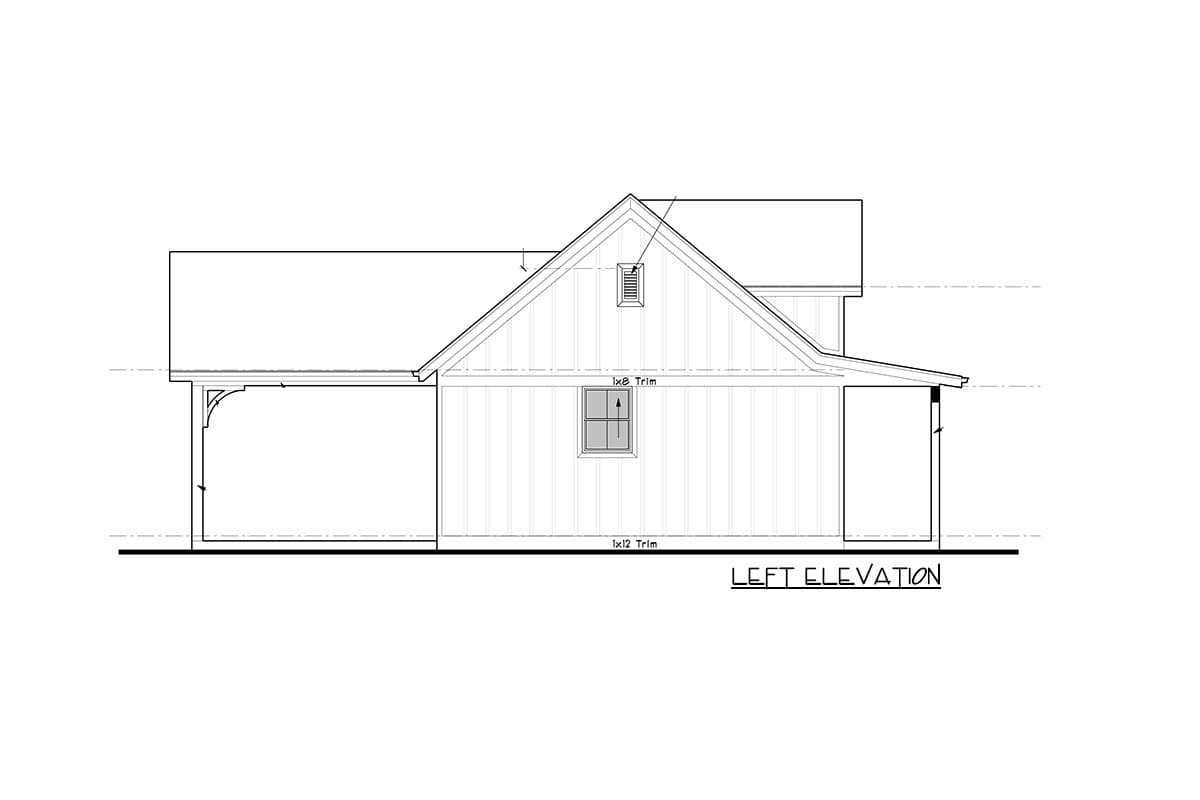

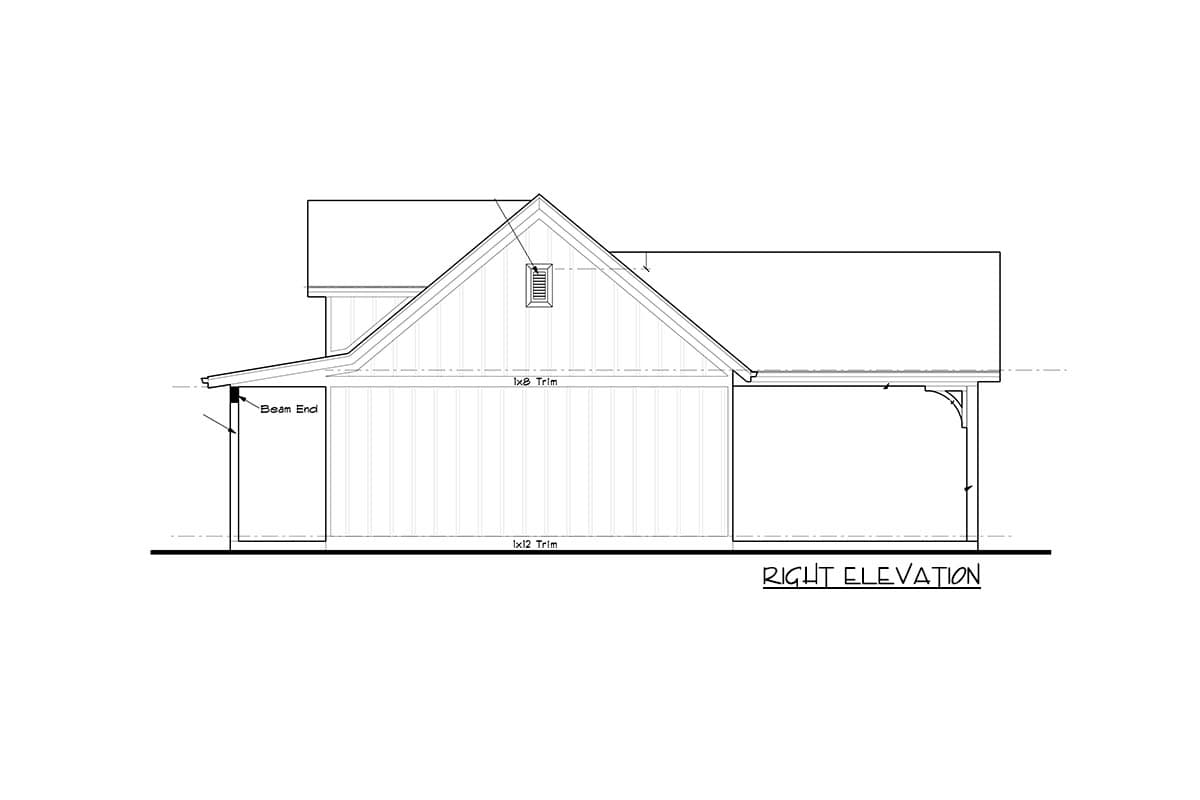

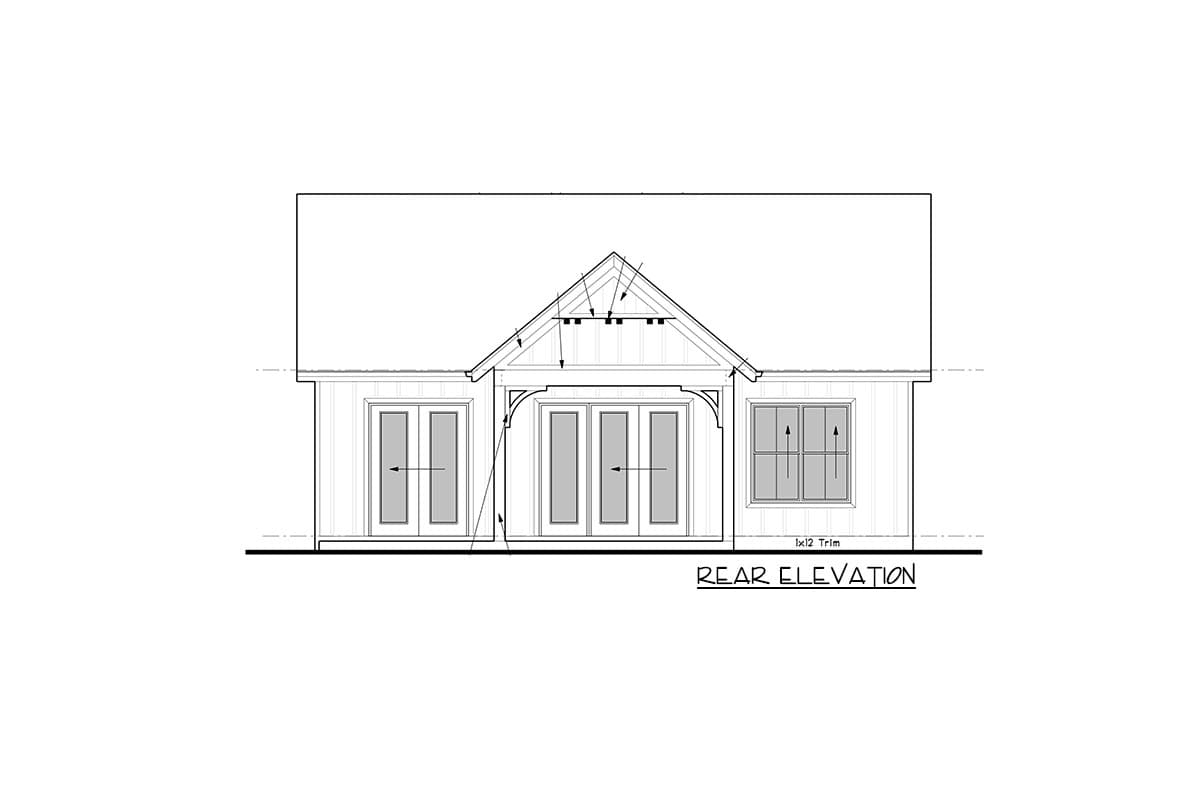

All Four Exterior Elevations (front, left, rear and right)

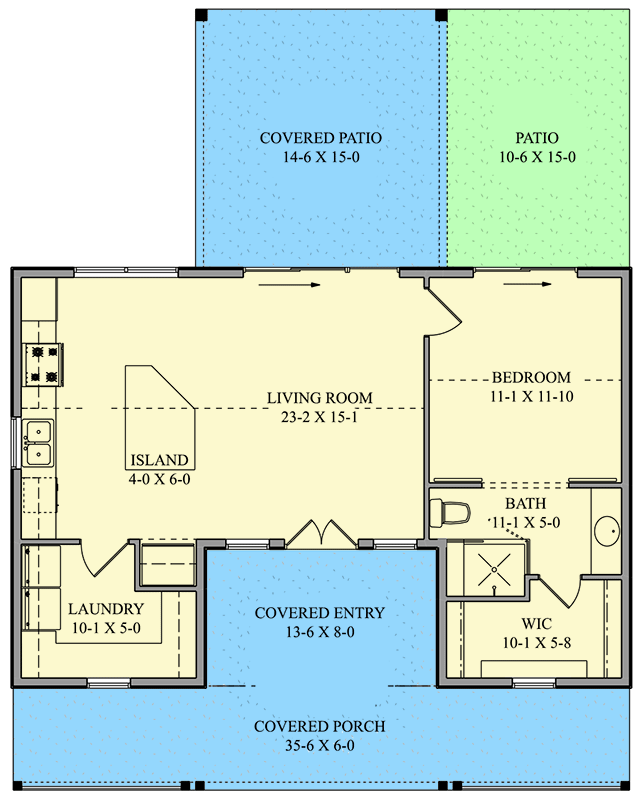

Dimensioned Floor Plans
Foundation Plan (with no specifications of structural elements)
Roof Plan (with no specifications of structural elements)
Typical Wall Sections
Electrical plan

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
REScheck or other energy related calculations are NOT included.
Wind load or seismic calculations are NOT included.
Framing plans or beam sizes are NOT included.
Other specific drawings that your local permit office may requires
