One Bed Rustic Cottage with Large Screened Porch

Plan 777001MTL

1,495
Heated s.f.
1
Beds
2
Baths
2
Stories

Cozy up by the fireplace or enjoy the view from the large screened-in porch in this cottage house plan.
The front to back dining, kitchen, living area provide plenty of space for entertaining.
The master ensuite is accessible through French Doors off the living area and has a his-and-her closet and bath.
A stackable washer dryer is located in the mud room with a full size bath just beyond.
This Metal House Plan was designed with a Pre-Engineered Metal Building (PEMB) in mind. A PEMB is the most commonly used structure when building a barndominium. A PEMB can be engineered, fabricated and shipped to any location in the world and generally can be installed in a much shorter time than a traditionally framed home. Pre-Engineered Metal Buildings get a project in the dry very quickly and allow for interior build-outs to be convenient, not having to support roof loads.
This metal house plan is available with 2x6 exterior framing by selecting it the Options menu.

Cover sheet
Foundation Plan
Floor plan with basic Electrical Plan and Door/Window Schedule
Roof plan
Elevations with necessary sections

The following details are NOT included in the plans:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
REScheck or other energy related calculations are NOT included.
Wind load or seismic calculations are NOT included.
Framing plans or beam sizes are NOT included.
Other specific drawings that your local permit office may require

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

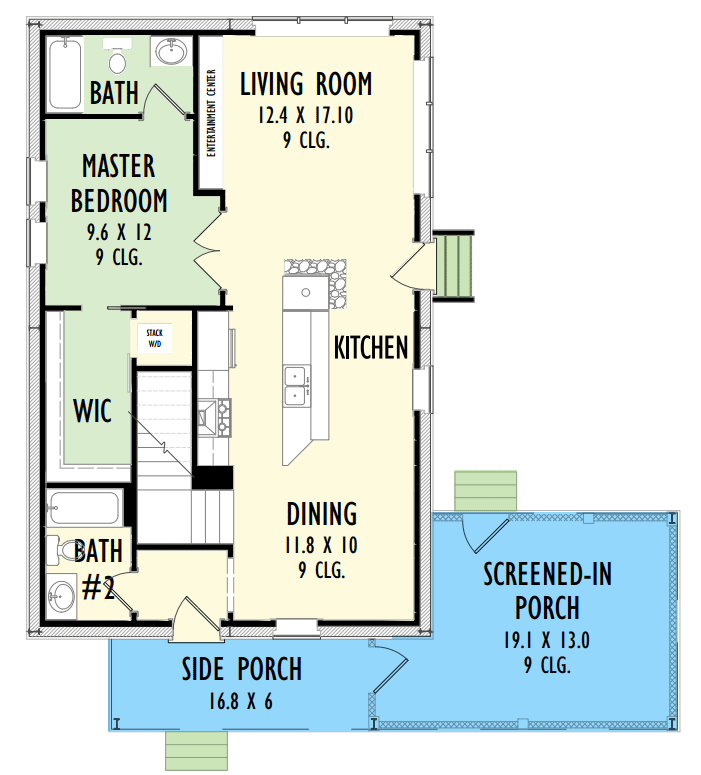

One Bed Rustic Cottage with Large Screened Porch - 777001MTL floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

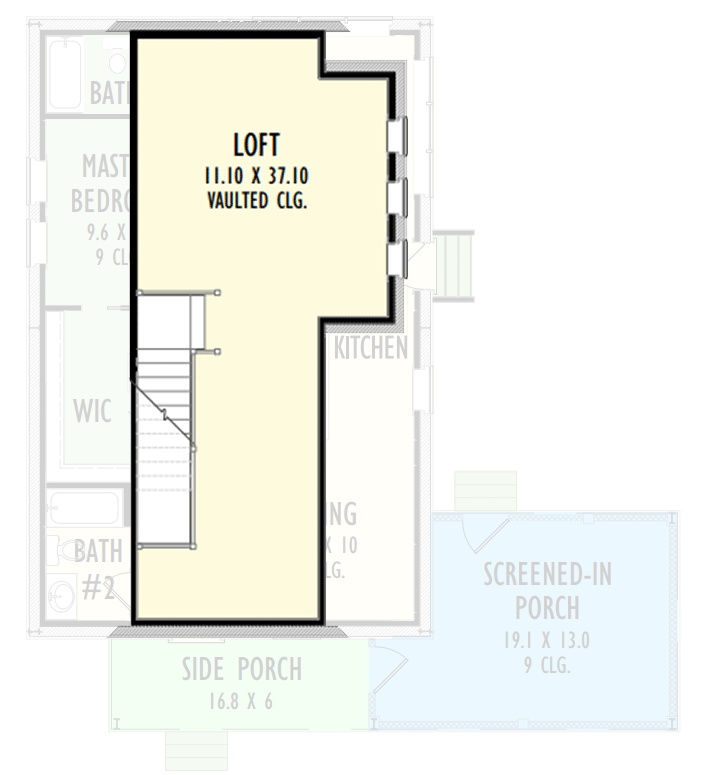

One Bed Rustic Cottage with Large Screened Porch - 777001MTL floor plan - 2nd Floor

Wall Framing Section

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

One Bed Rustic Cottage with Large Screened Porch - 777001MTL floor plan - Wall Framing Section

Plan details

Square Footage Breakdown

Total Heated Area: 1,495 sq. ft.
1st Floor: 900 sq. ft.
2nd Floor: 595 sq. ft.

Screened Porch: 219 sq. ft.
Porch, Combined: 320 sq. ft.
Loft: 595 sq. ft.

Beds/Baths

Bedrooms: 1

Full bathrooms: 2

Foundation Type

Standard Foundations: Slab

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): Metal

Optional Type(s): 2x6

Dimensions

Width: 42' 0"
Depth: 46' 0"

Ceiling Heights

Floor / Height: First Floor / 9' 0"

Roof Details

Primary Pitch: 10 on 12
Secondary Pitch: 6 on 12

Framing Type: PEMB & Stick
