One-Level Country Home Plan Under 1500 Square Feet with Vaulted Living Room

Plan 52316WM

  • 1,483

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • At just under 1,500 square feet of living space, this one-level Country home plan delivers a front-facing garage considerate of smaller lots.
  • The combined living room, kitchen, and dining area brings the family together, crowned by a vaulted ceiling that extends onto a 15' by 8' covered porch.
  • The primary bedroom is tucked behind the double garage and paired with a 5-fixture bathroom and walk-in closet.
  • Two family bedrooms line the hallway near the foyer, separated by a full bath.
  • The laundry room with utility sink sits just inside from the double garage and a nearby walk-in pantry helps when unloading groceries.

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Most plans have an optional full building section--only available upon request--at no extra cost.  This section is not typically required in the US but can be a requirement in Canada


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

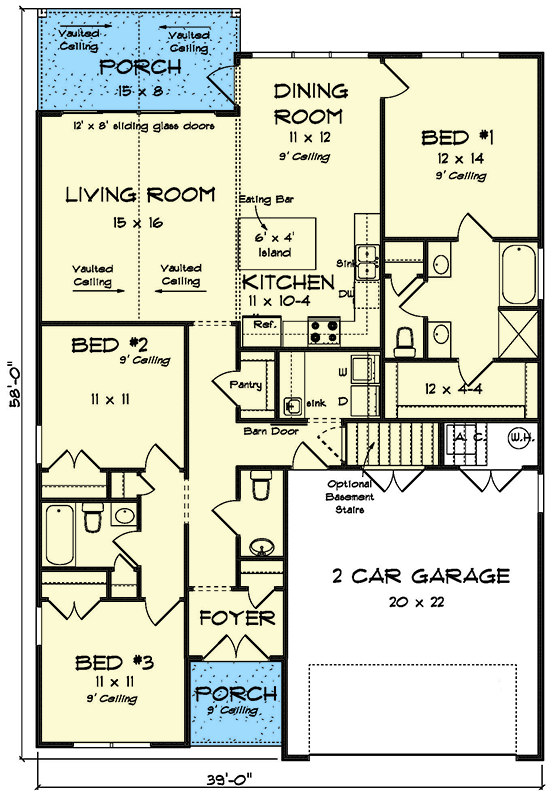

One-Level Country Home Plan Under 1500 Square Feet with Vaulted Living Room - 52316WM floor plan - Main Level
