One-level Country Home Plan with Workshop and Ample Outdoor Living Space

Plan 510239WDY

  • 3,667

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • To the right of this one-level Country home plan, discover a workshop attached to the 3-car garage with front and rear overhead doors. Dedicated storage space in the garage helps you reduce clutter inside and out.
  • The spacious great room features a fireplace surrounded by builtins and flows freely into the eat-in kitchen. A barn door conceals a sizable pantry to assist when buying in bulk or organizing larger appliances.
  • Entertaining is made easy with the large outdoor living area, complete with a fireplace and built-in grill.
  • The bedroom suites are clustered to the left of the design with the largest reserved for the homeowner. The deluxe master bathroom includes two sinks and an oversized shower.
  • Just inside from the garage, the mudroom provides built-in storage, while the neighboring laundry room includes cabinetry and additional cold storage.

This house plan set consists of the following elements:


  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)
  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

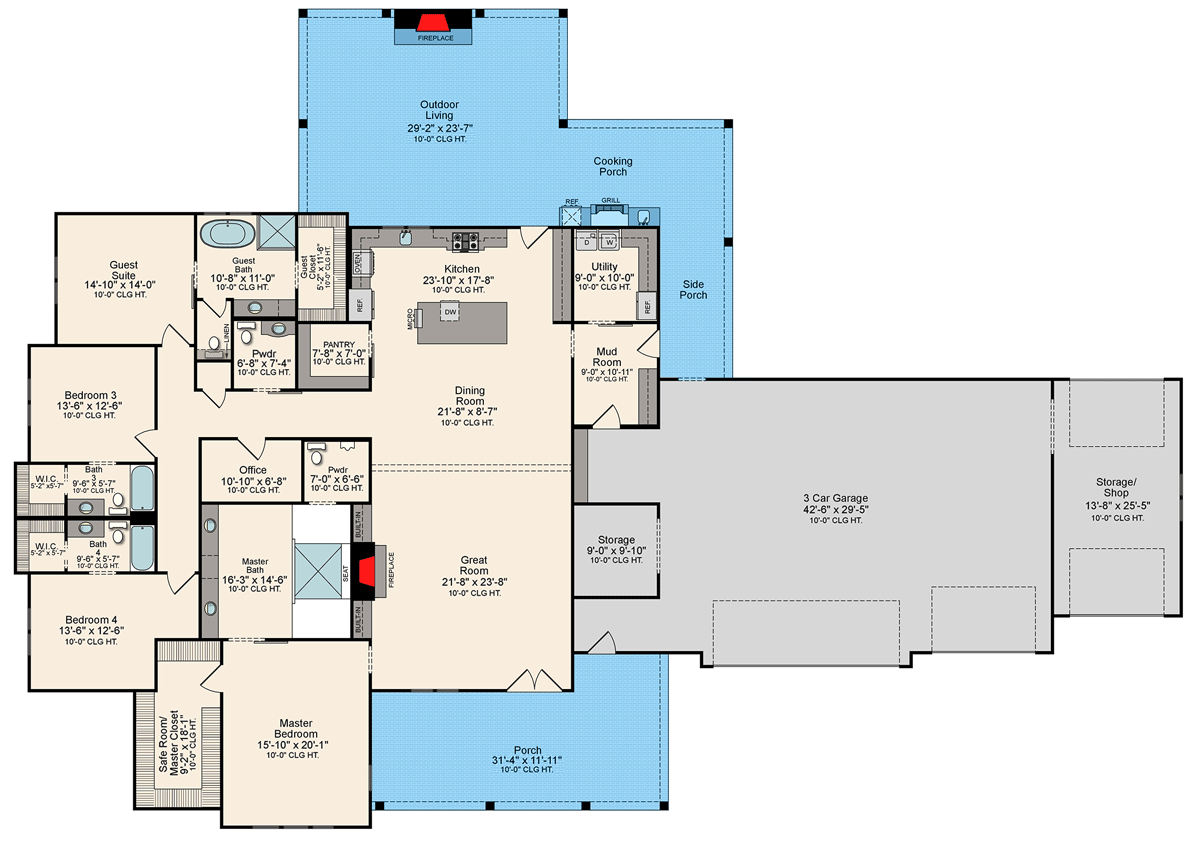

One-level Country Home Plan with Workshop and Ample Outdoor Living Space - 510239WDY floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,667 sq. ft.
  • 1st Floor: 3,606 sq. ft.
  • Porch, Combined: 1,521 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 127' 11"
  • Depth: 89' 11"
  • Max ridge height: 33' 4"

Garage

  • Type: Attached
  • Area: 1912 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

One-level Country Home Plan with Workshop and Ample Outdoor Living Space

  • 3,667

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $1,200
  • 8 Sets $1,300
  • PDF - Single-Build $1,500
  • 5 Sets + PDF $1,750
  • CAD + PDF - Unlimited Build $2,500
  • View all purchase option online

About This Plan

  • To the right of this one-level Country home plan, discover a workshop attached to the 3-car garage with front and rear overhead doors. Dedicated storage space in the garage helps you reduce clutter inside and out.
  • The spacious great room features a fireplace surrounded by builtins and flows freely into the eat-in kitchen. A barn door conceals a sizable pantry to assist when buying in bulk or organizing larger appliances.
  • Entertaining is made easy with the large outdoor living area, complete with a fireplace and built-in grill.
  • The bedroom suites are clustered to the left of the design with the largest reserved for the homeowner. The deluxe master bathroom includes two sinks and an oversized shower.
  • Just inside from the garage, the mudroom provides built-in storage, while the neighboring laundry room includes cabinetry and additional cold storage.
