Plan 62506DJ One-Level Craftsman Home Plan with Private Office

One-Level Craftsman Home Plan with Private Office

Plan 62506DJ

  • 2,161

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • This one level Craftsman home plan has all the basics plus extras such as walk-in closets in each bedroom, an open floor plan and tray ceilings in the master suite and family room.
  • In the kitchen, the over-sized walk-in pantry is an additional plus.
  • A rear covered deck is large enough for table and chairs and a barbecue grill.
  • A home office faces front and provides a quiet place for office work or homework.
  • Split bedrooms separate the master suite from the family bedrooms.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

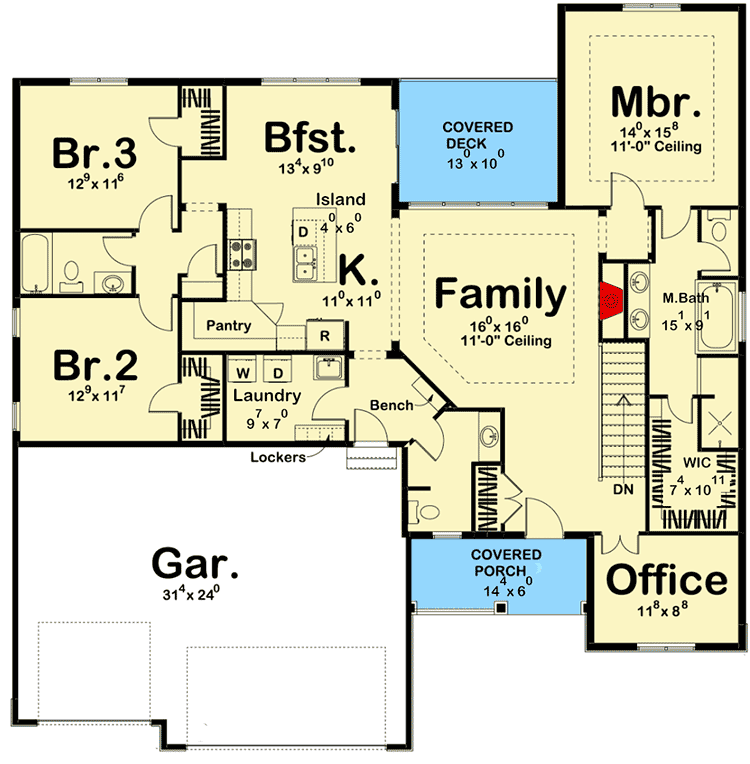

One-Level Craftsman Home Plan with Private Office - 62506DJ floor plan - Main Level

Plan details

One-Level Craftsman Home Plan with Private Office

  • 2,161

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,200
  • 5 Sets + PDF $1,450
  • PDF - Unlimited Build $1,700
  • CAD - Single-Build $1,700
  • CAD - Unlimited Build $2,200
  • View all purchase option online

About This Plan

  • This one level Craftsman home plan has all the basics plus extras such as walk-in closets in each bedroom, an open floor plan and tray ceilings in the master suite and family room.
  • In the kitchen, the over-sized walk-in pantry is an additional plus.
  • A rear covered deck is large enough for table and chairs and a barbecue grill.
  • A home office faces front and provides a quiet place for office work or homework.
  • Split bedrooms separate the master suite from the family bedrooms.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,161 sq. ft.
  • 1st Floor: 2,161 sq. ft.
  • Deck: 218 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 59' 0"
  • Depth: 60' 0"
  • Max ridge height: 27' 8"

Garage

  • Type: Attached
  • Area: 790 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Stick
