Plan 82218KA

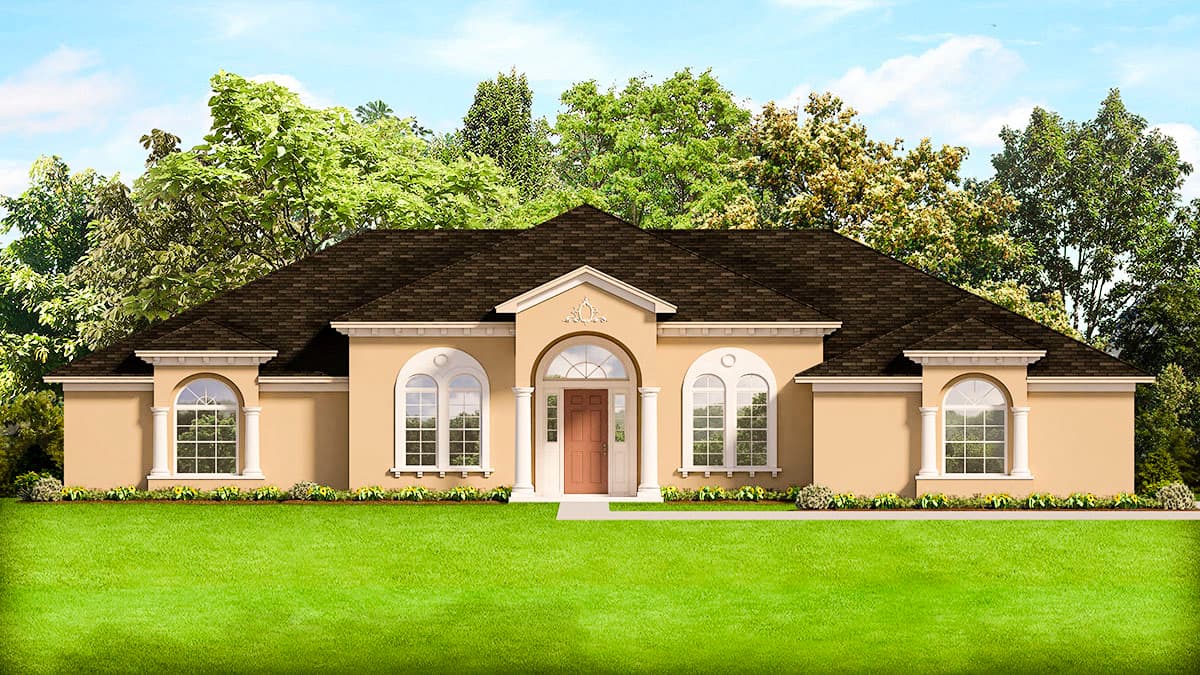

One Level European House Plan

Heated S.F.
2,761
Beds
4
Baths
3
Stories
1
Cars
3

Floor Plan

Plan 82218KA

Main Level
Main Level

Plan 82218KA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

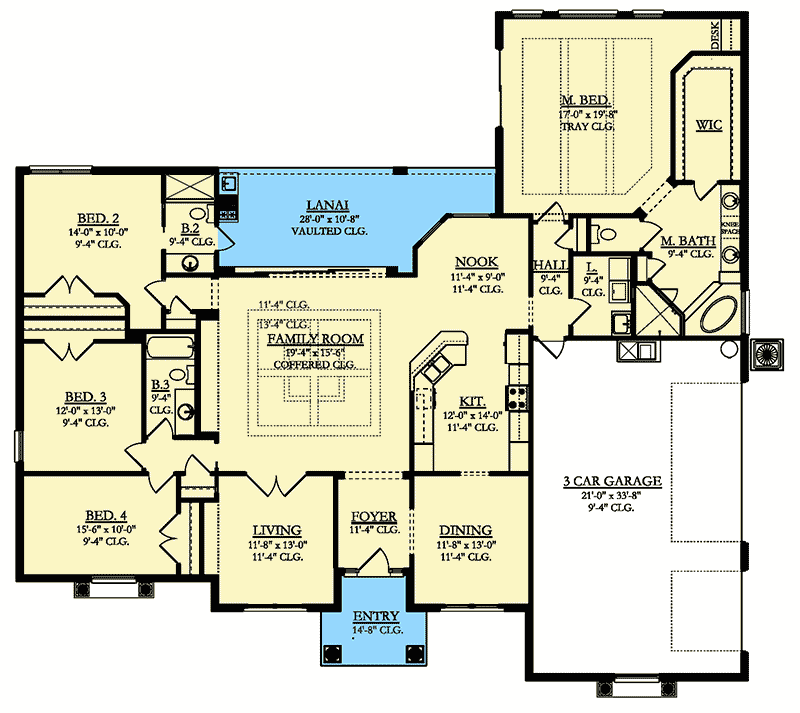

Plan 82218KA: One Level European House Plan - Floor Plan - Main Level - European, Southern

Plan Details

  • Live all on one floor in this spacious European house plan.
  • The formal living room can be closed off with double doors or you can entertain in the huge family room that has a tray ceiling and plant shelf.
  • Sliding glass doors take you out to the vaulted lanai where you can relax in the shade.

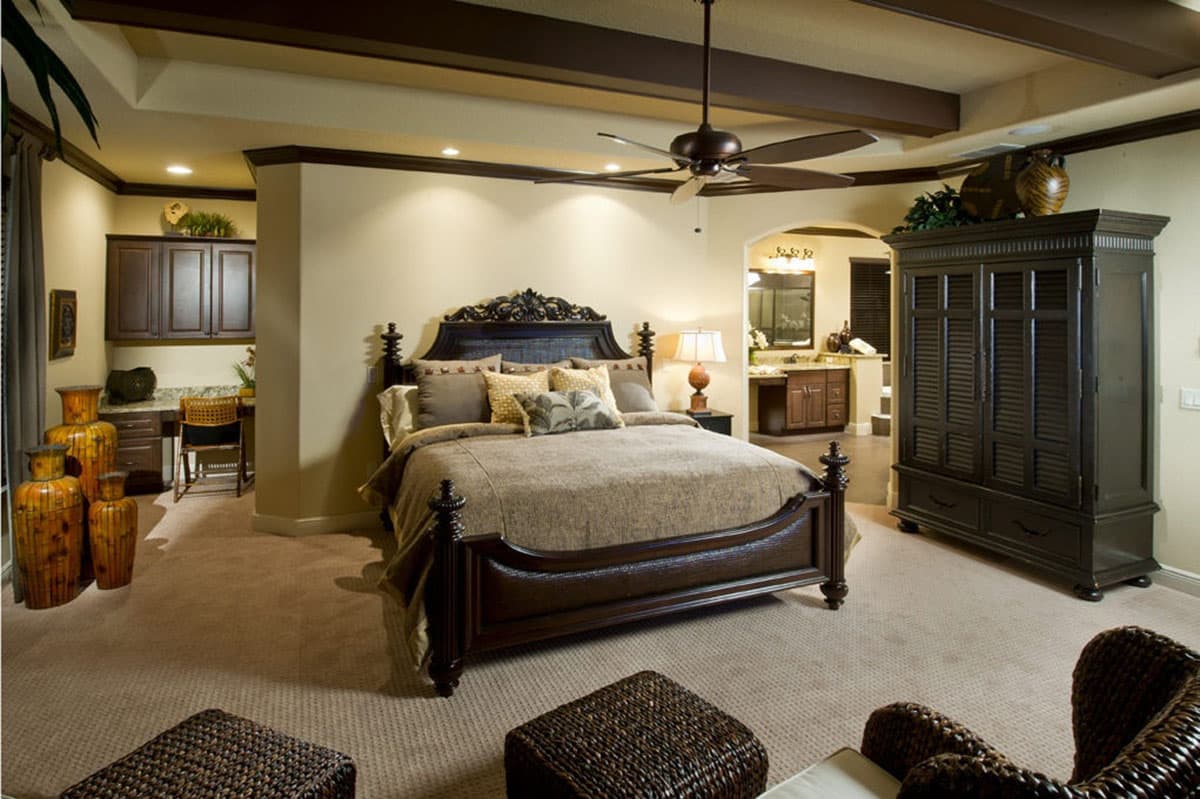

  • The split bedroom layout serves to give you a secluded master suite with an elegant double tray ceiling and a gorgeous master bathroom.
  • Three family bedrooms lie all the way across the house with two bathrooms, one of which is accessed from the porch.
  • Related Plan: Get a different exterior with house plan 82217KA (2390 sq. ft.).

What's Included

  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.
  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,761 sq. ft.

1st Floor

2,761 sq. ft.

Porch, Front

85 sq. ft.

Porch, Rear

255 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

73' 8"

Depth

67' 4"

Max Ridge Height

20' 4"

Garage

Type

Attached

Area

749 sq. ft.

Count

3 Cars

Entry Location

Side

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick And Truss

Architectural Style

European

Southern

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Photo Gallery
