Plan 42577DB

One-Level House Plan with 3-Car Garage

Pageloader

One-Level House Plan with 3-Car Garage

Plan 42577DB

  • 1,906

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • 3

    Cars

  • Horizontal siding and stone accents adorn the exterior of this 2-bedroom, one-level house plan. A decorative, gable roof completes the design.
  • The common living spaces reside towards the back of the home, offering rear views and access to a covered porch for outdoor enjoyment. The open layout provides an easy flow for everyday living, and a fireplace can be enjoyed throughout the space.
  • An island includes the kitchen sink, and a pass-through pantry provides easy access when unloading groceries.

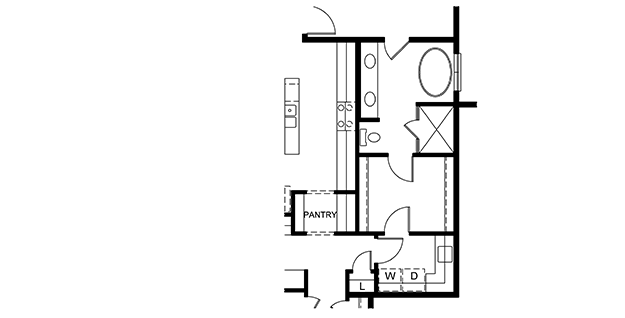

  • The owner's suite is separated from the other bedroom, adding privacy, and features large windows, dual vanities, and a shower enclosure. The large walk-in closet provides access to the laundry facilities. Another option for the master bathroom layout is available should you prefer a shower and a standalone tub.
  • The second bedroom sits just off the foyer and includes a walk-in closet, and access to a full bathroom.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

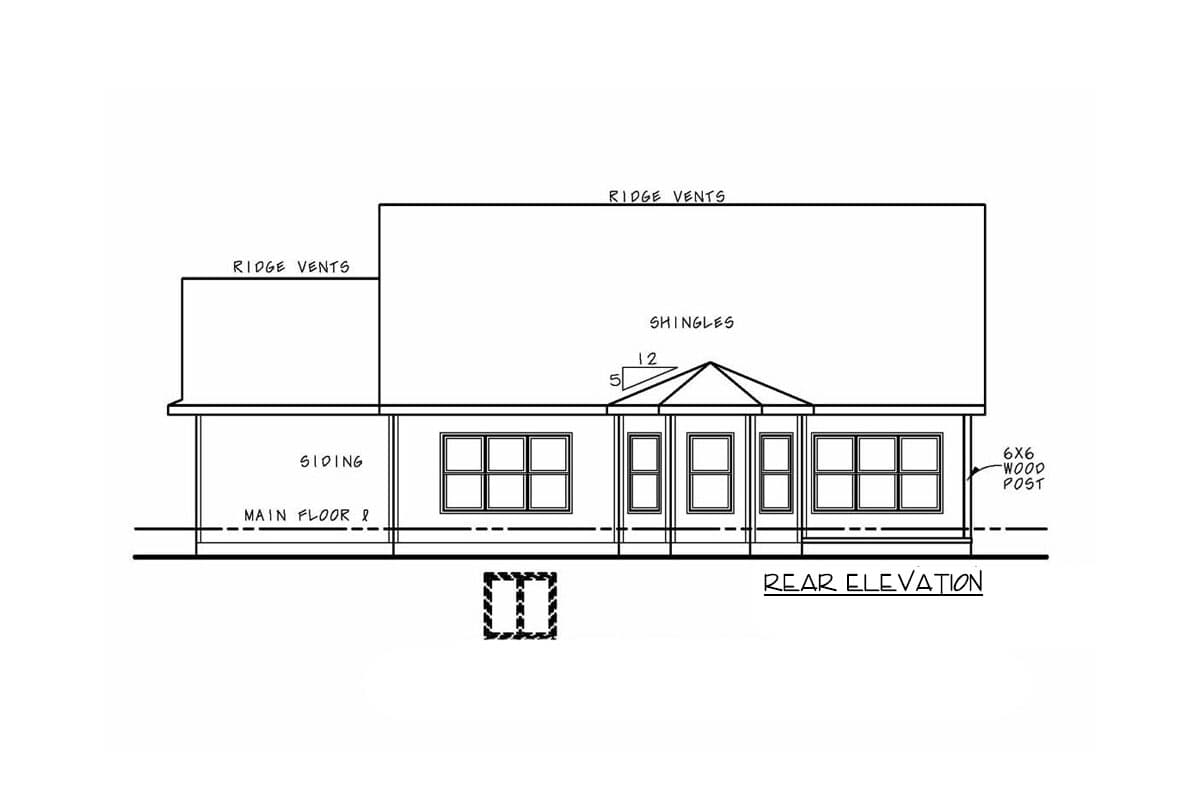

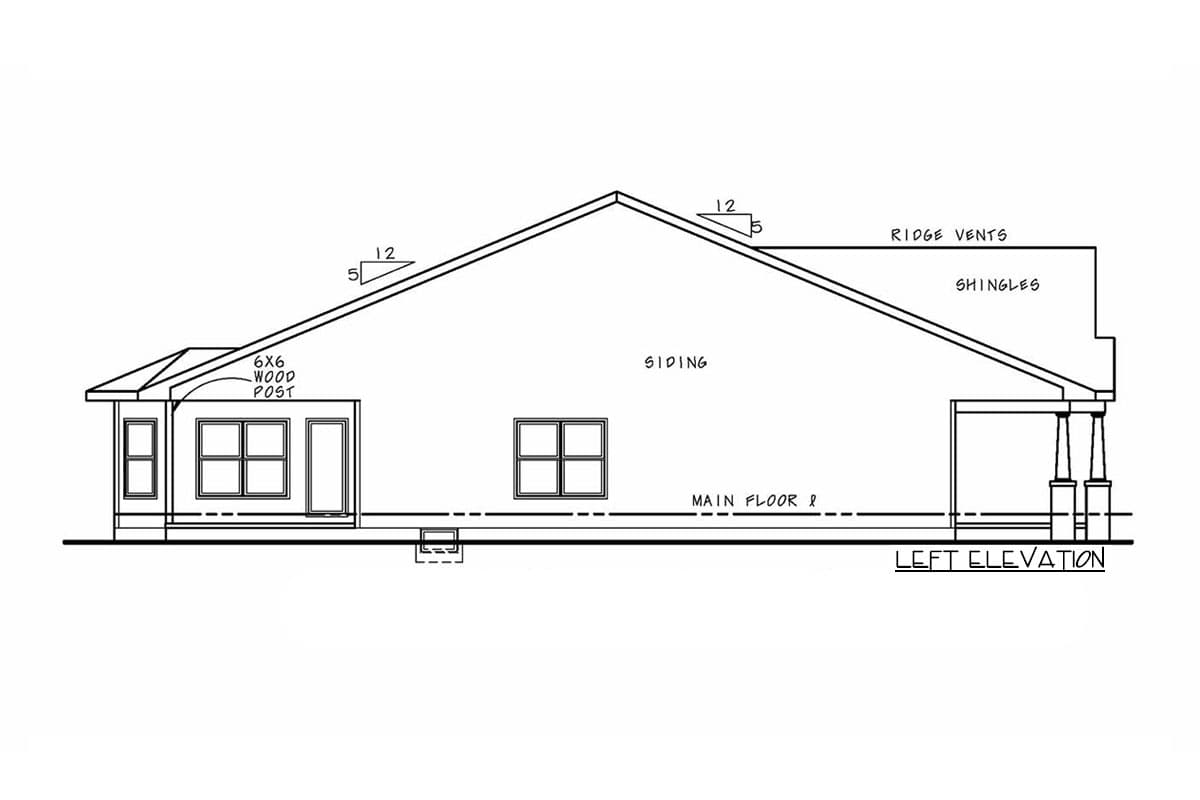

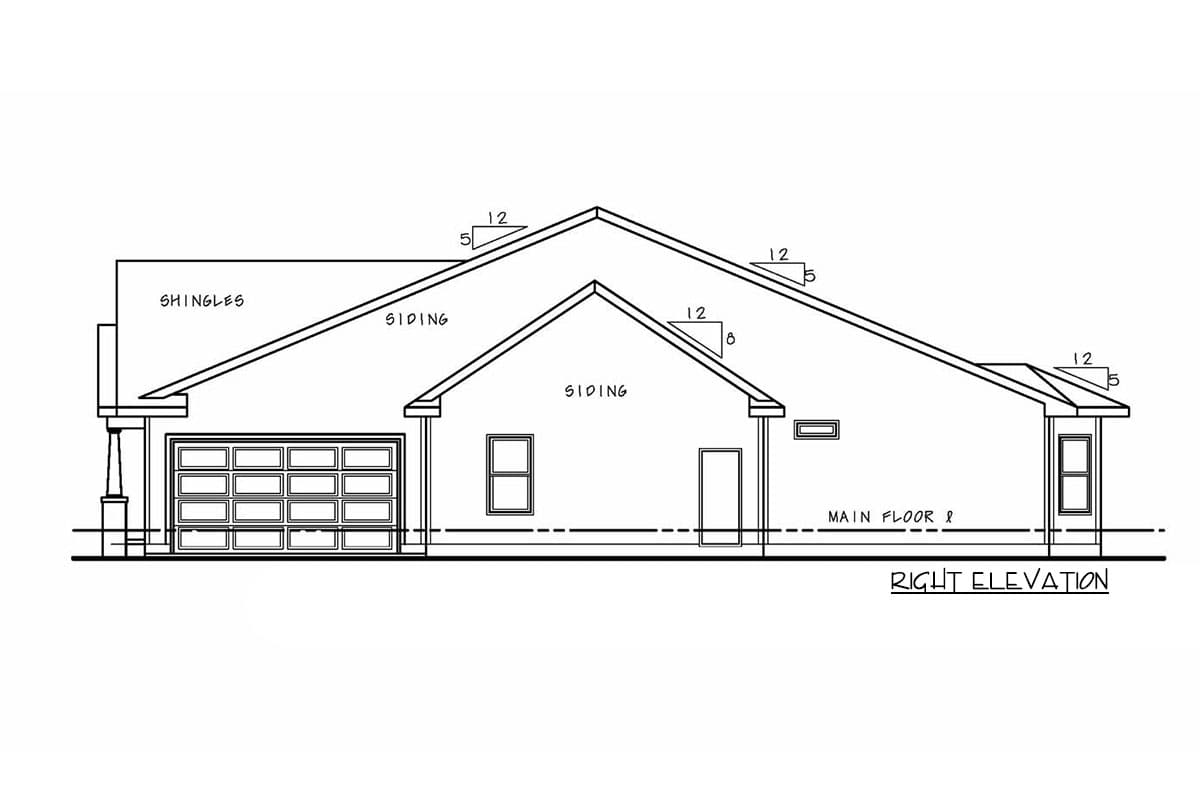

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Floor Plan

Plan details



One-Level House Plan with 3-Car Garage

  • 1,906

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • Digital Study Set $640
  • PDF - single-use $975
  • 5 Sets $1,100
  • 5 Sets PLUS $1,145
  • 8 Sets $1,170
  • PDF - multi-use $1,475
  • CAD $1,706
  • CAD - multi-use $2,206
  • View all purchase option online

About This Plan

  • Horizontal siding and stone accents adorn the exterior of this 2-bedroom, one-level house plan. A decorative, gable roof completes the design.
  • The common living spaces reside towards the back of the home, offering rear views and access to a covered porch for outdoor enjoyment. The open layout provides an easy flow for everyday living, and a fireplace can be enjoyed throughout the space.
  • An island includes the kitchen sink, and a pass-through pantry provides easy access when unloading groceries.
  • The owner's suite is separated from the other bedroom, adding privacy, and features large windows, dual vanities, and a shower enclosure. The large walk-in closet provides access to the laundry facilities. Another option for the master bathroom layout is available should you prefer a shower and a standalone tub.
  • The second bedroom sits just off the foyer and includes a walk-in closet, and access to a full bathroom.

Floor Plans

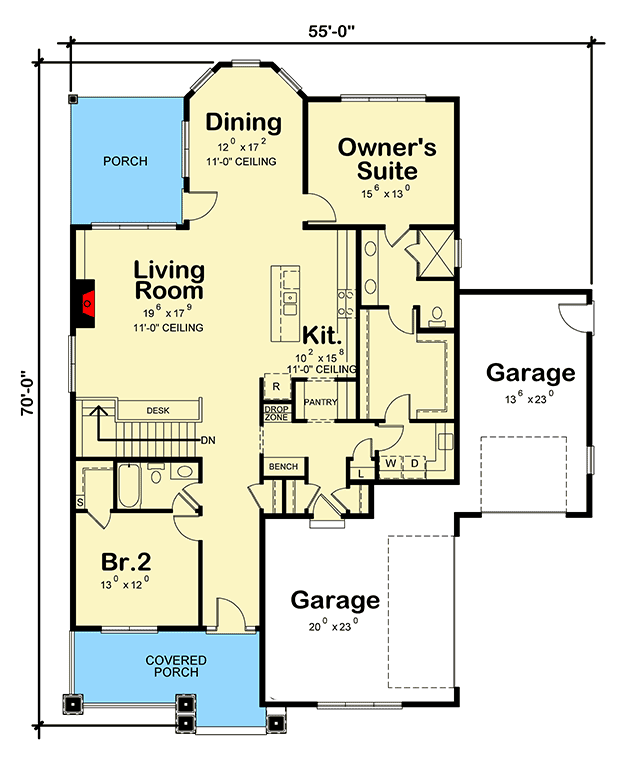

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,906 sq. ft.
  • 1st Floor: 196 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 55' 0"
  • Depth: 70' 0"
  • Max ridge height: 26' 3"

Garage

  • Type: Attached
  • Area: 780 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 5 on 12
  • Secondary Pitch: 5 on 12
