Plan 86299HH

One Level House Plan with Secluded Master Suite

Heated S.F.
2,291
Beds
4
Baths
3
Stories
1
Cars
3

Floor Plan

Plan 86299HH

Main Level
Main Level

Plan 86299HH

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 86299HH: One Level House Plan with Secluded Master Suite - Floor Plan - Main Level - Southern, Traditional

Plan Details

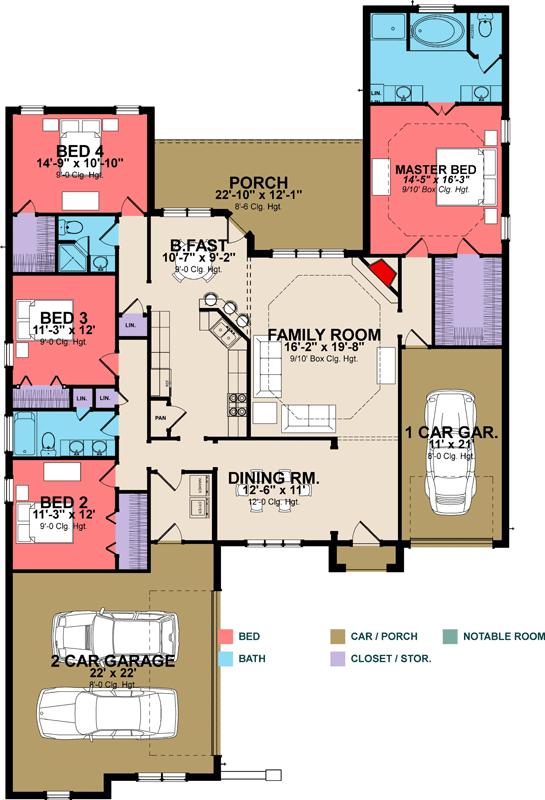

  • A 12' high ceiling rises up in the formal dining room of this one floor Traditional house plan.
  • In the large family room, a corner fireplace can be seen from the breakfast nook and kitchen.
  • In back, the porch extends almost 23' wide so you have lots of room for table and chairs.
  • Bedrooms are split so the master bedroom enjoys privacy from being the only bedroom on the right side of the home.
  • The tray ceiling and spacious master bathroom are added pluses.
  • All three bedrooms on the left side of the home are a generous size and bedroom 4 gets a walk-in closet.
  • Garage bays are split with a two car bay and a one car bay by the master suite.

What's Included

  • Cover Sheet
  • Foundation plans
  • Elevations - complete with dimensions, ridge heights and special notes
  • Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
  • Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
  • Rafter Plan
  • Details
  • Interior Elevations - include applicable cabinetry, electrical and special construction notes
  • Floor Joist Plan - complete with spans, sizes and direction (if applicable)
  • Ceiling Joist - complete with spans, sizes and direction
  • Sections - complete with dimensions, notes and specifications
  • Electrical plan - complete wit layout, light fixtures, outlets and legend

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.
