One Level Living at its Best

Plan 48135FM

This plan plants 3 trees

2,299
Heated s.f.
3
Beds
2.5
Baths
1
Stories
3
Cars

This house plan offers one level living at its best. With a split bedroom floor plan, it also offers privacy.
The great room ceiling rises to 11'. A fireplace is flanked by built-ins and windows open to view out the back.
The kitchen has an angled island tieing it into the great room while remaining a somewhat private retreat for the cook.
A covered patio in back offers a great location for outdoor entertaining.
A study has an attractive bay window. Two bedrooms share a bath.
A 3-car side entry garage completes this design.

Each plan set includes the following:

Cover Sheet
Floor Plans
Electrical Plan
Foundation Plan
Front and Left Elevation

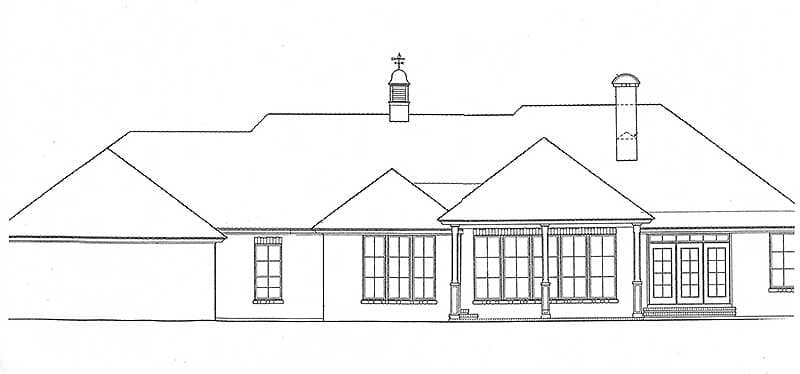

Rear and Right Elevation
Roof Plan
Cabinets and Section
Building Section

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

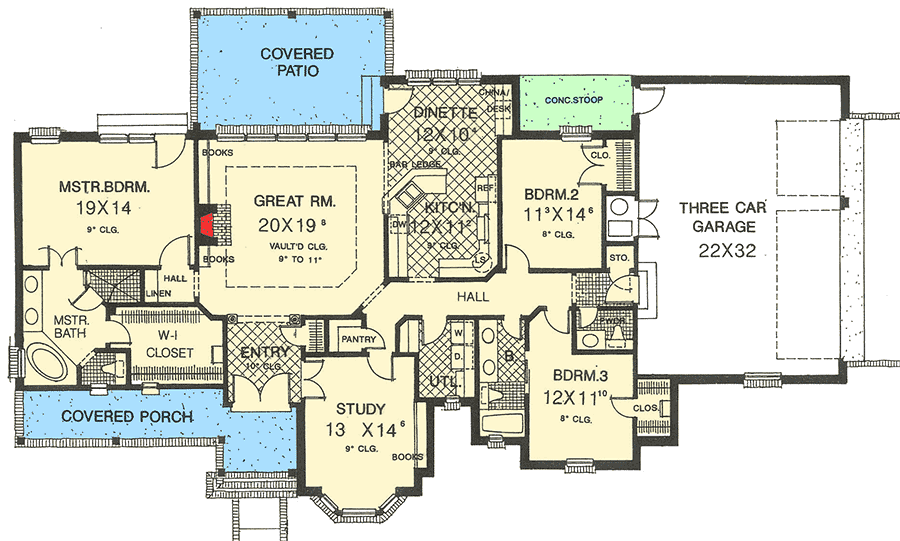

One Level Living at its Best - 48135FM floor plan - Main Level

Plan details

Square Footage Breakdown

Total Heated Area: 2,299 sq. ft.
1st Floor: 2,299 sq. ft.

Beds/Baths

Bedrooms: 3

Full bathrooms: 2
Half bathrooms: 1

Foundation Type

Standard Foundations: Slab, Crawl

Optional Foundations: Basement

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Dimensions

Width: 88' 11"
Depth: 47' 3"
Max ridge height: 24' 0"

Garage

Type: Attached
Area: 704 sq. ft.
Count: 3 Cars
Entry Location: Side

Ceiling Heights

Floor / Height: First Floor / 9' 0"

Roof Details

Primary Pitch: 9 on 12

Framing Type: Stick

Architectural Style

Special features

Scroll
