One-Level Modern House Plan with Large Covered Deck

Plan 370004SEN

This plan plants 3 trees

3,641
Heated s.f.
5
Beds
3.5
Baths
1
Stories
2
Cars

A dramatic curved roof above the front porch stands out against the contrasting roof lines, giving this house plan a modern edge. Stone accents complete the design.
A barrel vaulted ceiling in the foyer provides a feeling of grandeur immediately upon entering. Ample windows and an oversized sliding door allow natural light to permeate throughout the open layout consisting of the great room, dining room, and kitchen.
Enjoy outdoor living on the sizable covered deck, also accessible from the master bedroom.
Off the dining room, a barn door grants access to a private study, which neighbors a large laundry room and powder bath.
The master bedroom resides on the main level, and features a walk-in closet and ensuite with an oversized shower and two sinks. A second bedroom near the foyer is located next to a full bath.
The lower level provides a spacious family room which extends outdoors to a covered patio. This level also includes three bedrooms that share a full bath.

This house plan has 14 pages as follows:

Cover sheet
General notes
Front and left elevations

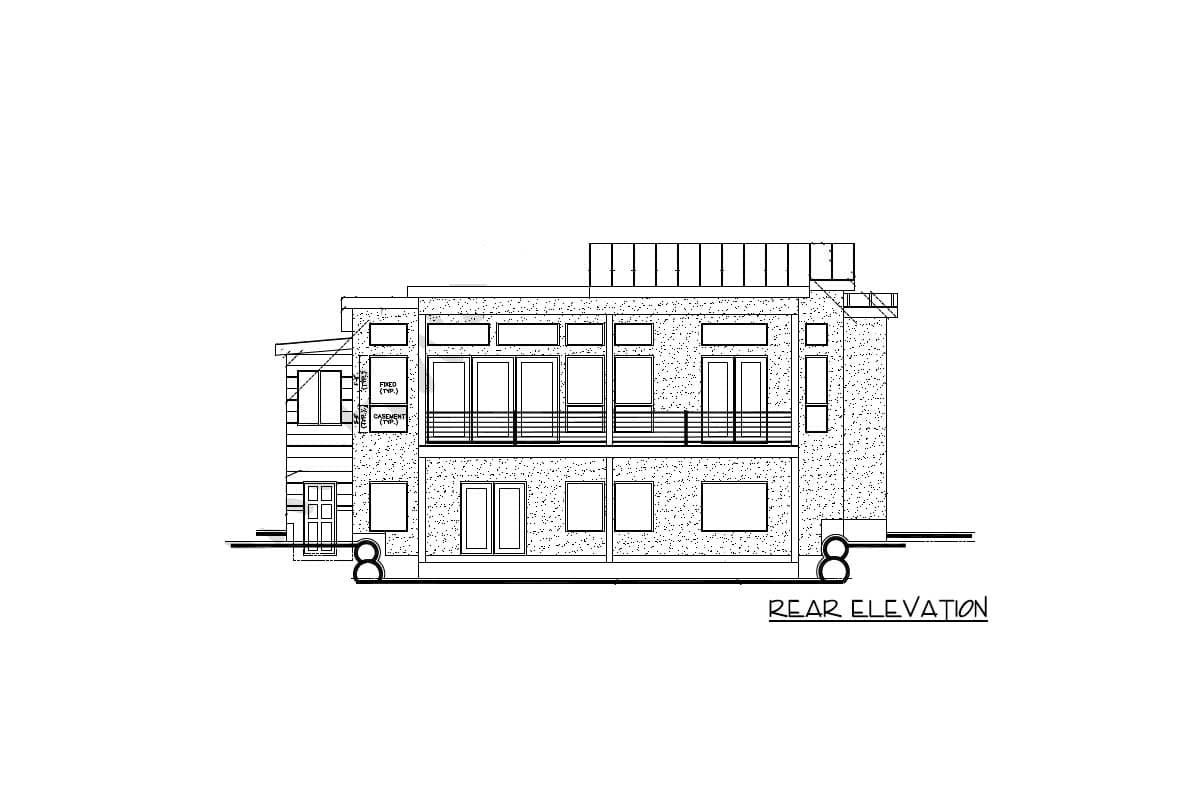

Rear and right elevations
Lower floor plan
Main floor plan
Upper wall plan
Foundation plan
Main floor framing plan
Lower roof framing plan
Upper roof framing plan
Building and stair sections
Lower electrical plan
Main electrical plan

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

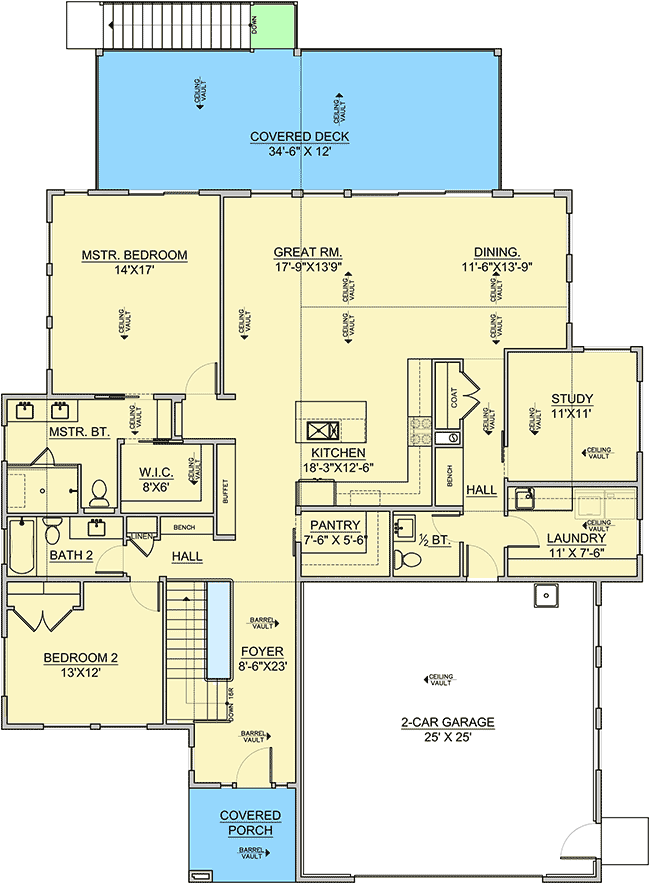

One-Level Modern House Plan with Large Covered Deck - 370004SEN floor plan - Main Level

Lower Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

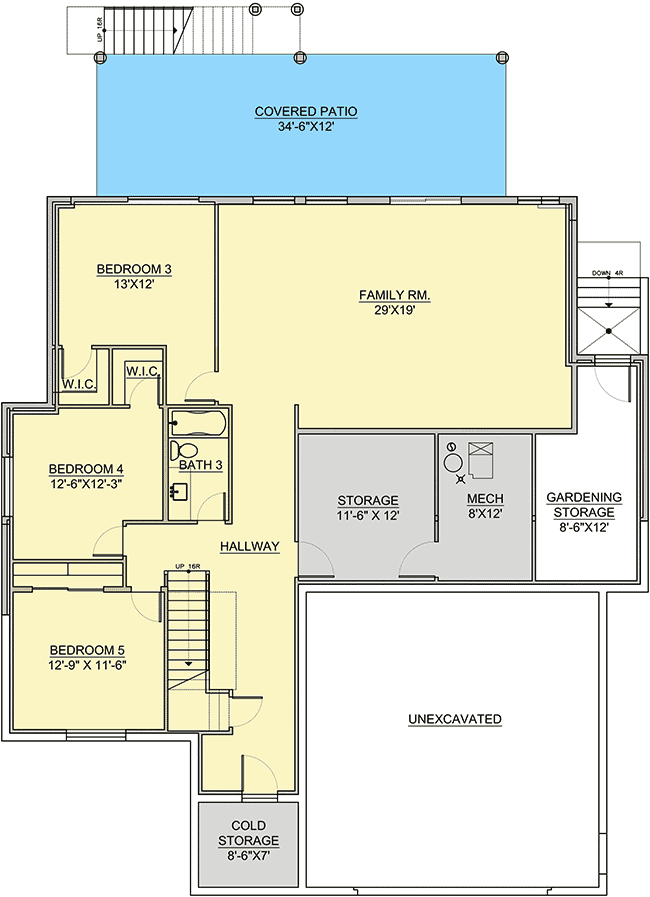

One-Level Modern House Plan with Large Covered Deck - 370004SEN floor plan - Lower Level

Plan details

Square Footage Breakdown

Total Heated Area: 3,641 sq. ft.
Lower Level: 1,609 sq. ft.
1st Floor: 2,032 sq. ft.

Deck: 414 sq. ft.
Porch, Front: 73 sq. ft.

Beds/Baths

Bedrooms: 5

Full bathrooms: 3
Half bathrooms: 1

Foundation Type

Standard Foundations: Walkout

Optional Foundations: Slab, Daylight, Crawl, Basement

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Optional Type(s): 2x6

Dimensions

Width: 54' 6"
Depth: 70' 11"
Max ridge height: 19' 0"

Garage

Type: Attached
Area: 665 sq. ft.
Count: 2 Cars
Entry Location: Side

Ceiling Heights

Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof Details

Primary Pitch: 2 on 12
Secondary Pitch: 1 on 12

Framing Type: Stick
