Plan 86350HH
One-level New American Home Plan with Bonus Level above Garage
Heated S.F.
2,716
Beds
3-4
Baths
2.5 - 3.5
Stories
1-2
Cars
3
What's Included
Plan Details

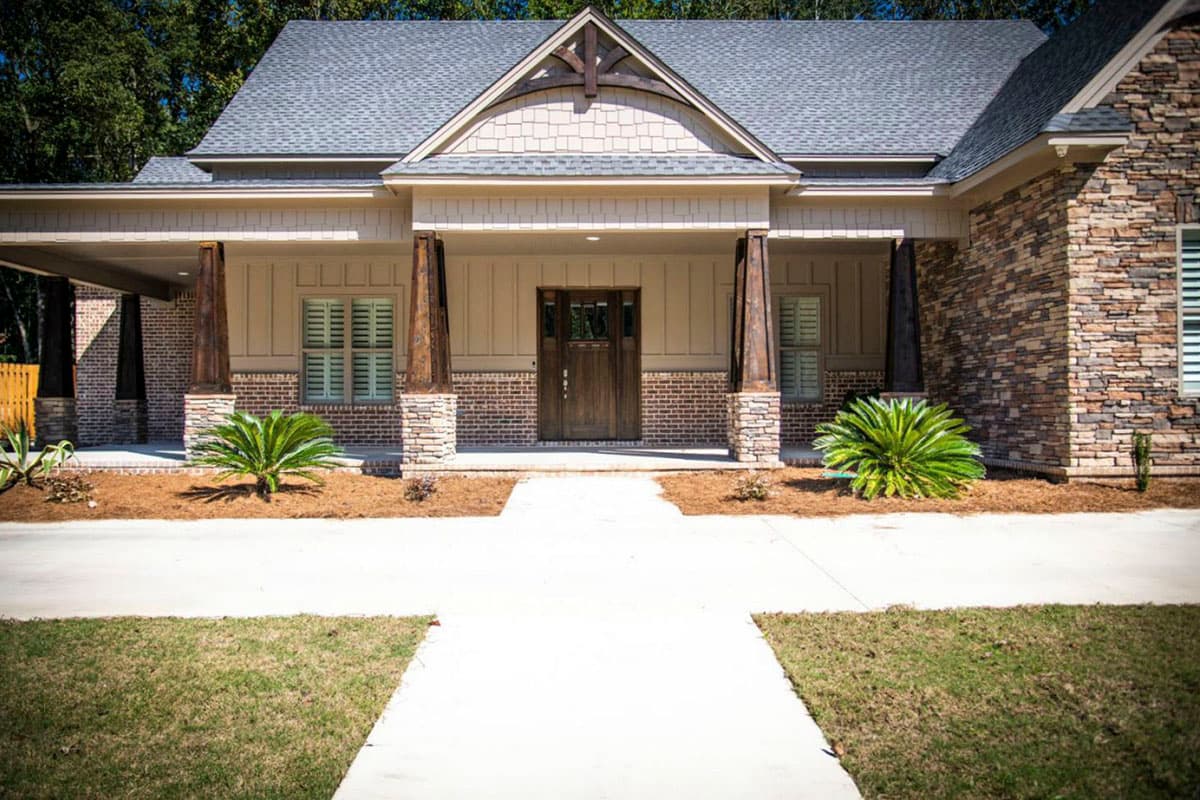

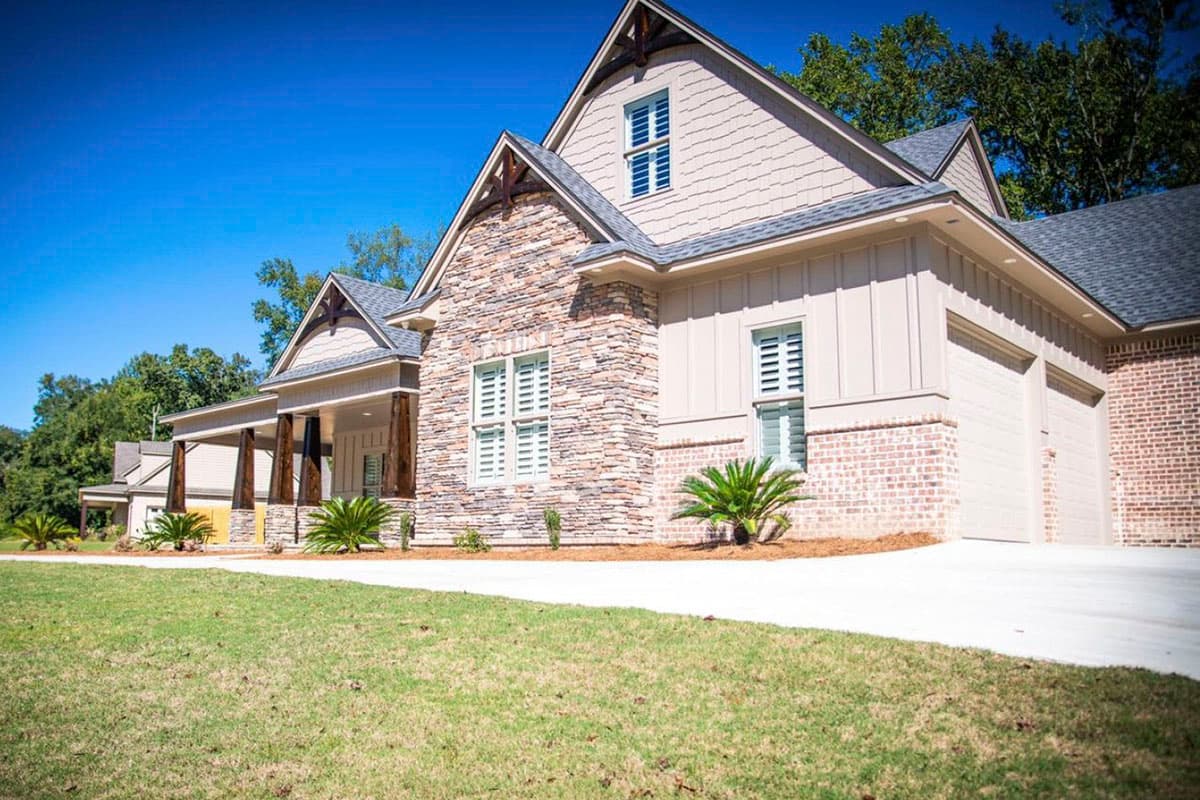

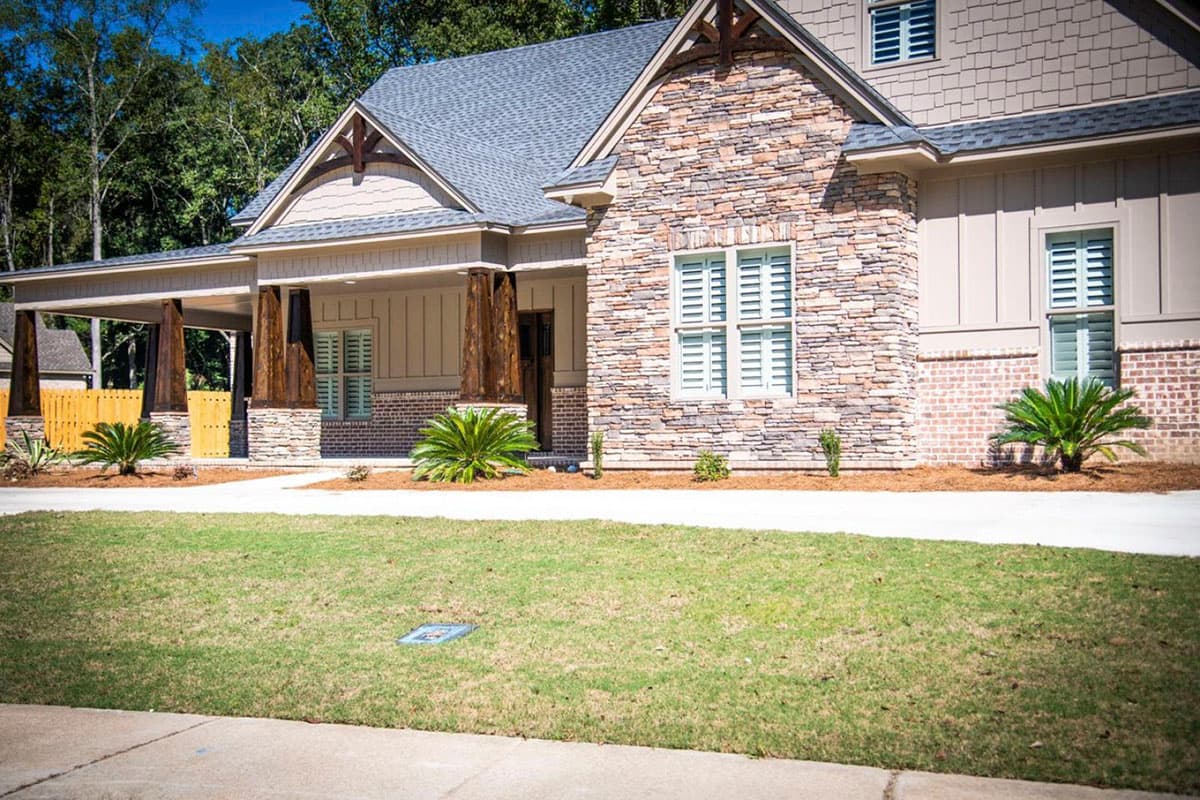

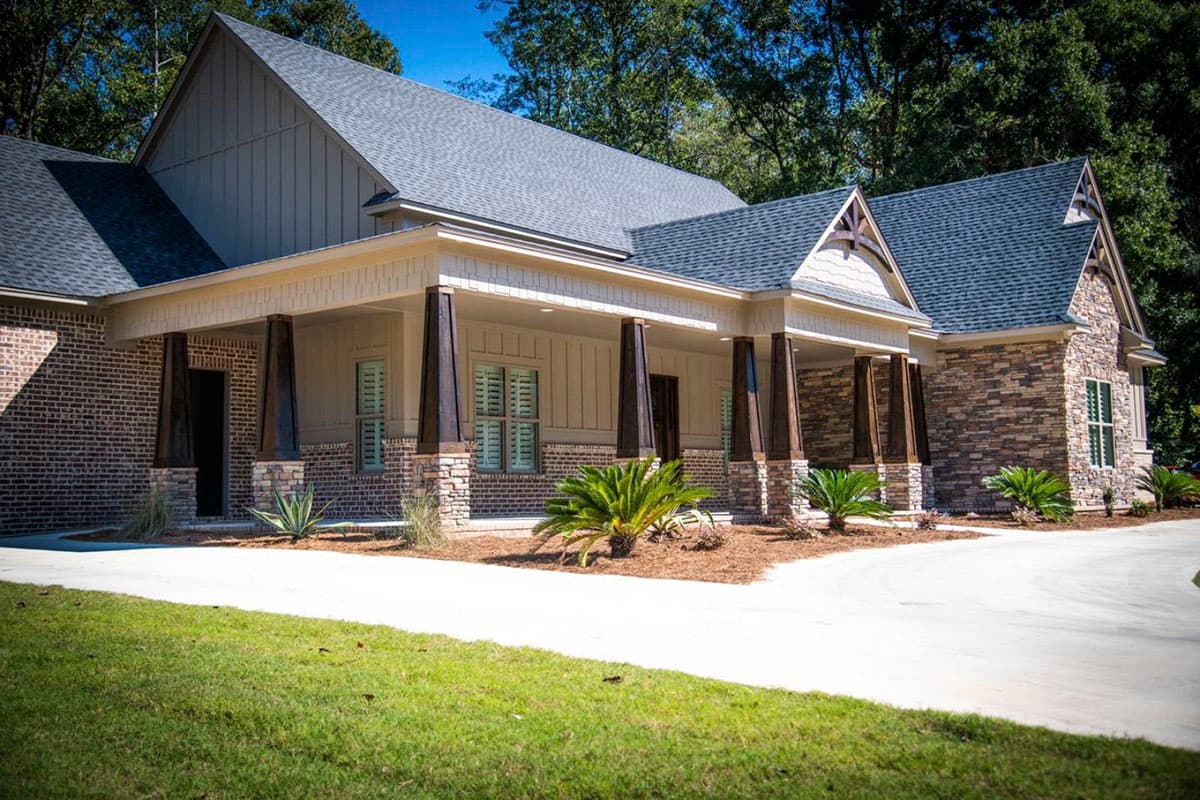

  • Craftsman detailing blends beautifully with earth tones on the exterior of this one-level, New American home plan, complete with stone, brick, and shake accents.

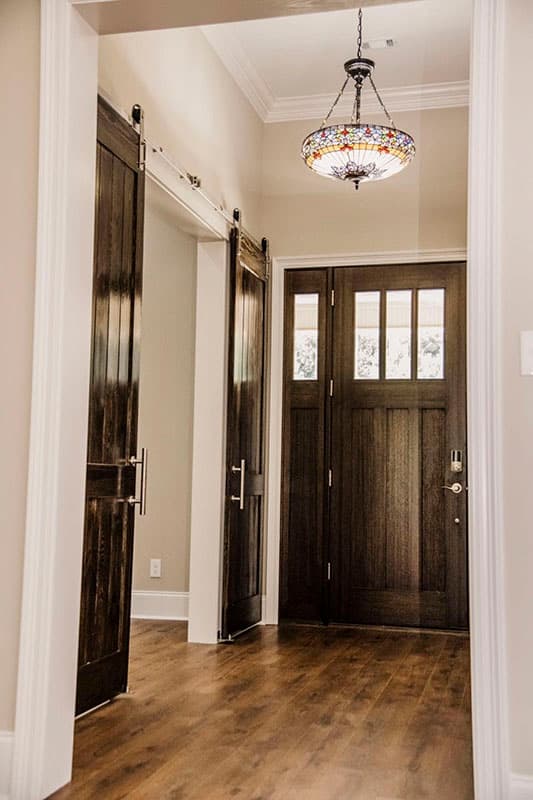

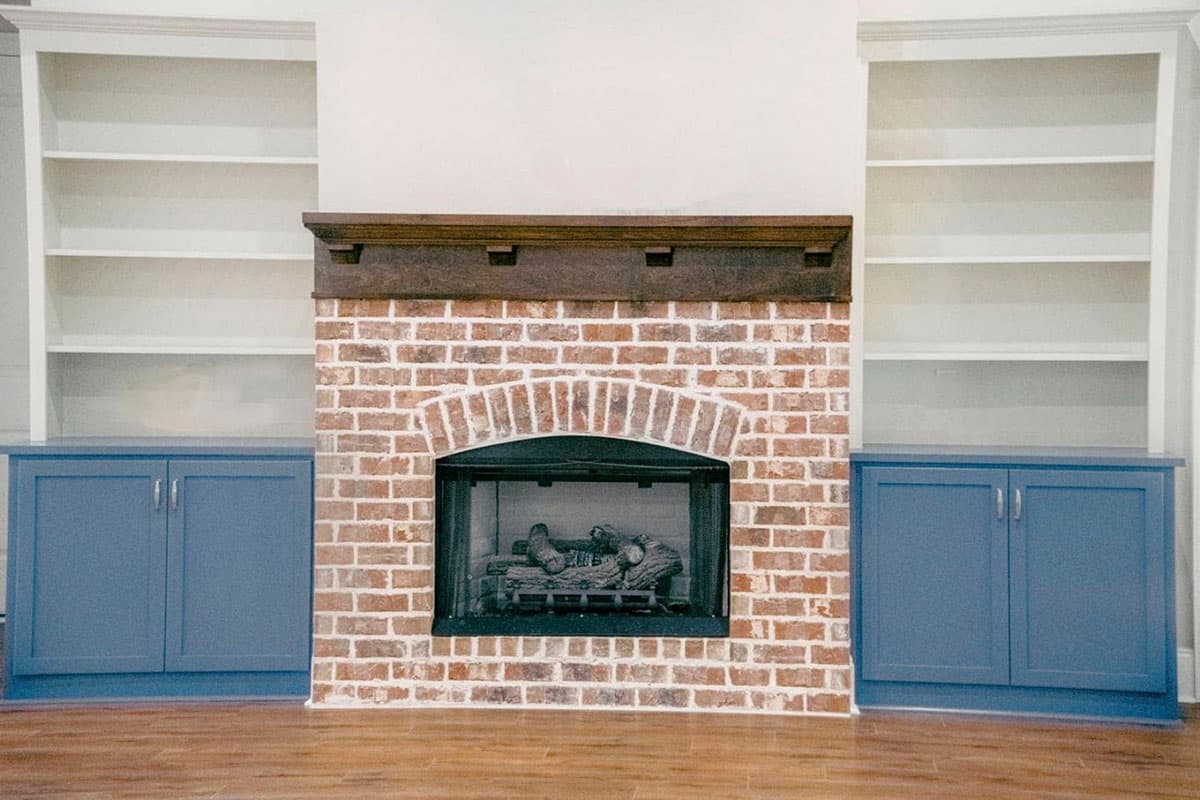

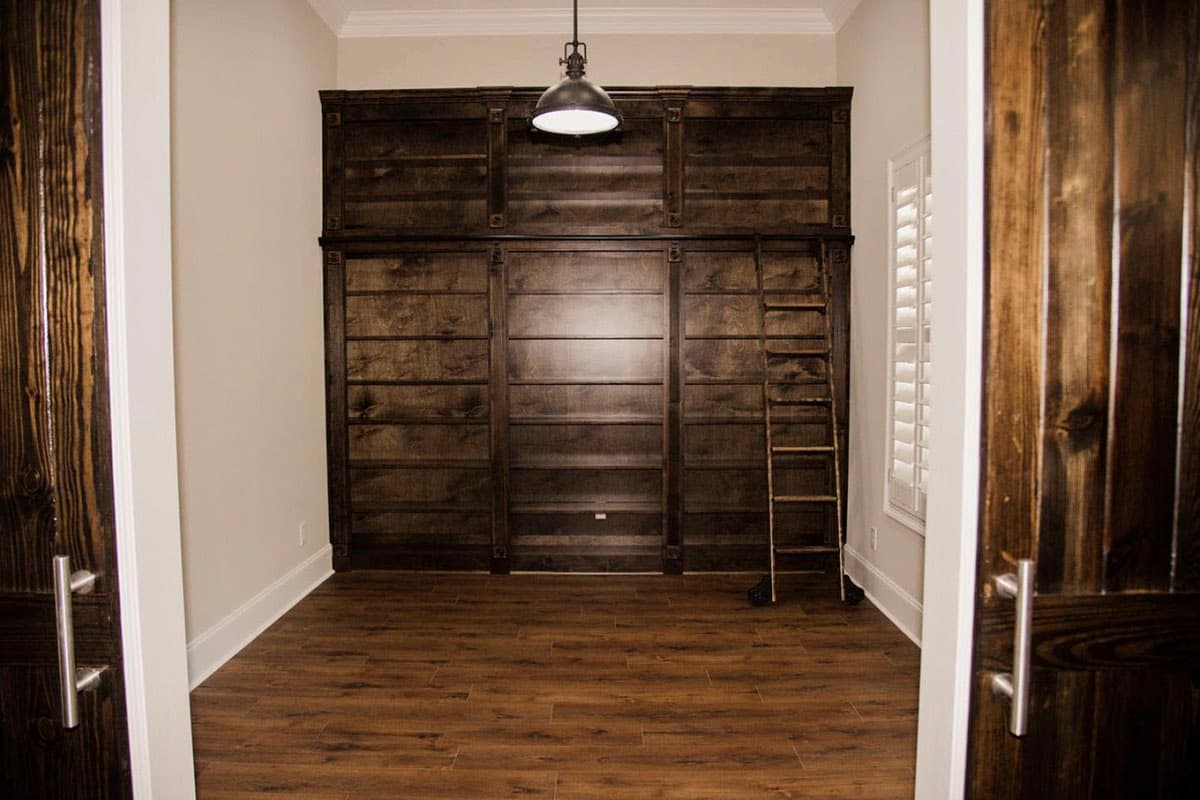

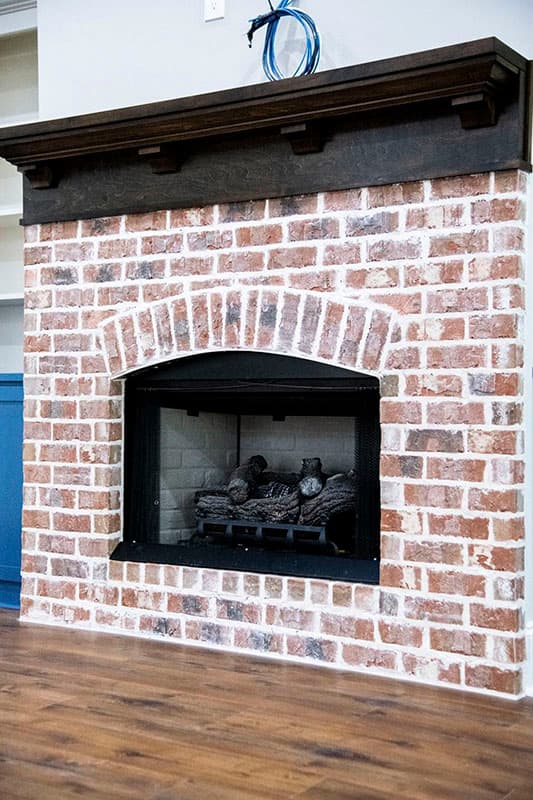

  • Framing the formal entry, discover a study and craft room, while the combined family room, kitchen, and dining area reside in the center. A warm fireplace anchors the left wall, and nearby french doors permit access to the deluxe rear porch.

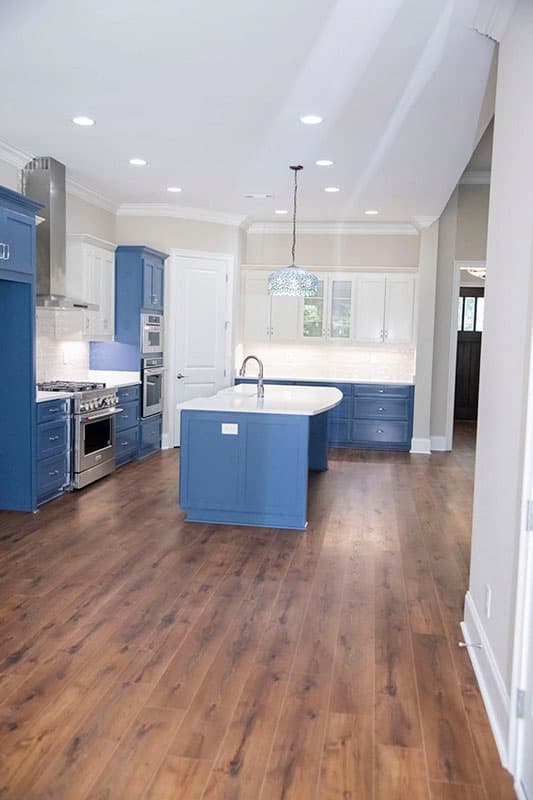

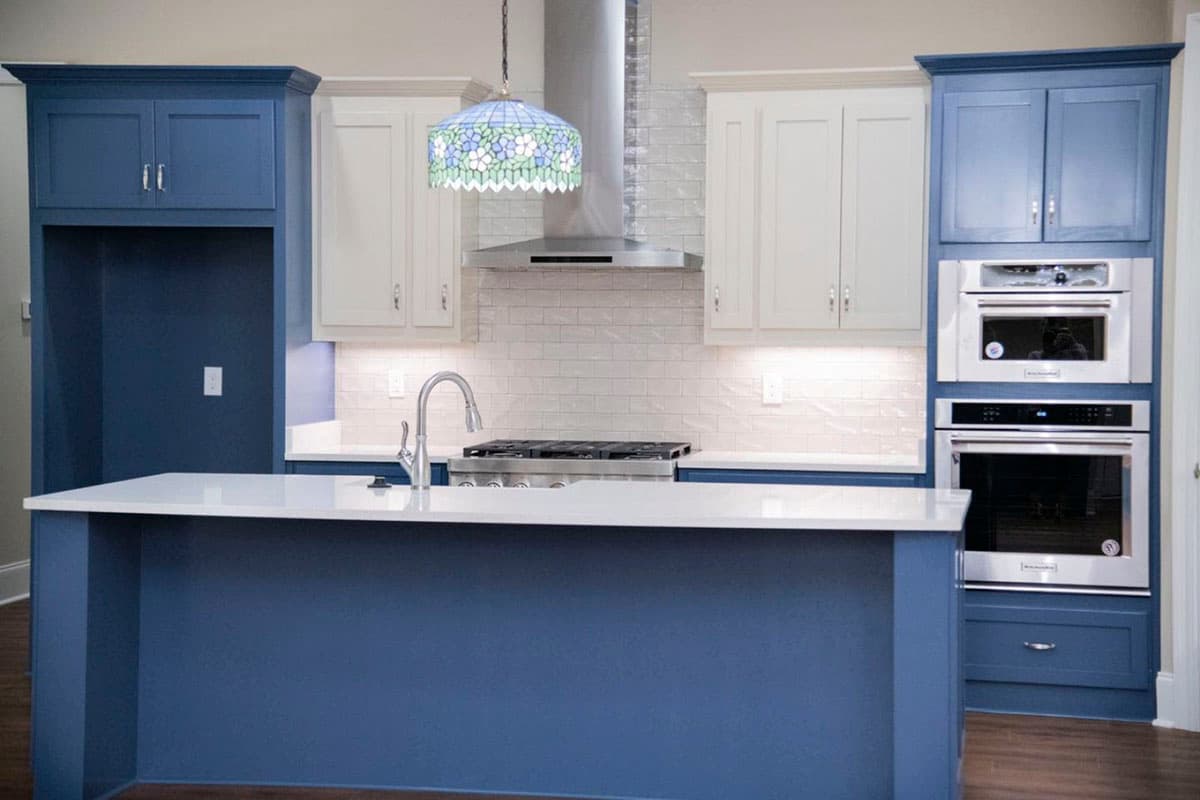

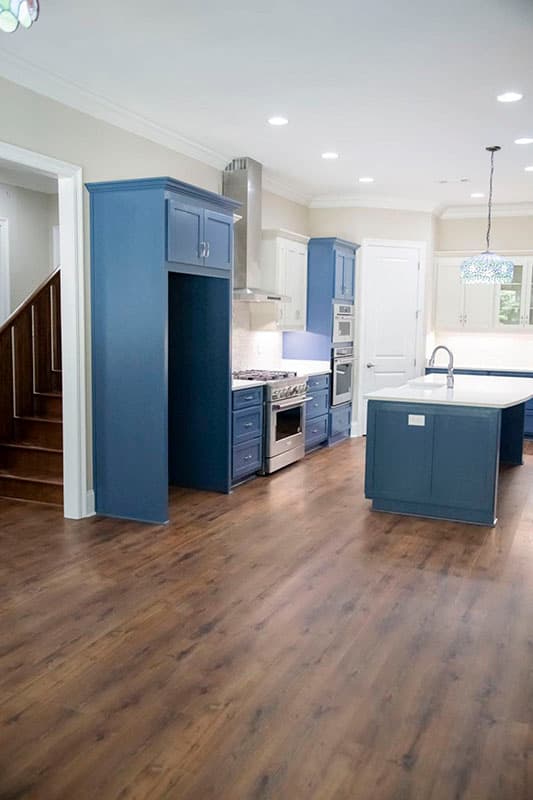

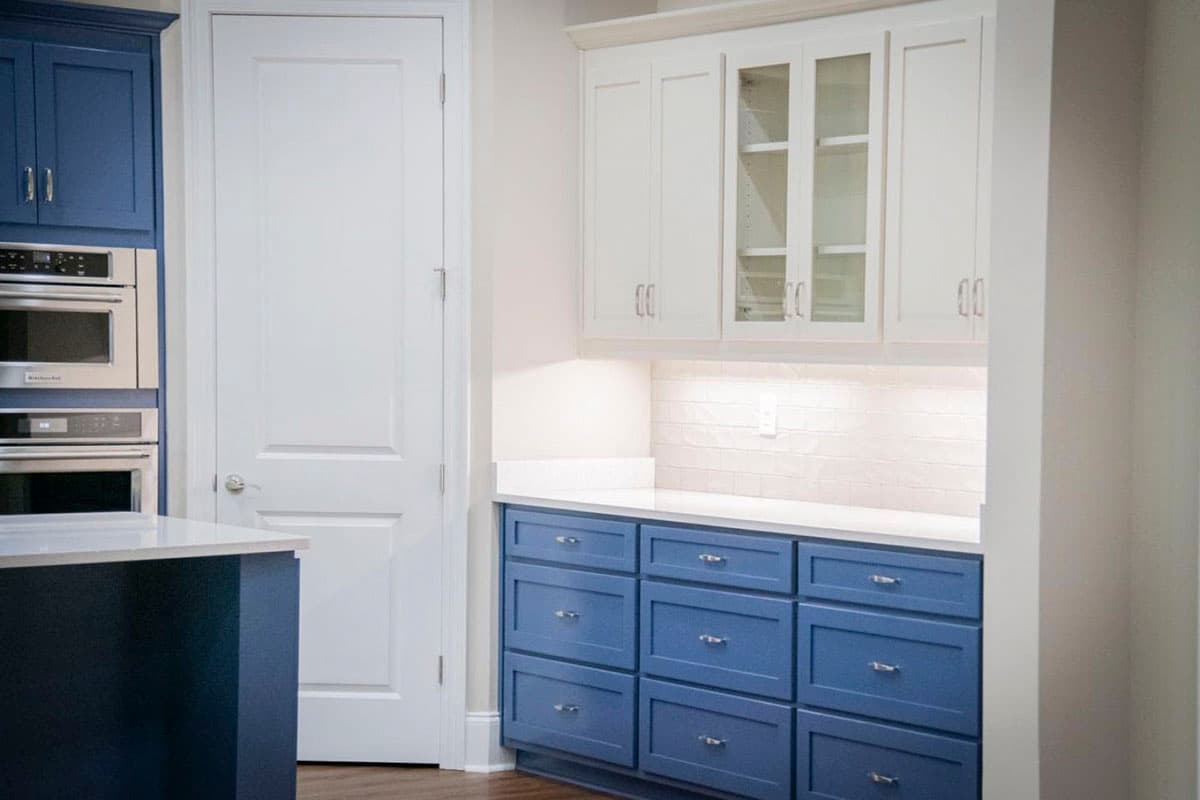

  • A rounded kitchen island offers casual seating and hosts the double-bowl sink, while a corner pantry provides plenty of nearby storage space.

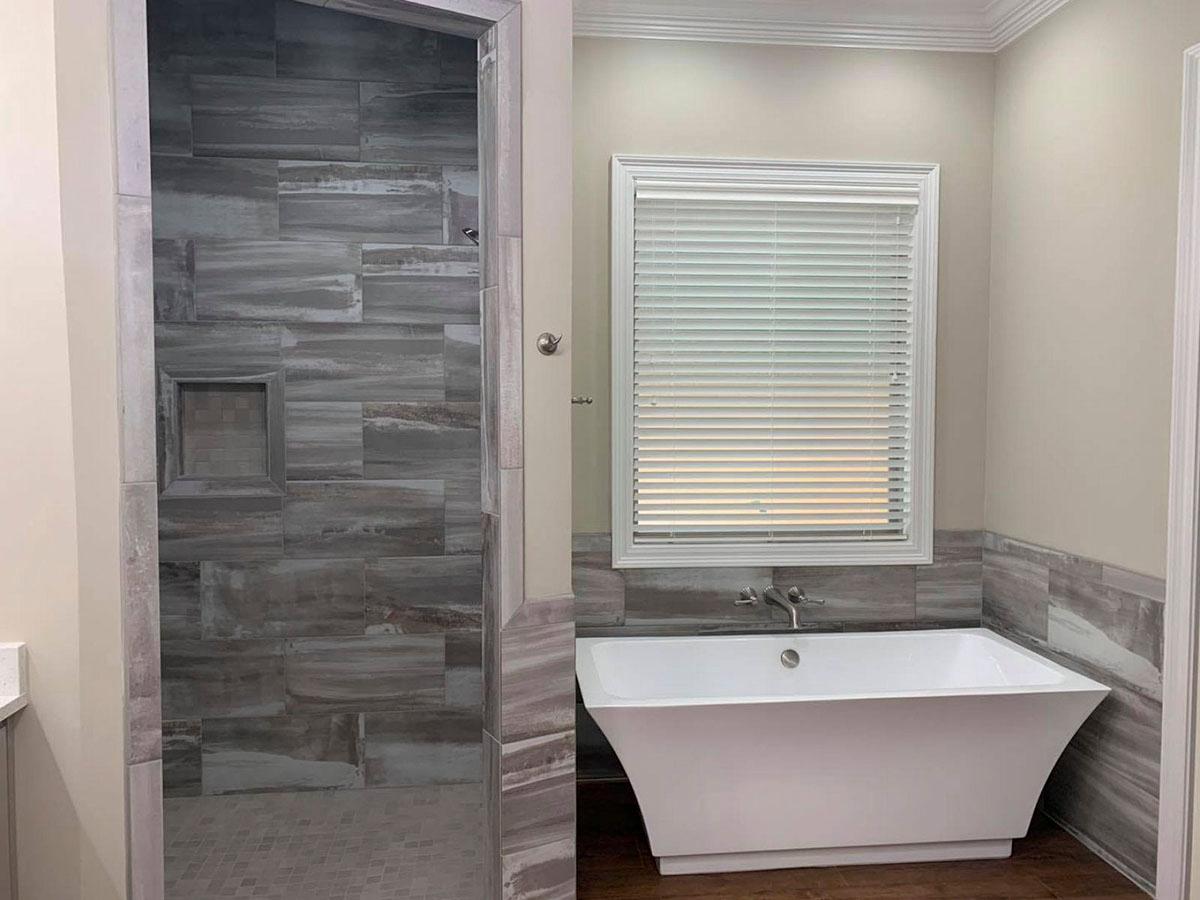

  • The master bedroom is situated behind the 3-car garage, and features a two-person shower in the ensuite. The neighboring laundry room helps when switching late-night loads.
  • Bedrooms 2 and 3 are across the home and share a full bath. A second door from the front porch leads directly to one of the bedrooms, ideal for a boomerang child or guest.

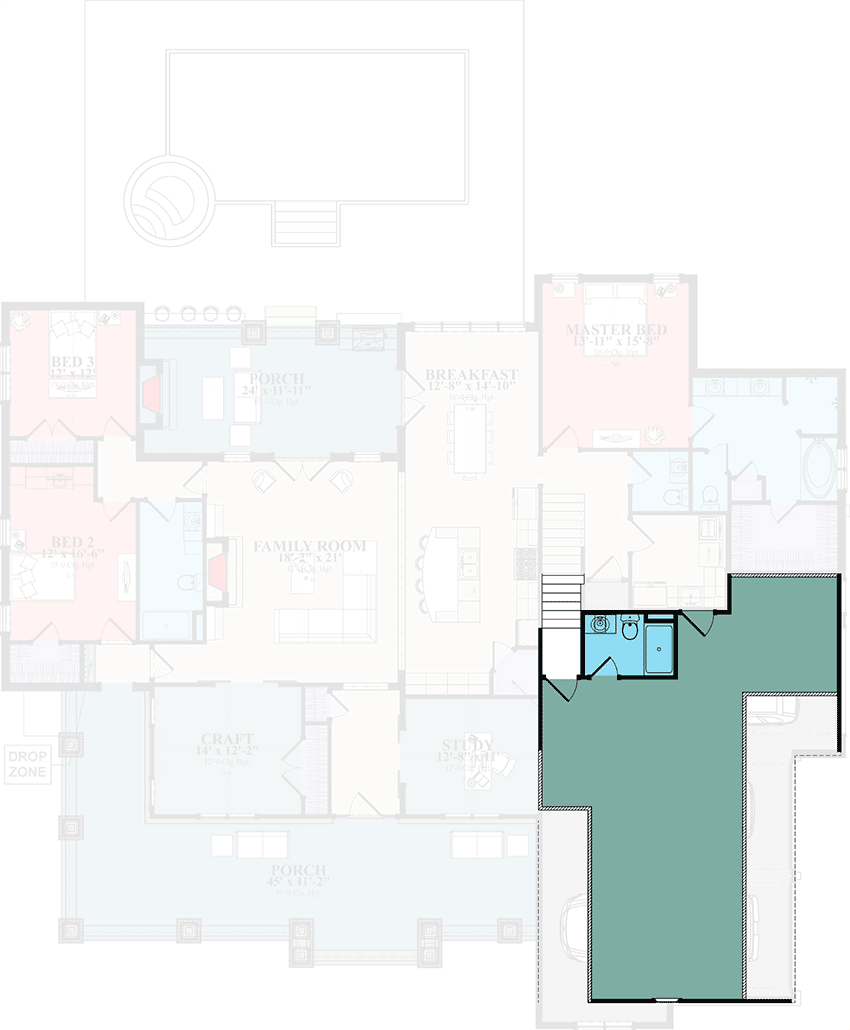

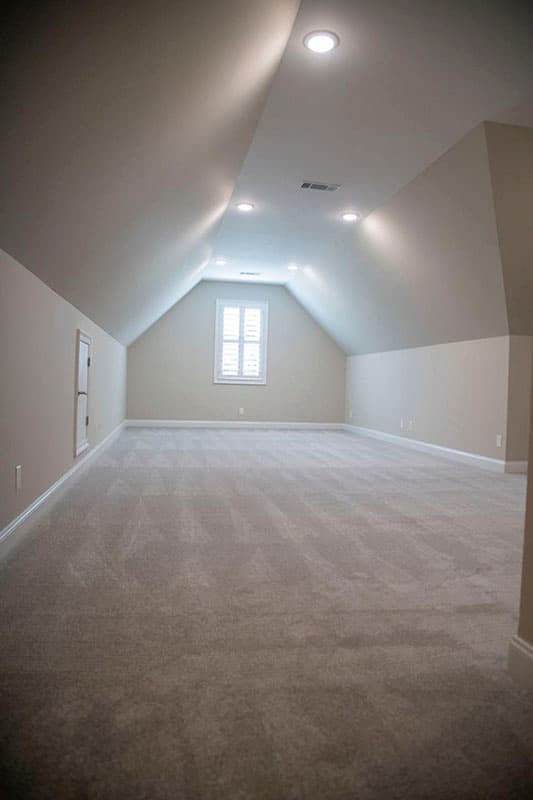

  • The bonus level, totaling 732 square feet of living space, is located above the garage and includes a full bath.
What's Included
  • Cover Sheet
  • Foundation plans
  • Elevations - complete with dimensions, ridge heights and special notes
  • Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
  • Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
  • Rafter Plan
  • Details
  • Interior Elevations - include applicable cabinetry, electrical and special construction notes
  • Floor Joist Plan - complete with spans, sizes and direction (if applicable)
  • Ceiling Joist - complete with spans, sizes and direction
  • Sections - complete with dimensions, notes and specifications
  • Electrical plan - complete wit layout, light fixtures, outlets and legend
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

One-level New American Home Plan with Bonus Level above Garage

  • 2,716

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1-2

    Floors

  • 3

    Car garage

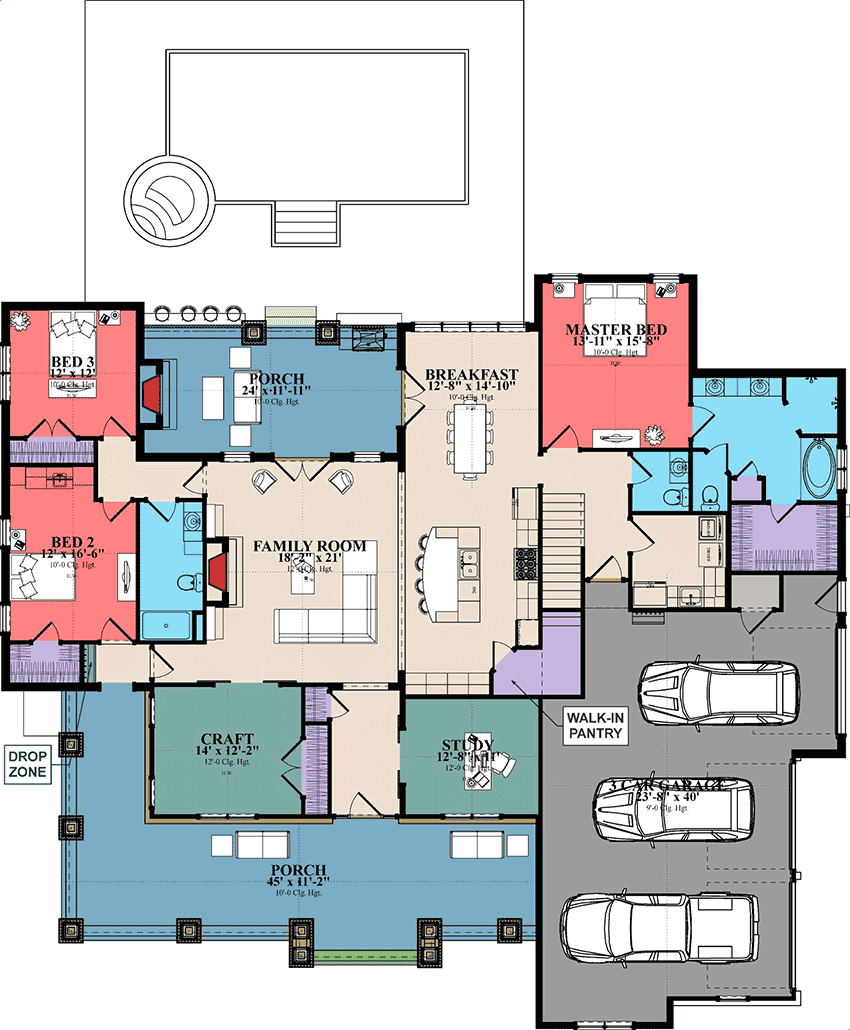

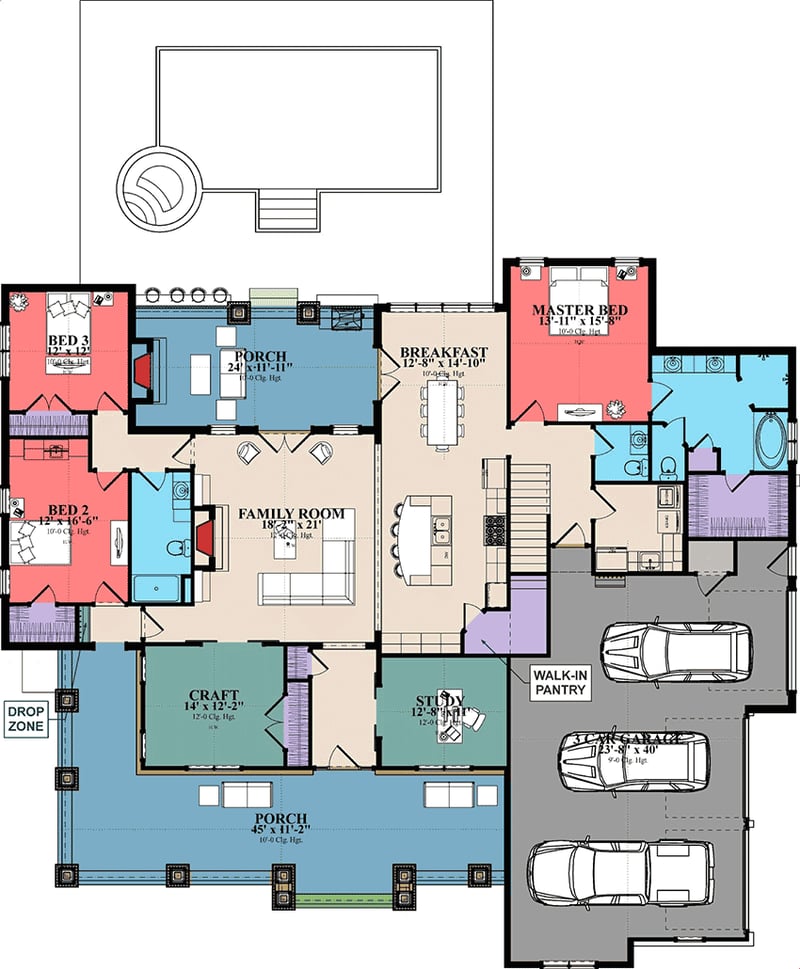

Floor Plan

  • Main Level

  • Bonus Level

Plan Details

Square Footage Breakdown

  • Total: 2,716 sq. ft.
  • 1st Floor: 2,716 sq. ft.

Dimensions

  • Width: 80' 0"
  • Depth: 71' 5"
  • Max ridge height: 27' 10"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1011 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
