Plan 86303HH

One Level Southern House Plan

Heated S.F.
2,294
Beds
4
Baths
3
Stories
1
Cars
3

Floor Plan

Plan 86303HH

Main Level
Main Level

Plan 86303HH

M-F 9am-5pm EST |

1-203-761-8500

Main Level

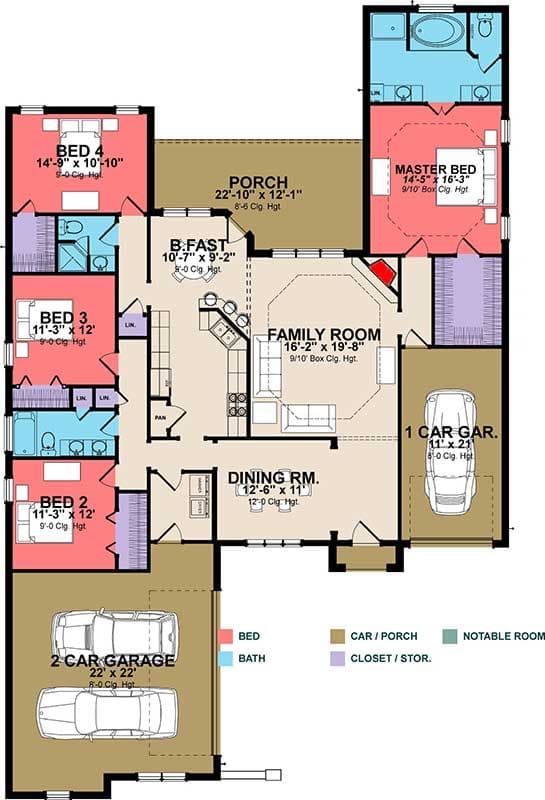

Plan 86303HH: One Level Southern House Plan - Floor Plan - Main Level - Northwest, Southern

Plan Details

  • Live all on one floor in this handsome Southern house plan.
  • The formal dining room is wide open to the foyer making the room feel much larger.
  • A corner fireplace warms the big damily room and can be seen from the kitchen sink.
  • In the breakfast nook, a door leads out to the large covered rear porch.
  • The split bedroom configuration offer a private master suite set off by itself.
  • Here you hve an elegant tray ceiling and a spacious master bathroom with a big soaking tub.
  • The garages are split with two bays on one side and a single bay on the other.

What's Included

  • Cover Sheet
  • Foundation plans
  • Elevations - complete with dimensions, ridge heights and special notes
  • Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
  • Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
  • Rafter Plan
  • Details
  • Interior Elevations - include applicable cabinetry, electrical and special construction notes
  • Floor Joist Plan - complete with spans, sizes and direction (if applicable)
  • Ceiling Joist - complete with spans, sizes and direction
  • Sections - complete with dimensions, notes and specifications
  • Electrical plan - complete wit layout, light fixtures, outlets and legend

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,294 sq. ft.

1st Floor

2,294 sq. ft.

Porch, Combined

254 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

55' 0"

Depth

86' 9"

Max Ridge Height

23' 3"

Garage

Type

Attached

Area

837 sq. ft.

Count

3 Cars

Entry Location

Front, Courtyard

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Architectural Style

Northwest

Southern

Special Features

Bedrooms - Split

Breakfast Nook

Formal Dining

Master Suite - 1st Floor

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,294 sq. ft.

1st Floor

2,294 sq. ft.

Porch, Combined

254 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

55' 0"

Depth

86' 9"

Max Ridge Height

23' 3"

Garage

Type

Attached

Area

837 sq. ft.

Count

3 Cars

Entry Location

Front, Courtyard

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Architectural Style

Northwest

Southern

Special Features

Bedrooms - Split

Breakfast Nook

Formal Dining

Master Suite - 1st Floor

Plan Collections

Photo Gallery
