Plan 86267HH

One Level Traditional House Plan

Heated S.F.
2,577
Beds
4
Baths
3
Stories
1
Cars
2

Floor Plan

Plan 86267HH

Main Level
Main Level

Plan 86267HH

M-F 9am-5pm EST |

1-203-761-8500

Main Level

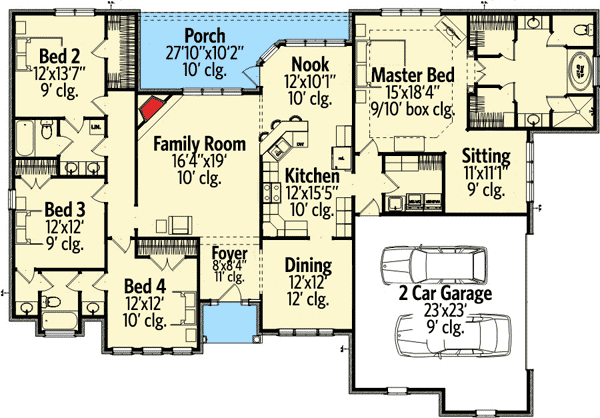

Plan 86267HH: One Level Traditional House Plan - Floor Plan - Main Level - European, Southern, Traditional

Plan Details

  • Arched transom windows across the front bring extra light into this one level Traditional house plan.
  • Inside, 10' high ceiling expand the feeling of spaciousness.
  • In the kitchen a peninsula eating bar has room for 3 stools and from the kitchen sink, you can survey what the family is doing inside or out.
  • The gracious master suite has a separate sitting room that becomes a quiet retreat.
  • Twin walk-in closets flank the double doors into the huge master bathroom where you get both a tub and a shower plus two sinks.
  • Across the house, three more family bedrooms share two bathrooms, each with double sinks to keep things moving in the morning.
  • The two car garage is side-load suitable for a corner lot.

What's Included

  • Cover Sheet
  • Foundation plans
  • Elevations - complete with dimensions, ridge heights and special notes
  • Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
  • Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
  • Rafter Plan
  • Details
  • Interior Elevations - include applicable cabinetry, electrical and special construction notes
  • Floor Joist Plan - complete with spans, sizes and direction (if applicable)
  • Ceiling Joist - complete with spans, sizes and direction
  • Sections - complete with dimensions, notes and specifications
  • Electrical plan - complete wit layout, light fixtures, outlets and legend

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,577 sq. ft.

1st Floor

2,577 sq. ft.

Porch, Combined

256 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

78' 8"

Depth

54' 3"

Max Ridge Height

29' 3"

Garage

Type

Attached

Area

608 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

European

Southern

Traditional

Special Features

Bedrooms - Split

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,577 sq. ft.

1st Floor

2,577 sq. ft.

Porch, Combined

256 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

78' 8"

Depth

54' 3"

Max Ridge Height

29' 3"

Garage

Type

Attached

Area

608 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

European

Southern

Traditional

Special Features

Bedrooms - Split

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Plan Collections

Photo Gallery
