Plan 59391ND

One-of-a-Kind Courtyard Design

Heated S.F.
2,469
Beds
4
Baths
3
Stories
2
Cars
2

Floor Plan

Plan 59391ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 59391ND

M-F 9am-5pm EST |

1-203-761-8500

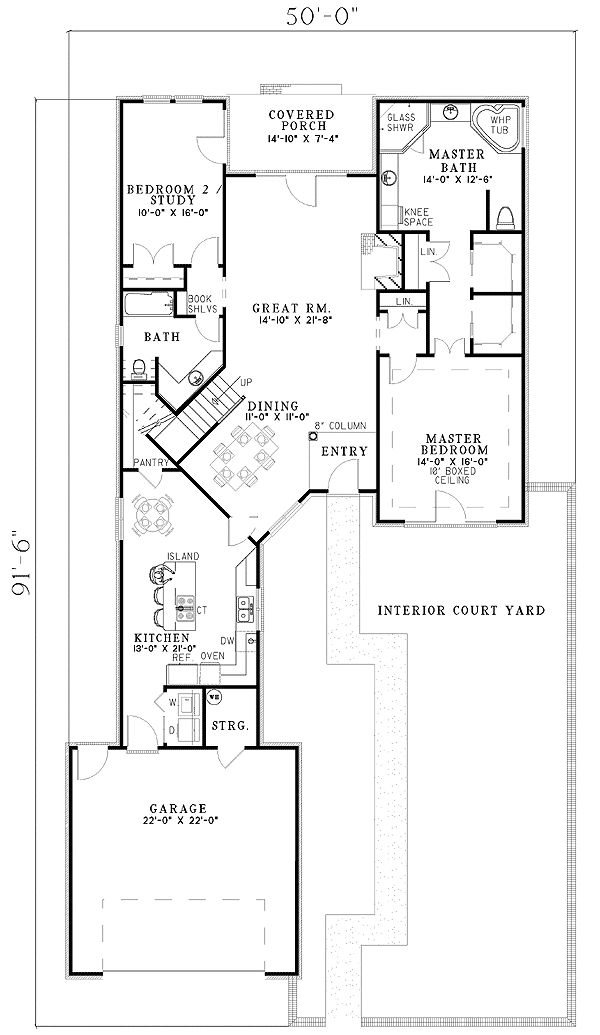

Main Level

Plan 59391ND: One-of-a-Kind Courtyard Design - Floor Plan - Main Level - Traditional

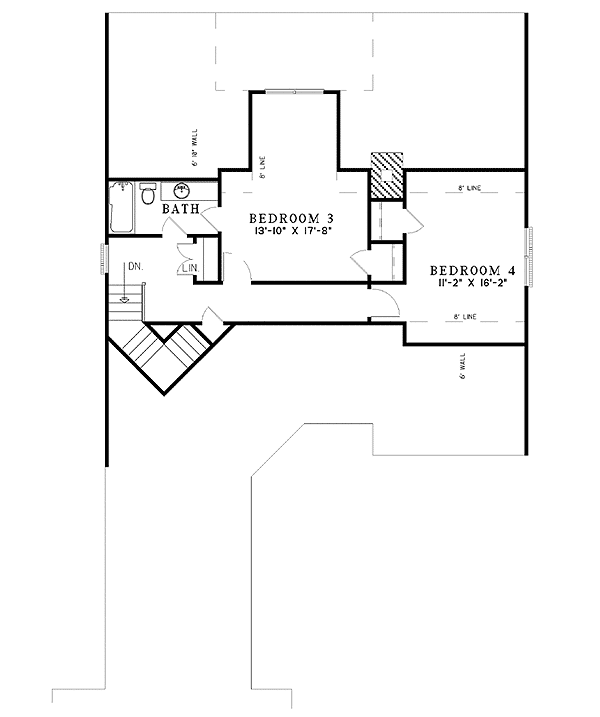

2nd Floor

Plan 59391ND: One-of-a-Kind Courtyard Design - Floor Plan - 2nd Floor - Traditional

Plan Details

  • This plan showcases a private courtyard and exciting floor plan in this one-of-a kind design. The lavish courtyard holds endless options for the landscape enthusiast of the family.
  • Inside, everyone can gather around the great room's central fireplace before heading to the angled dining room.
  • The walk-through kitchen's exciting angles makes use of all available space and features a functional entrance to the courtyard, matching walk-in closets and a corner whirlpool tub.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,469 sq. ft.

1st Floor

1,820 sq. ft.

2nd Floor

649 sq. ft.

Porch, Combined

104 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

50' 0"

Depth

91' 6"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

517 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

14 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Courtyard

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,469 sq. ft.

1st Floor

1,820 sq. ft.

2nd Floor

649 sq. ft.

Porch, Combined

104 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

50' 0"

Depth

91' 6"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

517 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

14 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Courtyard

Laundry - Main Level

Master Suite - 1st Floor
