One-Story 3-Bed 3.5 Bath House Plan with Flex Room - 2844 Sq Ft

Plan 33263ZR

  • 2,844

    Heated s.f.

  • 2-3

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • This one-story house plan gives you 2,844 square feet of one-level living with 2 beds - plus a third depending on how you use the flex room - and 3.5 baths.
  • In back, a 406 square foot covered porch serves as an outdoor living room and has an outdoor kitchen with eating bar.
  • The great room has a fireplace and is open tot he kitchen with large island, a wine bar and a pantry.
  • The master suite is on the left side of the home and has a 10'4" tray ceiling. The bath has two vanities, a spa tub and a walk-in shower. A divided walk-in closet has room for two and completes the suite. Across the home, Bed 1 has its own bathroom and Bed 2 can be used as a home office or a den.
  • Related Plan: Get an alternate exterior with house plan 33262ZR.
  • NOTE: This house plan is not for sale in Buncombe County, North Carolina.

COVER SHEET – / INDEX / SITE PLAN - The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.



WALL SECTIONS -The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.

FOUNDATION PLAN - The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.

SECOND FLOOR FRAMING (where appropriate) - The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.

FLOOR PLANS - The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.

ROOF PLAN & SOFFIT (CHASE LAYOUT) PLAN - The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.

REFLECTED CEILING PLAN - The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.



EXTERIOR ELEVATIONS - The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.



CROSS SECTION & INTERIOR ELEVATIONS - The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design. (Interior elevations may not be available for all stock plans.)



ELECTRICAL PLAN - The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

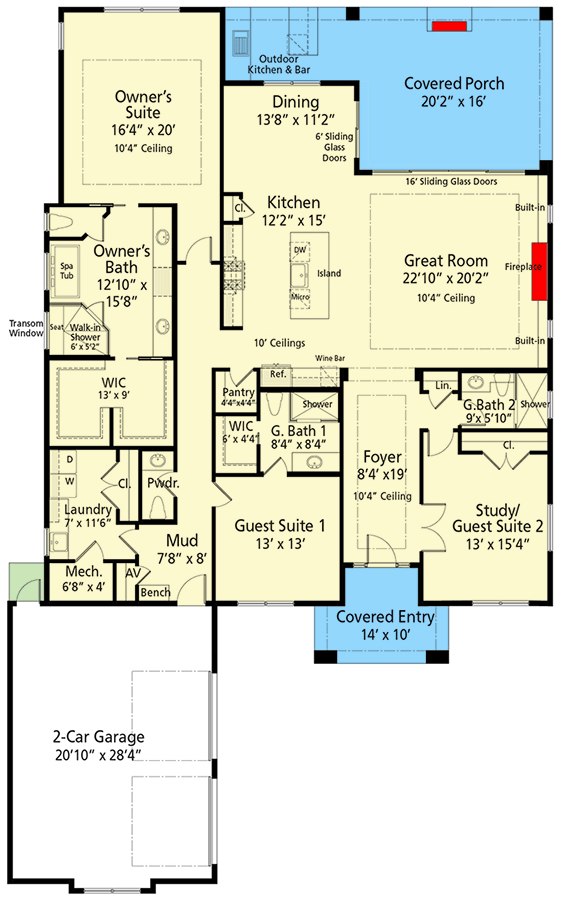

One-Story 3-Bed 3.5 Bath House Plan with Flex Room - 2844 Sq Ft - 33263ZR floor plan - Main Level

One-Story 3-Bed 3.5 Bath House Plan with Flex Room - 2844 Sq Ft

  • 2,844

    Heated s.f.

  • 2-3

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,844 sq. ft.
  • 1st Floor: 2,844 sq. ft.

Dimensions

  • Width: 56' 10"
  • Depth: 92' 6"
  • Max ridge height: 28' 5"

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 635 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

One-Story 3-Bed 3.5 Bath House Plan with Flex Room - 2844 Sq Ft

  • 2,844

    Heated s.f.

  • 2-3

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 2

    Car garage

One-Story 3-Bed 3.5 Bath House Plan with Flex Room - 2844 Sq Ft

  • 2,844

    Heated s.f.

  • 2-3

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 2,844 sq. ft.
  • 1st Floor: 2,844 sq. ft.

Dimensions

  • Width: 56' 10"
  • Depth: 92' 6"
  • Max ridge height: 28' 5"

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 635 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: Truss

    Main Level
